| Section | Objectives |
|---|---|
| BGP and Routing in Data Center Environments | - Route reflection and scaling design - Interoperability between routing domains - BGP EVPN address families |
| Data Center Interconnect (DCI) | - L2 and L3 DCI design patterns - Redundancy and high availability strategies - EVPN-based interconnect solutions |
| Operations, Troubleshooting and Best Practices | - Network optimization and scaling considerations - Monitoring SR Linux and EVPN environments - Troubleshooting BGP EVPN and VXLAN issues |
| SR Linux Architecture and Fundamentals | - SR Linux system architecture and components - Configuration and operational models - Network operating system concepts and containerized routing functions |
| EVPN and VXLAN Data Center Fabric | - VXLAN data plane and encapsulation - EVPN route types and MAC/IP advertisement - EVPN control plane fundamentals |
경쟁이 치열한 IT업계에서 굳굳한 자신만의 자리를 찾으려면 국제적으로 인정받는 IT자격증 취득은 너무나도 필요합니다. Nokia인증 4A0-D03시험은 IT인사들중에서 뜨거운 인기를 누리고 있습니다. PassTIP는 IT인증시험에 대비한 시험전 공부자료를 제공해드리는 전문적인 사이트입니다.한방에 쉽게Nokia인증 4A0-D03시험에서 고득점으로 패스하고 싶다면PassTIP의Nokia인증 4A0-D03덤프를 선택하세요.저렴한 가격에 비해 너무나도 높은 시험적중율과 시험패스율, 언제나 여러분을 위해 최선을 다하는PassTIP가 되겠습니다.
질문 # 44

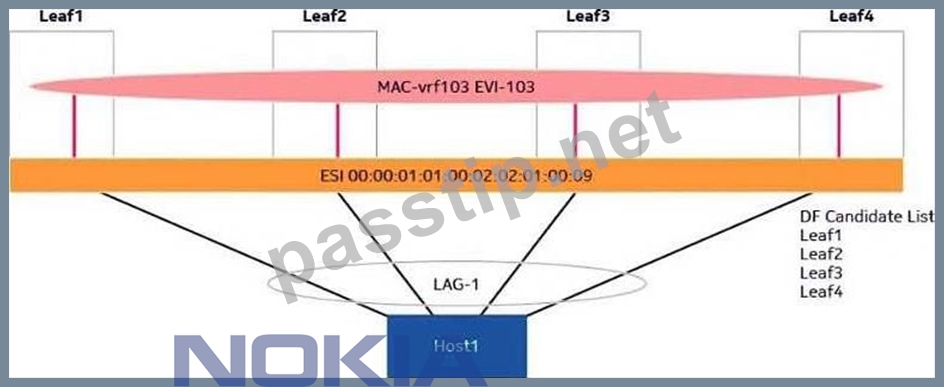

Consider the exhibit.
Leaf1 and Leaf2 have the Ethernet segment configured to use the default election algorithm while Leaf3 and Leaf4 are configured to use the preference-based algorithm with Leaf3 having the higher preference value. The DF candidate list is the same on all leaf routers.
Which of the following leafs is the DF for mac-vrf103?
정답：B
설명：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.
질문 # 45

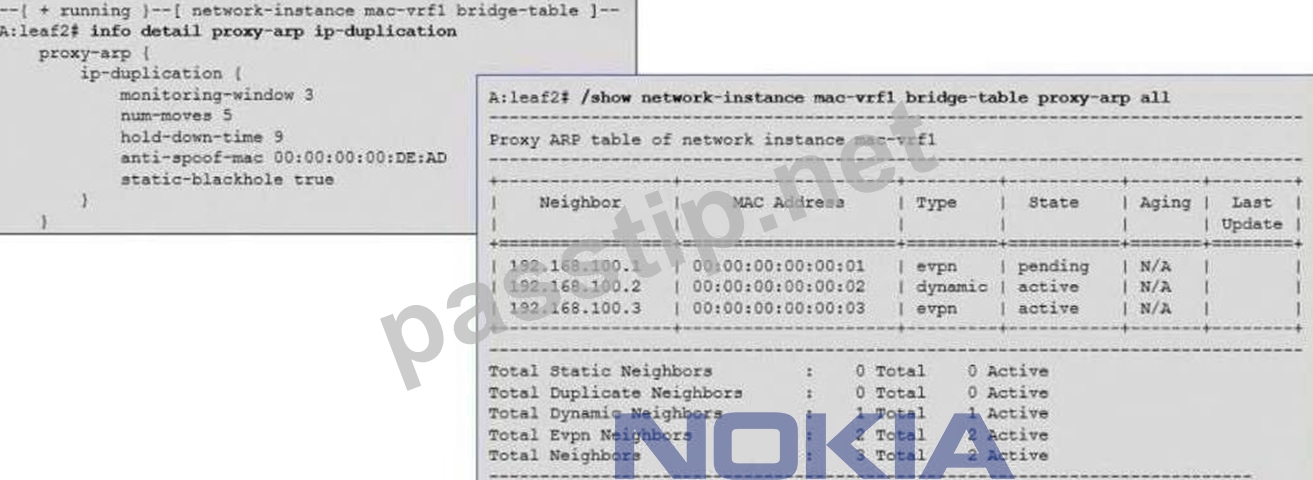

Consider the exhibit.
Which of the following statements about the proxy ARP entry for the neighbor IP 192.168.100.1 is FALSE?
정답：A
설명：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Proxy ARP in a Layer 2 EVPN service allows the leaf to answer ARP requests locally using learned IP/MAC bindings, reducing broadcast flooding across the overlay. SR Linux can also monitor IP duplication and MAC/IP inconsistencies in the proxy ARP table. A pending state indicates that the system has detected suspicious or conflicting information and is monitoring the binding before declaring it duplicate. If the entry becomes duplicate, SR Linux can use a blackhole behavior to prevent forwarding traffic toward a conflicted endpoint, and a special discard MAC such as 00:00:00:00:DE:AD can be associated with the duplicate entry. Option D is false because it incorrectly states that all traffic destined to 192.168.100.1 will be discarded for exactly 9 minutes. The exhibit references monitoring and hold-down behavior, but the answer key rejects the fixed "9 minutes" traffic-discard statement. The key concept is that duplicate handling protects the EVPN service from unstable or conflicting IP/MAC bindings, but the specific discard duration in option D is not correct. Reference: proxy ARP, IP duplication monitoring, duplicate-state blackhole behavior.
질문 # 46
Leaf routers are configured to support Layer 2 multi-homing all-active mode.
Which of the following statements is FALSE?
정답：D
설명：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In all-active Layer 2 EVPN multi-homing, the host is typically dual-homed to two or more leaf routers using a LAG. The participating leaf routers must configure the LAG and associate it with the Ethernet Segment so EVPN can advertise the common ESI and apply aliasing, split-horizon, and DF procedures. If VLAN tagging is used for service separation, tagging must be configured on the LAG interface so that the correct subinterfaces can bind into the MAC-VRF and Ethernet Segment. Option C is false because it states that the LACP system-id-mac must uniquely identify each leaf router. In an all-active EVPN multihomed LAG, the opposite principle applies: from the host's LACP perspective, the multihomed leaf pair must appear as a single logical LACP system. That generally requires a shared LACP system ID or coordinated system MAC behavior across the participating PEs. If each leaf presented a unique LACP system identity, the host would treat them as separate LAG partners and the all-active bundle would not form correctly. Reference: all-active L2 EVPN multi-homing, LAG attachment, LACP system ID behavior, Ethernet Segment association.
질문 # 47

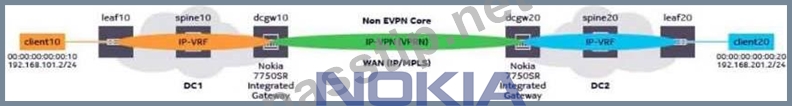

Consider the exhibit.
Which of the following is NOT configured on dcgw10 to support the Layer 3 VPN connectivity?
정답：A
설명：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In an integrated gateway-based data center interconnect design, the gateway must interwork between the data center EVPN/VXLAN domain and the WAN VPN transport domain. For Layer 3 VPN connectivity on a Nokia 7750 SR integrated gateway, the base BGP instance must support the relevant VPN address families, such as VPN-IPv4 and EVPN, because the gateway participates in control-plane exchange between the data center and WAN sides. The VPRN must also be associated with the WAN transport, normally through MPLS tunnel binding, and the VRF target must match the corresponding VPRN on the remote gateway so that VPN routes are imported and exported correctly. A routed VXLAN interface, however, is an SR Linux IP-VRF/VXLAN construct used for symmetric L3 EVPN forwarding inside a VXLAN-based data center fabric. In this question, dcgw10 is acting as the integrated WAN gateway for L3VPN connectivity, so a routed VXLAN interface is not the required configuration item on the VPRN instance. Reference: integrated gateway DCI, VPRN over MPLS, EVPN-to-VPN interworking.
질문 # 48
Which EVPN route-type (RT) is used in multi-homing scenarios to support aliasing and fast convergence?
정답：A
설명：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
The EVPN route type used for aliasing and fast convergence in multi-homing is RT-1, the Ethernet Auto-Discovery route. RT-1 has two important forms: Ethernet A-D per Ethernet Segment and Ethernet A-D per EVI. These routes advertise reachability to a multi-homed Ethernet Segment and to a specific EVPN instance on that segment. Remote PEs use this information for aliasing, meaning they can forward traffic toward any eligible PE attached to the same Ethernet Segment, even when a specific MAC was advertised by only one PE. RT-1 also supports fast convergence because withdrawal of Ethernet A-D routes quickly informs remote PEs that an attachment path or PE is no longer valid, avoiding slow MAC aging as the primary failure-detection mechanism. RT-4 Ethernet Segment routes are related to multi-homing, but their main function is Ethernet Segment discovery and Designated Forwarder election. RT-2 advertises host MAC/IP reachability, and RT-3 builds multicast/BUM replication lists. Therefore, RT-1 is the precise answer for aliasing and fast convergence. Reference: EVPN multi-homing route types, Ethernet Auto-Discovery, aliasing and convergence behavior.
질문 # 49
......
