| Section | Weight | Objectives |
|---|---|---|
| Monitoring, Maintenance and Troubleshooting | 30% | - FortiLink and connectivity troubleshooting - System monitoring, logs and alerts - Firmware management, backup and restore - Diagnostic tools and packet capture |
| Layer 2 Control and Security | 25% | - Security profiles and access control - ACL, antispoofing, and filtering - VLAN security and segmentation - Port security and MAC address control |
| FortiSwitch Concepts and Fundamentals | 20% | - Port configuration, VLANs, and interfaces - STP, link aggregation, and stacking - Switching fundamentals and architecture - FortiSwitch product overview and deployment modes - QoS, LLDP-MED, and PoE management |
| Deployment and FortiLink Integration | 25% | - FortiLink architecture and integration with FortiGate - High availability and redundancy - Provisioning and deployment topologies - Multi-tenancy and centralized management |
>> NSE5_FSW_AD-7.6 Quizfragen Und Antworten <<
Unsere Webseite Zertpruefung tun unseres Bestes, damit wir den Kandidaten den besten und bequemesten Kundendienst bieten können. Dank unseren gemeinsamen Anstrengungen haben die Erfolgsquote von Zertpruefung zur Fortinet NSE5_FSW_AD-7.6 Zertifizierungsprüfung 100% erreicht. Wenn Sie unsere Schulungsunterlagen zur Fortinet NSE5_FSW_AD-7.6 Zertifizierungsprüfung kaufen, können Sie zudem eine einjährige Aktualisierung kostenlos genießen. Bitte beeilen Sie sich!
43. Frage
Refer to the exhibits.
Three FortiSwitch devices in standalone mode are interconnected. The CLI command diagnose stp instance list is executed on Core-2. Based on the output shown in the exhibit, what can you conclude about Core-2?
(Choose one answer)
Antwort: C
Begründung:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the output of the diagnose stp instance list command provides critical information about the Spanning Tree Protocol (STP) state of a switch within a given instance. In the provided exhibit, the output forInstance ID 0 (CST)onCore-
2shows several key indicators of its role and connectivity within the STP topology.
First, the output explicitly identifies aRootbridge with MAC address 02090f000701 and a priority of 4096.
Core-2 itself has a MAC address of 02090f000702 and a priority of 32768. Because Core-2 knows the MAC address and priority of the Root bridge, it must have received this information viaBridge Protocol Data Units (BPDUs). Furthermore, the port table shows thatport3on Core-2 has been assigned the role ofROOTand is in theFORWARDINGstate. In STP/RSTP, a Root Port is the port on a non-root switch that has the lowest path cost to the root bridge. To elect a Root Port and maintain its state, the switch must continuously receive BPDUs from the root bridge (or a bridge closer to the root) on that port.
Option B is incorrect because Core-2 has aRoot Port, which is only present on non-root bridges. Option C is incorrect because ports 1, 2, 4, 5, and the internal port are all in theFORWARDINGstate. Option D is incorrect as the output does not show any ports in anALTERNATErole; all active ports are either ROOT or DESIGNATED. Therefore, the most accurate conclusion is that Core-2 has successfully received BPDUs to identify the root and determine its own port roles.
44. Frage
Refer to the diagnostic output:
What makes the use of the sniffer command on the FortiSwitch CLI unreliable on__port__23?
Antwort: B
Begründung:
Page 452 of 7.6 study guide, specifically states " Although you can use the sniffer command to capture traffic on switch ports, the types of packets capture by the sniffer are very limited.
The use of the sniffer command on FortiSwitch CLI can be unreliable on port 23 for specific reasons related to the nature of traffic on the port:
D).The switch port might be used as a trunk member.When a switch port is configured as a trunk, it can carry traffic for multiple VLANs. If the sniffer is set up without specifying VLAN tags or a range of VLANs to capture, it may not accurately capture or display all the VLAN traffic due to the volume and variety of VLAN- tagged packets passing through the trunk port. This limitation makes using the sniffer on a trunk port unreliable for capturing specific VLAN traffic unless properly configured to handle tagged traffic.
References:
For guidelines on how to properly use sniffer commands on trunk ports and configure VLAN filtering, consult the FortiSwitch CLI reference available through Fortinet support channels, including theFortinet Knowledge Base.
45. Frage

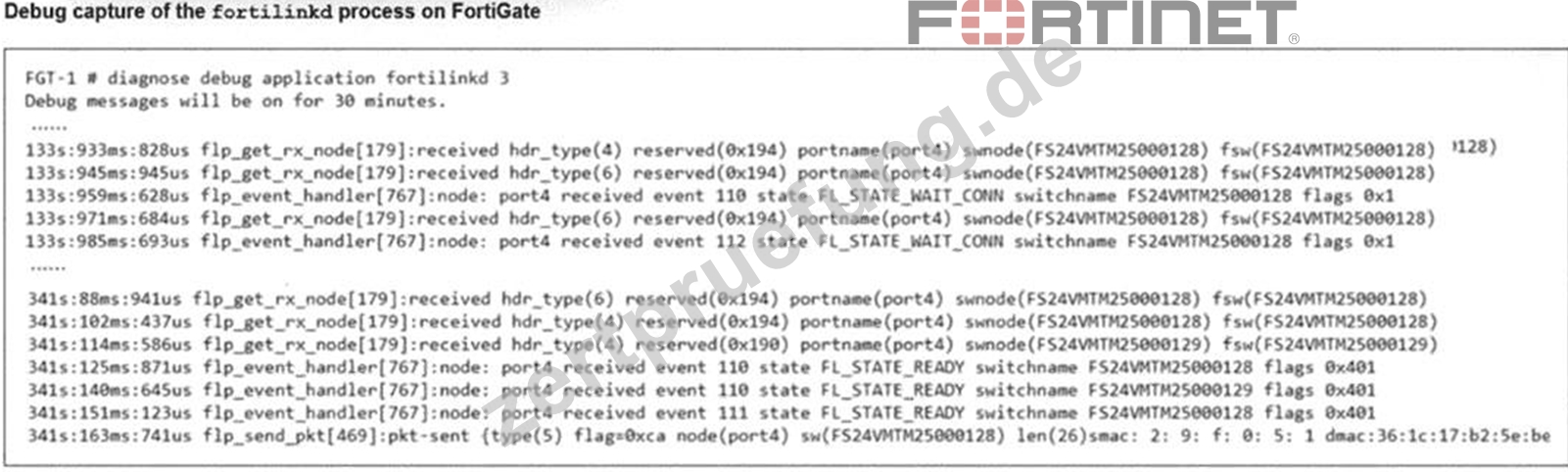

Refer to the exhibit.
A periodic heartbeat message sent from a managed FortiSwitch and corresponding acknowledgments from FortiGate is shown. What does this behavior indicate? (Choose one answer)
Antwort: C
Begründung:
According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.
The debug output reveals two critical indicators of a successful connection:
* State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.
* Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.
The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.
46. Frage
What can an administrator do to maintain a FortiGate-compatible FortiSwitch configuration when changing the management mode from standalone to FortiLinK?
Antwort: D
Begründung:
When transitioning the management of a FortiSwitch from standalone mode to being managed by FortiGate via FortiLink, it is critical to ensure that the existing configurations are preserved. The best practice involves:
* FortiGate's Role in Configuration Preservation:FortiGate has the capability to automatically preserve the existing configuration of a FortiSwitch when it is integrated into the network via FortiLink. This feature helps ensure that the transition does not disrupt the network's operational settings.
* Configuration Integration:As FortiSwitch is integrated into FortiGate's management via FortiLink, FortiGate captures and integrates the existing switch configuration, enabling a seamless transition. This process involves FortiGate recognizing the FortiSwitch and its current setup, then incorporating these settings into the centralized management interface without the need for manual reconfiguration or the use of additional tools.
References:For further details on managing FortiSwitch with FortiGate and the capabilities of FortiLink, consult the FortiSwitch and FortiGate integration guide available on:Fortinet Product Documentation
47. Frage
(Full question statement start from here)

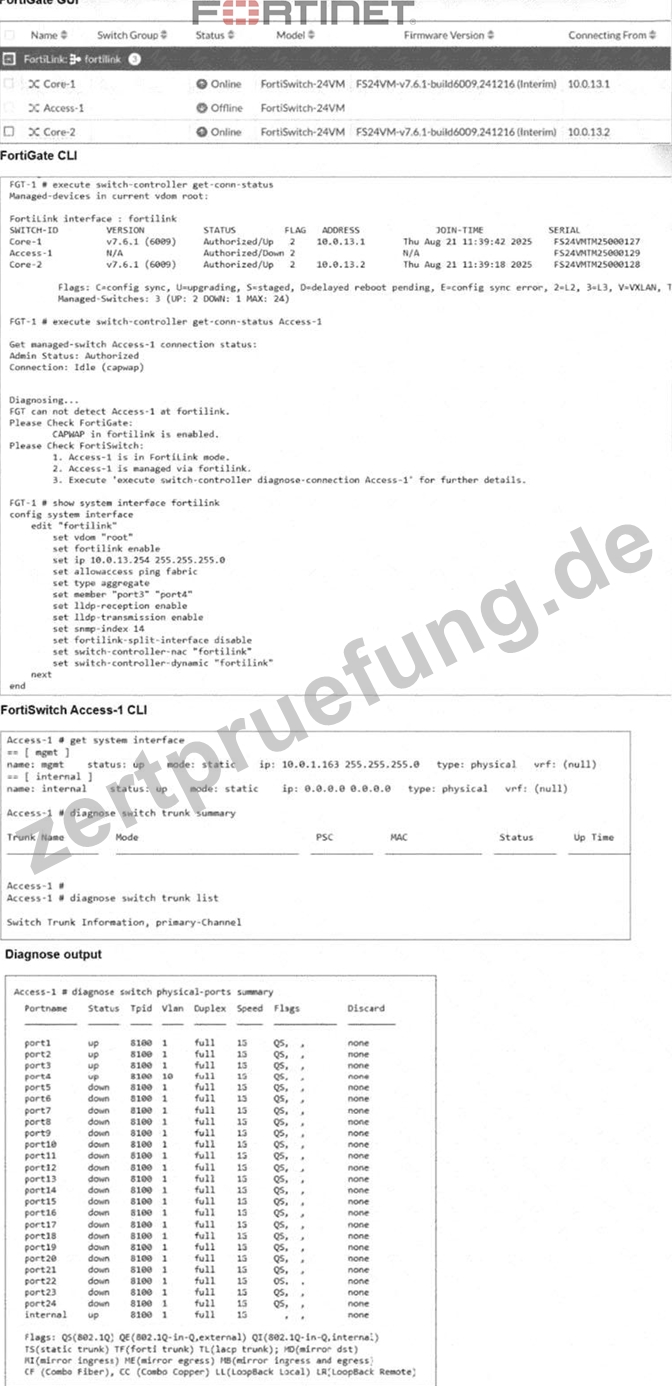

Refer to the exhibits.
Three FortiSwitch devices were recently configured to be managed by FortiGate. Two are managed successfully, butFortiSwitch Access-1is not.
Based on the configuration output, whichinitial changeis required for FortiSwitch Access-1 to be managed?
(Choose one answer)
Antwort: A
Begründung:
In a FortiGate-managed switching deployment usingFortiLink, FortiSwitch devices rely on theirinternal interfaceto establish management connectivity with the FortiGate. According to the FortiSwitchOS 7.6 Administrator Guide, when a FortiSwitch operates in FortiLink mode, theinternal interface must obtain an IP address dynamically via DHCPfrom the FortiGate over the FortiLink interface. This IP address is required for control-plane communication, including CAPWAP-based management messaging.
From the exhibit, FortiGate successfully managesCore-1andCore-2, whileAccess-1remains offline. The FortiGate diagnostic output explicitly reports that itcannot detect Access-1 at the FortiLink interface, even though CAPWAP is enabled and the switch is in FortiLink mode. This eliminates CAPWAP configuration (Option B) as the root cause.
Examining the FortiSwitch Access-1 CLI output reveals the key issue:
* Theinternal interfaceis configured withmode: staticand an IP address of0.0.0.0.
This configuration prevents Access-1 from obtaining a valid FortiLink management IP address, which is mandatory for FortiGate discovery and authorization. In contrast, FortiSwitch devices managed by FortiGate must have their internal interface set toDHCP, allowing the FortiGate to automatically assign an address from the FortiLink subnet.
Assigning a static IP (Option A) is not recommended or required in FortiLink-managed mode, NTP configuration (Option D) has no impact on discovery, and CAPWAP is already enabled as shown in the FortiGate output.
Therefore, theinitial and required corrective actionis toset the Access-1 internal interface mode to DHCP, makingOption Cthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 documentation.
