You final purpose is to get the HPE7-A06 certificate. So it is important to choose good study materials. In fact, our aim is the same with you. Our HPE7-A06 study materials have strong strengths to help you pass the exam. Maybe you still have doubts about our HPE7-A06 exam materials. We have statistics to prove the truth. First of all, our sales volumes are the highest in the market. You can browse our official websites to check our sales volumes. At the same time, many people pass the exam for the first time under the guidance of our HPE7-A06 Practice Exam.
| Section | Weight | Objectives |
|---|---|---|
| Network Resiliency and Virtualization | 12% | |
| Troubleshooting | 9% | |
| Switching | 19% | |
| Security | 13% | |
| WLAN | 10% | |
| Network Stack | 4% | |
| Performance Optimization | 4% | |
| Connectivity | 13% | |
| Routing | 16% |
>> Reliable HPE7-A06 Cram Materials <<
The HP HPE7-A06 certification provides is beneficial to accelerate your career in the tech sector. Today, the HP certification is a fantastic choice to get high-paying jobs and promotions, and to achieve it, you must crack the challenging HPE7-A06 Exam. It is critical to prepare with actual HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam questions if you have less time and want to clear the test in a short time.
NEW QUESTION # 90
the administrator of a largo company noticed thatthere are some problems with UCC sessions on a wired network. Some employees complain about dropped calls and poor quality. The administrator wants to monitor, jitter on AOS-CX switches with iP SLA. but notices results spiking to 100% What should the administrator check first to correct monitoring to run as desired?
Answer: C
Explanation:
The administrator observes IP SLA jitter monitoring results spiking to 100% when monitoring UCC sessions.
This indicates either extremely severe network jitter or, more likely, a problem with the IP SLA operation or measurement itself on the AOS-CX switch.
* IP SLA & Jitter:IP SLA measures jitter by analyzing the inter-packet delay variation of probe packets.
Accurate measurements depend on the switch generating and processing these probes consistently.
* Factors Affecting IP SLA Accuracy:
* Switch Resource Contention:If the switch's CPU or memory is heavily utilized, the operating system might not schedule the IP SLA process promptly. This can lead to inconsistent generation or processing of probe packets, causing highly inaccurate measurements, including extreme jitter values like 100%.
* Control Plane Policing (CoPP):IP SLA packets are control plane traffic. If CoPP policies are too restrictive, they might drop or delay IP SLA probes, skewing results.
* Network Path Issues:Actual severe jitter on the network path would also cause high readings, but 100% spikes often suggest measurement error first.
* Troubleshooting Steps:When encountering unexpectedly high or erratic IP SLA results, the first step is often to rule out issues with the monitoring device itself.
* Analysis of Options:
* A. memory and processor usage: Checking the switch's resource utilization is crucial. High CPU
/memory load can directly impact the timing accuracy of IP SLA operations.
* B. source IP and source port combination: Unlikely to cause 100% jitter spikes unless fundamentally misconfigured causing probe failure.
* C. number of NAE agents: NAE agents consume resources, but checking overall CPU/memory (A) is more direct.
* D. CoPP settings: A valid concern, as CoPP affects control plane traffic. However, checking overall system load (A) is typically a primary check before delving into specific policies like CoPP.
* Conclusion:High memory and processor usage (Option A) on the switch running the IP SLA operation is a common cause for inaccurate timing and resulting erroneous jitter measurements. This should be checked first to ensure the monitoring platform itself is functioning correctly.
References:AOS-CX IP SLA Guide, AOS-CX Management and Configuration Guide (Monitoring CPU
/Memory, CoPP). This relates to "Performance Optimization" (6%) and "Troubleshooting" (10%).
NEW QUESTION # 91
Why is "linkup-delay-timer exclude lag-list" used in a VSX configuration?
Answer: D
Explanation:
The linkup-delay-timer exclude lag-list command in a VSX configuration is used to exclude specific LAG interfaces that connect to other switches from the global link-up delay mechanism.
By default, the link-up delay timer holds down all interfaces for a defined period after a reboot to prevent loops and ensure stability. However, inter-switch connections (like LAGs to other switches) should not be delayed, as they are essential for fast VSX peer synchronization.
Excluding these LAGs ensures they come up immediately while still applying the delay to other access-facing ports.
NEW QUESTION # 92
The customer is experiencing periodic uplink congestion between campus-1's AGG-1 and core.
This has been negatively affecting voice communications. The VoIP phones edge mark packets with DSCP EF. The uplink from AGG-1 to core is LAG1.

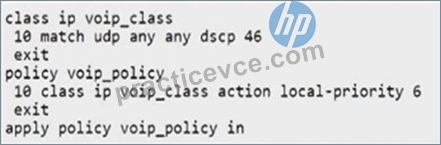

The customer has already configured the following class and policy on AGG-1:
Based on this policy, which script, when deployed on AGG-1, will improve the reliable forwarding of voice traffic between AGG-1 and its uplink to the core?
Answer: B
Explanation:

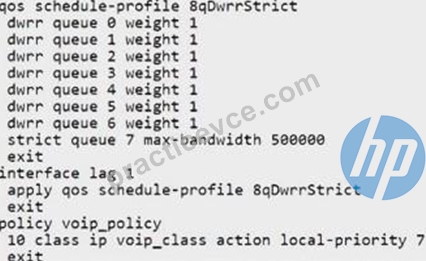

The policy already classifies VoIP traffic (DSCP EF) and sets local-priority 6. To ensure reliable forwarding during congestion, that traffic must be mapped into a strict priority queue on the uplink (LAG1). Script A configures queue 7 as a strict priority queue with a bandwidth limit, and applies the schedule profile to LAG1, ensuring voice traffic is dequeued before other traffic. This guarantees low latency and jitter for VoIP.
NEW QUESTION # 93
Drag and Drop Question

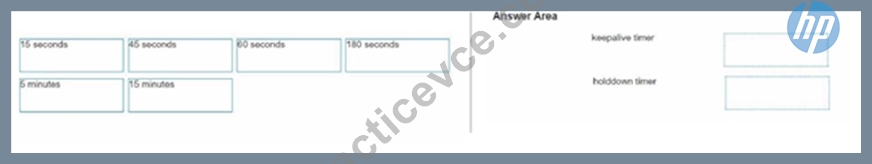

Match the AOS-CX switch BGP keepalive and holddown timers to the default.

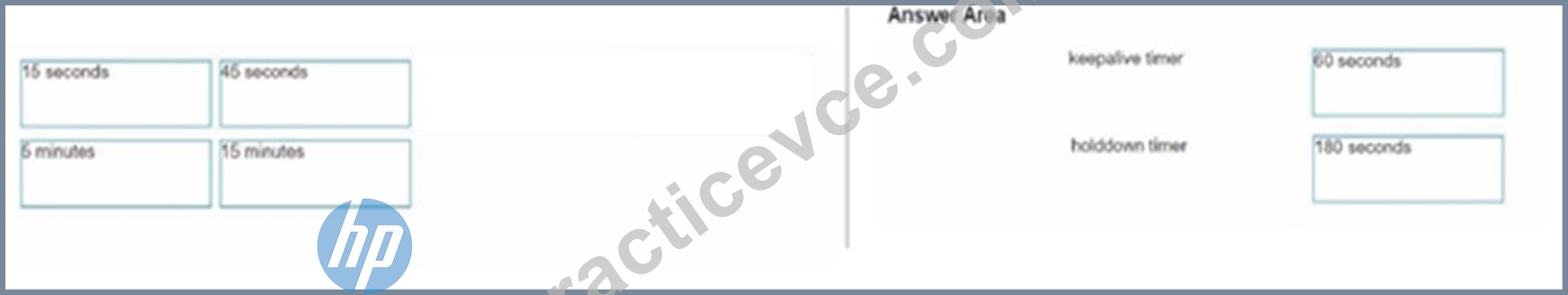

Answer:
Explanation:
Explanation:
Keepalive timer: 60 seconds (interval for sending keepalive messages).
Holddown (Hold) timer: 180 seconds (maximum time to wait before declaring a neighbor down if no keepalives are received).
NEW QUESTION # 94

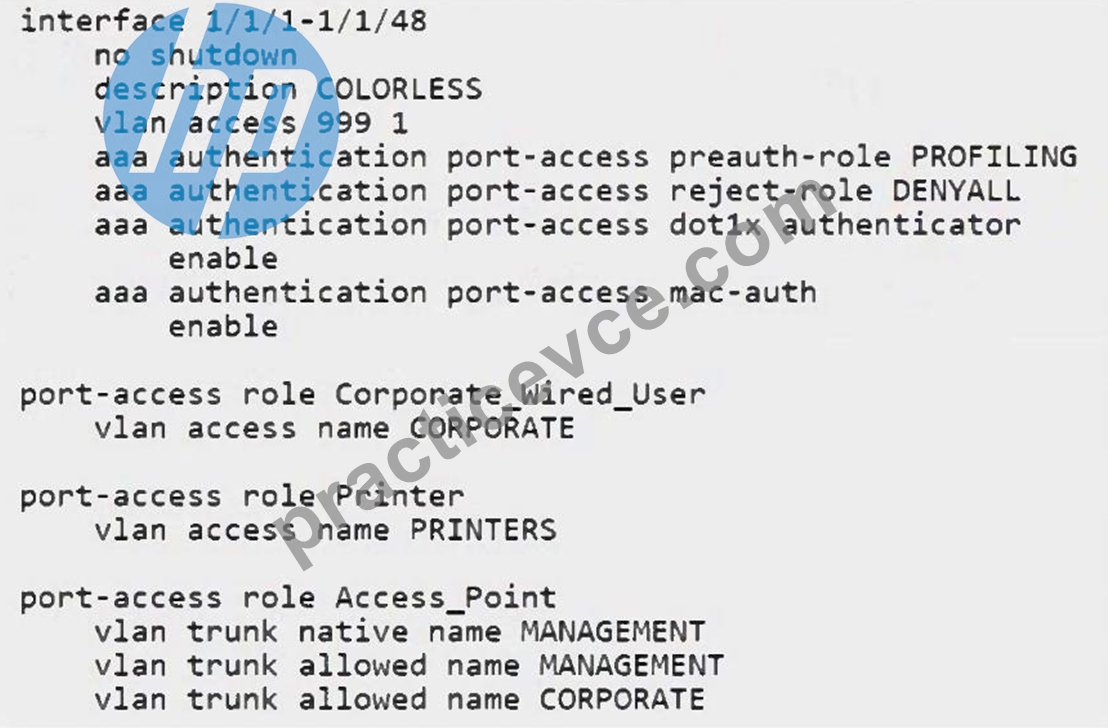

A customer is trialing the below colorless port configuration on a single switch and has noticed that users roaming to access points connected to the test switch are unable to receive an IP address on the corporate Wi-Fi network, which is operating in bridged mode. All other SSIDs are working as expected and the AP is Online in HPE Aruba Networking Central.
The security team reports that there have been no failed authentications in HPE Aruba Networking ClearPass Access Tracker and that the last entry for the wired port is returning the REDIUS Aruba-User-Role attribute 'Access_Point'.
Which configuration change is required to resolve the issue?
port-access client-move enable
Answer: D
Explanation:
For AP uplinks carrying bridged SSIDs, the switchport must authenticate only the AP and then treat all client MACs as part of the same trusted device. Enabling auth-mode device-mode under the Access_Point port-access role ensures the AP is authenticated (MAC-auth), the trunk is applied, and the switch does not attempt to re-authenticate wireless client MACs - allowing clients on the corporate SSID to obtain IP addresses.
NEW QUESTION # 95
......
Keeping the dynamic HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam content in mind, we provide updated and reliable HPE7-A06 test material. We also offer free HP Dumps updates for up to 1 year after your purchase. We only provide cost-effective HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam practice material. A 24/7 customer service can also help you in case of any problem. Don't wait for your success if the best HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam preparation material is available on our platform. You can get actual HPE Campus Access Switching Expert Written Exam (HPE7-A06) exam questions and prepare for your test in a short time. If you have any issue, please contact our customer support.
