NEW QUESTION # 51
On the OSPF network shown in the figure, all IP addresses can communicate with each other. Then the following configurations are added on R1:
[R1] acl 3000
[R1-acl4-advance-3000] rule deny ip source 10.0.1.1 0.0.0.0
[R1-acl4-advance-3000] rule deny ip source 10.1.1.1 0.0.0.0
[R1-acl4-advance-3000] rule permit ip source 10.3.1.1 0.0.0.0
[R1-acl4-advance-3000] rule permit ip
[R1-acl4-advance-3000] quit
[R1] traffic classifier test
[R1-classifier-test] if-match acl 3000
[R1-classifier-test] quit
[R1] traffic behavior test
[R1-behavior-test] permit
[R1-behavior-test] quit
[R1] traffic policy test
[R1-trafficpolicy-test] classifier test behavior test
[R1-trafficpolicy-test] quit
[R1] interface GE 0/0/1
[R1-GE0/0/1] traffic-policy test outbound
[R1-GE0/0/1] quit
Which IP addresses of S1 can successfully ping 10.0.23.3? (Select all that apply)
Answer: A,B,C,D
Explanation:
All four addresses can successfully ping 10.0.23.3, so the correct answer is A, B, C, D .
The key point is that the traffic policy is applied outbound on GE0/0/1 of R1, which is the interface facing S1
. When S1 pings 10.0.23.3, the echo request travels from S1 to R1 and then to S2. The return echo reply from
10.0.23.3 comes back to R1 and is then sent outbound on GE0/0/1 toward S1. Therefore, the traffic policy examines the reply packets , not the original ping request packets.
In those reply packets, the source IP address is 10.0.23.3 , and the destination is one of S1's loopback addresses. The ACL rules denying 10.0.1.1 and 10.1.1.1 as source addresses do not match these reply packets, because those addresses appear as destination addresses , not source addresses. In addition, the ACL contains rule permit ip, which permits all remaining IP traffic. As a result, replies to all four S1 addresses are forwarded successfully, so every listed address can ping 10.0.23.3.
NEW QUESTION # 52
Assume that you cannot configure an IP address for GE1/0/1 on a Huawei switch. Which of the following commands can you run in the interface view to resolve this problem?
Answer: D
Explanation:
On Huawei switches, a physical Ethernet interface usually works as a Layer 2 switch port by default. A Layer 2 interface cannot be assigned an IP address directly. If an administrator wants to configure an IP address on such an interface, the interface must first be converted into a Layer 3 interface . The command used for this is undo portswitch , so option B is correct.
After this command is executed, the interface no longer behaves as a Layer 2 switching port and can then support Layer 3 features such as direct IP address configuration. Options A , C , and D are all Layer 2 port- type commands used to configure the interface as a trunk, access, or hybrid port. These commands do not solve the problem because they keep the interface operating at Layer 2. HCIA-Datacom emphasizes the difference between Layer 2 switching interfaces and Layer 3 routed interfaces on switches. Understanding when to use undo portswitch is important in campus network deployment, especially when configuring routed uplinks, management interfaces, or inter-device Layer 3 links on switches.
NEW QUESTION # 53
R1 has the following configurations:
[R1] nat address-group test 1
[R1-address-group-test] section 1 100.1.23.1 100.1.23.254
[R1-address-group-test] mode pat
[R1-address-group-test] quit
[R1] nat-policy
[R1-policy-nat] rule name test
[R1-policy-nat-rule-test] source-address range 192.168.0.0 192.168.255.255
[R1-policy-nat-rule-test] action source-nat address-group test
[R1-policy-nat-rule-test] quit
[R1-policy-nat] quit
[R1] interface GE 0/0/2
[R1-GE0/0/2] nat enable
[R1-GE0/0/2] quit
Which of the following statements is false ?
Answer: C
Explanation:
Option C is false. In this configuration, the NAT address group test contains the public address range
100.1.23.1 to 100.1.23.254 , and the address group works in PAT mode . Port Address Translation allows multiple different intranet users to share the same public IP address while being distinguished by different transport-layer port numbers. Therefore, intranet users with different private IP addresses do not have to use different post-NAT public IP addresses.
Option A is true because 100.1.23.254 is included in the configured public address pool and can be used for source NAT. Option B is also true because NAT is enabled on GE0/0/2 , so if user traffic does not leave through that interface, the NAT policy may not be applied and public access may fail. Option D is true because the configured source address range includes 192.168.1.100, which falls within 192.168.0.0 to
192.168.255.255. HCIA-Datacom teaches that NAT behavior depends on matching traffic, address pools, PAT or no-PAT mode, and the interface where NAT is enabled. This question mainly tests understanding of source NAT and PAT address-sharing behavior.
NEW QUESTION # 54

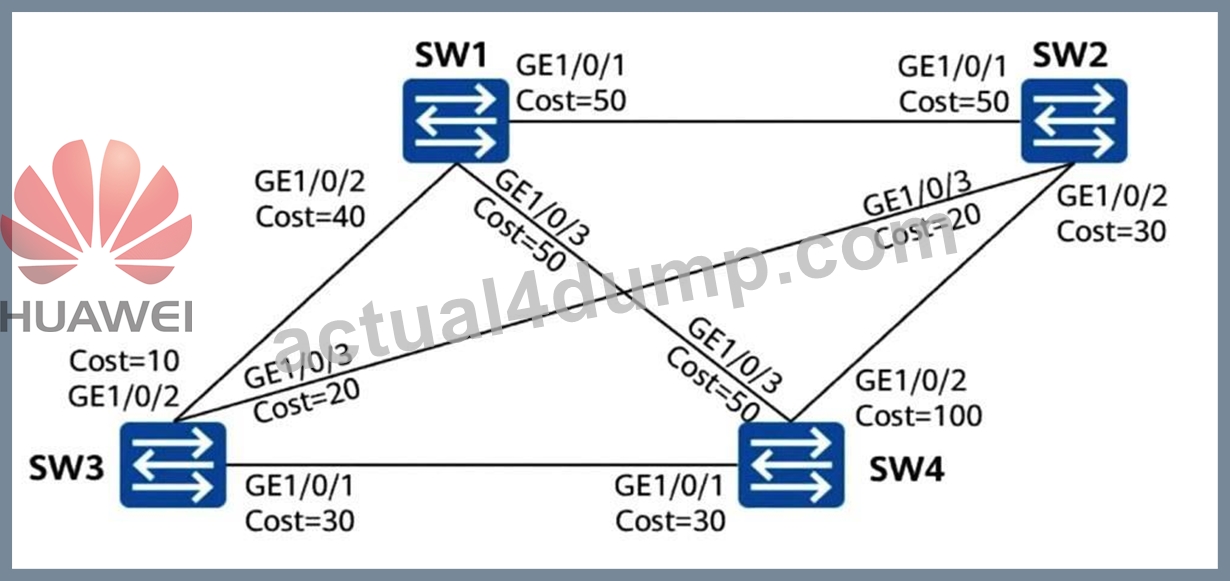

On the switched network shown in the figure, STP is enabled on all devices. SW1 is the root bridge. The port costs are shown in the figure. Other parameters retain the default values. After the network is stable, which of the following RPC values is calculated by SW4 for the path to SW1?
Answer: A
Explanation:
SW1 is the root bridge, so SW4 calculates its Root Path Cost (RPC) based on the lowest cumulative STP cost path to SW1. The direct link from SW4 to SW1 has a cost of 50, which is lower than all alternative paths through SW3 or SW2. Therefore, SW4 selects the direct path, resulting in an RPC of 50.
NEW QUESTION # 55

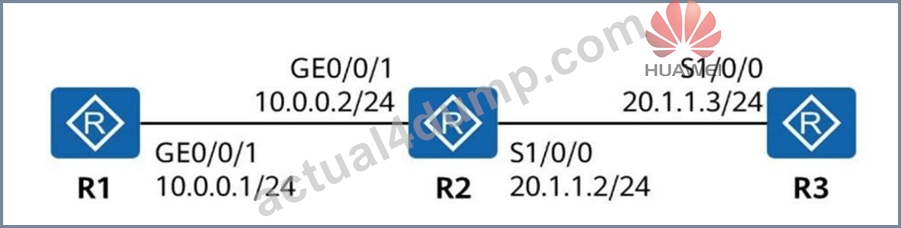

Which of the following configurations can enable connectivity between interfaces on R1 and R3? (Select all that apply)
Answer: B,D
Explanation:
For two directly connected edge networks to communicate through intermediate routing, each end router must have a route to the remote destination network pointing to the correct next hop on the transit link. Since
10.0.0.0/24 is directly connected to R1 and 20.1.1.0/24 is directly connected to R3, R1 needs a route to
20.1.1.0/24, and R3 needs a route to 10.0.0.0/24.
Option A is correct because it configures on R1 a static route to the remote network 20.1.1.0/24 using next hop 10.0.0.2, which is the neighbor toward the transit path. Option D is correct because it configures on R3 a static route to the remote network 10.0.0.0/24 using next hop 20.1.1.1, which is the proper adjacent forwarding address in that direction. Option B is incorrect because a router cannot use a next hop that belongs to the remote destination network but is not directly reachable as a valid immediate forwarding address in this topology. Option C is also incorrect because the specified next hop is not the correct adjacent next-hop address for R3. HCIA-Datacom stresses that static routes must always point to a reachable next hop or outbound interface.
NEW QUESTION # 56
......
