60. Frage
A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:
01010201: Intercept exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6) How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server? (Choose one answer)
Antwort: A
Begründung:
The log message "Intercept exhaustion" indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.
According to the BIG-IP Administration: Data Plane Configuration documentation:
Each SNAT IP address provides a finite number of available source ports.
When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.
The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.
Why the other options are incorrect:
A . Increase the timeout of the SNAT addresses
Increasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.
B . Remove the SNAT pool and apply SNAT Automap
SNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues. This is not a direct or recommended fix for SNAT exhaustion.
C . Remove an IP address from the SNAT pool
This would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.
Correct Resolution:
By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.
61. Frage
A virtual server is configured to offload SSL from a pool of backend servers. When users connect to the virtual server, they successfully establish an SSL connection but no content is displayed. A packet trace performed on the server shows that the server receives and responds to the request. What should a BIG-IP Administrator do to resolve the problem? (Choose one answer)
Antwort: D
Begründung:
This scenario describes a classic case of asymmetric routing in a "one-arm" or non-gateway deployment.
When a BIG-IP system is configured for SSL offloading, the following traffic flow occurs:
* Client-Side: The client establishes a successful SSL/TLS handshake with the Virtual Server. This explains why the user can "successfully establish an SSL connection."
* Server-Side: The BIG-IP decrypts the traffic and forwards it as plain HTTP to the backend server. The packet trace confirms the server receives the HTTP GET request and responds with the content.
* The Routing Failure: By default, the BIG-IP system preserves the client's original source IP address. If the backend server's default gateway is not the BIG-IP system (or if the server is on the same subnet as the client), the server will attempt to send the response directly back to the client's IP address, bypassing the BIG-IP.
* Stateful Drop: Because the BIG-IP is a Full Proxy, it expects the response to return through its own internal state table to be encrypted and sent back to the client. Since the response bypasses the BIG-IP, the BIG-IP connection eventually times out, and the client receives no data despite the server having sent it.
Solution (SNAT): Enabling Secure Network Address Translation (SNAT), specifically SNAT Auto Map, ensures that the BIG-IP replaces the client's source IP with its own internal self-IP before sending the request to the server. This forces the server to send the response back to the BIG-IP, allowing the BIG-IP to complete the transaction and deliver the content to the user.
62. Frage

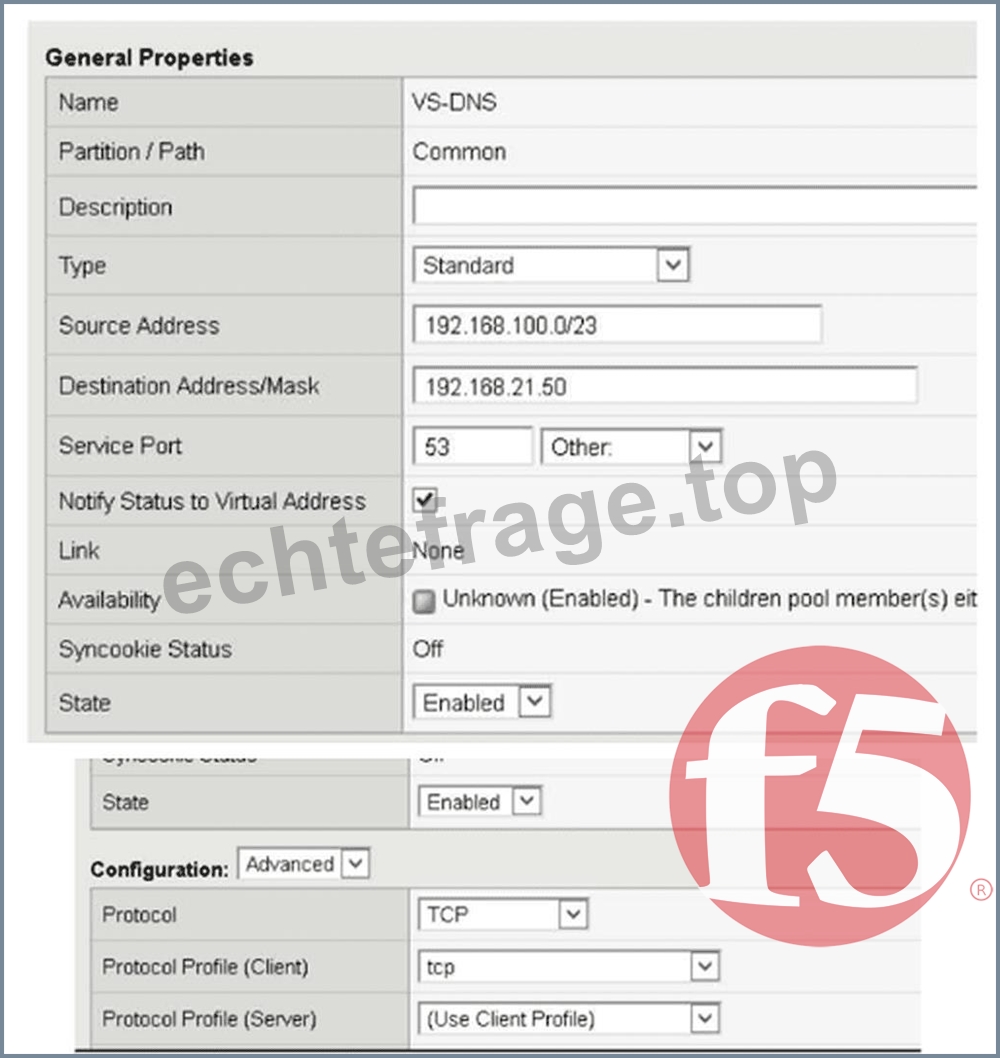

Refer to the exhibit.
DNS queries from two internal DNS servers are being load balanced to external DNS servers via a Virtual Server on a BIG-IP device. The DNS queries originate from 192.168.101.100 and 192.168.101.200 and target
192.168.21.50 .
All DNS queries destined for the external DNS servers fail.
Which property change should the BIG-IP Administrator make in the Virtual Server to resolve this issue?
Antwort: B
Begründung:
The virtual server is configured for destination 192.168.21.50 , service port 53 , but its Protocol is TCP .
Standard DNS query traffic is normally sent using UDP port 53 . Because virtual-server traffic matching includes the configured IP protocol, UDP DNS packets will not match a virtual server configured exclusively for TCP, causing the queries to fail.
F5 ' s DNS configuration guidance explicitly instructs administrators creating a DNS query virtual server to configure service port 53 and select UDP as the protocol. F5 also recommends separate TCP and UDP virtual servers when both forms of DNS traffic must be supported; TCP port 53 is particularly relevant for operations such as DNS zone transfers.
Option C is not required. The existing source network 192.168.100.0/23 spans addresses from 192.168.100.0 through 192.168.101.255, so both 192.168.101.100 and 192.168.101.200 are already permitted by the source- address criterion. F5 documents that the Source Address setting can specify the network from which a virtual server accepts traffic.
Therefore, changing the virtual server ' s Protocol from TCP to UDP corrects the traffic-matching problem.
Reference Topics: Virtual Server traffic matching; Protocol selection; DNS over UDP/TCP; Source Address matching; Service Port 53.
63. Frage
A BIG-IP Administrator finds the following log entry after a report of user issues connecting to a virtual server:
01010201: Intercept exhaustion on 10.70.110.112 to 192.28.123.250:80 (proto 6) How should the BIG-IP Administrator modify the SNAT pool that is associated with the virtual server?
(Choose one answer)
Antwort: A
Begründung:
The log message "Intercept exhaustion" indicates that the BIG-IP system has exhausted the available source port translations for one or more SNAT addresses. This occurs when too many concurrent client connections are being translated through a limited number of SNAT IP addresses, and all ephemeral source ports (typically ~64,000 per SNAT IP) are in use.
According to the BIG-IP Administration: Data Plane Configuration documentation:
* Each SNAT IP address provides a finite number of available source ports.
* When the number of concurrent connections exceeds the available port space, the BIG-IP logs an Intercept exhaustion error and new connections fail.
* The recommended resolution is to increase the available SNAT resources by adding additional IP addresses to the SNAT pool.
Why the other options are incorrect:
* A. Increase the timeout of the SNAT addressesIncreasing timeouts may actually worsen the problem by keeping ports allocated longer, accelerating port exhaustion.
* B. Remove the SNAT pool and apply SNAT AutomapSNAT Automap uses the Self IP addresses on the egress VLAN, which may not provide additional capacity and can introduce routing or design issues.
This is not a direct or recommended fix for SNAT exhaustion.
* C. Remove an IP address from the SNAT poolThis would reduce the number of available source ports and further exacerbate the intercept exhaustion condition.
Correct Resolution:
By adding an IP address to the SNAT pool, the BIG-IP increases the total number of available source ports, alleviating intercept exhaustion and restoring successful client connections.
64. Frage
A Standard Virtual Server for a web application is configured with Automap for Source Address Translation. The original client IP must be known by backend servers.
What should the BIG-IP Administrator configure?
Antwort: B
Begründung:
The X-Forwarded-For header preserves the original client IP when SNAT is enabled.
65. Frage
......
