| Section | Objectives |
|---|---|
| Topic 1: VLANs and Segmentation | - Inter-VLAN routing considerations - VLAN creation and tagging |
| Topic 2: Monitoring and Troubleshooting | - Diagnostics and logging - Common switching issues |
| Topic 3: Redundancy and High Availability | - Redundant switch design - Link aggregation (LACP) |
| Topic 4: Security Integration with FortiGate | - Security policies for switched networks - Device identity and access control |
| Topic 5: FortiLink Integration | - FortiLink topology and design - FortiGate-managed switching |
| Topic 6: Switch Configuration and Management | - Switch ports and profiles - Initial setup and provisioning |
| Topic 7: FortiSwitch Fundamentals | - FortiSwitch operating modes - Switch architecture and hardware overview |
| Topic 8: Spanning Tree Protocol | - Loop prevention mechanisms - STP/RSTP configuration |
>> NSE5_FSW_AD-7.6 Valid Exam Papers <<
In order to serve you better, we have a complete system if you buying NSE5_FSW_AD-7.6 exam bootcamp from us. You can try the free demo before buying NSE5_FSW_AD-7.6 exam materials, so that you can know what the complete version is like. If you are quite satisfied with the free demo and want the complete version, you just need to add them to card, and pay for them. You will receive your download link and password for NSE5_FSW_AD-7.6 Exam Dumps within ten minutes after payment. We have after-service for you after buying NSE5_FSW_AD-7.6 exam dumps, if you have any question, you can contact us by email, and we will give you reply as soon as possible.
NEW QUESTION # 64

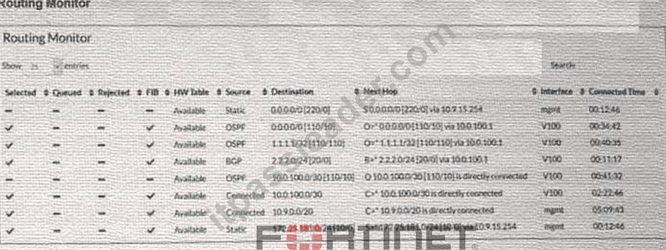

Refer to the exhibit.
Two routes in the routing monitor are marked as available but are not installed in the forwarding information base (FIB). Which statement correctly explains why the routes have this status? (Choose one answer)
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).
The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0
/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .
In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route-despite being " Available " in the RIB-is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.
NEW QUESTION # 65

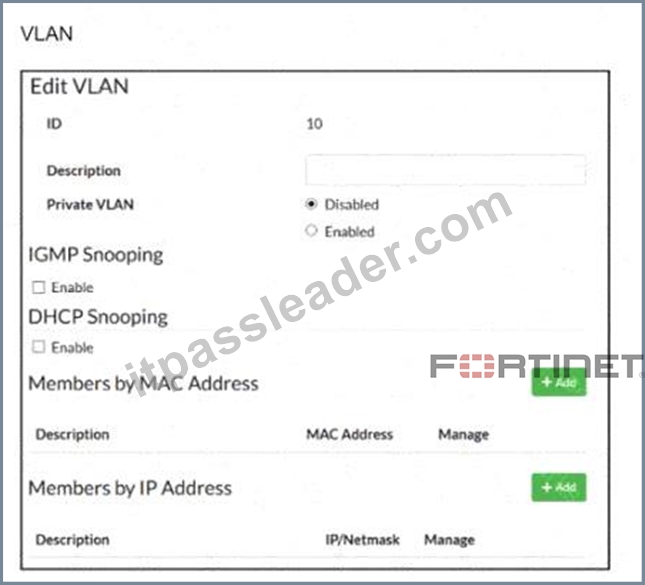

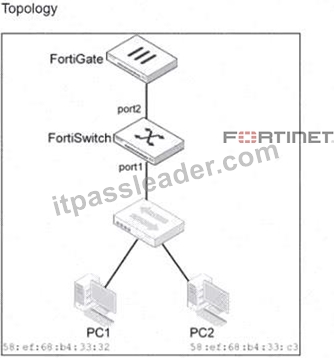

Refer to the exhibits
Traffic arriving on port2 on FortiSwitch is tagged with VLAN ID 10 and destined for PC1 connected on port1. PC1 expects to receive traffic untagged from port1 on FortiSwitch. Which two configurations can you perform on FortiSwitch to ensure PC1 receives untagged traffic on port1? (Choose two.)
Answer: C,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port'sNative VLANand its Untagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.
* Untagged VLAN List (Option B):The documentation explicitly states that the "untagged VLAN list" specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID
10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.
* Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the "Allowed" list (which typically implies tagged delivery) to the "Untagged" list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an "access" or untagged behavior.
Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.
NEW QUESTION # 66
Which statement best describes a benefit of using MAC, IP address, or protocol-based VLAN assignments on FortiSwitch? (Choose one answer)
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, MAC- based, IP-based, and protocol-based VLAN assignments are methods ofdynamic VLAN assignment. These features allow the switch to categorize incoming traffic and assign it to a specific VLAN based on the packet's attributes rather than just the physical port it is connected to.3 The primary benefit of these methods is that theyoffer dynamic segmentation benefits similar to 802.1X authentication (Option D). In a modern network, devices with different security requirements (such as IoT devices, printers, and workstations) often connect to the same physical switch ports. 802.1X is the "gold standard" for dynamic segmentation but requires a supplicant on the client device.4For devices that do not support 802.1X, MAC or protocol-based assignments provide a similar result: they ensure the device is automatically placed into its designated secure segment (VLAN) the moment it is identified by the switch.
* MAC-based:Assigns a VLAN based on the source MAC address.
* IP-based:Assigns a VLAN based on the source IP address or subnet.
* Protocol-based:Assigns a VLAN based on the Ethernet type (e.g., IPv4, IPv6, or AppleTalk).
Option A is incorrect because these features complement rather than "disable" 802.1X. Option B is incorrect because these specific assignment types can be configured locally on the switch without a RADIUS server.
Option C is the opposite of how these features work, as they explicitly look at the device type or traffic to make an assignment.
NEW QUESTION # 67
(Full question statement start from here)
Refer to the exhibits.
You enable Dynamic Host Configuration Protocol (DHCP) snooping on the VLAN,Student. The Linux- Client VM sends DHCP requests, and tcpdump confirms the broadcasts. However, the Linux-Server VM, acting as a DHCP server, receives no DHCP traffic. What is the most likely cause of this intra-VLAN traffic being blocked? (Choose one answer)
Answer: A
Explanation:
In FortiSwitchOS 7.6,DHCP snoopingis a Layer 2 security feature that validates DHCP traffic and protects the LAN from rogue DHCP servers. The feature enforces atrust modelon switch ports: ports connected toward legitimate DHCP server infrastructure must be markedtrusted, while edge/access ports facing clients are typicallyuntrusted. When DHCP snooping is enabled on a VLAN (in this case,Student), FortiSwitch inspects DHCP messages and applies filtering rules based on port trust status.
From the exhibit, bothport1(connected to the Linux-Server DHCP server) andport4(connected to the Linux- Client) showDHCP Snooping: Untrusted. In this configuration, the switch treats the DHCP server-facing port as untrusted and, by design, willblock DHCP server-originated messages(such as DHCPOFFER
/DHCPACK) arriving on that interface. This prevents the DHCP handshake from completing and effectively stops DHCP from functioning across that VLAN segment. Operationally, this is commonly observed as "no DHCP traffic" at the server/application layer because the exchange cannot progress normally when the server side is not trusted.
Option C is incorrect because the client-facing port is expected to be untrusted. Options A and D do not align with the exhibit: the ports are already placed in the Student VLAN as native VLAN, so the primary issue is the DHCP snooping trust role.
Therefore, the most likely cause is thatport1 is configured as an untrusted port(it must be trusted for a DHCP server), makingBthe correct answer.
NEW QUESTION # 68
To enhance service in emergency situations, to which LLDP-MED Type-Length-Values does Forti-Switch advertise to IP phones?
Answer: B
Explanation:
Location (C): FortiSwitch uses LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) to advertise various attributes to IP phones, among which "Location" is crucial in emergency situations. This information helps emergency responders to determine the physical location of the calling device, which is vital for prompt response in critical situations.
