NEW QUESTION # 146

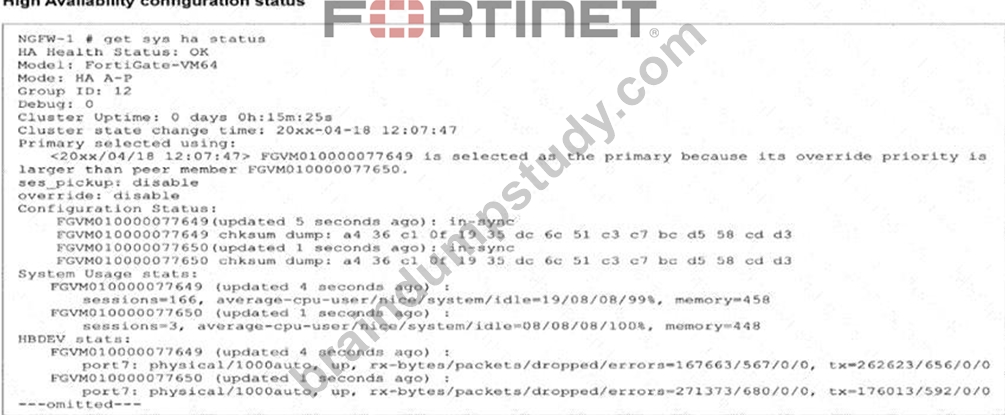

Refer to the exhibit.
Which two statements about the output are true, considering NGFW-1 and NGFW-2 have been up for a week? (Choose two.)
Answer: B,C
Explanation:
The correct answers are A and B .
The exhibit shows:
* override: disable
* both members are currently in-sync
* only port7 appears under HBDEV stats , so it is the active heartbeat interface
* the cluster is in HA A-P mode
Why A is correct:
With override disabled , after a failover the new primary keeps that role when the old primary comes back.
The FortiOS administration guide states:
"When the primary FortiGate rejoins the cluster the secondary FortiGate continues to operate as the primary FortiGate." So if FGVM...649 reboots and FGVM...650 becomes primary, FGVM...650 will remain primary after FGVM...649 rejoins.
Why B is correct:
The study guide states:
"When FortiGate devices configured in an HA cluster lose communication with each other on the heartbeat interface, each FortiGate assumes the role of the primary device." The exhibit shows only port7 as the heartbeat device in HBDEV stats So if port7 is disconnected and heartbeat communication is lost, the cluster can enter a split-brain condition, where both units believe they are primary. The FortiOS administration guide confirms the same behavior: loss of heartbeat communication causes each member to think it is the primary Why the other options are wrong:
* C is wrong because configuration synchronization status is specifically used to detect whether secondary members remain synchronized with the primary. If members are no longer synchronized, the status changes from in-sync to out-of-sync
* D is wrong because the study guide explains that during a configuration change, checksums may differ briefly while changes are copied, but it does not describe this as the secondary initiating a
"synchronization reset"
So the verified answers are: A, B .
NEW QUESTION # 147
Exhibit.
Refer to the exhibit, which shows two entries that were generated in the FSSO collector agent logs.
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee What three conclusions can you draw from these log entries? {Choose three.)
Answer: B,D,E
NEW QUESTION # 148

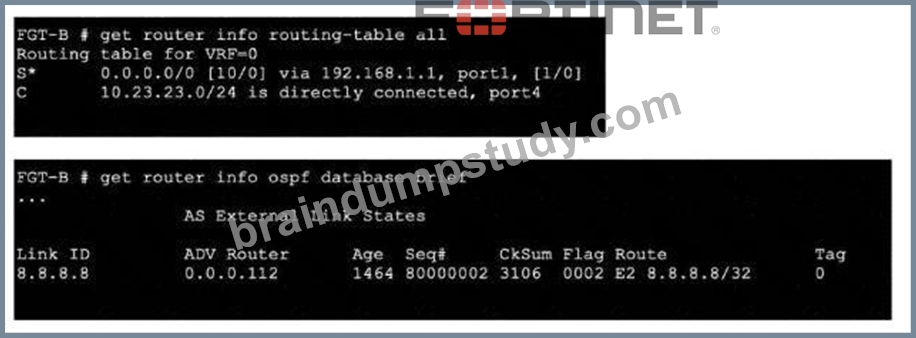

Refer to the exhibits.
An administrator Is expecting to receive advertised route 8.8.8.8/32 from FGT-A. On FGT-B, they confirm that the route is being advertised and received, however, the route is not being injected into the routing table.
What is the most likely cause of this issue?
Answer: B
Explanation:
The 8.8.8.8/32 route is visible in the OSPF database on FGT-B but not installed into the routing table-the most likely explanation is that FGT-B is filtering it from being installed.
NEW QUESTION # 149
Refer to the exhibit.

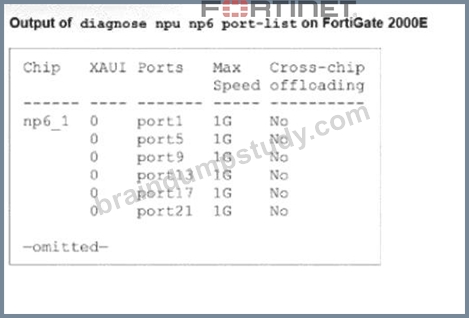

A partial output of diagnose npu up6 port-list on FortiGate 2000E is shown.
An administrator is unable to analyze traffic flowing between port1 and port17 using the diagnose sniffer command.
Which two commands allow the administrator to view the traffic? (Choose two.)
Answer: C,D
Explanation:
The administrator cannot see traffic in the sniffer because it is being offloaded to the NPU (NP6). To view the traffic, offloading must be disabled so packets pass through the CPU.

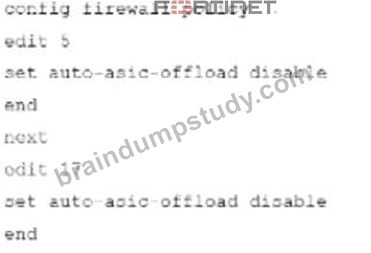

B). config firewall policy ... set auto-asic-offload disable: This is the recommended method to troubleshoot specific traffic. By disabling ASIC offloading in the relevant firewall policies (Policies 5 and 17 in the exhibit), traffic is forced to the CPU and becomes visible to the sniffer.
C). diagnose npu np6 fastpath disable 1: This command temporarily disables the fastpath processing on the specific NP6 processor (ID 1) handling the ports. This forces all traffic handled by that NPU to the CPU, allowing the sniffer to capture it.
Incorrect Options: Option A uses invalid syntax (port-list disable is not a valid command). Option D (config system npu) is not the standard method for granular troubleshooting.
NEW QUESTION # 150
While troubleshooting a FortiGate web filter issue, users report that they cannot access any websites, even though those sites are not explicitly blocked by any web filter profiles that are applied to firewall policies.
What are the three most likely reasons for this behavior? (Choose three answers)
Answer: A,C,D
Explanation:
The reported symptom-users unable to access any websites despite no explicit blocks in the profile-points to systemic connectivity or configuration issues rather than specific URL filtering rules.
Option B (SSL/TLS Inspection): When Deep Inspection is enabled, the FortiGate acts as a Man-in-the-Middle (MitM) and re-signs server certificates using its own CA. If the clients (browsers) do not trust this CA (i.e., the certificate is not installed in their Trusted Root store), they will reject the connection with certificate errors, effectively preventing access to all HTTPS websites.
Option D (DNS): Web browsing relies on DNS resolution. If the configured DNS server is unreachable or failing, the FortiGate (or the client) cannot resolve FQDNs to IP addresses. Consequently, browsers will fail to load any page, resulting in a total loss of web access.
Option E (License): If the FortiGuard Web Filtering license expires, the FortiGate can no longer query the FortiGuard Distribution Network (FDN) for ratings. By default, or if the allow-when-rating-error setting is disabled (a common security practice), the FortiGate will block all web traffic that it cannot rate, often displaying a " Web Filter Service Error " or invalid license page.
Option A is incorrect because clearing the cache only increases latency, it does not block traffic. Option C is incorrect because webfilter-force-off is typically used to disable the service (often allowing traffic to bypass checks if the service is down), rather than blocking it.
NEW QUESTION # 151
......
