NEW QUESTION # 144
Refer to the exhibit.
The output of the command diagnose vpn tunnels liar is shown.
Which two statements accurately describe the status of the tunnel? (Choose two.)
Answer: A,B
Explanation:
Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the VPN tunnel exhibit, here is the verified answer.
Questions no: 91
Verified answer: A, C
Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:
To determine the status of the VPN tunnel, we must examine the specific counters and fields in the diagnose vpn tunnel list output provided in the exhibit.
Analyze Phase 2 Status (Option A):
The output displays child_num=0.
In IKEv2 (and IKEv1 implementations in FortiOS), " Child SAs " refer to the Phase 2 (IPsec) Security Associations that carry the actual data traffic.
A value of 0 indicates that no Phase 2 tunnels are established. If Phase 2 were up, child_num would be at least
1.
Additionally, under the proxyid section, the field sa=0 confirms there is no active Security Association for that traffic selector.
Analyze Traffic Status (Option C):
The stat line shows: rxp=0 txp=0 rxb=0 txb=0.
rxp (Received Packets) and txp (Transmitted Packets) are both zero. This definitively confirms that no traffic is traversing the tunnel currently. This is expected since Phase 2 is down.
Analyze Phase 1 Status (Why B is incorrect):
The tunnel entry exists in the list with a valid tun_id, and NAT-Traversal is active (natt: mode=keepalive).
The presence of the tunnel in this command output, along with active Keepalive mechanisms, typically indicates that Phase 1 (IKE SA) is established and the peers are communicating on port 4500 (NAT-T), even though the data tunnels (Phase 2) failed to negotiate. If Phase 1 were down, the tunnel would often not appear in this " list " view or would show different status flags indicating a complete connection failure.
Conclusion: The exhibit shows a scenario where the Phase 1 control channel is likely up (evidenced by the entry existence and NATT keepalives), but the Phase 2 data channel is down (child_num=0), resulting in zero traffic flow (rxp=0/txp=0).
NEW QUESTION # 145
Refer to the exhibit.
The exhibit shows a session entry. Which statement about this TCP session is true?
Answer: A
Explanation:
The correct answer is C. The session is offloaded using NPU .
The exact session example in the study guide shows:
* proto=6 # this is a TCP session
* expire=3599 # the session will expire in 3599 seconds , not in one second
* hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388)
* hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388)
* npu info: ... offload=8/8 ...
* and the slide explicitly states: "Offloaded in both directions using NP6" The study guide also explains this exact point clearly:
"Counters for hardware acceleration-The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8." Why the other options are wrong:
* A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.
* B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP 10.1.0.3 is the SNAT-translated source address , not the final destination.
* D is not the best answer for this single-select question . The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state .
NEW QUESTION # 146
Refer to the exhibit.

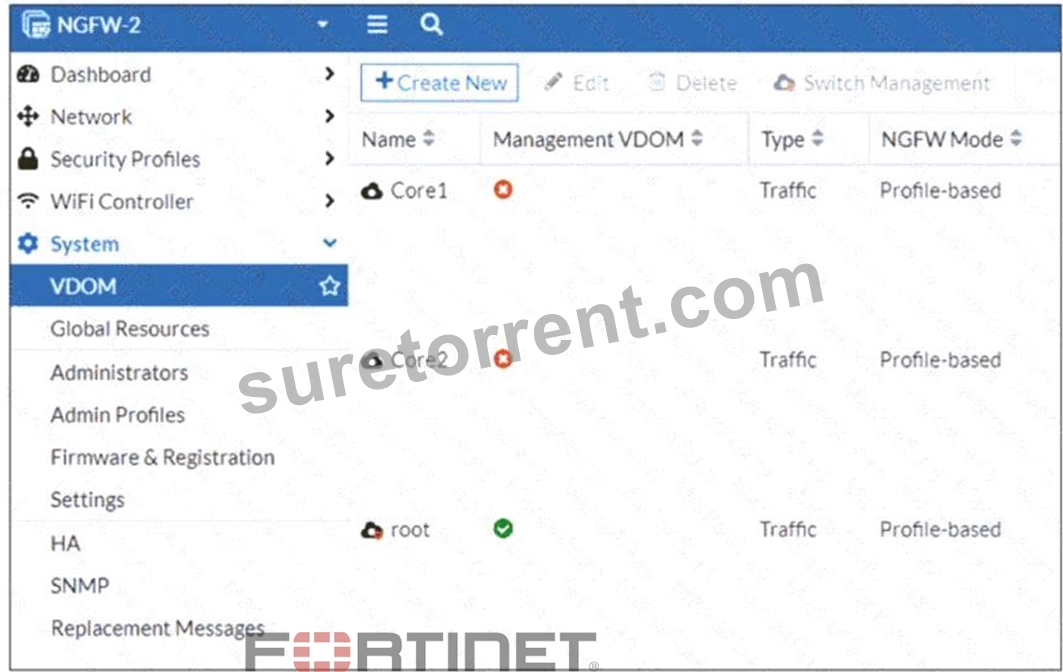

The VDOM configuration on a FortiGate device is shown. You discover that web filtering stopped working in Core1 and Core2 after a maintenance window.
What are two reasons why web filtering stopped working? (Choose two answers.)
Answer: A,D
Explanation:
The exhibit identifies the root VDOM as the management VDOM, indicated by the green check mark. The Enterprise Firewall 7.6 Administrator Study Guide explains that the management VDOM handles FortiGuard database downloads, license validation, and FortiGuard rating connectivity on behalf of the entire FortiGate system. It states that FortiGuard updates obtained through the management VDOM "will affect all VDOMs." Consequently, the root VDOM must reach either a public Fortinet Distribution Network server or a FortiManager configured as a FortiGuard Distribution Server in an isolated environment. The guide specifically identifies connectivity to "a FortiManager serving as a FortiGuard Distribution Server (FDS) in a closed network" as the alternative to public FortiGuard access. Loss of both paths prevents Core1 and Core2 from using current FortiGuard web-filtering information. Therefore, options A and B are correct.
Core1 and Core2 do not need to become management VDOMs; FortiGate uses one designated management VDOM for these system-level services. A VDOM link is used to route user traffic between VDOMs and is not required for distributing FortiGuard services, eliminating option D.
NEW QUESTION # 147
Refer to the exhibit, which shows partial outputs from two routing debug commands.
Why is the port2 default route not in the second command output?
Answer: A
Explanation:
The correct answer is D.
In the exhibit, get router info routing-table database shows both static default routes:
0.0.0.0/0 [20/0] via 100.64.2.254, port2
0.0.0.0/0 [10/0] via 100.64.1.254, port1
But get router info routing-table all shows only:
0.0.0.0/0 [10/0] via 100.64.1.254, port1
The study guide explains that get router info routing-table all displays the routes that make it to the FIB - the best active routes. It also says that this command doesn't show standby or inactive routes, which can remain only in the routing table database. It gives the exact rule: "when two static routes to the same destination subnet have different distances, the one with the lower distance is installed in the routing table, and the one with the higher distance is installed in the routing table database." The study guide also shows the route selection process:
Most specific route
Lowest distance
Lowest metric (dynamic routes)
Lowest priority (static routes)
ECMP
So the port2 default route is absent from the second output because its distance is 20, while the port1 default route has distance 10. The lower-distance route is installed in the active routing table/FIB.
Why the other options are wrong:
A is wrong because the exhibit does not indicate port2 is down or disabled.
B and C are wrong because priority is checked only after distance for static routes. Here, the routes already differ by distance, so priority is not the deciding factor.
So the verified answer is: D.
NEW QUESTION # 148
Refer to the exhibit.

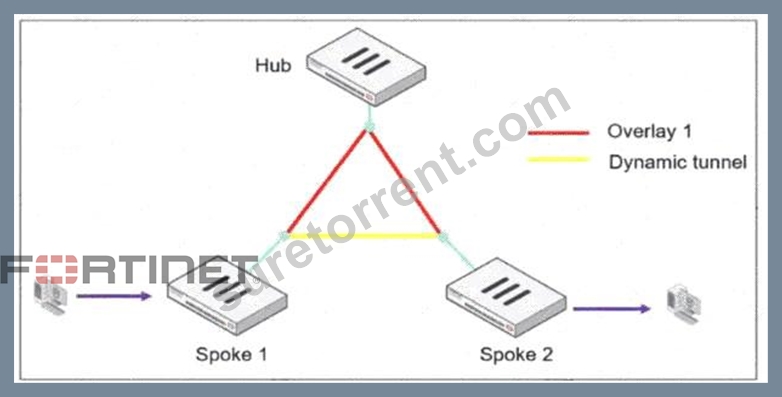

Based on the exhibit, what is the first message with which Spoke 1 replies to the hub, instructing it to bring up the dynamic tunnel when a client generates traffic destined for Spoke 2? (Choose one answer.)
Answer: D
Explanation:
The ADVPN shortcut negotiation begins after traffic from Spoke 1 to Spoke 2 initially travels through the hub. When the hub detects that both spokes can establish a more direct connection, the hub-not Spoke 1- sends the first control message: a shortcut offer to Spoke 1.
The SD-WAN 7.6 Enterprise Administrator Study Guide then states: "Spoke 1 acknowledges the shortcut offer by sending a shortcut query to the hub." Therefore, the first message that Spoke 1 sends in response is the shortcut query, making option A correct.
The hub subsequently forwards that query to Spoke 2. Spoke 2 responds with a shortcut reply, which the hub forwards back to Spoke 1. After Spoke 1 receives the reply containing the necessary peer information, Spoke
1 and Spoke 2 begin IKE negotiation and establish the dynamic spoke-to-spoke shortcut tunnel.
Consequently, the shortcut reply occurs later and originates from Spoke 2, while the offer originates from the hub. "Shortcut forward" describes the hub's forwarding action rather than Spoke 1's first response. This behavior is part of Fortinet's ADVPN shortcut architecture.
