| Section | Objectives |
|---|---|
| Topic 1: Monitoring and Troubleshooting | - Diagnostics and logging - Common switching issues |
| Topic 2: Security Integration with FortiGate | - Device identity and access control - Security policies for switched networks |
| Topic 3: FortiLink Integration | - FortiGate-managed switching - FortiLink topology and design |
| Topic 4: Spanning Tree Protocol | - STP/RSTP configuration - Loop prevention mechanisms |
| Topic 5: Switch Configuration and Management | - Initial setup and provisioning - Switch ports and profiles |
| Topic 6: Redundancy and High Availability | - Redundant switch design - Link aggregation (LACP) |
| Topic 7: FortiSwitch Fundamentals | - Switch architecture and hardware overview - FortiSwitch operating modes |
| Topic 8: VLANs and Segmentation | - VLAN creation and tagging - Inter-VLAN routing considerations |
>> NSE5_FSW_AD-7.6 Reliable Test Book <<
We all know that Fortinet NSE 5 - FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) exam dumps are an important section of the Fortinet NSE 5 - FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) exam that is purely based on your skills, expertise, and knowledge. So, we must find quality NSE5_FSW_AD-7.6 Questions that are drafted by industry experts who have complete knowledge regarding the Fortinet NSE 5 - FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) certification exam and can share the same with those who want to clear the NSE5_FSW_AD-7.6 exam. The best approach to finding Fortinet NSE 5 - FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) exam dumps is to check the Test4Sure that is offering the Fortinet NSE 5 - FortiSwitch 7.6 Administrator (NSE5_FSW_AD-7.6) practice questions.
NEW QUESTION # 48

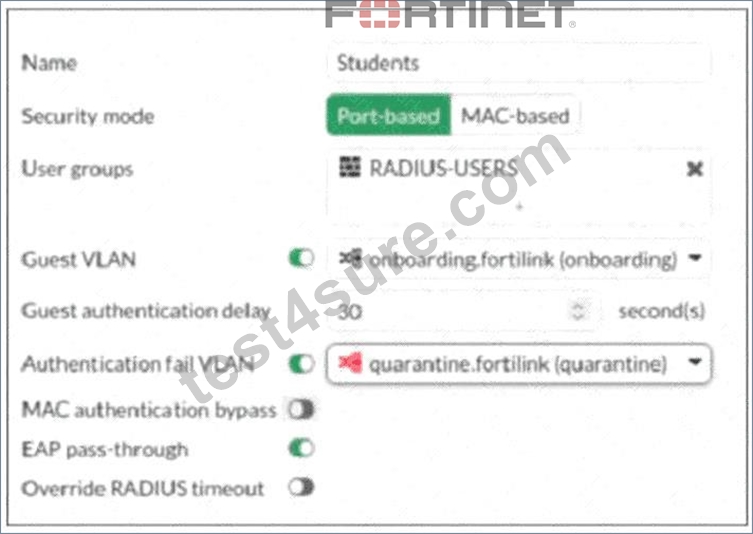

Refer to the exhibit.
The security port policy is configured as shown in the exhibit. Which behavior occurs if a device connected to the port that does not support 802.1X? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the 802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.
The FortiSwitch handles two primary failure scenarios differently:
* Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch's EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to"onboarding.fortilink (onboarding)".
* Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to the Authentication fail VLAN, which the exhibit identifies as"quarantine.fortilink (quarantine)".
Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device's MAC address against the RADIUS server before defaulting to the Guest VLAN.
Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.
NEW QUESTION # 49

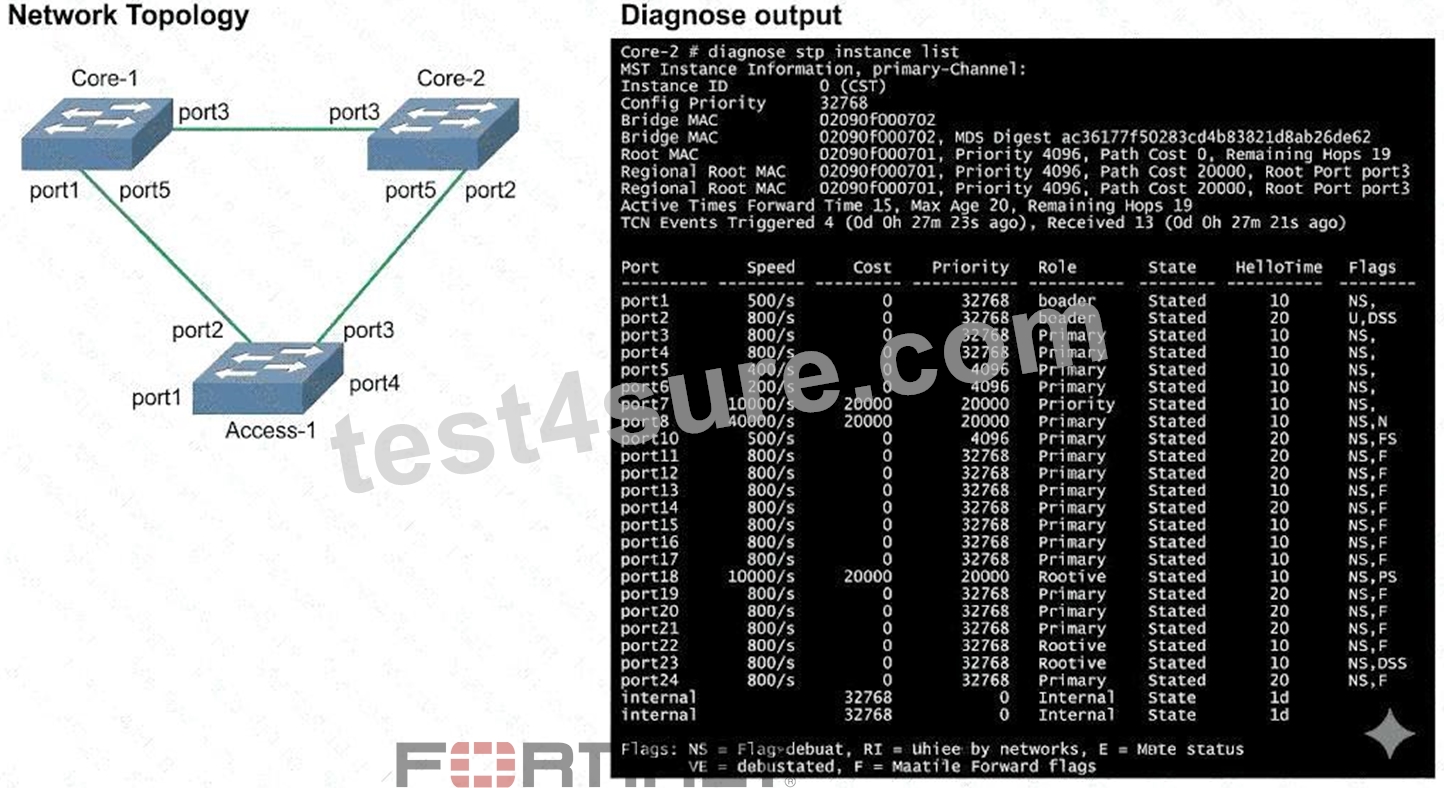

Refer to the exhibits.
Three FortiSwitch devices in standalone mode are interconnected. The CLI command diagnose stp instance list is executed on Core-2. Based on the output shown in the exhibit, what can you conclude about Core-2?
(Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the output of the diagnose stp instance list command provides critical information about the Spanning Tree Protocol (STP) state of a switch within a given instance. In the provided exhibit, the output forInstance ID 0 (CST)onCore-
2shows several key indicators of its role and connectivity within the STP topology.
First, the output explicitly identifies aRootbridge with MAC address 02090f000701 and a priority of 4096.
Core-2 itself has a MAC address of 02090f000702 and a priority of 32768. Because Core-2 knows the MAC address and priority of the Root bridge, it must have received this information viaBridge Protocol Data Units (BPDUs). Furthermore, the port table shows thatport3on Core-2 has been assigned the role ofROOTand is in theFORWARDINGstate. In STP/RSTP, a Root Port is the port on a non-root switch that has the lowest path cost to the root bridge. To elect a Root Port and maintain its state, the switch must continuously receive BPDUs from the root bridge (or a bridge closer to the root) on that port.
Option B is incorrect because Core-2 has aRoot Port, which is only present on non-root bridges. Option C is incorrect because ports 1, 2, 4, 5, and the internal port are all in theFORWARDINGstate. Option D is incorrect as the output does not show any ports in anALTERNATErole; all active ports are either ROOT or DESIGNATED. Therefore, the most accurate conclusion is that Core-2 has successfully received BPDUs to identify the root and determine its own port roles.
NEW QUESTION # 50
Which two statements about VLAN assignments on FortiSwitch ports are true? (Choose two.)
Answer: B,C
NEW QUESTION # 51
(Full question statement start from here)
How does FortiSwitch determine the route for traffic traversing its interfaces? (Choose one answer)
Answer: B
Explanation:
FortiSwitch determines how traffic is routed by leveraging atwo-tier routing lookup mechanismthat prioritizes hardware-based forwarding before software-based processing. According to theFortiSwitchOS 7.6 Administrator Guide, FortiSwitch first checks thehardware routing table, which is populated with a subset of routes installed from the Forwarding Information Base (FIB) and programmed directly into the switch ASIC.
The hardware routing table contains routes that are eligible for ASIC acceleration. When a packet arrives on a FortiSwitch interface, the switch performs a lookup in this hardware routing table. If a matching route is found, the packet is forwarded at wire speed using ASIC-based forwarding, which provides optimal performance and minimal latency. This process is referred to ashardware-based routing.
If no matching route exists in the hardware routing table, FortiSwitch then performs a lookup in the Forwarding Information Base (FIB), which resides in the kernel. Routes in the FIB are handled by the CPU and processed throughsoftware-based routing. This fallback mechanism ensures correct forwarding behavior even when routes cannot be offloaded to hardware.
The FortiSwitchOS documentation explicitly states that the hardware routing table indicates which routes in the FIB are installed in hardware. This confirms that routing decisions are not exclusively offloaded to FortiGate, nor are they limited to CPU-based processing alone. Instead, FortiSwitch uses ahierarchical lookup order: hardware routing table first, followed by the FIB.
Therefore, the correct and fully documented answer isC. FortiSwitch looks up the hardware routing table and then the forwarding information base (FIB).
NEW QUESTION # 52
When Dynamic Host Configuration Protocol (DHCP) snooping is enabled on a FortiSwitch VLAN, which two statements are true? (Choose two answers)
Answer: B,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network.
Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.
* Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.
* Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.
Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.
NEW QUESTION # 53
......
