NEW QUESTION # 329
Which of the following would allow a network administrator to analyze attacks coming from the internet without affecting latency?
Answer: B
Explanation:
An Intrusion Detection System (IDS) monitors and analyzes traffic to detect suspicious activity but does not sit in the traffic path, meaning it doesn't affect latency. In contrast, an IPS is in-line and can introduce delay.
From Andrew Ramdayal's guide:
"IDS monitors and alerts on malicious activity but does not block traffic, making it suitable for environments where low latency is critical."
NEW QUESTION # 330
A user reports having intermittent connectivity issues to the company network. The network configuration for the user reveals the following:
IP address: 192.168.1.10
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.254

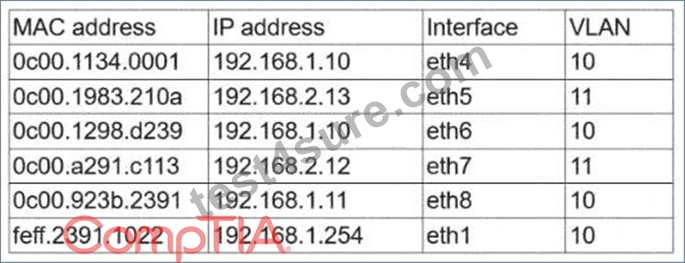

The network switch shows the following ARP table:
Which of the following is the most likely cause of the user ' s connection issues?
Answer: C
Explanation:
This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.
1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.
From Andrew Ramdayal's guide:
"Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues.
Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments."
NEW QUESTION # 331
Which of the following ports is used to transfer data between mail exchange servers?
Answer: A
Explanation:
The correct answer is B. Port 25 . In CompTIA Network+ N10-009, candidates are expected to know common networking protocols, their purposes, and their associated port numbers. SMTP, or Simple Mail Transfer Protocol, uses TCP port 25 and is primarily responsible for sending email messages between mail servers. When one organization's mail server needs to deliver a message to another organization's mail server, SMTP commonly performs that server-to-server transfer using port 25.
The other options are associated with different services. Port 21 is used by FTP for command/control communication during file transfers. Port 53 is used by DNS for name resolution, translating domain names into IP addresses. Port 69 is used by TFTP, a simplified file transfer protocol often associated with lightweight network device file transfers, such as firmware or configuration files.
For Network+ exam purposes, it is important to distinguish SMTP from email retrieval protocols. POP3 uses port 110 , and IMAP uses port 143 for client mail retrieval, while SMTP is used for sending and relaying email. Therefore, the port used to transfer data between mail exchange servers is TCP 25 .
NEW QUESTION # 332
A network technician needs to resolve some issues with a customer ' s SOHO network. The customer reports that some of the PCs are not connecting to the network, while others appear to be working as intended.
INSTRUCTIONS
Troubleshoot all the network components.

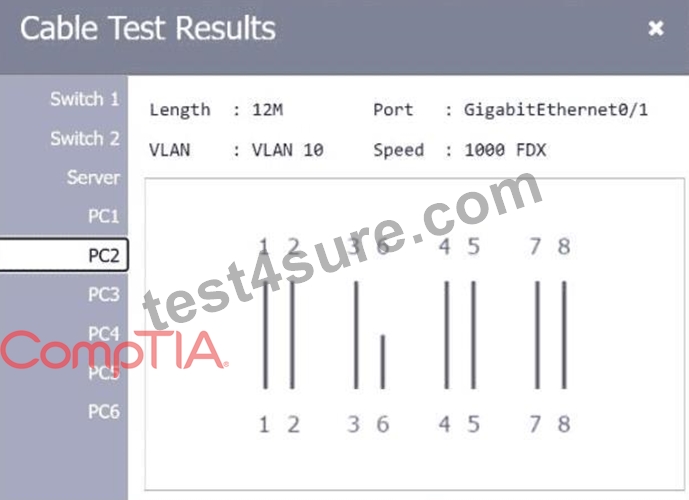

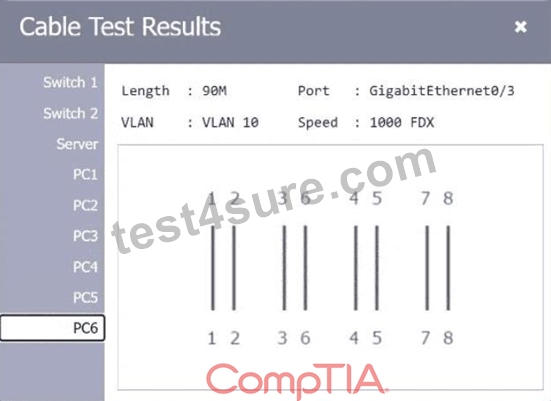

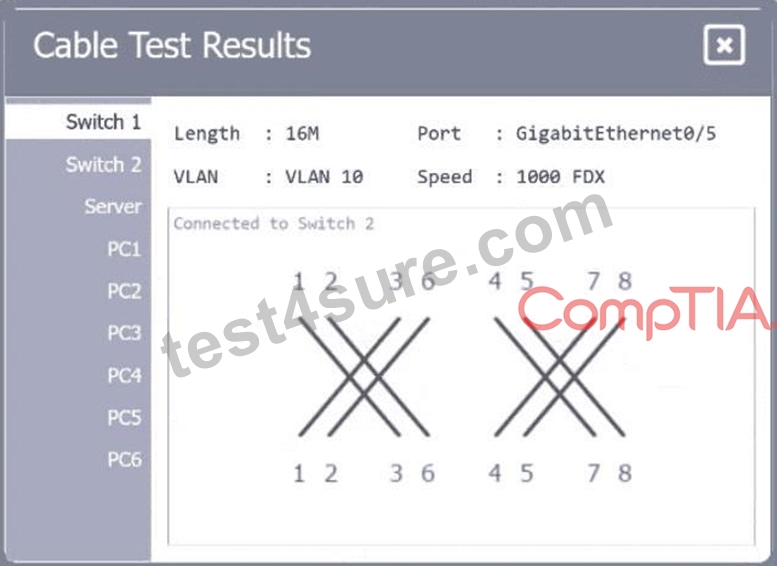

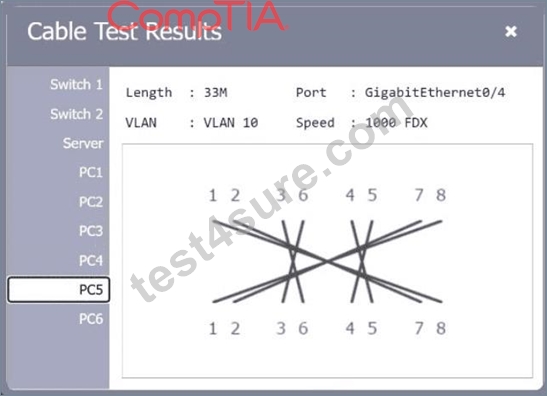

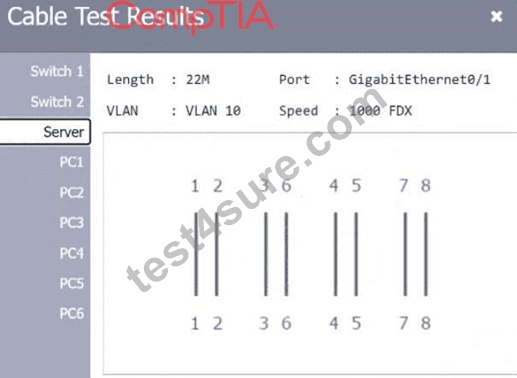

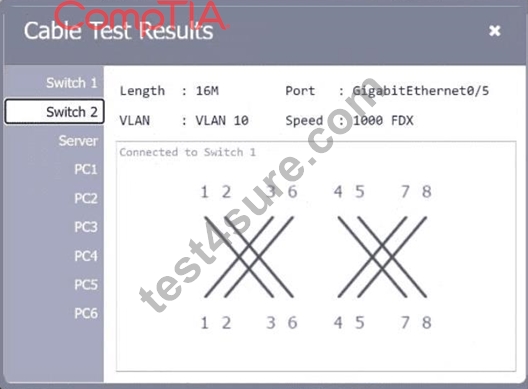

Review the cable test results first, then diagnose by clicking on the appropriate PC, server, and Layer 2 switch.
Identify any components with a problem and recommend a solution to correct each problem.
If at any time you would like to bring back
the initial state of the simulation, please
click the Reset All button.
Answer:
Explanation:
See the answer and solution below:
Explanation:

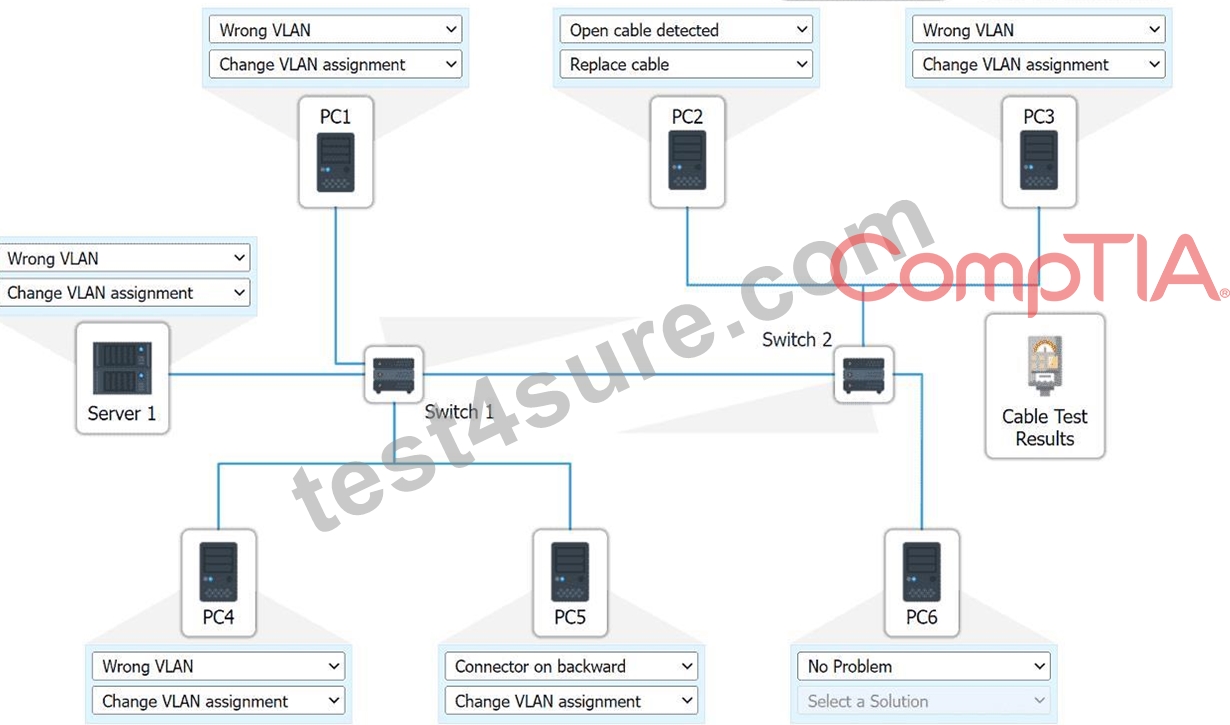

A computer network diagram with many boxes and text AI-generated content may be incorrect.
NEW QUESTION # 333

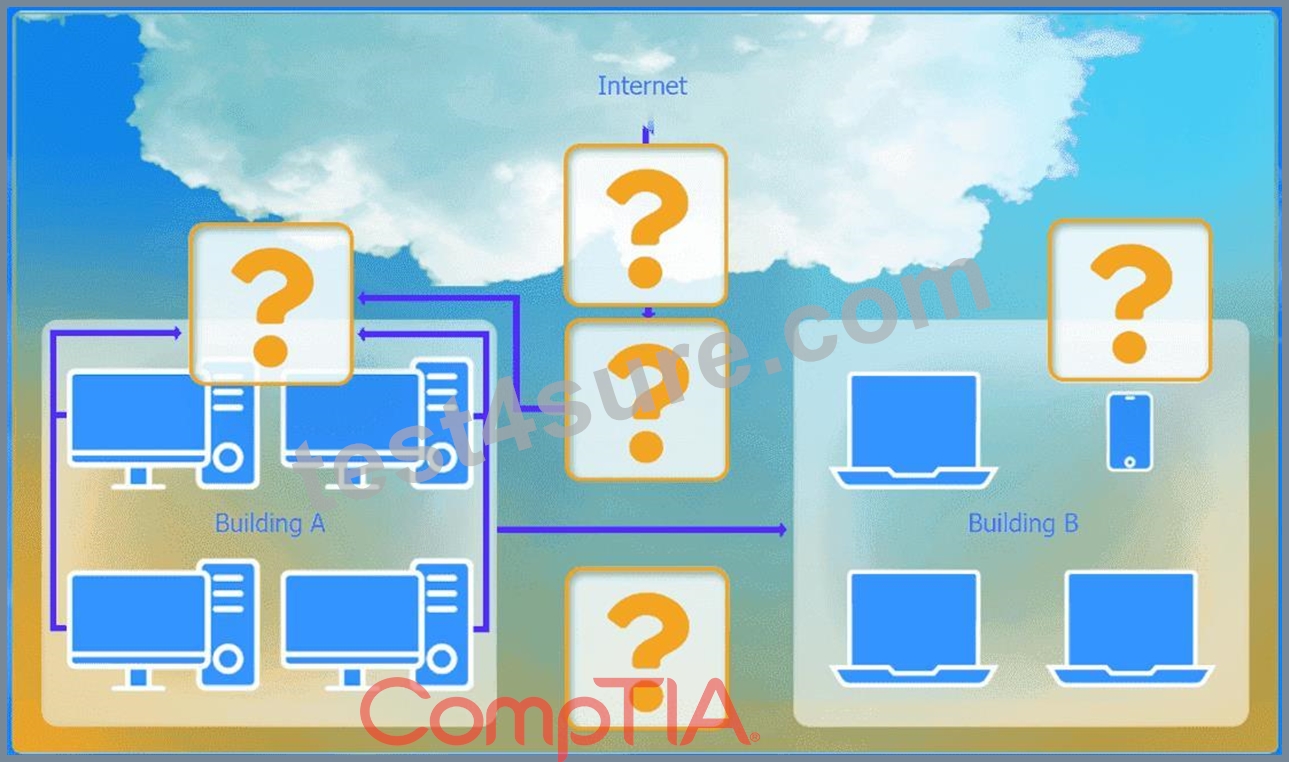

A network administrator has been tasked with configuring a network for a new corporate office. The office consists of two buildings, separated by 50 feet with no physical connectivity. The configuration must meet the following requirements:
. Devices in both buildings should be
able to access the Internet.
. Security insists that all Internet traffic
be inspected before entering the
network.
. Desktops should not see traffic
destined for other devices.
INSTRUCTIONS

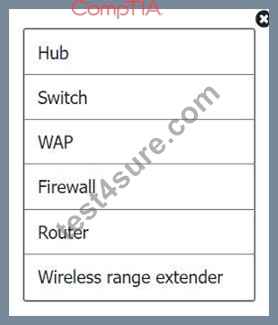

Select the appropriate network device for each location. If applicable, click on the magnifying glass next to any device which may require configuration updates and make any necessary changes.
Not all devices will be used, but all locations should be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the step by step complete solution below.
Explanation:
Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

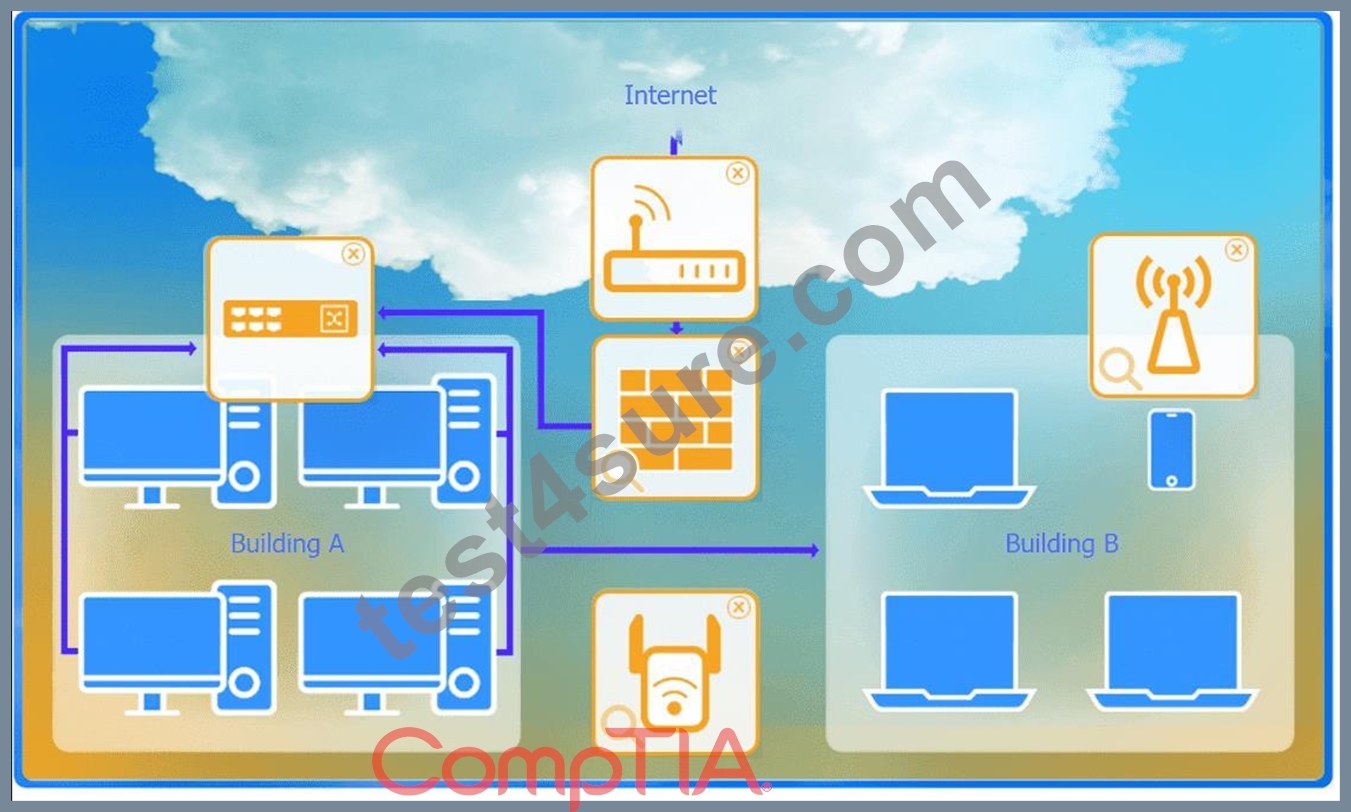

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

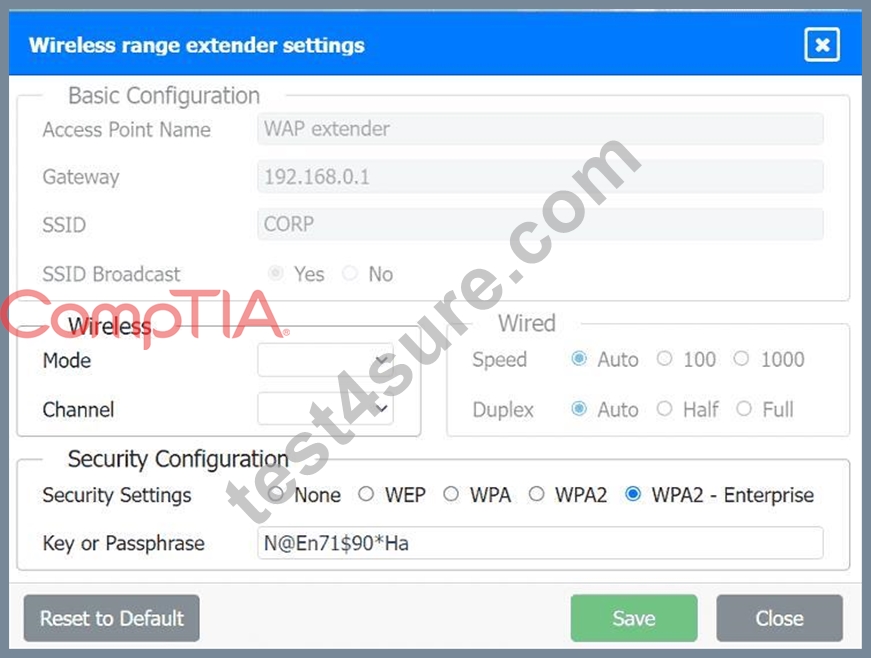

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.
To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to " CORP " as shown in the exhibit.
Security Settings:
WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.
If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the " Save " button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.
NEW QUESTION # 334
......
