| Section | Objectives |
|---|---|
| Topic 1: Tall Mass Timber Building Code Provisions | - International Building Code requirements for tall mass timber construction - Types IV-A, IV-B and IV-C construction - Mass timber materials and construction requirements |
| Topic 2: Code Compliance and Related Requirements | - Energy code requirements applicable to mass timber buildings - Documentation and verification of compliance - Sound transmission requirements |
| Topic 3: Special Inspection Requirements | - Inspection of connections and protective materials - Special inspection procedures for tall mass timber buildings - Inspector duties and responsibilities |
| Topic 4: Fire Protection and Fire-Resistance | - Noncombustible protection and protection of mass timber elements - Fire-resistance requirements - Fire protection systems and related provisions |
| Topic 5: Structural Inspection | - Connections and fastening systems - Mass timber structural elements - Structural loads and related code requirements |
| Topic 6: Construction Fire Safety | - International Fire Code requirements - Construction-phase fire safety requirements - Protection of mass timber during construction |
>> Exam 93-Tall-Mass-Timber-Buildings Objectives Pdf <<
Eliminates confusion while taking the 93-Tall-Mass-Timber-Buildings exam. Prepares you for the format of your 93-Tall-Mass-Timber-Buildings exam dumps, including multiple-choice questions and fill-in-the-blank answers. Comprehensive, up-to-date coverage of the entire 93-Tall-Mass-Timber-Buildings curriculum. 93-Tall-Mass-Timber-Buildings practice questions are based on recently released 93-Tall-Mass-Timber-Buildings Exam Objectives. Includes a user-friendly interface allowing you to take the 93-Tall-Mass-Timber-Buildings practice exam on your computers, like downloading the PDF, Web-Based 93-Tall-Mass-Timber-Buildings practice test DumpsReview, and Desktop 93-Tall-Mass-Timber-Buildings practice exam.
NEW QUESTION # 78
Disregarding footnotes, which of the following is true regarding fire-resistance ratings of building elements per the International Building Code Table 601?
Answer: B
Explanation:
When the footnotes are disregarded, the fire-resistance ratings assigned to the principal building elements of Type IV-A construction correspond to those of Type I-A construction . Option A is therefore correct.
IBC Table 601 assigns both Type I-A and Type IV-A a 3-hour rating for the primary structural frame , 3 hours for exterior and interior bearing walls, 2 hours for floor construction and associated secondary structural members , and 1ยฝ hours for roof construction and associated secondary structural members
. Interior nonbearing walls and partitions are generally rated zero by Table 601 unless another code provision requires a rating. Exterior nonbearing walls are governed separately based on fire separation distance.
The similarity in Table 601 ratings does not mean Type I-A and Type IV-A are otherwise equivalent construction types. Type I-A relies principally on noncombustible structural construction, whereas Type IV-A permits mass timber subject to the substantial noncombustible protection requirements of Section 602.4.1.
Types II-A, III-A, IV-C, and IV-HT have materially different Table 601 requirements, so options B, C, and D do not provide a complete rating match.
References/Topics: 2021 IBC Section 601 and Table 601; Types I-A and IV-A fire-resistance ratings.
NEW QUESTION # 79
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, if the connections between the glulam beam and CLT panels all require a fire-resistance rating of one (1) hour and the wood cover is designed per AWC Technical Report 10 to provide the entire 1 hour of protection, what is the minimum thickness and number of layers required for the locations shown in red?
Answer: A
Explanation:
Two layers of 5/8-inch Type X gypsum wallboard are required for the condition shown, so option D is correct. The relevant AWC TR10 connection-protection methodology distinguishes between outer gypsum layers and the base layer immediately adjacent to the connection .
For 5/8-inch Type X gypsum board, an outer layer contributes 40 minutes. However, when gypsum board is being relied upon as the complete thermal-separation protection for a connection, TR10 reduces the contribution of the final/base layer to 50 percent. Therefore, the base layer contributes 20 minutes , while the second, exterior layer contributes 40 minutes . The total is:
20 minutes + 40 minutes = 60 minutes .
That satisfies the one-hour required protection period.
This is why simply looking at the normal 40-minute contribution of one 5/8-inch Type X layer would be incorrect for this connection condition. TR10 expressly uses the reduced base-layer contribution when gypsum constitutes the connection protection. The same methodology shows that four 5/8-inch Type X layers are needed for 120 minutes: 20 + 40 + 40 + 40 = 140 minutes, satisfying two hours.
References/Topics: AWC Technical Report No. 10, Sections 4.4.2 and connection-protection examples. TR10 states that outer 5/8-inch Type X layers provide 40 minutes each while the base layer provides 20 minutes.
NEW QUESTION # 80
Fire-resistance ratings of members and assemblies can be established by all of the following except:
Answer: C
Explanation:
ASTM E84 cannot be used to establish the hourly fire-resistance rating of a structural member or assembly.
Therefore, option B is correct.
ASTM E84 evaluates surface-burning characteristics , principally flame-spread and smoke-developed indices. Those measurements characterize how a material ' s exposed surface behaves when subjected to the standard tunnel test. They do not demonstrate that a wall, floor, roof, beam, column, or structural assembly will maintain integrity and structural performance for one, two, or three hours.
Fire-resistance ratings are instead established through the methods recognized by the IBC, including standard fire testing-principally ASTM E119 or UL 263-prescriptive rated construction provided by Section 721, and calculated fire-resistance procedures under Section 722. The code also recognizes appropriately documented approved designs and other approved methods within the Section 703 framework.
This distinction is particularly important in mass timber work because ASTM E84 may appear elsewhere in the code for flame-spread limitations on materials, but an acceptable E84 result does not establish structural fire endurance.
The special inspector must determine which approved fire-resistance methodology applies and verify that the installed assembly precisely reflects that design.
References/Topics: 2021 IBC Sections 703, 721 and 722; ASTM E119; UL 263; distinction between fire resistance and ASTM E84 surface-burning testing.
NEW QUESTION # 81
Which of the following best describes the required protection for mass timber hoistway enclosure walls in Type IV-C construction?
Answer: D
Explanation:
Type IV-C generally permits interior mass timber surfaces to remain exposed, but shaft and elevator hoistway enclosures are a specific exception to that broad exposure allowance. Section 602.4.3.6 requires shafts, elevator hoistways, and interior exit stairway enclosures constructed with mass timber to receive noncombustible protection having a minimum assigned protection time of 40 minutes . Option A is therefore correct.
Critically, protection is required on both the inside and outside of the shaft enclosure . The 40-minute value is an assigned contribution from the noncombustible protection; the complete enclosure must still satisfy whatever overall fire-resistance rating is required by Sections 713, 713.4, Table 601, or other applicable provisions.
Option B incorrectly applies the general Type IV-C exposed-interior allowance to a specifically regulated shaft condition. Option C is incomplete because 1/2-inch Type X gypsum board provides only 25 minutes under Table 722.7.1(2), not the required 40 minutes. A 5/8-inch Type X board provides a recognized 40- minute contribution when installed in accordance with Section 722.7.2. Option D does not state the prescribed Type IV-C shaft requirement.
References/Topics: 2021 IBC Sections 602.4.3.2 and 602.4.3.6; Tables 722.7.1(1) and 722.7.1(2).
NEW QUESTION # 82

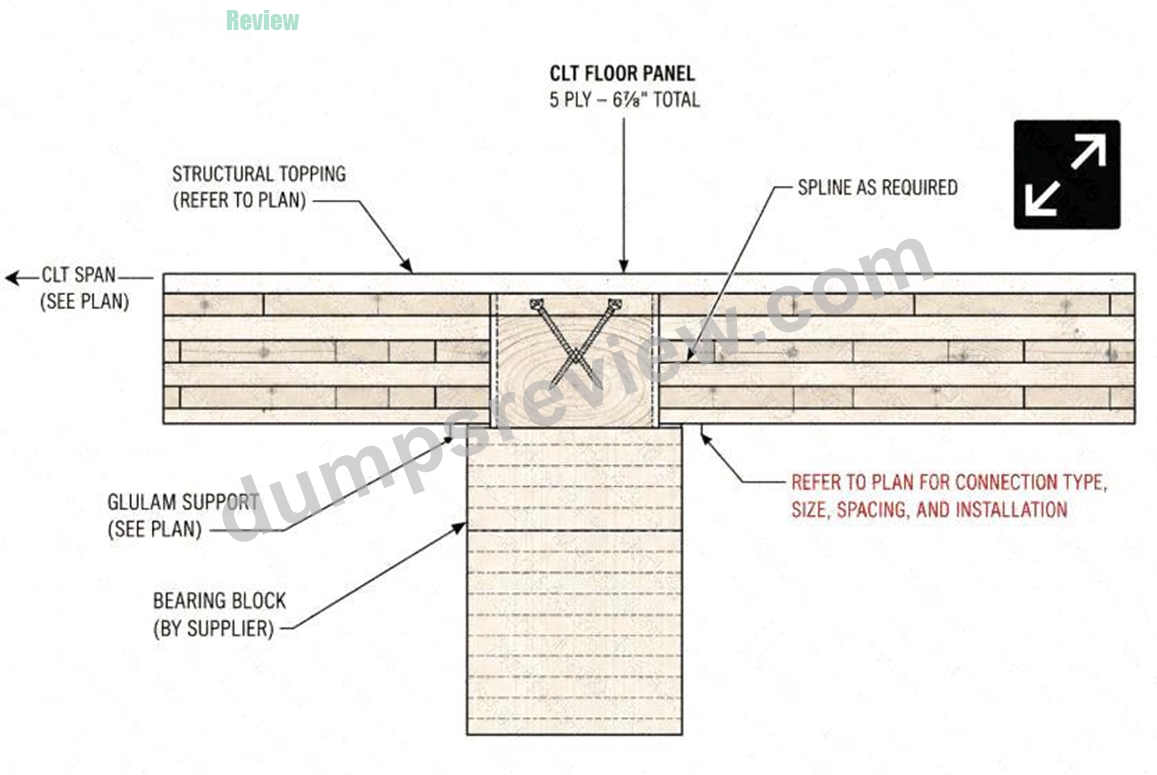

Refer to the exhibit by clicking on the EXHIBIT button above.
If the glulam beam and CLT panels all require a fire-resistance rating of 2 hours, what is the required fire- resistance rating in hours for the structural connections between the glulam and CLT?
Answer: C
Explanation:
The structural connections must maintain a fire-resistance rating corresponding to the required rating of the structural elements they connect. Because both the glulam beam and CLT panels require a two-hour fire- resistance rating, their connections must also provide two hours of fire resistance. Therefore, option C is correct.
Concealing steel hardware inside a timber member does not eliminate the fire-resistance requirement. Steel rapidly conducts heat and can lose strength, while timber surrounding a concealed connector can char, split, or withdraw from fasteners. The connection must consequently be protected through sufficient wood cover, noncombustible protection, tested assemblies, or an approved engineering analysis demonstrating acceptable connection temperatures and capacity for the entire required duration.
A three-hour rating is not required merely as a generalized safety factor; the code requires correspondence with the connected elements unless the approved design establishes another condition. A one-hour connection would create a premature weak point in the load path, and a zero-hour rating would be unacceptable simply because the hardware is hidden.
References/Topics: 2021 IBC Section 2304.10.1; fire-resistance rating of mass timber connections; protected concealed steel hardware.
