우리Fast2test 에서는 여러분들한테 아주 편리하고 시간 절약함과 바꿀 수 있는 좋은 대책을 마련하였습니다. Fast2test에서는Fortinet NSE7_FSN_AR-7.6인증시험관련가이드로 효과적으로Fortinet NSE7_FSN_AR-7.6시험을 패스하도록 도와드리겠습니다.만약 여러분이 다른 사이트에서도 관련덤프자료를 보셨을 경우 페이지 아래를 보시면 자료출처는 당연히 Fast2test 일 것입니다. Fast2test의 자료만의 제일 전면적이고 또 최신 업데이트일것입니다.
| Section | Objectives |
|---|---|
| Topic 1: Enterprise Firewall | - Security Fabric integration - Troubleshooting - Centralized management and analytics - Advanced firewall deployment - High availability - Routing and advanced networking - VPN technologies - Authentication and identity |
| Topic 2: SD-WAN | - Application steering - SD-WAN routing - Performance SLA - Deployment and troubleshooting - SD-WAN architecture - Overlay VPN |
>> NSE7_FSN_AR-7.6최신 업데이트버전 덤프 <<
Fast2test 의 학습가이드에는Fortinet NSE7_FSN_AR-7.6인증시험의 예상문제, 시험문제와 답입니다. 그리고 중요한 건 시험과 매우 유사한 시험문제와 답도 제공해드립니다. Fast2test 을 선택하면 Fast2test 는 여러분을 빠른시일내에 시험관련지식을 터득하게 할 것이고Fortinet NSE7_FSN_AR-7.6인증시험도 고득점으로 패스하게 해드릴 것입니다.
질문 # 111
Refer to the exhibit.

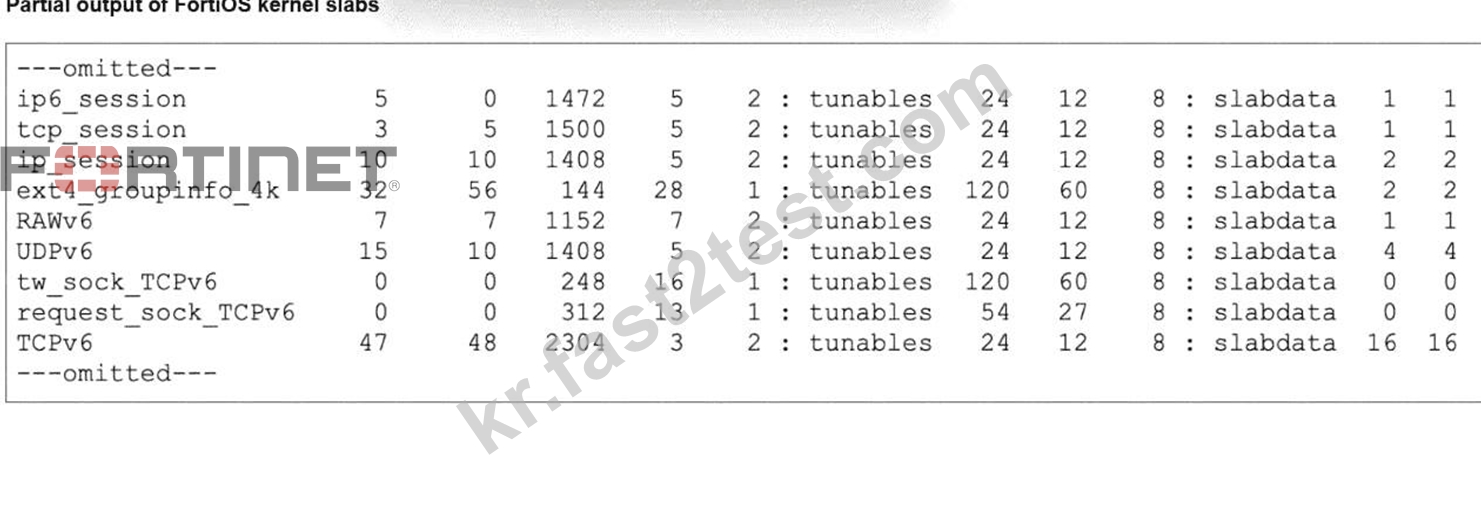

The partial output of FortiOS kernel slabs is shown. Which statement about total slab size is true?
정답：B
설명：
The correct answer is B.
The study guide explicitly states that slabs are used by the kernel: "The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory." It also gives the exact calculation method: "Total slab size = available objects x object size" and explains that in the diagnose hardware sysinfo slab output, the columns are active objects, available objects, and object size From the exhibit:
tcp_session 3 5 1500 ...
available objects = 5
object size = 1500
So:
Total slab size = 5 × 1500 = 7500
That matches option B.
Why the other options are wrong:
A: ip_session 10 10 1408 ... gives 10 × 1408 = 14080, but slabs are associated with the kernel, not user space C: ip6_session 5 0 1472 ... gives 0 × 1472 = 0, not 1472 D: UDPv6 15 10 1408 ... gives 10 × 1408 = 14080, but again slabs are associated with the kernel, not user space So the verified answer is B.
질문 # 112
Refer to the exhibit.

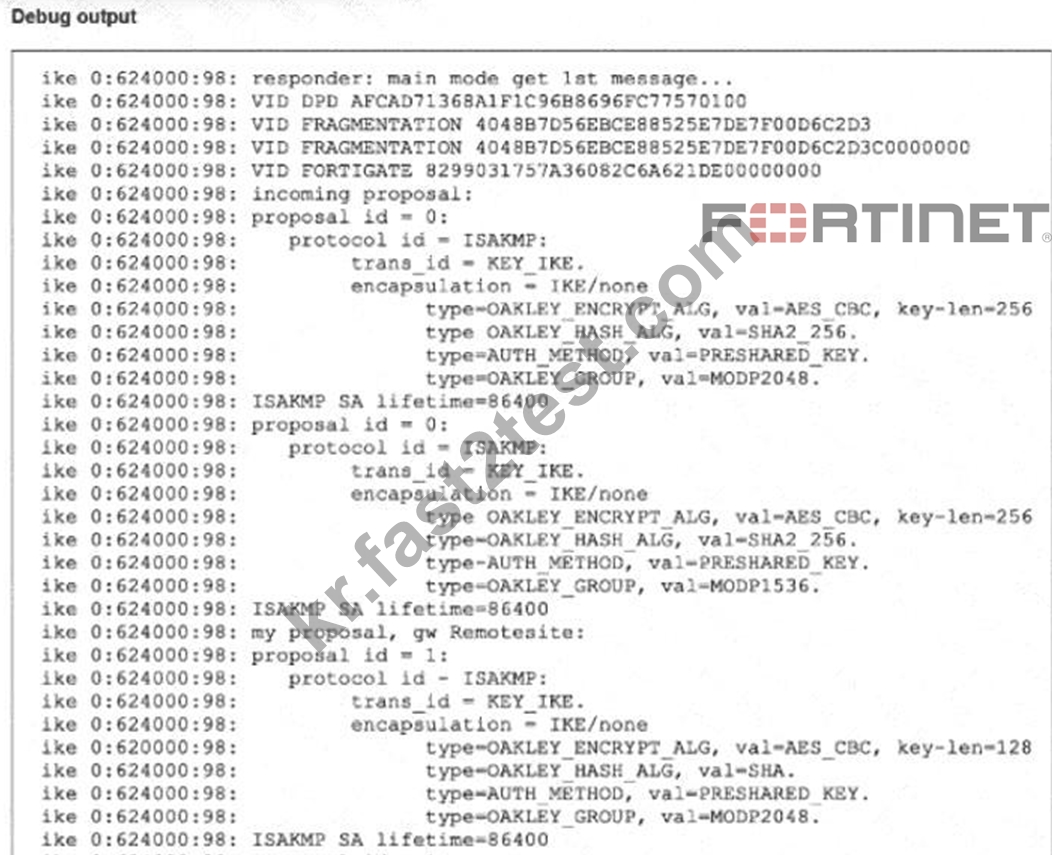

A partial output from an IKE real-time debug is shown
The administrator does not have access to (he remote gateway
Based on the debug output, which two conclusions can you draw? (Choose two.)
정답：A,C
설명：
To determine the correct conclusions, we analyze the specific lines in the IKE real-time debug output provided in the exhibit:
Analysis for Option A (The remote peer is the initiating peer):
Evidence: The very first line of the debug output reads: ike 0:624000:98: responder: main mode get 1st message...
The keyword responder indicates that this local FortiGate is receiving the connection request. Consequently, the remote peer must be the initiator sending the request. The phrase " get 1st message " confirms the local unit is receiving the initial packet of the negotiation sequence.
Conclusion: This statement is True.
Analysis for Option B (This is a phase 1 negotiation):
Evidence: The same line mentions main mode.
In IPsec VPNs, Main Mode and Aggressive Mode are exclusively used for Phase 1 (IKE SA) negotiations.
Phase 2 (Child SA) negotiations use Quick Mode. The presence of " main mode " definitively identifies this as a Phase 1 exchange.
Conclusion: This statement is True.
Analysis for Option C (There is a Diffie-Hellman group mismatch):
Evidence:
Incoming proposal (Remote): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14) in the first proposal proposal.
My proposal (Local): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14).
Since both the remote peer and the local gateway support and are proposing MODP2048 (Group 14), there is no Diffie-Hellman group mismatch. The actual mismatch visible in the logs is between the Encryption/Hash algorithms (Remote proposes AES-256/SHA2-256, while Local proposes AES-128/SHA), but the DH groups match.
Conclusion: This statement is False.
Analysis for Option D (This is a phase 2 negotiation):
As established in the analysis for Option B, " Main Mode " is a Phase 1 protocol. If this were Phase 2, the debug would show " Quick Mode " .
Conclusion: This statement is False.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): " Phase 1 modes: Main mode and Aggressive mode. " FortiOS Debugging documentation: Explains that " responder " indicates the device receiving the IKE initialization.
질문 # 113
When FortiGate enters conserve mode because of memory pressure, which action can FortiGate perform to preserve memory?
정답：C
질문 # 114
Exhibit.

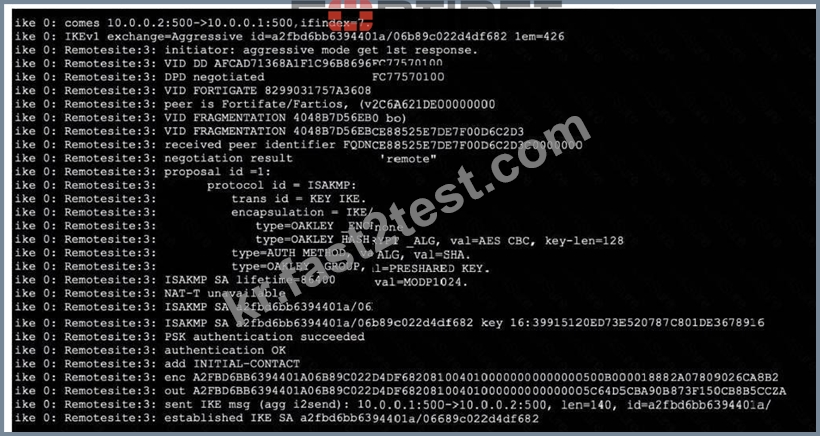

Refer to the exhibit, which contains partial output from an IKE real-time debug.
Which two statements about this debug output are correct? (Choose two.)
정답：A,D
설명：
From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode.
Let ' s break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:
For Option B:
The very first line of the debug output shows:
comes 10.0.0.2:500- > 10.0.0.1:500, ifindex=7.
This indicates the traffic direction-from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet ' s documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.
For Option D:
You see the statement:
negotiation result " remote "
and
received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000
Official debug documentation describes that the " peer identifier " or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing " remote " as the peer ID for its connection.
Why Not A or C:
Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.
Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there's no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.
This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide ' s VPN section and the official debug command output samples published in Fortinet's documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.
References:
FortiOS 7.6.4 Administration Guide: IPsec VPN and Debugging VPNs
Technical Support Resources on interpreting IKE debug output and peer ID roles
질문 # 115
You use the FortiManager SD-WAN overlay orchestrator to prepare an SD-WAN deployment. Using information provided through the SD-WAN overlay template wizard, FortiManager creates templates that are ready to install on the spoke and hub devices.
Which three templates are created by the SD-WAN overlay orchestrator for a spoke device? (Choose three answers.)
정답：B,D,E
설명：
The SD-WAN 7.6 Enterprise Administrator Study Guide states: "For branches and hubs, it creates BGP, IPsec, and CLI templates to accommodate all required configuration changes." Accordingly, the overlay orchestrator generates the following templates for each spoke:
* The IPsec tunnel template configures the spoke as an IPsec dial-up client and applies the tunnel parameters appropriate to the selected topology, authentication method, routing design, and ADVPN settings.
* The BGP template configures the spoke's BGP routing, including the autonomous system, neighbor relationships, and either BGP-per-overlay or BGP-on-loopback behavior selected in the wizard.
* The CLI template supplies additional configuration that cannot be represented entirely by the dedicated IPsec and BGP templates.
The guide separately explains that, for branch devices, FortiManager adds the required members and zones to the defined SD-WAN template. It does not generate a separate rules template for the spoke. Static routes are also not delivered through a dedicated static-route template; routing for the overlay is configured using the generated BGP template. Therefore, options A and E are incorrect.
질문 # 116
......
