NEW QUESTION # 139
Refer to the exhibits.
An OSPF peer is advertising route 172.16.52.0/24. The local FortiGate is configured with an inbound distribution list that allows the 172.16.0.0/16 network to be injected into its routing table. However, the 1 '
2.16.52.0/24 subnet cannot be seen in the FIB.
Which two stops can the administrator of the local FortiGate take to ensure that the advertised 172.16. 52.0/24 subnet will be injected into the routing table? (Choose two.)
Answer: B,C
Explanation:
The issue is caused by the strict matching logic of the configured Prefix List.

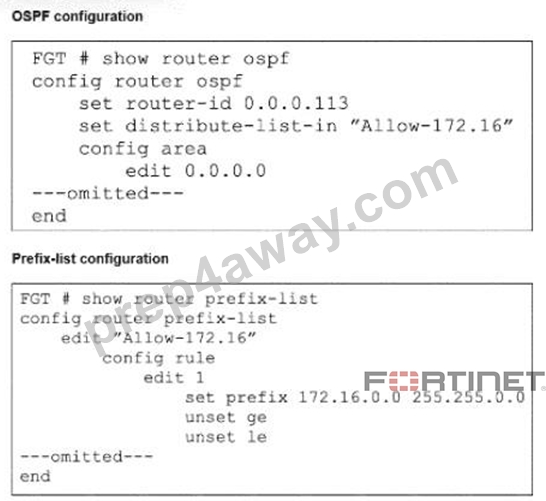

Current State: The rule is edit 1 with set prefix 172.16.0.0 255.255.0.0 and both ge (greater than or equal) and le (less than or equal) are unset.
Behavior: When ge and le are unset, FortiOS requires an exact match of the subnet mask. The current rule only matches the exact network 172.16.0.0/16. It denies 172.16.52.0/24 because the mask (/24) does not match the rule ' s mask (/16).
To fix this and inject 172.16.52.0/24, you must modify the list to match the /24 mask:
A). Add another entry to the prefix list to specifically allow the 172.16.52.0/24 network:
Creating a new rule (e.g., edit 2) with set prefix 172.16.52.0 255.255.255.0 will provide an exact match for the incoming route, allowing it to pass the distribute-list.
B). Change the ge value to 17:
By configuring set ge 17 on the existing rule (conceptually 172.16.0.0/16 ge 17), you change the logic from " exact match " to " range match " .
This configuration tells the router to match any prefix starting with 172.16.x.x that has a subnet mask length of 17 or greater.
Since the incoming route is a /24, and 24 is greater than 17, the route will match the prefix list and be accepted.
Why other options are incorrect:
C: The option text appears to read " Change the ... value to 16 " . If this refers to le 16, it would enforce the mask to be exactly /16 or less, which still excludes /24.
D: Changing the default behavior to implicit allow defeats the purpose of a filter (security control) and is not a standard configuration step for fixing a single missing route.
Reference:
FortiGate Security 7.6 Study Guide (Routing): " In prefix-lists, if ge and le are not used, the subnet mask must match exactly. To match subnets within a range, you must define the prefix length boundaries using ge or le. "
NEW QUESTION # 140
Refer to the exhibit.
Which two observations can you make about the web filter traffic captured using the flow tool? (Choose two.)
Answer: A,D
Explanation:

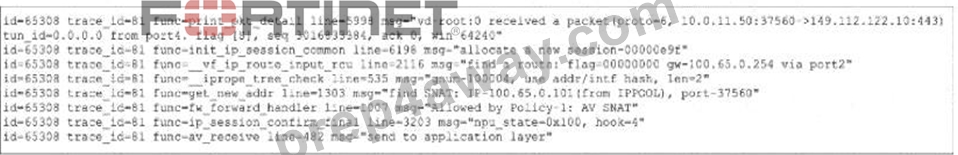

Analyze the " Send to Application Layer " Message:
The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer
"
Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.
Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.
Evaluate Option B (Firewall Policy Mode):
Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow- based, the traffic would stay in the flow path. Thus, Option B is correct.
Evaluate Option C (Web Filter Profile Mode):
In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.
Why Option A is Incorrect (NPU Offload):
The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.
Why Option D is Incorrect (Port Mapping):
While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.
Reference:
FortiGate Troubleshooting (Debug Flow): " If the debug flow shows msg= ' send to application layer ' , it confirms the traffic is being handled by the proxy (WAD) for Proxy-based inspection. "
NEW QUESTION # 141
Refer to the exhibit.
If the default settings are m place, what can you conclude about the conserve mode shown in the exhibit?
Answer: B
Explanation:

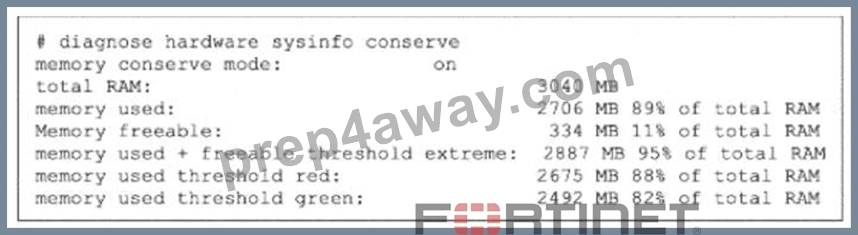

The exhibit shows:
memory conserve mode: on
memory used: 2706 MB 89% of total RAM
memory used threshold red: 2675 MB 88% of total RAM
memory used + freeable threshold extreme: 2887 MB 95% of total RAM
The study guide states that the default thresholds are:
Extreme = 95%
Red = 88%
Green = 82%
So this FortiGate is in conserve mode because memory usage is 89%, which is above the red threshold (88%), but it has not yet reached the extreme threshold (95%).
The study guide then explains exactly what happens during conserve mode:
"For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):
config system global
set av-failopen [off | pass | one-shot]
pass (default): All new sessions pass without inspection"
It also says:
"The av-failopen setting also applies to flow-based antivirus inspection." And the same page adds:
"If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked." Therefore, with default settings and with memory usage below the extreme threshold, FortiGate is allowing new sessions that require inspection, but bypassing inspection. That matches C.
Why the other options are wrong:
A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass, meaning they pass without inspection B is wrong because if memory rises another 6%, it reaches 95%, which is the extreme threshold. At that point, the study guide says all new sessions that require inspection are blocked D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold, and the exhibit shows it is currently at 89%, not 95%
NEW QUESTION # 142
In a Security Fabric environment which three actions must you take to ensure successful communication among the nodes? (Choose three.)
Answer: B,C,E
Explanation:
To establish a functional Security Fabric, specific network and configuration prerequisites must be met to ensure nodes can communicate, authorize, and share telemetry data:
A). You must ensure that TCP port 8013 is not blocked along the way:
TCP port 8013 is the dedicated port for FortiTelemetry (Fabric) communication. If firewalls (intermediate or local) block this port, the Fabric connection between the root and downstream FortiGates will fail.
D). You must authorize the downstream FortiGate on the root FortiGate:
Security Fabric relies on a trust relationship. When a downstream device attempts to join, it appears in the Root FortiGate ' s dashboard. The administrator must manually authorize this device (unless pre-authorized via serial number) to allow it to join the Fabric topology.
E). You must enable FortiTelemetry on the receiving interface of the upstream FortiGate:
The interface on the Root (upstream) FortiGate that faces the downstream devices must have the " Security Fabric Connection " (formerly CAPWAP/FortiTelemetry) administrative access setting enabled. Without this, the interface will not listen for or accept Fabric connection requests.
Why other options are incorrect:
B: Neighbor Discovery uses standard multicast/broadcast or static settings; changing the port is not a standard requirement.
C: FortiGates can participate in the Security Fabric in either NAT or Transparent mode; Transparent mode is not a mandatory requirement for the Fabric itself.
Reference:
FortiGate Security 7.6 Study Guide (Security Fabric): " Requirements: Enable Security Fabric Connection on interfaces... Authorize downstream devices... Ensure TCP 8013 is allowed. "
NEW QUESTION # 143

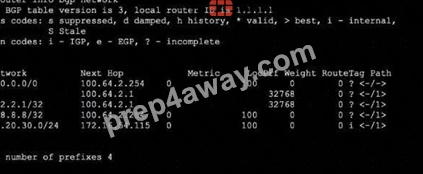

Refer to the exhibit, which shows the output o! the BGP database.
Which two statements are correct? (Choose two.)
Answer: B,C
Explanation:
For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. " For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally.
The exhibit shows all BGP prefixes known to the local router, matching the official admin guide's description of this command's output.
Explanation for B and C:
The phrase "legacy route advertisement" is not formalized in BGP documentation or Fortinet's admin guide; the output uses standard BGP mechanics.
If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.
References:
FortiOS Administration Guide: BGP Configuration and Route Table Interpretation Official BGP Command Reference: Show BGP Network, Path Codes, Route Origination Indicators
NEW QUESTION # 144
......
