Desktop Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) practice exam software also keeps track of the earlier attempted Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) practice test so you can know mistakes and overcome them at each and every step. The Desktop Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) practice exam software is created and updated in a timely by a team of experts in this field. If any problem arises, a support team is there to fix the issue.
| Certification Vendor: | VMware |
|---|---|
| Exam Name: | Advanced VMware Cloud Foundation 9.0 Networking |
| Exam Number: | 3V0-25.25 |
| Exam Price: | $250 USD |
| Available Languages: | English |
| Exam Duration: | 135 minutes |
| Related Certifications: | VMware Certified Advanced Professional - VMware Cloud Foundation Networking (VCAP-VCF Networking) |
| Real Exam Qty: | 60 |
| Exam Format: | Multiple choice, Simulation-style questions, Scenario-based items |
| Passing Score: | 300 / 500 |
| Sample Questions: | VMware 3V0-25.25 Sample Questions |
| Exam Way: | Pearson VUE (Online or Test Center) |
| Official Syllabus URL: | https://www.vmware.com/learning/certification/vcap-vcf-networking.html |
>> Exam VMware 3V0-25.25 Success <<
Dumpleader expect to design such an efficient study plan to help you build a high efficient learning attitude for your further development. Our 3V0-25.25 study torrent are cater every candidate no matter you are a student or office worker, a green hand or a staff member of many years' experience. Therefore, you have no need to worry about whether you can pass the 3V0-25.25 Exam, because we guarantee you to succeed with our technology strength. The language of our 3V0-25.25 exam questions are easy to follow and the pass rate of our 3V0-25.25 learning guide is as high as 99% to 100%.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 33
An administrator is troubleshooting intermittent connectivity failures between two workloads connected to NSX VLAN segments using Traceflow. In-band Network Telemetry (INT) has been enabled in the NSX Global Configuration. How does Traceflow identify issues in a VLAN network?
Answer: C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF)and NSX,Traceflowis a powerful diagnostic tool designed to provide visibility into the logical and physical path of a packet as it traverses the SDDC. Unlike standard ping or traceroute utilities that use real ICMP traffic from the Guest OS, Traceflow operates byinjecting synthetic trafficdirectly into the data plane at the source point (usually the vNIC of a Virtual Machine).
When Traceflow is initiated, the NSX Manager creates a "trace packet" that mimics the characteristics of the traffic being investigated (such as TCP, UDP, or ICMP with specific headers). This synthetic packet is marked with a special metadata tag. As the packet moves through the virtual switches (VDS), logical routers (DR/SR), and distributed firewalls (DFW) on the ESXi Transport Nodes, each component recognizes the tag and reports an "observation" back to theCentral Control Plane (CCP). The CCP then aggregates these observations and presents them in the NSX Manager UI.
ForVLAN-backed segments, Traceflow functions similarly to how it works on Overlay segments. It tracks the packet as it is switched at Layer 2 and processed by any applicable distributed services. The inclusion of In-band Network Telemetry (INT)in modern VCF versions (5.x and 9.0) enhances this by allowing the synthetic packet to collect telemetry data from INT-capable physical switches in the fabric. This provides a
"hop-by-hop" view that includes both the virtual and physical segments of the journey.
Option A is incorrect because Traceflow is not limited to ICMP; it can simulate various protocols. Option C is incorrect as Traceflow fully supports VLAN segments. Option D is incorrect as it describes a state- comparison mechanism rather than the active injection process that defines Traceflow. Therefore, the injection of synthetic traffic to observe data plane behavior via the control plane is the verified mechanism.
NEW QUESTION # 34
An administrator is responsible for a VMware Cloud Foundation (VCF) Private Cloud. The administrator has been tasked with identifying why there is no data ingress into a workload domain.
The workload domain has been configured with:
. A dedicated NSX Edge Cluster.
. A Tier 0 gateway.
. A Tier-1 gateway that is configured for Distributed Routing only.
. An NSX segment where a test virtual machine is located.
As part of the exercise, the administrator must map the traffic flow for data ingress into the workload domain to identify the steps that external network traffic will take to ingress into the workload domain and reach the virtual machine.

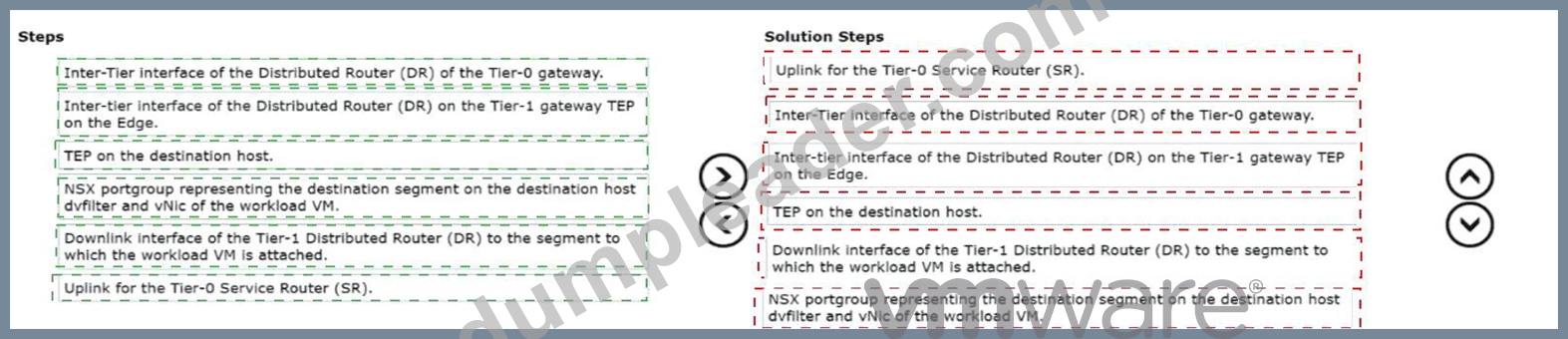

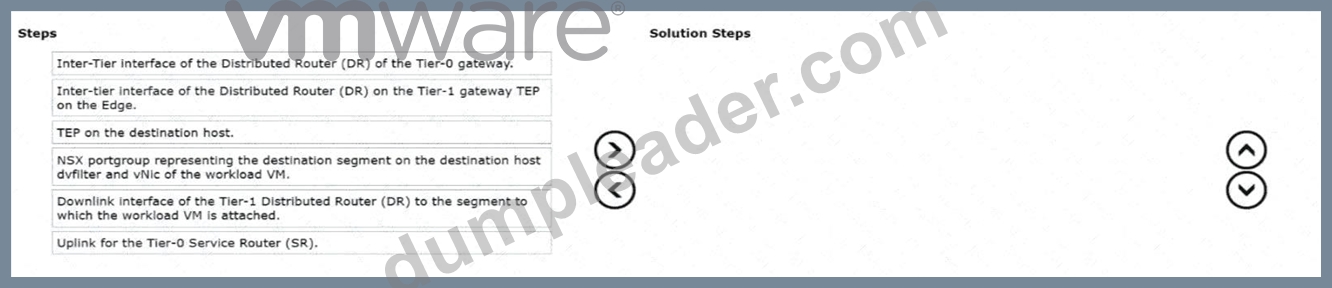

Drag and drop the six steps from the Steps list on the right and place them in order in the Solution Steps.
(Choose six.)
Answer:
Explanation:
Explanation:
To identify why there is no data ingress into a workload domain, an administrator must understand the specific path external traffic takes. For a workload domain configured with a Tier-0 gateway and a Tier-1 gateway (Distributed Routing only), the ingress traffic flow follows a hierarchical path from the physical network through the NSX logical components to the virtual machine.
Ingress Traffic Flow Sequence
The correct sequence of steps for external network traffic to ingress the workload domain and reach the virtual machine is as follows:
* Uplink for the Tier-0 Service Router (SR): Traffic enters the NSX environment from the physical network through the physical-to-logical interface on the Edge node.
* Inter-Tier interface of the Distributed Router (DR) of the Tier-0 gateway: After being received by the Service Router, the packet is routed internally within the Tier-0 gateway to its distributed component.
* Inter-tier interface of the Distributed Router (DR) on the Tier-1 gateway TEP on the Edge: The Tier-0 gateway routes the packet to the Tier-1 gateway. In this specific scenario, since the Tier-1 is
"Distributed Routing only," this logical transition occurs on the Edge node participating in the transport zone.
* TEP on the destination host: The Edge node encapsulates the packet (typically via Geneve) and tunnels it across the physical fabric to the specific ESXi host where the target virtual machine is currently residing.
* Downlink interface of the Tier-1 Distributed Router (DR) to the segment to which the workload VM is attached: On the destination host, the packet is de-encapsulated. The local Tier-1 DR instance identifies the correct logical segment (VNI) for the destination IP.
* NSX portgroup representing the destination segment on the destination host dvfilter and vNic of the workload VM: The packet is delivered to the virtual switch port, passes through any applied Distributed Firewall (dvfilter) rules, and finally reaches the virtual machine's network interface card (vNIC).
NEW QUESTION # 35
An administrator is tasked to create a development environment with a Tier-1 gateway to host overlay segments for only East/West workload communication. North/South communication is also required. The solution will not include the following services: NAT, DHCP, VPN. Which step must the administrator take when creating the Tier-1 gateway?
Answer: C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In anNSX-based VCFenvironment, theTier-1 Gatewayis designed to provide localized routing for a specific tenant, department, or environment (like "Development"). Even if the requirements exclude stateful services like NAT or VPN, the gateway must still be logically connected to the higher-tier routing fabric to facilitate North/Southcommunication.
East-West communication-traffic between VMs on the same or different overlay segments attached to the same Tier-1-is handled by theDistributed Router (DR)component of the Tier-1 gateway. This happens automatically as soon as segments are attached to the gateway. However, for a VM on one of these segments to reach an "external" destination (such as a shared service in the Management Domain or the public internet), the Tier-1 must have a path to theTier-0 Gateway.
To satisfy the North/South requirement, the administrator mustconnect the Tier-1 gateway to a Tier-0 gatewayand, crucially,enable Route Advertisement. Without route advertisement, the Tier-0 gateway will not know that the subnets (prefixes) behind the Tier-1 gateway even exist. Consequently, while the Tier-1 might have a default route pointing up to the Tier-0, the physical network will have no return path to the VMs, breaking external connectivity.
Option C is incorrect because a Tier-1 gateway onlyrequiresan Edge Cluster if it needs to provide stateful services (NAT, LB, VPN). Since this design explicitly excludes them, the Tier-1 can remain a purely Distributed Router, which is more efficient and does not consume Edge node resources. Option D would isolate the environment, preventing the required North/South communication. Therefore, the logical link and the enabling ofAll Connected Segmentsin the advertisement settings are the verified steps to ensure full connectivity.
NEW QUESTION # 36
When attempting to deploy or expand an edge cluster from an administrator encounters a failure: "Failed to validate the BGP Route Distribution". Prior to calling support, the administrator attempts to troubleshoot the issue. How should the administrator troubleshoot this issue?
Answer: C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF), theSDDC Managerautomates the deployment and expansion ofNSX Edge Clusters. As part of the automated workflow, particularly in VCF 4.x, 5.x, and 9.0, a "Verify BGP Route Distribution" task is executed. This task is a validation check designed to ensure that the newly deployed or expanded Edge nodes are successfully peering with the physical Top-of-Rack (ToR) switches and, more importantly, are actually receiving routes.
According to VMware/Broadcom technical documentation (specificallyKB 388351), the workflow expects to see at least one route (often the default route or specific physical prefixes) learned via BGP from the northbound peer. If the Edge nodes establish a BGP session but the physical switches are not advertising any routes (or are only advertising routes that the Edge ignores due to filters), the SDDC Manager validation fails with the error "Failed to validate the BGP Route Distribution".
The verified troubleshooting step is tolog into the CLI of the Edge nodeidentified in the failure. Using the command get route bgp from within the Tier-0 Service Router (SR) VRF context allows the administrator to see the current Routing Information Base (RIB). If the table is empty or only contains internal "ISR" (Inter- SR) routes, it confirms that the physical network is not providing the expected advertisements. This allows the administrator to correct the BGP advertisement settings on the physical ToR switches-such as enabling default-originate-and then simply "Resume" the task in SDDC Manager without needing to redeploy the entire cluster.
NEW QUESTION # 37
An administrator is attempting to confirm the successful transmission between an internal VM to an external destination.

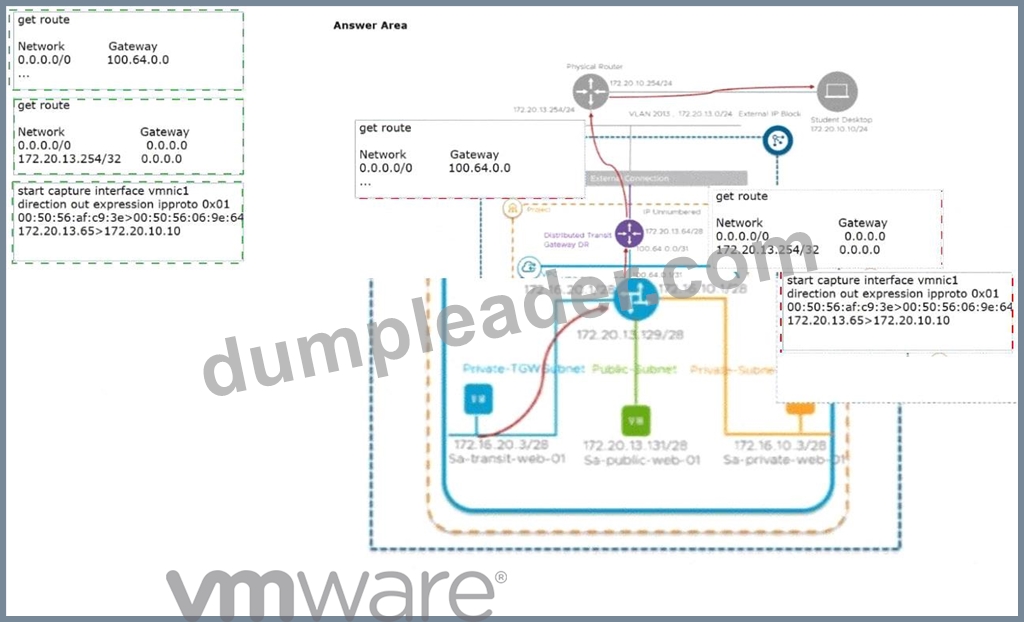

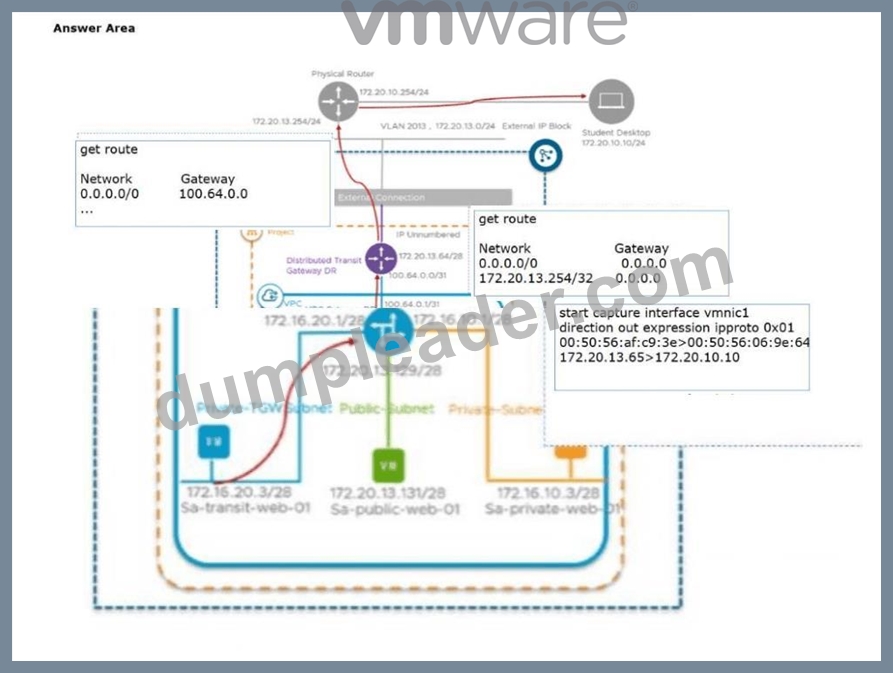

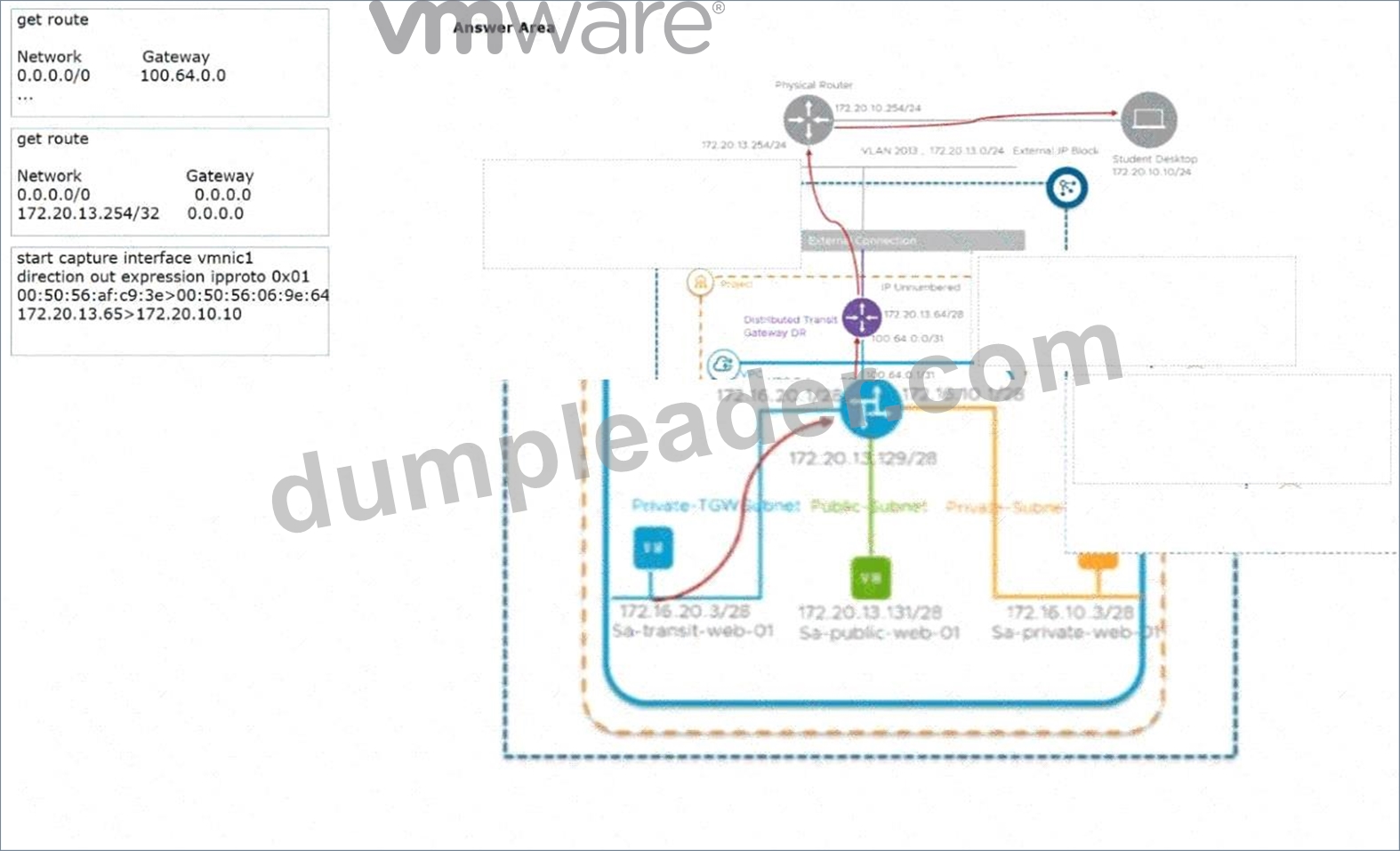

An ICMP request packet is being sent from Sa-transit-web-01 to the Student Desktop in the diagram.
Drag and Drop the commands output into their appropriate originating NSX object.
Answer:
Explanation:
Explanation:
In a modernVCF 9.0environment using theVirtual Private Cloud (VPC)model, North-South traffic follows a specific hierarchical path. When a VM, such asSa-transit-web-01, initiates an ICMP request to an external destination (the Student Desktop), the packet must traverse the VPC's internal routing before exiting to the physical network.
The first hop is theVPC Tier-1 Gateway. This gateway manages the localized subnets within the VPC. In this architecture, the VPC Tier-1 is typically configured with a default route ($0.0.0.0/0$) pointing to the Transit Gateway (TGW). The gateway address 100.64.0.0 represents the provider-side interface of the Router Link connecting the VPC to the Transit Gateway. Thus, the command output showing the default route to 100.64.0.0 belongs to the VPC Gateway.
The second hop is theDistributed Transit Gateway DR. The Transit Gateway acts as the aggregation point for multiple VPCs and provides the bridge to the physical datacenter fabric. The command output for this object shows a default route with a gateway of 0.0.0.0, indicating it is directly peered or using a specific unnumbered interface to reach the physical router. Additionally, it identifies the specific physical router IP (172.20.13.254/32) as a known local next-hop, which is a common characteristic of the Transit Gateway's forwarding table when performing North-South transitions.
Finally, theTransport Node (ESXi Host)is where the physical packet capture occurs. As the packet exits the virtual environment, it is placed on a physical uplink (vmnic1). The packet capture output confirms the transformation of the traffic: it shows the source IP of the VM (or its translated NAT address 172.20.13.65) reaching out to the destination 172.20.10.10. The inclusion of ipproto 0x01 (ICMP) and the specific MAC addresses confirms that the packet has successfully traversed the NSX overlay and is now a standard Ethernet frame on the physical wire.
NEW QUESTION # 38
......
