NEW QUESTION # 100

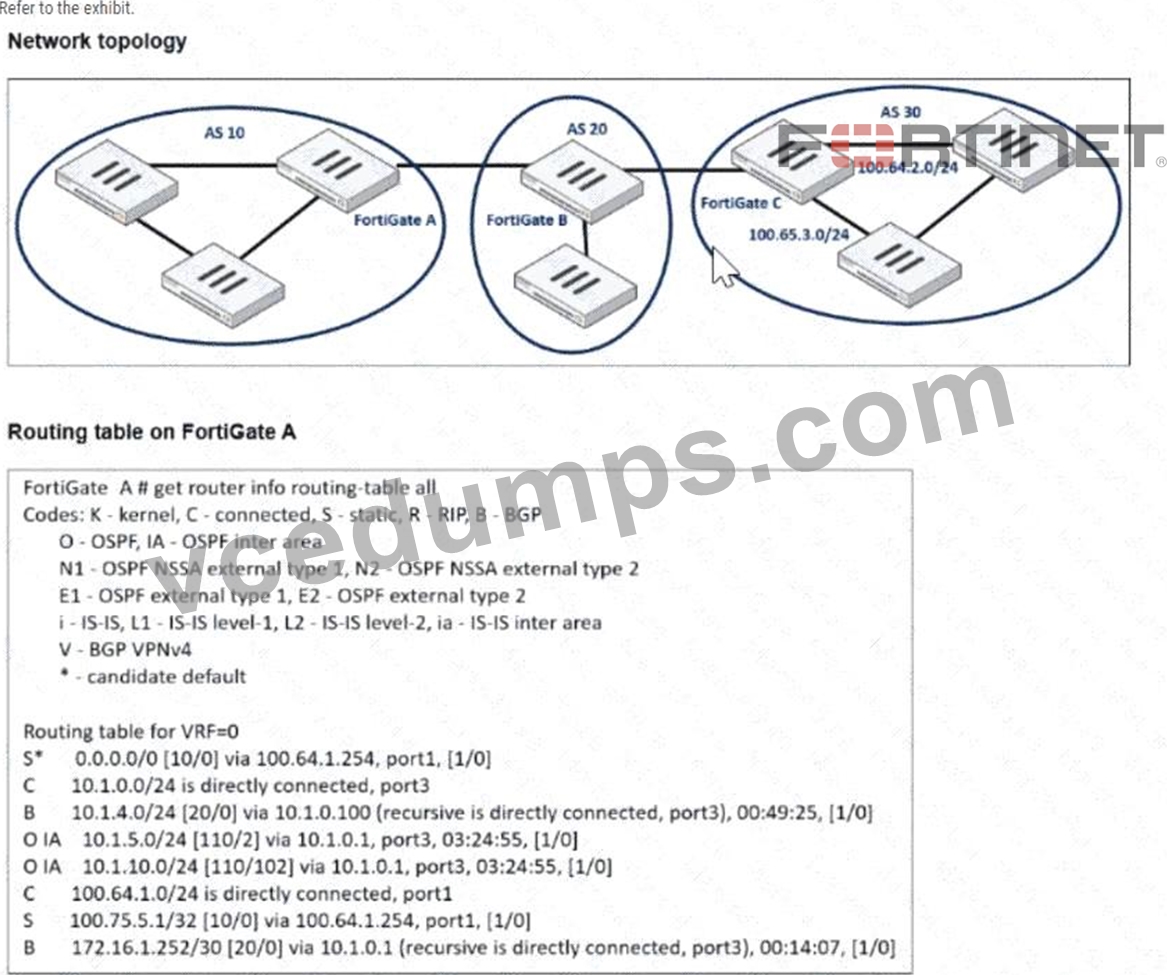

Refer to the exhibit.
A network topology and the routing table of a FortiGate device are shown.
What must the administrator configure in the BGP section to add only the subnet 100.64.2.0/24 to the routing table of FortiGate_A? (Choose one answer.)
Answer: C
Explanation:
The Enterprise Firewall 7.6 Administrator Study Guide states: "You can also use the network command to configure FortiGate BGP to advertise prefixes." Therefore, FortiGate_C must originate the required prefix by adding 100.64.2.0/24 under config router bgp # config network.
By default, the configured prefix must exactly match an active route in FortiGate_C's routing table. The topology indicates that 100.64.2.0/24 is directly connected to FortiGate_C, so the network-import check succeeds and FortiGate_C advertises that specific prefix to FortiGate_B. FortiGate_B can then advertise the learned BGP route to FortiGate_A through the existing eBGP adjacency.
Connected-route redistribution on FortiGate_C would be too broad because it would redistribute all eligible connected routes, including the other connected subnet 100.65.3.0/24. A route-map-in on FortiGate_A can filter routes that FortiGate_A receives, but it cannot originate a route that FortiGate_C has not advertised.
FortiGate_B does not need to redistribute BGP into BGP; normal BGP route propagation handles the advertisement between autonomous systems.
Example configuration on FortiGate_C:
config router bgp
config network
edit 1
set prefix 100.64.2.0 255.255.255.0
next
end
end
References: Dynamic Routing Supplement - Network Command , page 346; Fortinet: BGP network command and exact-prefix requirement ; FortiOS 7.6.7 CLI Reference .
NEW QUESTION # 101

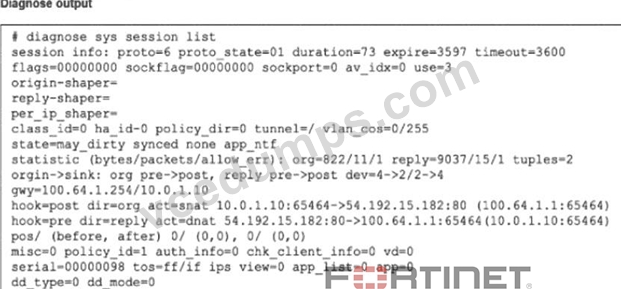

Refer to the exhibit.
The output of diagnose sys session list command is shown.
If the HA ID for the primary device is 9, what happens if the primary fails and the secondary becomes the primary?
Answer: B
Explanation:
The output of the diagnose sys session list command provides the critical evidence needed to determine the behavior during a failover:
Session Synchronization (synced):
The most important indicator in the exhibit is the synced flag located in the state= line (state=may_dirty synced none app_ntf).
In FortiOS HA (High Availability), the synced flag confirms that this specific session has been successfully synchronized from the primary device to the secondary (backup) device.
Session synchronization (Session Pickup) ensures that if the primary unit fails, the secondary unit already has the session in its table and can resume traffic processing immediately.
TCP State (proto_state=01):
The output shows proto=6 (TCP) and proto_state=01.
In the FortiGate session table, proto_state=01 for TCP indicates that the session is in the ESTABLISHED state (post-three-way handshake).
This invalidates Option B, which claims the TCP session is not fully established.
Failover Outcome:
Because the session is ESTABLISHED and SYNCED, the secondary device will seamlessly take over the session upon primary failure.
The traffic continues to flow through the new primary without requiring the user/client to restart the connection. This is the primary function of HA Session Pickup.
Why other options are incorrect:
A: While the output shows app_ntf (Application Control notification) and may_dirty, the presence of the synced flag overrides this concern regarding failover. If the session type were not supported for failover (e.g., certain proxy sessions in older versions), it would not be marked as synced. Since it is synced, it persists.
B: As noted, proto_state=01 means established, not " not fully established " .
D: While the kernel updates routing tables, the purpose of syncing the session is to preserve the state so it does not need to be re-evaluated as a new packet would, preventing traffic drops.
Reference:
FortiGate Security 7.6 Study Guide (High Availability): " If session pickup is enabled, the primary unit synchronizes its session table... to the backup unit. If the primary unit fails, the backup unit... continues to process the sessions with no interruption. "
NEW QUESTION # 102
When FortiGate enters conserve mode because of memory pressure, which action can FortiGate perform to preserve memory?
Answer: D
NEW QUESTION # 103

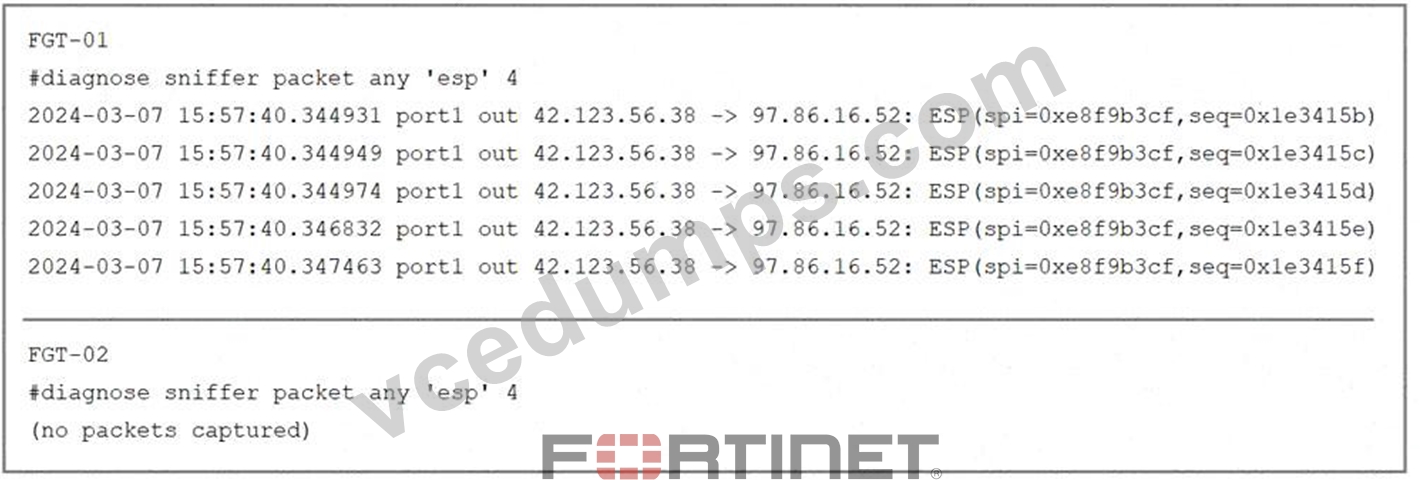

Refer to the exhibit.
The sniffer log on two FortiGate devices are shown. Based on the information in the log, which two factors explain the output on FortiGate FGT-02? (Choose two answers)
Answer: A,C
Explanation:
The output on FGT-01 confirms that the device is actively encapsulating traffic and sending it as ESP packets (Protocol 50) out of port1 towards the IP address 97.86.16.52. The logs show outgoing packets, which confirms FGT-01 is attempting to initiate or maintain the tunnel and that NAT-Traversal is not being used (as it uses raw ESP).
The output on FGT-02, however, displays (no packets captured). This is significant because the sniffer command diagnose sniffer packet any ' esp ' captures traffic at the network interface level (ingress), regardless of whether a matching VPN configuration exists on the receiving unit. The absence of packets proves that the ESP traffic generated by FGT-01 is physically not arriving at FGT-02 ' s interface.
This behavior is explained by two primary factors:
Option A (Blocking): An intermediate device, such as an ISP router or firewall, is dropping Protocol 50 traffic. Unlike UDP 500/4500, raw ESP is often blocked by default on many networks or legacy devices.
Option C (Routing/Misconfiguration): If the administrator configured the wrong remote peer IP on FGT-01, the packets are being routed to a different destination entirely. Consequently, they never arrive at FGT-02 to be captured.
Option B is incorrect because even without a configured VPN tunnel, the sniffer would still display the incoming ESP packets if they were reaching the interface. Option D is incorrect because FGT-01 is sending ESP, making ' esp ' the correct filter.
NEW QUESTION # 104
What are two functions of automation stitches? (Choose two.)
Answer: B,D
NEW QUESTION # 105
......
