질문 # 67
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, what is the required screw spacing in inches for the CLT to glulam connection?
정답：B
설명：
The connection detail specifies the CLT-to-glulam screws at 24 inches on center , so option D is correct. This is a construction-document interpretation question rather than a universal prescriptive screw-spacing requirement imposed by the IBC.
The approved structural detail controls the required spacing for this particular connection because the registered design professional has established the connection geometry and fastener schedule based on the applicable structural loads, CLT panel configuration, glulam member, fastener properties, and required load transfer. The 24-inch dimension must therefore be maintained in the field unless an approved revision changes the connection design.
IBC Table 1705.5.3 is directly relevant to the special inspector's responsibilities. For screws used in Type IV- A, IV-B, or IV-C mass timber connections, periodic special inspection includes verification of diameter, length, head type, spacing, installation angle, and installation depth . The special inspector is therefore expected to compare actual field installation against precisely this type of approved connection detail.
Substituting 12-, 16-, or 20-inch spacing without design authorization would constitute a deviation from the approved documents, even if the alternate spacing appeared more conservative.
References/Topics: Approved structural connection detail shown in the exhibit; 2021 IBC Section 1705.5.3 and Table 1705.5.3, inspection of screw spacing and installation.
질문 # 68
Fire-resistance ratings of members and assemblies can be established by all of the following except:
정답：B
설명：
ASTM E84 is not a test for establishing the fire-resistance rating of a structural member or building assembly.
Therefore, option B is the exception.
The 2021 IBC establishes fire-resistance ratings primarily through testing conducted in accordance with ASTM E119 or UL 263. Those tests evaluate whether an element or assembly can maintain structural performance, limit flame passage, and control temperature rise for a specified duration under standardized fire exposure. ASTM E84 instead evaluates surface-burning characteristics, principally flame-spread and smoke- developed indices. An E84 classification cannot establish that a wall, floor, beam, column, or connection possesses a one-, two-, or three-hour fire-resistance rating.
The IBC also recognizes approved prescriptive designs under Section 721, calculated fire resistance under Section 722, and designs documented in approved sources or supported by permitted analytical methods.
Those are valid methods represented by options A, C, and D.
For inspection purposes, the approved construction documents must identify the method used to establish the rating. The inspector must then verify that the installed materials, dimensions, loading assumptions, protective layers, fasteners, joints, and connection details match the tested, calculated, or prescriptive design.
References/Topics: 2021 IBC Sections 703.2, 703.2.1, 721 and 722; ASTM E119 and UL 263 fire-resistance testing.
질문 # 69
The building owner shall be responsible for each of the following for fire safety during construction except:
정답：B
설명：
Option C is not an IFC requirement. The 2021 IFC requires inspection records to be maintained on-site, but it does not require those records to be secured in a fire- and water-resistant safe.
Section 3303.2 requires the owner to designate a site safety director. Section 3303.3 then makes that director responsible for completing a daily fire safety inspection of the project site. Every day, building and outdoor construction areas must be evaluated against the prescribed fire-safety inspection items.
The results of each inspection must be documented and retained on-site until a certificate of occupancy has been issued . The records must also be immediately available at the site for presentation to the fire code official upon request. Options A, B, and D therefore accurately reflect the code requirements.
The daily inspection program covers practical hazards such as hot work, temporary heating, combustible debris, temporary electrical wiring, hazardous-material storage, fire apparatus access, hydrants, fire department connections, standpipe availability, and portable extinguishers.
For tall mass timber projects, this documentation is particularly important because substantial combustible construction may be present before permanent fire protection systems are complete.
References/Topics: 2021 IFC Sections 3303.2 and 3303.3; site safety director; daily fire-safety inspection and documentation.
질문 # 70

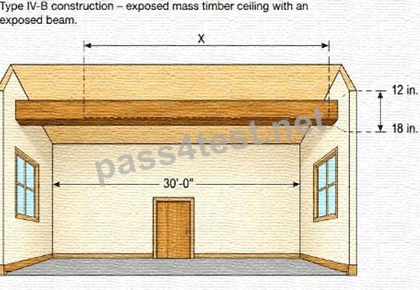

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
정답：B
설명：
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
질문 # 71
Each of the following is true regarding the fire-resistance rating for exterior bearing walls except:
정답：D
설명：
Option A is the exception because the base fire-resistance rating for an exterior bearing wall in Type IV-C construction is two hours, not one hour. The values are established by 2021 IBC Table 601.
Type IV-A has the most stringent tall mass timber construction requirements and assigns a three-hour rating to exterior bearing walls. Type IV-B and Type IV-C each assign a two-hour rating. Consequently, options B, C, and D accurately state the Table 601 requirements, while option A understates the required rating by one hour.
The Table 601 value is the minimum construction-type rating. Exterior bearing walls must also comply with the exterior-wall requirements of Table 705.5 based on fire separation distance. Where another code provision requires a higher rating, the more restrictive requirement governs. The inspector must therefore avoid treating the two-hour Type IV-C value as an absolute maximum.
Field verification should include the approved wall assembly, mass timber dimensions, noncombustible exterior protection, membrane continuity, protection of connections, intersections, joints, and any required opening protection. An exterior bearing wall installed as a nominal one-hour assembly would not comply merely because the timber itself has substantial cross-sectional dimensions.
References/Topics: 2021 IBC Table 601; Sections 602.4 and 705.5; exterior bearing-wall ratings for Types IV- A, IV-B, and IV-C.
질문 # 72
......
