NEW QUESTION # 42

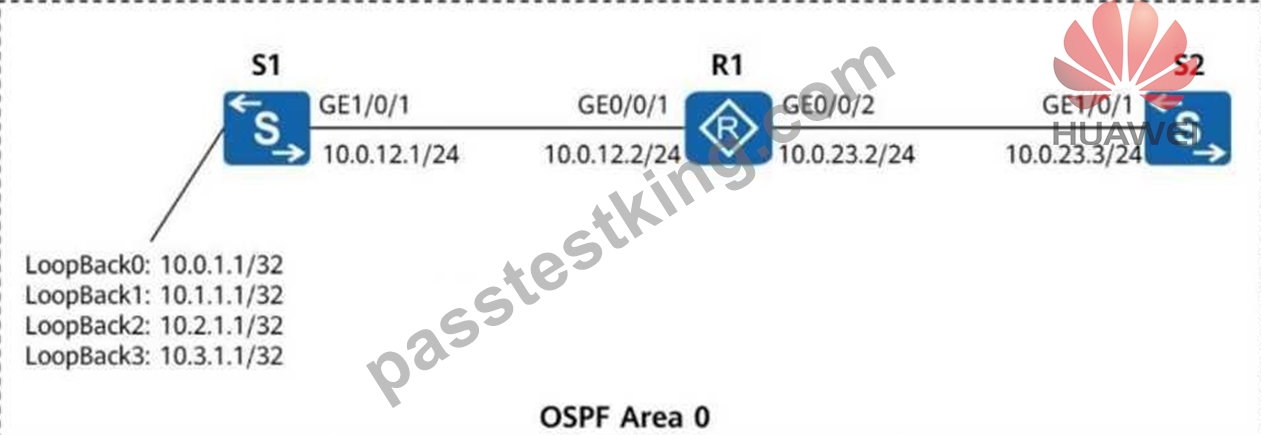

On the OSPF network shown in the figure, all IP addresses can communicate with each other.
Then the following configurations are added on R1:
[R1] acl 3000
[R1-acl4-advance-3000] rule deny ip source 10.0.1.1 0.0.0.0
[R1-acl4-advance-3000] rule deny ip source 10.1.1.1 0.0.0.0
[R1-acl4-advance-3000] rule permit ip source 10.3.1.1 0.0.0.0
[R1-acl4-advance-3000] rule permit ip
[R1-acl4-advance-3000] quit
[R1] traffic classifier test
[R1-classifier-test] if-match acl 3000
[R1-classifier-test] quit
[R1] traffic behavior test
[R1-behavior-test] permit
[R1-behavior-test] quit
[R1] traffic policy test
[R1-trafficpolicy-test] classifier test behavior test
[R1-trafficpolicy-test] quit
[R1] interface GE 0/0/1
[R1-GE0/0/1] traffic-policy test outbound
[R1-GE0/0/1] quit
Which IP addresses of S1 can successfully ping 10.0.23.3? (Select all that apply)
Answer: A,B,C,D
Explanation:
All four addresses can successfully ping 10.0.23.3, so the correct answer is A, B, C, D.
The key point is that the traffic policy is applied outbound on GE0/0/1 of R1, which is the interface facing S1. When S1 pings 10.0.23.3, the echo request travels from S1 to R1 and then to S2. The return echo reply from 10.0.23.3 comes back to R1 and is then sent outbound on GE0/0/1 toward S1. Therefore, the traffic policy examines the reply packets, not the original ping request packets.
In those reply packets, the source IP address is 10.0.23.3, and the destination is one of S1's loopback addresses. The ACL rules denying 10.0.1.1 and 10.1.1.1 as source addresses do not match these reply packets, because those addresses appear as destination addresses, not source addresses. In addition, the ACL contains rule permit ip, which permits all remaining IP traffic. As a result, replies to all four S1 addresses are forwarded successfully, so every listed address can ping 10.0.23.3.
NEW QUESTION # 43

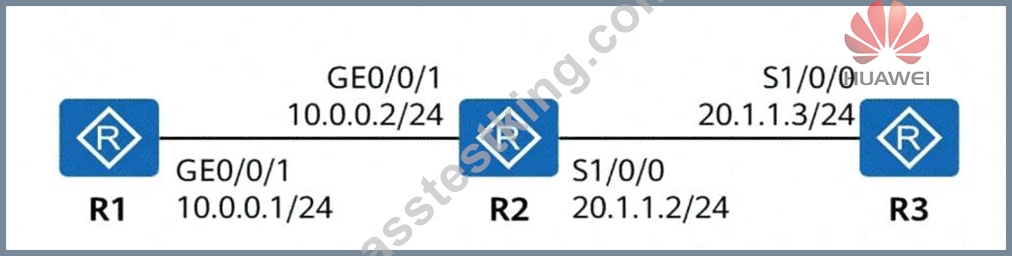

Which of the following configurations can enable connectivity between interfaces on R1 and R3? (Select all that apply)
Answer: B,C
Explanation:
For two directly connected edge networks to communicate through intermediate routing, each end router must have a route to the remote destination network pointing to the correct next hop on the transit link. Since
10.0.0.0/24 is directly connected to R1 and 20.1.1.0/24 is directly connected to R3, R1 needs a route to
20.1.1.0/24, and R3 needs a route to 10.0.0.0/24.
Option A is correct because it configures on R1 a static route to the remote network 20.1.1.0/24 using next hop 10.0.0.2, which is the neighbor toward the transit path. Option D is correct because it configures on R3 a static route to the remote network 10.0.0.0/24 using next hop 20.1.1.1, which is the proper adjacent forwarding address in that direction. Option B is incorrect because a router cannot use a next hop that belongs to the remote destination network but is not directly reachable as a valid immediate forwarding address in this topology. Option C is also incorrect because the specified next hop is not the correct adjacent next-hop address for R3. HCIA-Datacom stresses that static routes must always point to a reachable next hop or outbound interface.
NEW QUESTION # 44
Drag and Drop Question

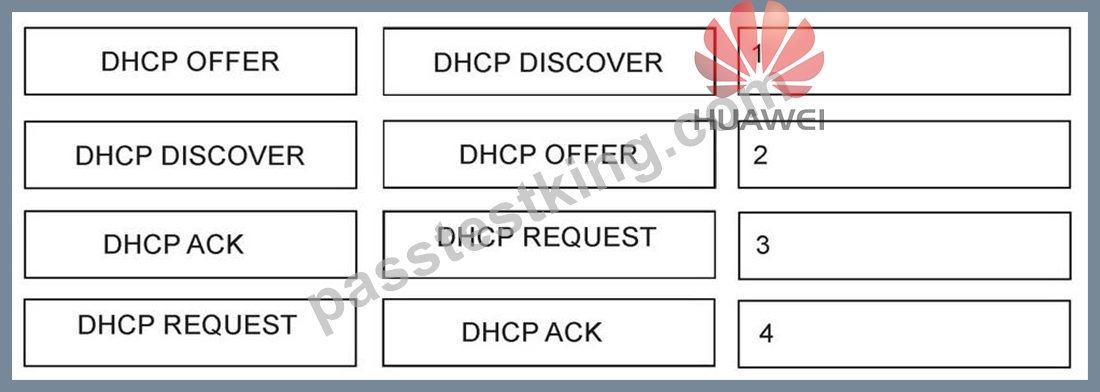

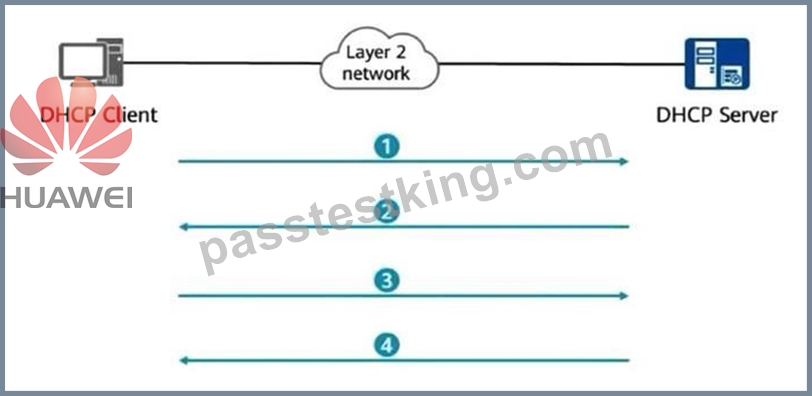

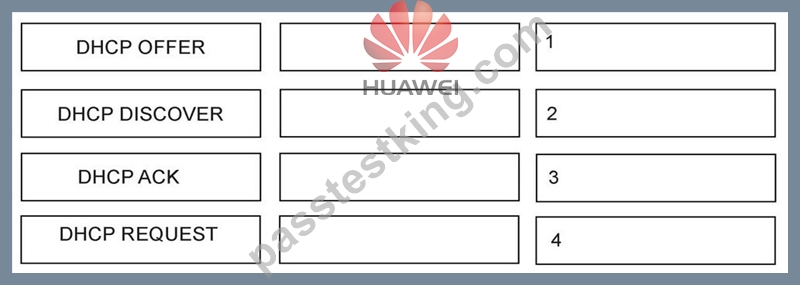

When requesting an IPv4 address for the first time, a DHCPv4 client needs to exchange four messages with the DHCPv4 server. Drag and drop the DHCPv4 packets to the correct positions based on the packet interaction sequence.
Answer:
Explanation:
Explanation:
1 - DHCP DISCOVER
2 - DHCP OFFER
3 - DHCP REQUEST
4 - DHCP ACK
A DHCP client first broadcasts a Discover message to locate a DHCP server. The server responds with an Offer containing an available IP address. The client then sends a Request to confirm the selected address, and finally the server replies with an ACK to complete the allocation process.
NEW QUESTION # 45
Which of the following statements are true about ACL rules? (Select all that apply)
Answer: A,B,D
Explanation:
The HCIA-Datacom V2.0 Training Material explains that ACLs classify packets using configured matching rules.
Option A is incorrect because different service modules may process ACL matching results differently.
Option B is correct. ACL matching produces positive-match or negative-match results. A positive match occurs when a packet matches a configured rule, whereas a negative match occurs when no applicable rule matches.
Option C is correct because the final traffic-processing action depends on the ACL rule and the service module applying the ACL. A permit or deny match does not independently determine all service behavior.
Option D is also correct. Huawei ACL matching normally follows the first-match principle, meaning that matching stops when the first applicable rule is found.
Therefore, the correct answers are B, C, and D.
NEW QUESTION # 46
If the neighbor relationship between R1 and R2 has reached the Full state in OSPF, which of the following statements are true? (Select all that apply)
Answer: A,B,D
Explanation:
When two OSPF routers reach the Full state, it means that adjacency establishment has been successfully completed and the routers have synchronized the necessary link-state information for that area. For this to happen, the two routers must have different router IDs, so option A is correct. They must also belong to the same OSPF area on the interfaces used to form the adjacency, making option B correct. Once adjacency reaches Full state, the routers have synchronized their link-state databases for that area, so option D is also correct.
Option C is incorrect because the OSPF process ID is only locally significant on a device. Two neighboring routers do not need to use the same process ID to establish adjacency. HCIA-Datacom teaches that OSPF neighbor formation depends on matching parameters such as area ID, network type, hello/dead timers, authentication settings, and subnet consistency, but not on the locally configured process number. This question is important because many learners mistakenly believe the process ID must match between devices, while in fact OSPF uses protocol parameters exchanged in packets rather than local process labels to form neighbor relationships.
NEW QUESTION # 47
......
