当社の4A0-D03学習教材には、ユーザーのすべての要件を基本的に満たす多くの利点があります。試用期間中に良いコメントや提案がある場合は、タイムリーにフィードバックをお寄せください。私たちの4A0-D03学習資料はあなたに利益をもたらします、私たちはユーザーの利益のためにそれをすべてします。 4A0-D03トレーニング資料の合格率は99％〜100％であり、これはLoaylのお客様から証明されており、次のメリットが得られます。 4A0-D03練習ファイルは、ご参加をお待ちしております。
| Section | Weight | Objectives |
|---|---|---|
| Topic 1: SR Linux and EVPN Fundamentals | 25% | - EVPN control plane and MP-BGP - VXLAN encapsulation and underlay - SR Linux architecture and CLI |
| Topic 2: Layer 2 EVPN Services | 25% | - Multi-homing and Ethernet Segments - EVPN Route Types 1–4 - Anycast Gateway and IRB |
| Topic 3: Data Center Interconnect (DCI) Solutions | 25% | - Interoperability with Nokia 7750 SR - BGP route policies and route reflectors - Gateway-less EVPN DCI |
| Topic 4: Layer 3 EVPN Services | 25% | - VRF integration and route targets - EVPN Route Type 5 - Symmetric and asymmetric routing |
Nokia 4A0-D03資格認定はIT技術領域に従事する人に必要があります。我々社のNokia 4A0-D03試験練習問題はあなたに試験うま合格できるのを支援します。あなたの取得したNokia 4A0-D03資格認定は、仕事中に核心技術知識を同僚に認可されるし、あなたの技術信頼度を増強できます。
質問 # 48
Consider the exhibit.
The network is going to be designed to use interface-less symmetric routing.
Which of the following statements is TRUE?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In interface-less symmetric routing, the EVPN fabric exchanges host forwarding information using EVPN route type 2 MAC/IP advertisements. RT-2 carries the host MAC address and, when present, the associated host IP address, allowing remote PEs to build the forwarding state needed for distributed gateway operation. Unlike asymmetric routing, interface-less symmetric routing does not require every MAC-VRF to be instantiated on every PE. The design scales better because each leaf only needs the locally attached MAC-VRFs plus the shared IP-VRF/routed VXLAN construct for inter-subnet forwarding. Option B describes an asymmetric forwarding pattern more than a symmetric one; in symmetric routing, both ingress and egress PEs perform routed forwarding functions through the IP-VRF. Option C is also incorrect because anycast gateway is fundamental when multiple leaves provide the same default-gateway service for a subnet. Therefore, the true statement is that forwarding information is exchanged using EVPN route type 2 updates. Reference: interface-less symmetric routing, EVPN RT-2 host MAC/IP signaling, distributed IRB operation.
質問 # 49
Which of the following statements about EVPN PE-CE routing, using BGP as the routing protocol, is FALSE?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In EVPN PE-CE routing, the PE exchanges ordinary IPv4 or IPv6 unicast routing information with the CE. When the PE learns CE prefixes, it imports them into the tenant IP-VRF and advertises them to other EVPN PEs as EVPN route type 5 IP Prefix routes. Conversely, when the PE receives EVPN routes from remote PEs, it can advertise corresponding IPv4/IPv6 BGP updates toward the CE, subject to policy. Import and export policies are essential because they control which customer routes are accepted, which EVPN-learned routes are advertised, and how attributes are modified. Option C is false because iBGP is not the preferred PE-CE model in this context. eBGP is typically preferred between PE and CE because it creates a clean administrative routing boundary between the provider/data-center edge and the customer or external router. Using eBGP also simplifies route policy, loop prevention, and operational separation. The CE does not need to participate in the EVPN overlay; it speaks standard BGP unicast with the PE, while the PE performs the EVPN RT-5 advertisement into the fabric. Reference: EVPN PE-CE BGP routing, eBGP preference, RT-5 prefix advertisement, import/export policy.
質問 # 50

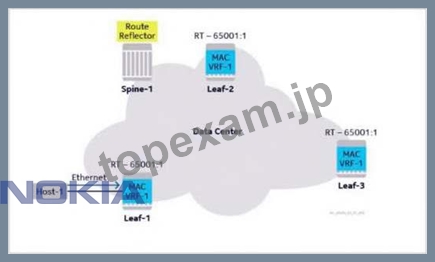

Consider the exhibit.
All three of the leafs have a MP-BGP EVPN session to the route-reflector Spine-1. Leaf-1, Leaf-2 and Leaf-3 have existing instances of an L2 EVPN named MAC VRF-1. Host-1 has just sent its first Ethernet frame into MAC VRF-1 on Leaf-1.
Which of the following steps is FALSE?
正解：B
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
When Host-1 sends its first Ethernet frame into MAC VRF-1, Leaf-1 performs normal local data-plane MAC learning on the access interface and installs Host-1's MAC address into the MAC forwarding table. In an L2 EVPN MAC-VRF, host MAC reachability is then advertised into the EVPN control plane using EVPN route type 2, the MAC/IP Advertisement route. Route type 5 is not used for host MAC advertisement; RT-5 is used for IP prefix advertisement in Layer 3 EVPN services. Therefore, option B is false because it incorrectly states that Leaf-1 generates an EVPN RT-5 update with the host MAC address. In this topology, Leaf-1 sends the correct EVPN update to the route reflector, Spine-1. The route reflector then reflects the update to Leaf-2 and Leaf-3, and those remote leaves import the route if the route target matches their MAC VRF-1 import policy. The route target controls service membership, ensuring that only PEs participating in the same EVPN instance import the MAC route. Reference: L2 EVPN MAC learning, RT-2 MAC/IP advertisement, route-reflector distribution, route-target import.
質問 # 51

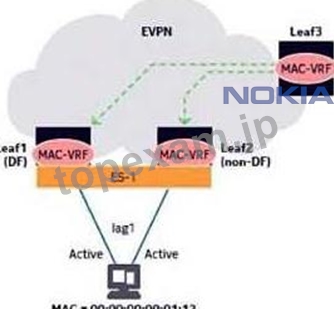

Consider the exhibit.
Which of the following statements about the operation of all-active multi-homing is FALSE?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In an all-active Layer 2 EVPN multi-homing design, the host is normally dual-attached through a LAG to multiple leaf routers that share the same Ethernet Segment Identifier. Leaf1 and Leaf2 both participate in the Ethernet Segment and may receive traffic from the host. For BUM traffic sourced by the host, the host-side hashing can send frames toward either attached leaf. For BUM traffic sent from the EVPN overlay toward the multi-homed segment, DF election controls which PE forwards that replicated traffic toward the local Ethernet Segment to prevent duplicate delivery. The false statement is option B. A remote leaf such as Leaf3 does not simply enable ECMP on the MAC-VRF to load-balance traffic between Leaf1 and Leaf2. EVPN all-active forwarding uses Ethernet Segment discovery, Ethernet A-D routes, aliasing, and split-horizon procedures to determine valid next-hops and prevent loops. ECMP alone is an underlay or routing-table behavior; it is not the MAC-VRF mechanism that authorizes multi-homed L2 forwarding across an Ethernet Segment. Reference: all-active L2 EVPN multi-homing, Ethernet Segment association, DF election, aliasing.
質問 # 52
Which of the following statements about PE-CE routing is FALSE?
正解：A
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
PE-CE routing is the mechanism used to exchange customer prefix reachability between a provider edge or data center leaf and the attached customer edge router. It can be implemented statically or dynamically. Static routing is operationally simple but does not scale well when many prefixes or frequent changes are involved. BGP is preferred for larger deployments because it supports policy, route filtering, attributes, and automated advertisement of changing reachability. In most EVPN PE-CE designs, eBGP is preferred because it creates a clean routing boundary between the PE and CE, with each device operating in a different autonomous system. Option D is false because the CE does not advertise BGP EVPN route type 5 updates to the PE. The CE advertises ordinary IPv4 or IPv6 unicast prefixes over the PE-CE routing session. The PE then imports those customer prefixes into the IP-VRF and advertises them into the EVPN overlay as route type 5 IP Prefix routes toward other PEs. This distinction matters: EVPN signaling is a PE-to-PE overlay function, not a CE-originated EVPN control-plane role. Reference: PE-CE routing, eBGP, EVPN RT-5 prefix advertisement.
質問 # 53
......
4A0-D03試験の練習問題の核となる競争力は、ユーザーが見ることができるように、私たちには強力な専門家チームがあり、4A0-D03学習資料はリアルタイムで更新されています。ユーザーフィードバックの推奨事項により、4A0-D03ラーニングガイドには現在小さな問題があるという結論に達しました。残りの会社の開発計画では、サービスに対する認識を強化し、ユーザーがより満足できるようにします。 4A0-D03の学習教材は、短期間の高額販売ではなく、お客様と長期にわたって維持したいと考えています。
4A0-D03テスト対策書: https://www.topexam.jp/4A0-D03_shiken.html
