NEW QUESTION # 524
Which of the following is the next step to take after successfully testing a root cause theory?
Answer: D
Explanation:
* Troubleshooting Methodology:
* Confirming the Root Cause: After testing and confirming the theory, the next logical step is to address the issue by implementing a solution.
* Implementation of the Solution:
* Resolve the Issue: Implement the identified solution to rectify the problem. This step involves making necessary changes to the network configuration, replacing faulty hardware, or applying software patches.
* Documentation: Document the solution and the steps taken to resolve the issue to provide a reference for future troubleshooting.
* Comparison with Other Steps:
* Determine Resolution Steps: This is part of the implementation process where specific actions are outlined, but the actual next step after testing is to implement those steps.
* Duplicate the Problem in a Lab: This step is typically done earlier in the troubleshooting process to understand the problem, not after confirming the root cause.
* Present the Theory for Approval: In some scenarios, presenting the theory might be necessary for major changes, but generally, once the root cause is confirmed, the solution should be implemented.
* Final Verification:
* After implementing the solution, it is important to verify that the issue is resolved and that normal operations are restored. This may involve monitoring the network and testing to ensure no further issues arise.
References:
* CompTIA Network+ study materials on troubleshooting methodologies and best practices.
NEW QUESTION # 525
A user recently moved a workstation to a different part of the office. The user is able to access the internet and print but is unable to access server resources. Which of the following is the most likely cause of the issue?
Answer: C
Explanation:
If a workstation can access the internet and printers (likely in another VLAN) but not internal servers, the port was likely placed into the wrong VLAN after the move. VLAN assignment controls Layer 2 segmentation, restricting access to resources on different VLANs.
A . A wrong default gateway would prevent internet access.
C . An error-disabled port would block all connectivity.
D . A duplicate IP would cause general network issues, not just missing server access.
Reference (CompTIA Network+ N10-009):
NEW QUESTION # 526

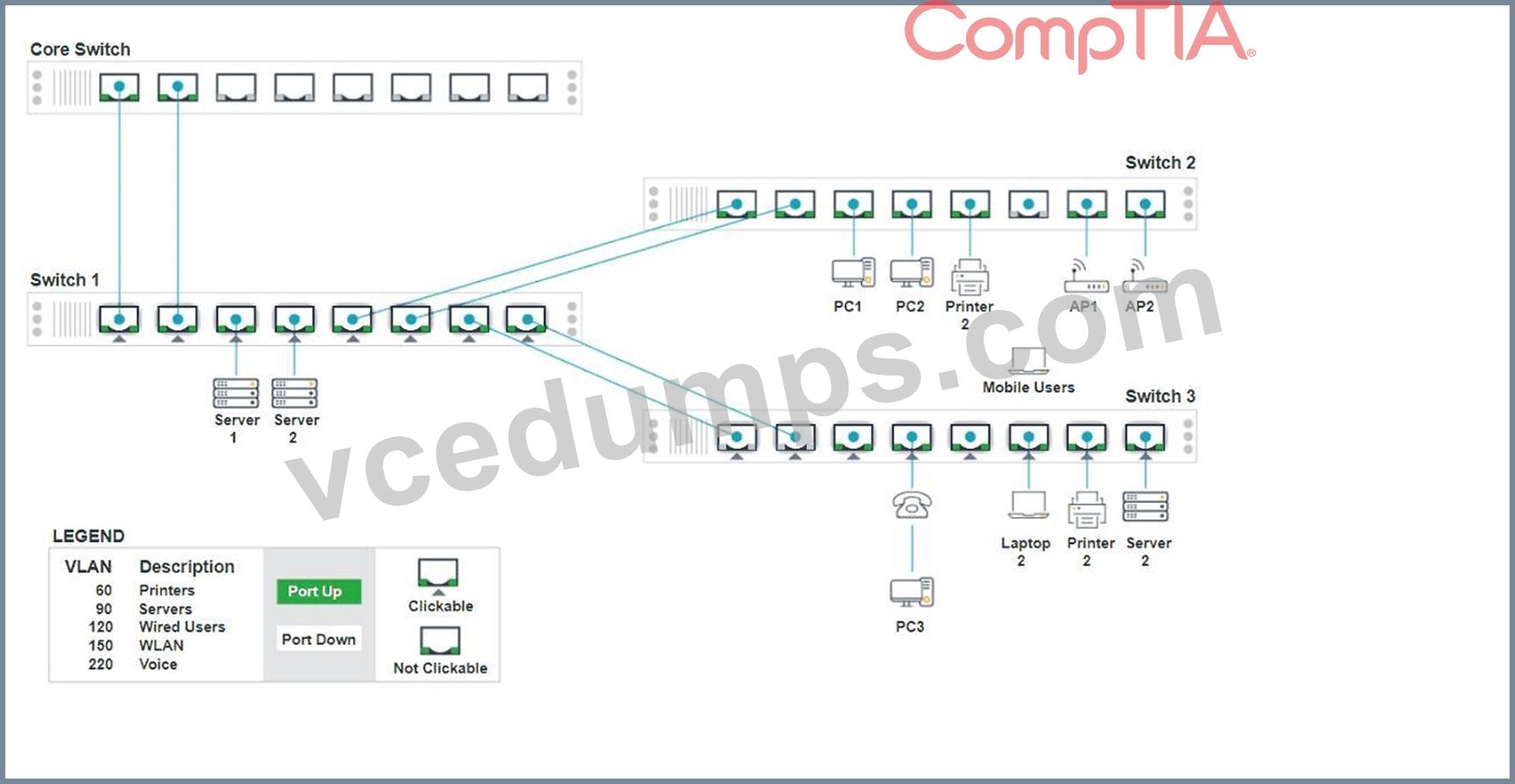

A network technician replaced an access layer switch and needs to reconfigure it to allow the connected devices to connect to the correct networks.
INSTRUCTIONS
Click on the appropriate port(s) on Switch 1 and Switch 3 to verify or reconfigure the correct settings:
Ensure each device accesses only its
correctly associated network.
Disable all unused switchports.
. Require fault-tolerant connections
between the switches.
. Only make necessary changes to
complete the above requirements.
Answer:
Explanation:
See the solution below in Explanation.
Explanation:
To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
Identify the correct VLANs for each device and port.
Enable necessary ports and disable unused ports.
Configure fault-tolerant connections between the switches.
Port 1 Configuration (Uplink to Core Switch)
Status: Enabled
LACP: Enabled
Speed: 1000
Duplex: Full
VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 2 Configuration (Uplink to Core Switch) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 3 Configuration (Server Connection) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN90 (Servers) Port 4 Configuration (Server Connection) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN90 (Servers) Port 5 Configuration (Wired Users and WLAN) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150 Port 6 Configuration (Wired Users and WLAN) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150 Port 7 Configuration (Voice and Wired Users) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220 Port 8 Configuration (Voice, Printers, and Wired Users) Status: Enabled LACP: Enabled Speed: 1000 Duplex: Full VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220 Port 1 Configuration (Unused) Status: Disabled LACP: Disabled Port 2 Configuration (Unused) Status: Disabled LACP: Disabled Port 3 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 4 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 5 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 6 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Port 7 Configuration (Connection to Device) Status: Enabled LACP: Disabled Speed: 1000 Duplex: Full VLAN Configuration: Untagged for VLAN1 (Default) Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

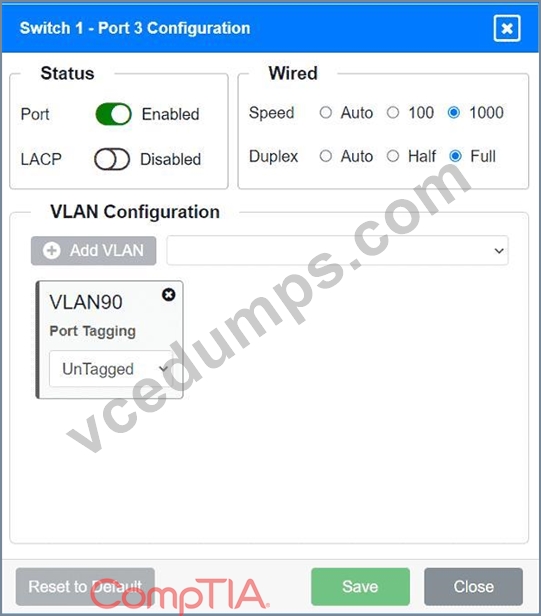

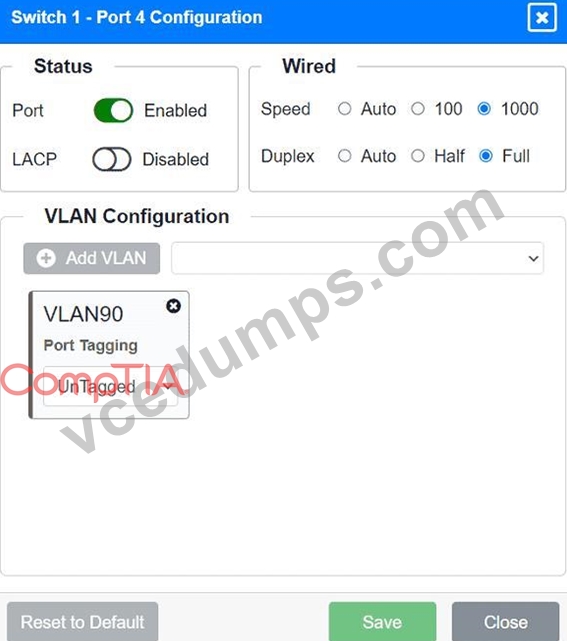

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

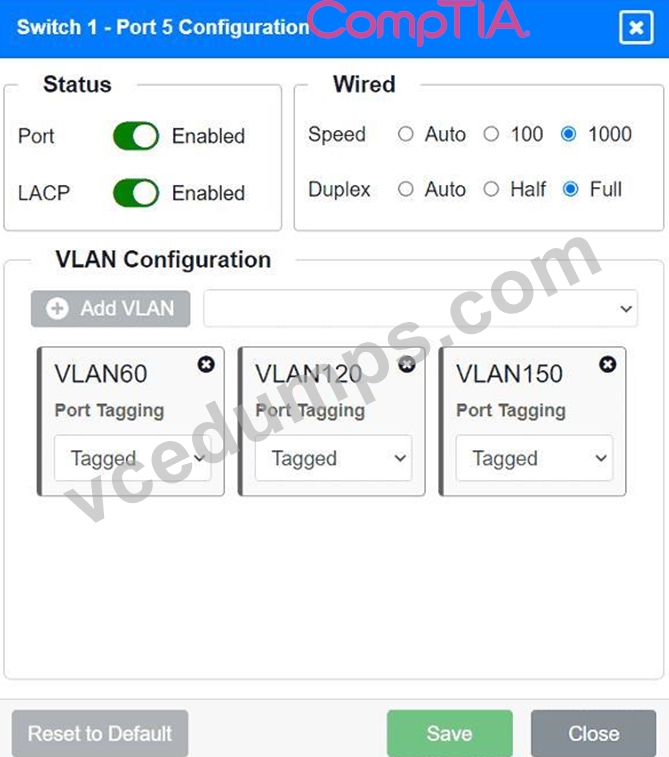

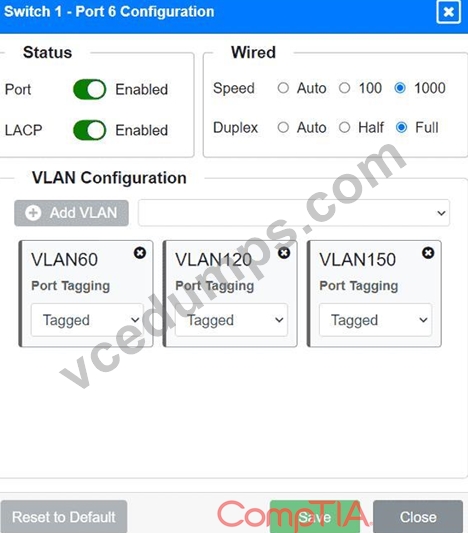

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

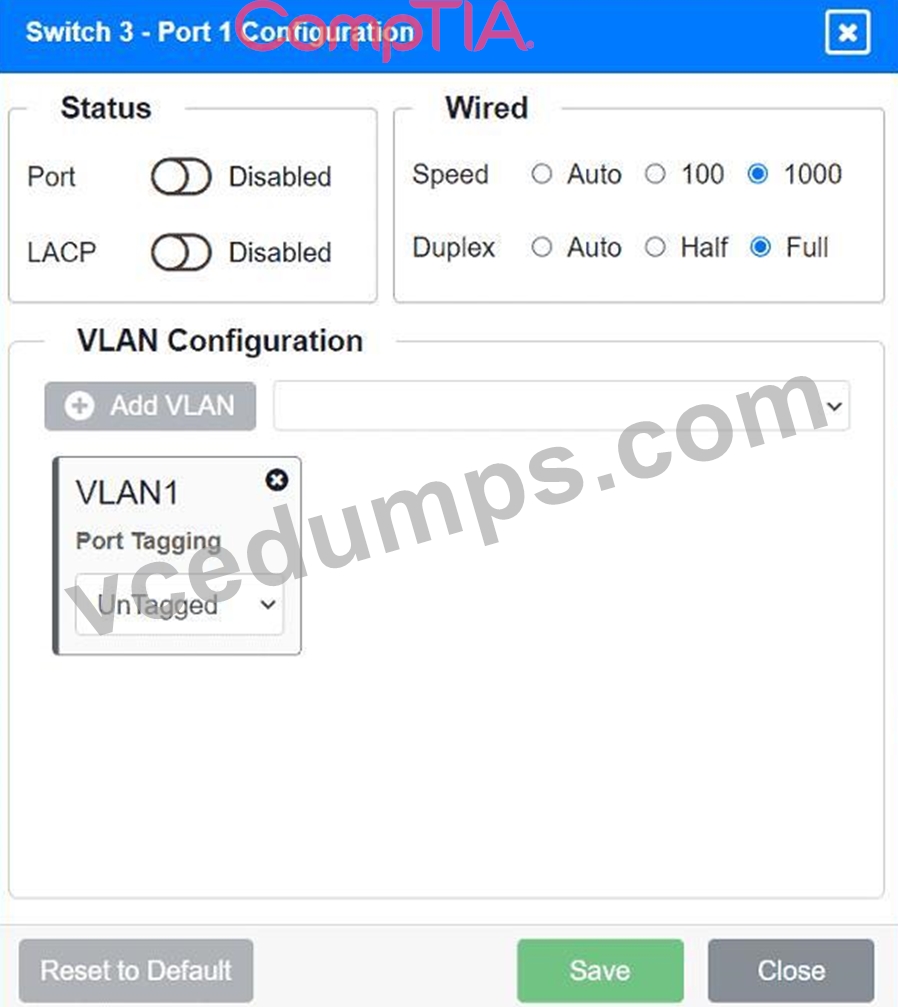

Unused ports on Switch 3 are disabled.

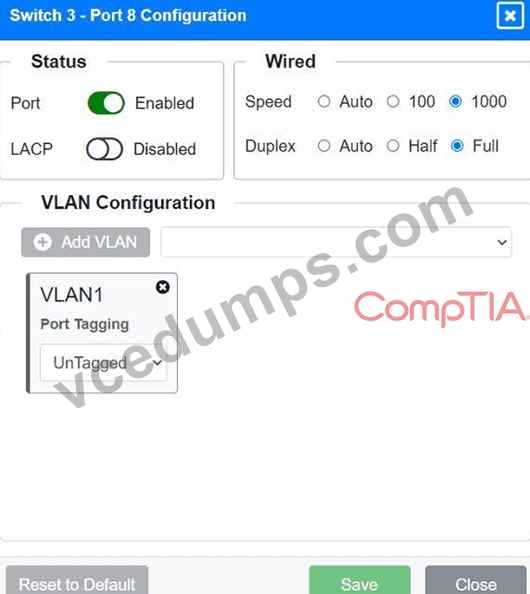

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
Core Switch Ports should be configured as needed for uplinks to Switch 1.
Ensure LACP is enabled for redundancy on trunk ports between switches.
By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.
NEW QUESTION # 527
Which of the following is the best networking appliance for interconnecting multiple logical networks and forwarding data packets between them while minimizing latency?
Answer: A
Explanation:
The correct appliance is a router, which is specifically designed to interconnect multiple networks and forward packets based on IP addresses. Routers operate at Layer 3 (Network layer) of the OSI model and make intelligent forwarding decisions to ensure data reaches the correct destination network.
NEW QUESTION # 528
A network administrator has been tasked with configuring a network for a new corporate office. The office consists of two buildings, separated by 50 feet with no physical connectivity. The configuration must meet the following requirements:
. Devices in both buildings should be
able to access the Internet.
. Security insists that all Internet traffic
be inspected before entering the
network.
. Desktops should not see traffic
destined for other devices.
INSTRUCTIONS

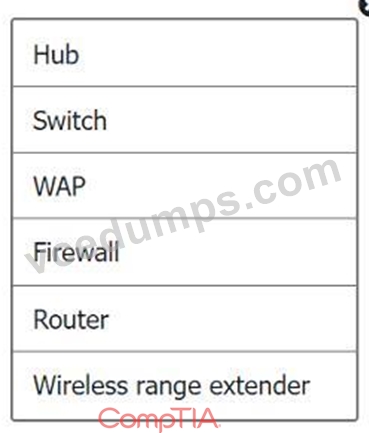

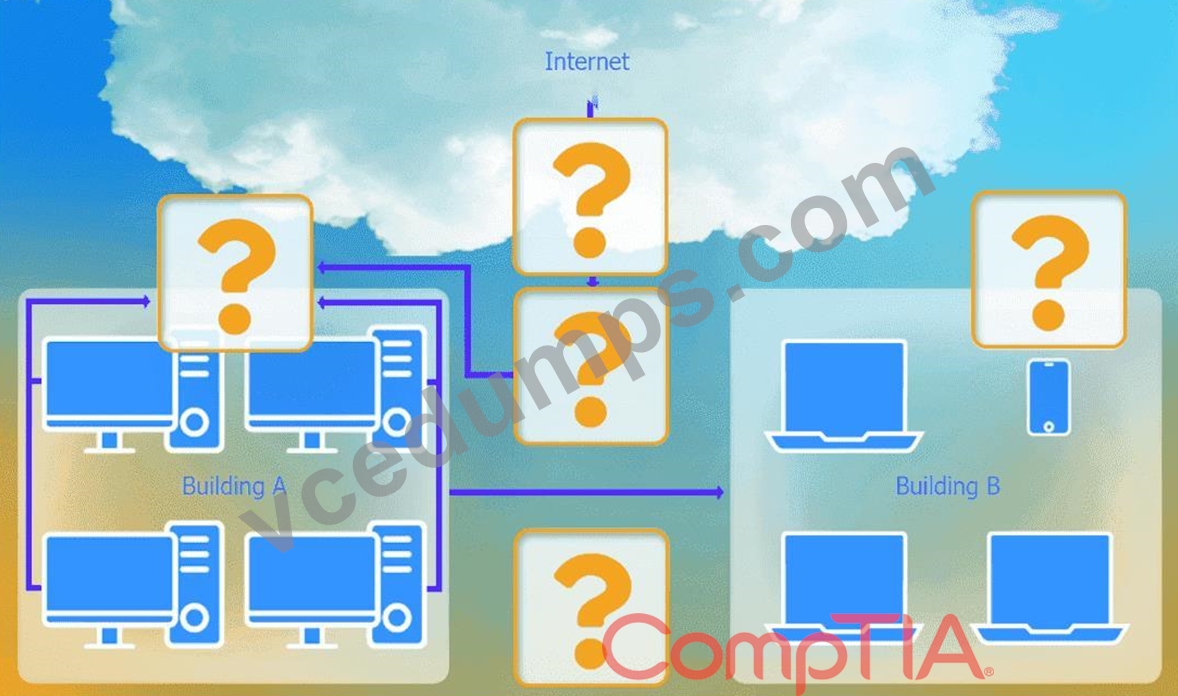

Select the appropriate network device for each location. If applicable, click on the magnifying glass next to any device which may require configuration updates and make any necessary changes.
Not all devices will be used, but all locations should be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the step by step complete solution below.
Explanation:
Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

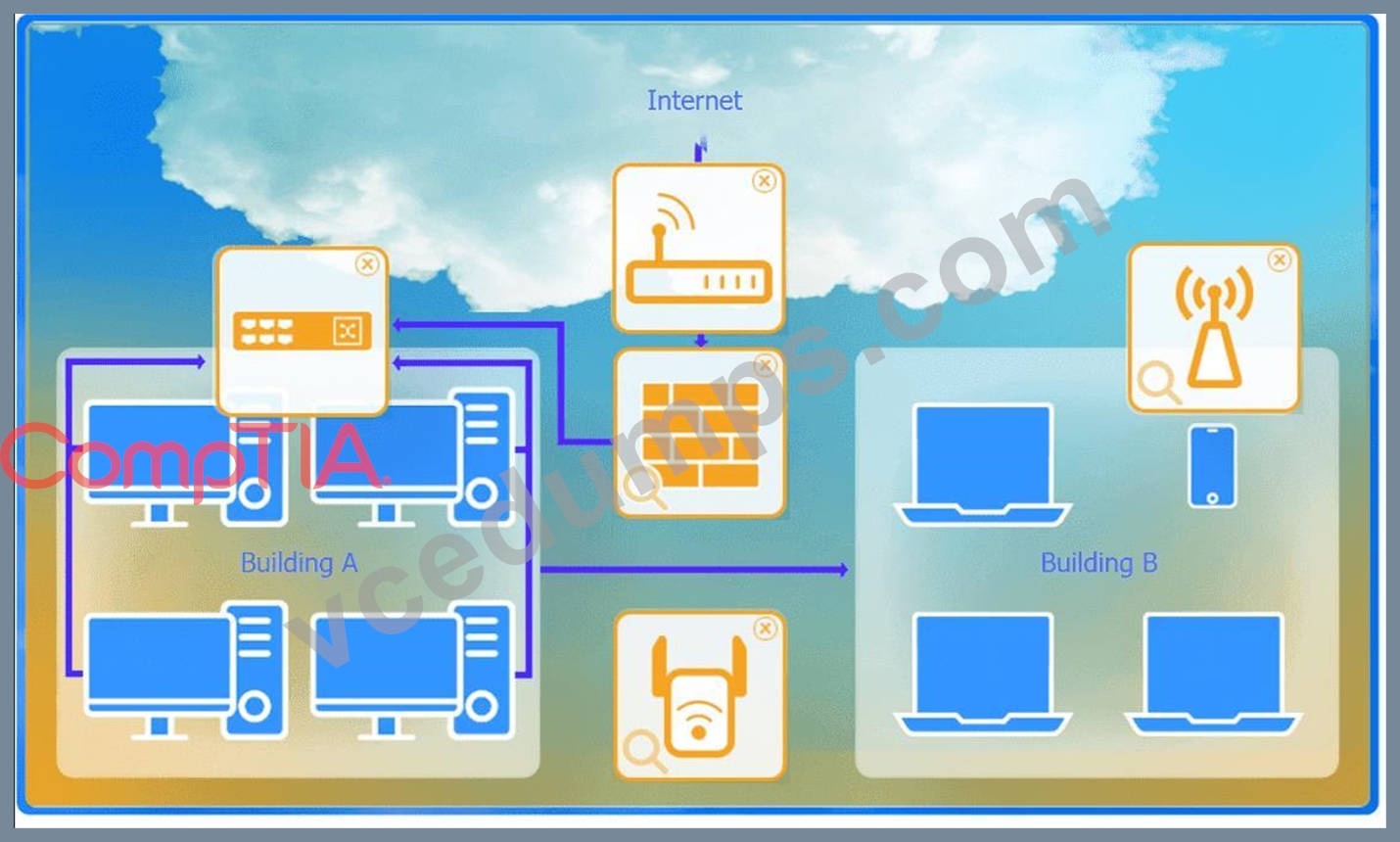

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:

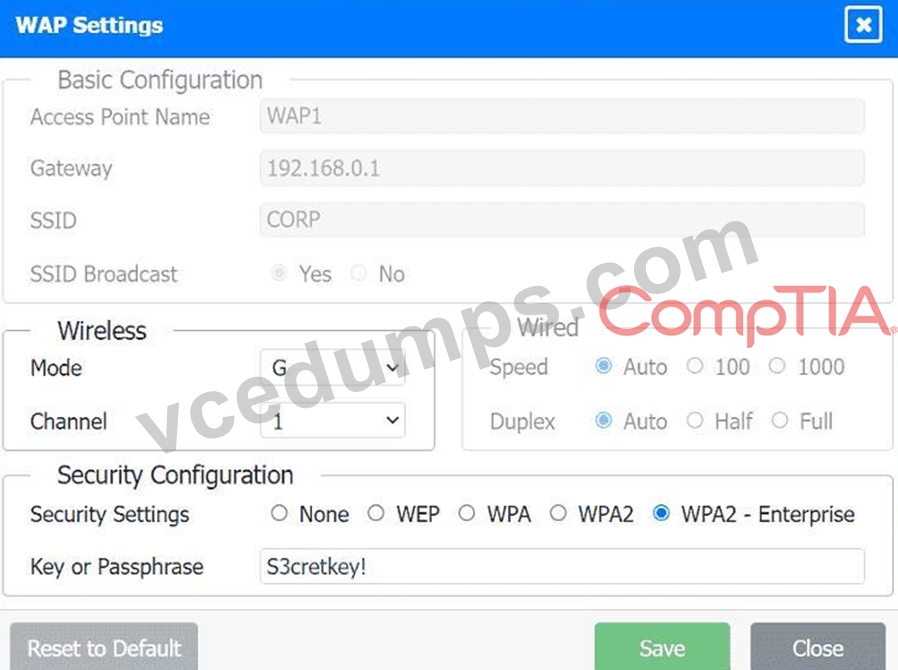

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

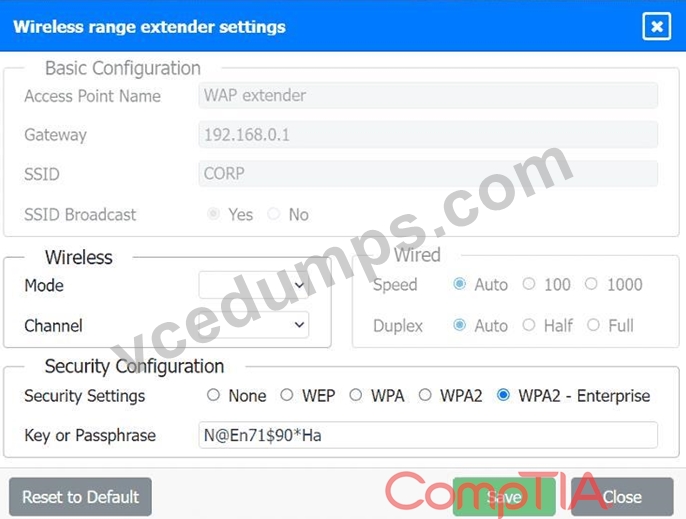

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.
To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to " CORP " as shown in the exhibit.
Security Settings:
WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.
If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the " Save " button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.
