NEW QUESTION # 74

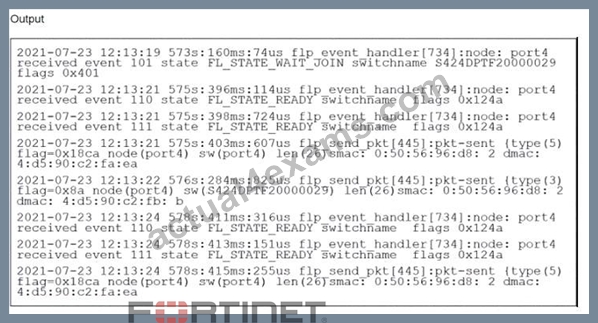

Refer to the exhibit.
Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
Answer: A,D
Explanation:
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
NEW QUESTION # 75

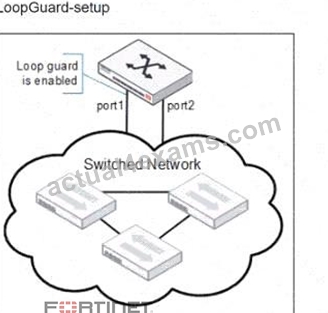

Refer to the exhibits.
Port1 and port2 are the only ports configured with the same native VLAN 10.
What are two reasons that can trigger port1 to shut down? (Choose two.)
Answer: B,D
Explanation:
When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:
A).port1 was shut down by loop guard protection.Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.
B).STP triggered a loop and applied loop guard protection on port1.If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.
References:
Additional details about loop guard functionality and STP interaction can be found in the FortiSwitch administration guides, accessible viaFortinet Documentation.
NEW QUESTION # 76
(Full question statement start from here)
A FortiGate is connected to a pair of FortiSwitch devices.
For redundancy, FortiGate must use uplinks on both switches simultaneouslywithout depending on Spanning Tree Protocol (STP).
Which configuration is required? (Choose one answer)
Answer: A
Explanation:
In FortiSwitchOS 7.6, achieving link-level redundancy and active-active uplink utilization acrosstwo separate FortiSwitch unitsrequires a technology that operates independently of Spanning Tree Protocol (STP). This requirement is fulfilled byMultichassis Link Aggregation Group (MCLAG).
MCLAG allows two FortiSwitch devices to operate as alogical aggregation peer, presenting themselves as a single logical switch to an upstream device such as a FortiGate. With MCLAG, FortiGate can form a single LACP-based aggregated interfacethat spans both FortiSwitches. This enablessimultaneous use of uplinks on both switches, providing full bandwidth utilization and redundancy without blocking links, which is a fundamental limitation of STP-based designs.
According to the FortiSwitchOS 7.6 Administrator Guide, MCLAG synchronizes control-plane information between the two FortiSwitch peers using inter-switch links (ISLs) and dedicated keepalive mechanisms. This ensures consistent forwarding behavior and loop-free topology while allowing all member links to remain active. If one FortiSwitch fails, traffic continues to flow through the remaining switch with minimal disruption.
The other options do not meet the stated requirement. A standard LAG (Option D) operates only within a single switchand cannot span multiple FortiSwitch units. Multi-tier topology (Option A) and full mesh HA (Option C) describe architectural layouts or FortiGate HA concepts but do not provide link-level aggregation across switches.
Therefore, the only configuration that allows FortiGate to use uplinks on both FortiSwitches simultaneously without relying on STPisMultichassis Link Aggregation Group (MCLAG), makingOption Bthe correct and fully verified answer.
NEW QUESTION # 77

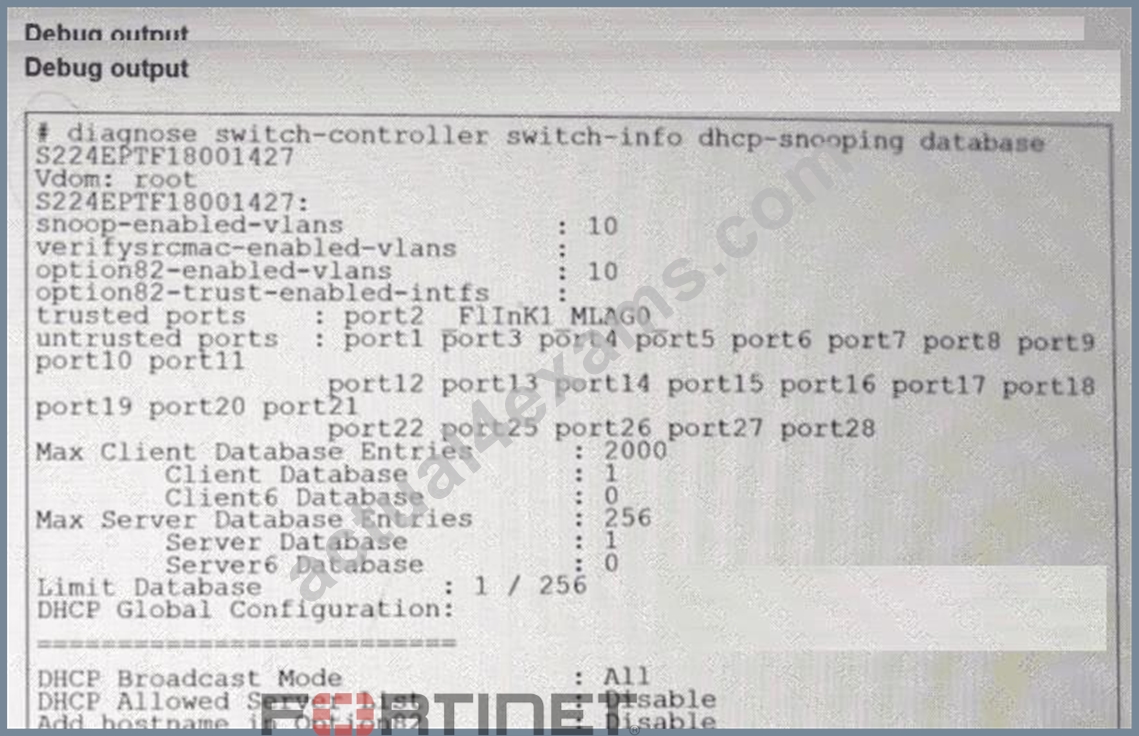

Refer to the exhibit.
After reviewing the CLI command output, which two conclusions can you make about the Dynamic Host Configuration Protocol (DHCP) snooping configuration? (Choose two answers)
Answer: C,D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, DHCP snooping is a security feature that acts as a firewall between untrusted hosts and trusted DHCP servers. It validates DHCP messages from untrusted sources and filters out invalid messages.
The provided debug output reveals specific configuration details that support the correct answers:
* Option 82 Support (Option C):The output line option82-enabled-vlans : 10 explicitly indicates that DHCP Option 82 is active for that specific VLAN. When Option 82 is enabled on a VLAN, the FortiSwitch (acting as a relay agent or snooping device) inserts information about the physical port and VLAN into the DHCP request packet before it is forwarded to the server. This allows the server to apply location-based IP address allocation policies.
* Broadcast Traffic Handling (Option D):In the "DHCP Global Configuration" section, theDHCP Broadcast Modeis set toAll. In FortiSwitchOS 7.6, the default behavior for DHCP snooping is to forward DHCP broadcast traffic to all ports in the VLAN unless explicitly restricted. Setting the mode to "All" means the switch does not limit the propagation of DHCP broadcast packets solely to trusted interfaces; instead, they are flooded to both trusted and untrusted ports within the broadcast domain. To restrict broadcasts, the mode would need to be changed to "Trusted-Only".
Regarding the incorrect options:Option Ais false because the output shows snoop-enabled-vlans : 10, confirming it is active.Option Bis incorrect because the trusted ports list includes port2, FlInK1, and MLAG0, meaning multiple interfaces are trusted, not just port2.
NEW QUESTION # 78

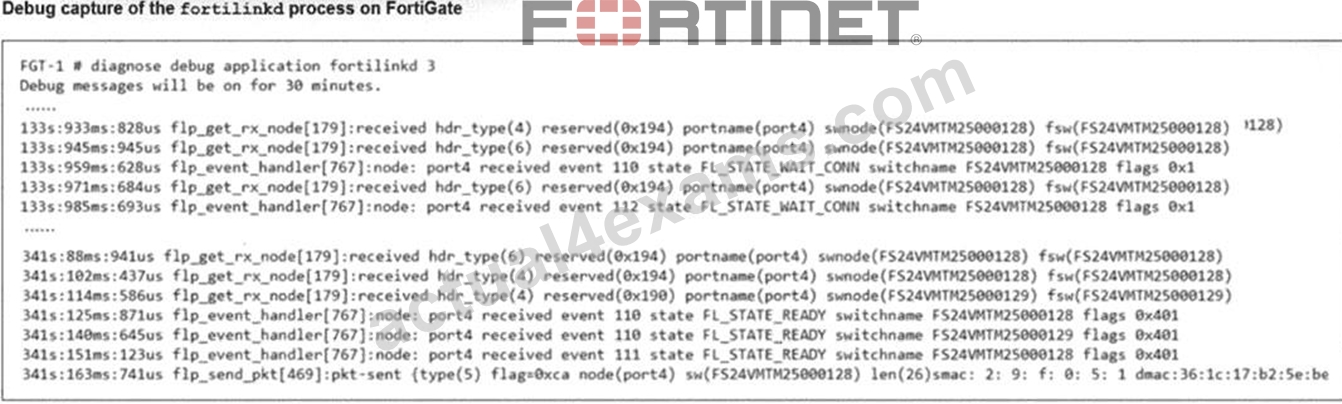

Refer to the exhibit.
A periodic heartbeat message sent from a managed FortiSwitch and corresponding acknowledgments from FortiGate is shown. What does this behavior indicate? (Choose one answer)
Answer: B
Explanation:
According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.
The debug output reveals two critical indicators of a successful connection:
* State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.
* Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.
The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.
NEW QUESTION # 79
......
