| Section | Objectives |
|---|---|
| Network Implementation | - Wireless networking - Network storage and virtualization - Switching technologies - Routing technologies |
| Network Operations | - Monitoring and optimization - Business continuity and disaster recovery - Network documentation and diagrams |
| Networking Concepts | - IPv4 and IPv6 addressing - Network topologies and types (LAN, WAN, WLAN) - Ports, protocols, and services - OSI model and TCP/IP model |
| Network Troubleshooting | - Tools and diagnostic techniques - Troubleshooting methodology - Common network issues |
| Network Security | - Access control and authentication - Network hardening techniques - Security concepts and threats |
>> New N10-009 Learning Materials <<
We have a special technical customer service staff to solve all kinds of consumersโ problems on our N10-009 exam questions. If you have questions when installing or using our N10-009 practice engine, you can always contact our customer service staff via email or online consultation. They will solve your questions about N10-009 Preparation materials with enthusiasm and professionalism, giving you a timely response whenever you contact them.
NEW QUESTION # 337
Which of the following is a location where a plenum cable is recommended?
Answer: B
Explanation:
"Plenum" refers to the air-handling spaces in buildings - typically the space above a dropped ceiling or below a raised floor used for air circulation. In these areas, regulations require cables with low-smoke, low-toxicity jacketing, to reduce toxic fumes if there's a fire. Frequently traveled areas may need more rugged or protected cabling but not specifically plenum-rated. Outdoor environments demand weatherproof or UV-resistant cables. Inside conduits often allow regular PVC-jacketed cable because the conduit provides fire containment.
NEW QUESTION # 338
SIMULATION

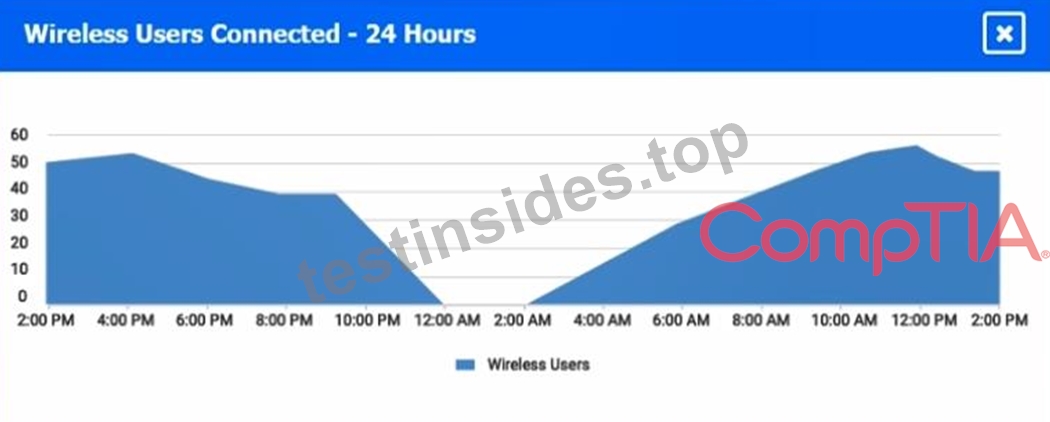

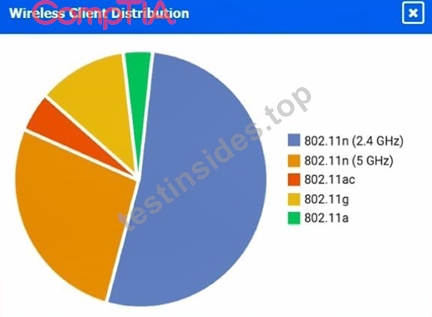

After a recent power outage, users are reporting performance issues accessing the application servers. Wireless users are also reporting intermittent Internet issues.
INSTRUCTIONS
Click on each tab at the top of the screen. Select a widget to view information, then use the drop- down menus to answer the associated questions.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:

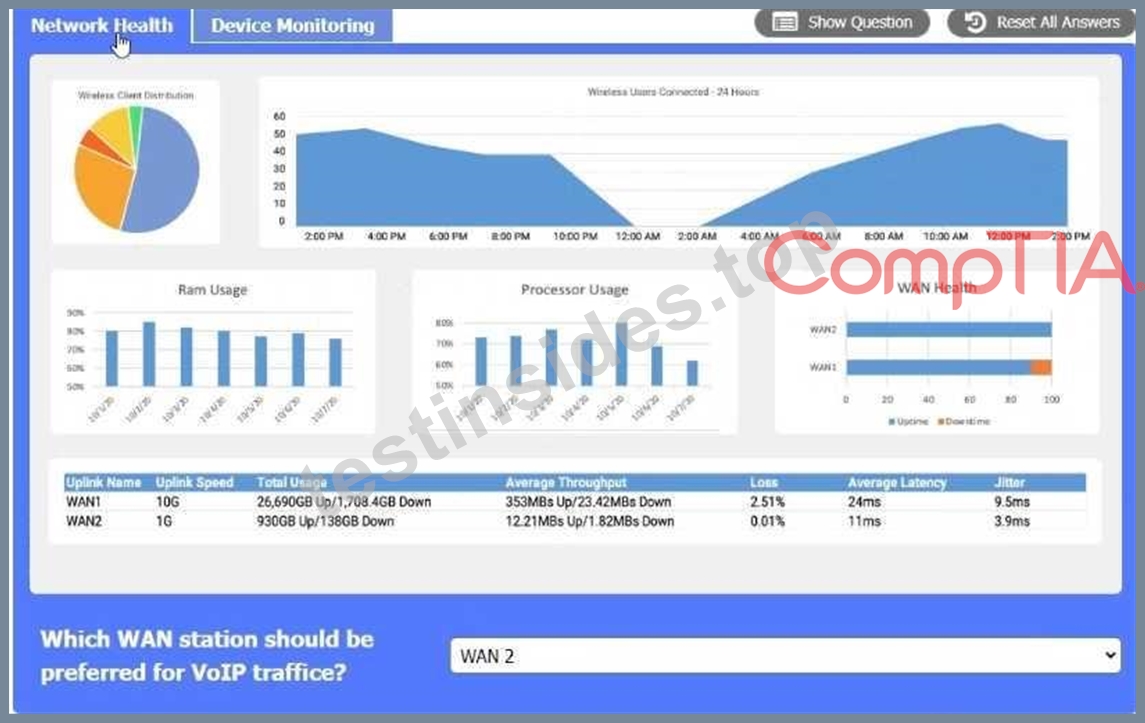

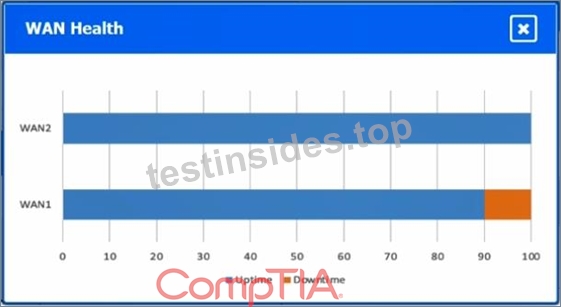

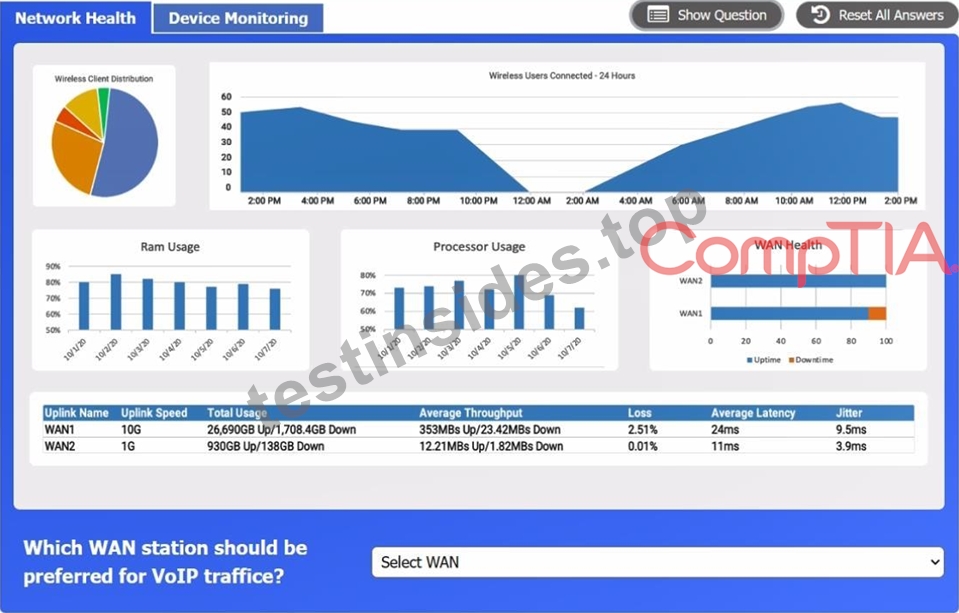

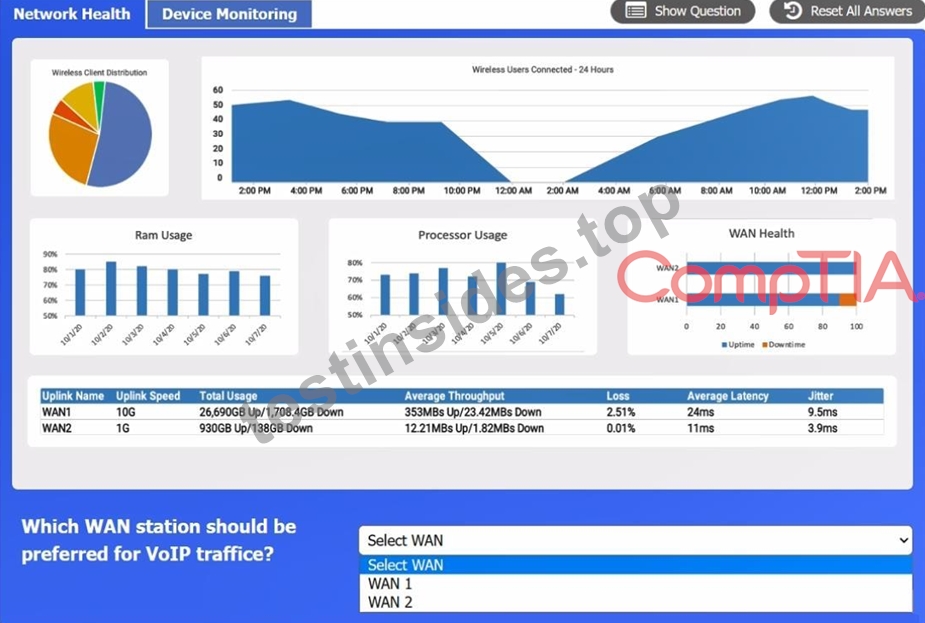

Network Health:

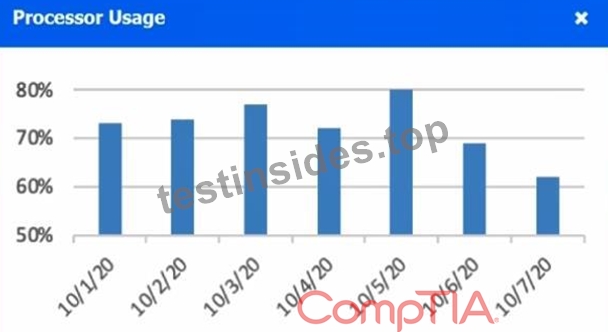

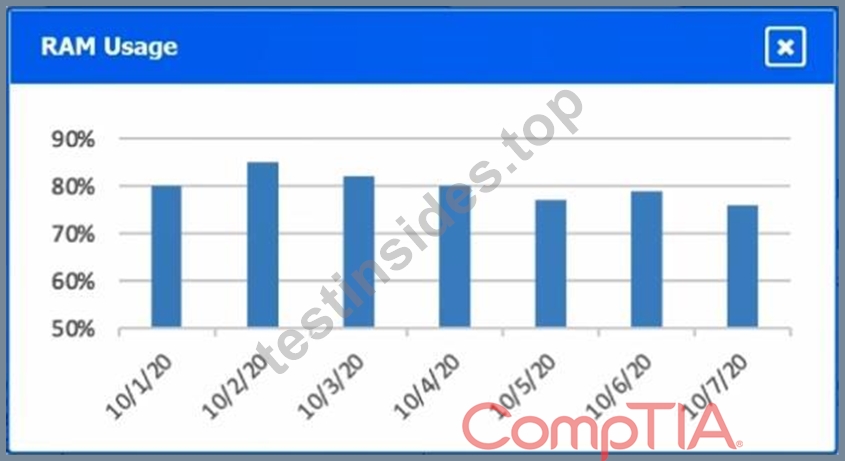

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

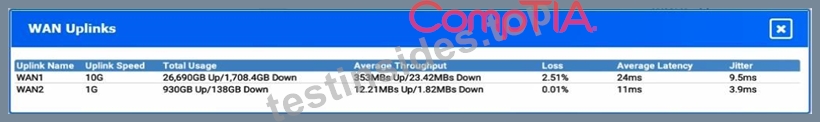

Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:
WAN 1:
Uplink Speed: 10G
Total Usage: 26.969GB Up / 1.748GB Down
Average Throughput: 353MBps Up / 23.42MBps Down
Loss: 2.51%
Average Latency: 24ms
Jitter: 9.5ms
WAN 2:
Uplink Speed: 1G
Total Usage: 930GB Up / 138GB Down
Average Throughput: 12.21MBps Up / 1.82MBps Down
Loss: 0.01%
Average Latency: 11ms
Jitter: 3.9ms
For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.
Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

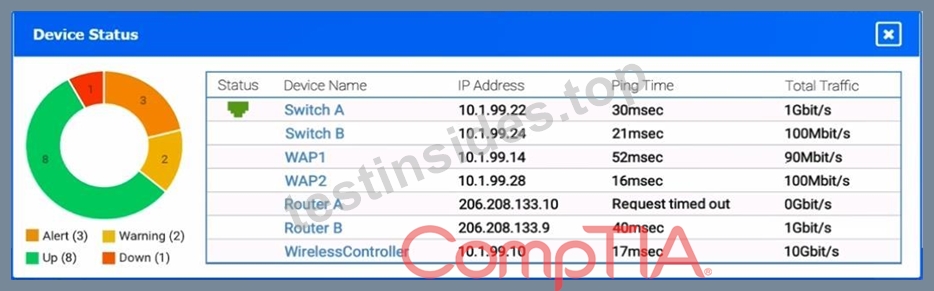

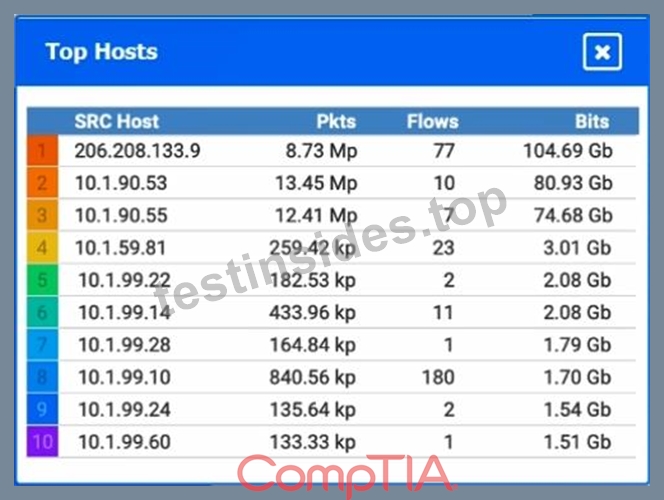

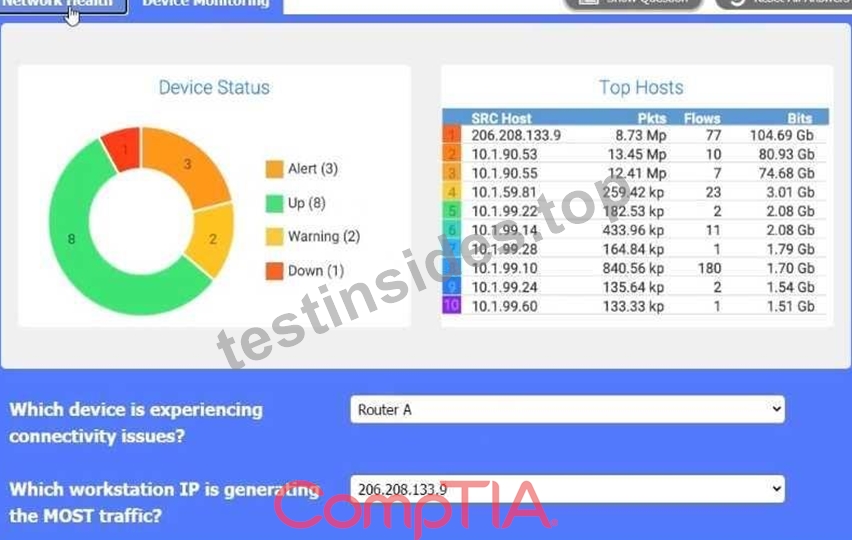

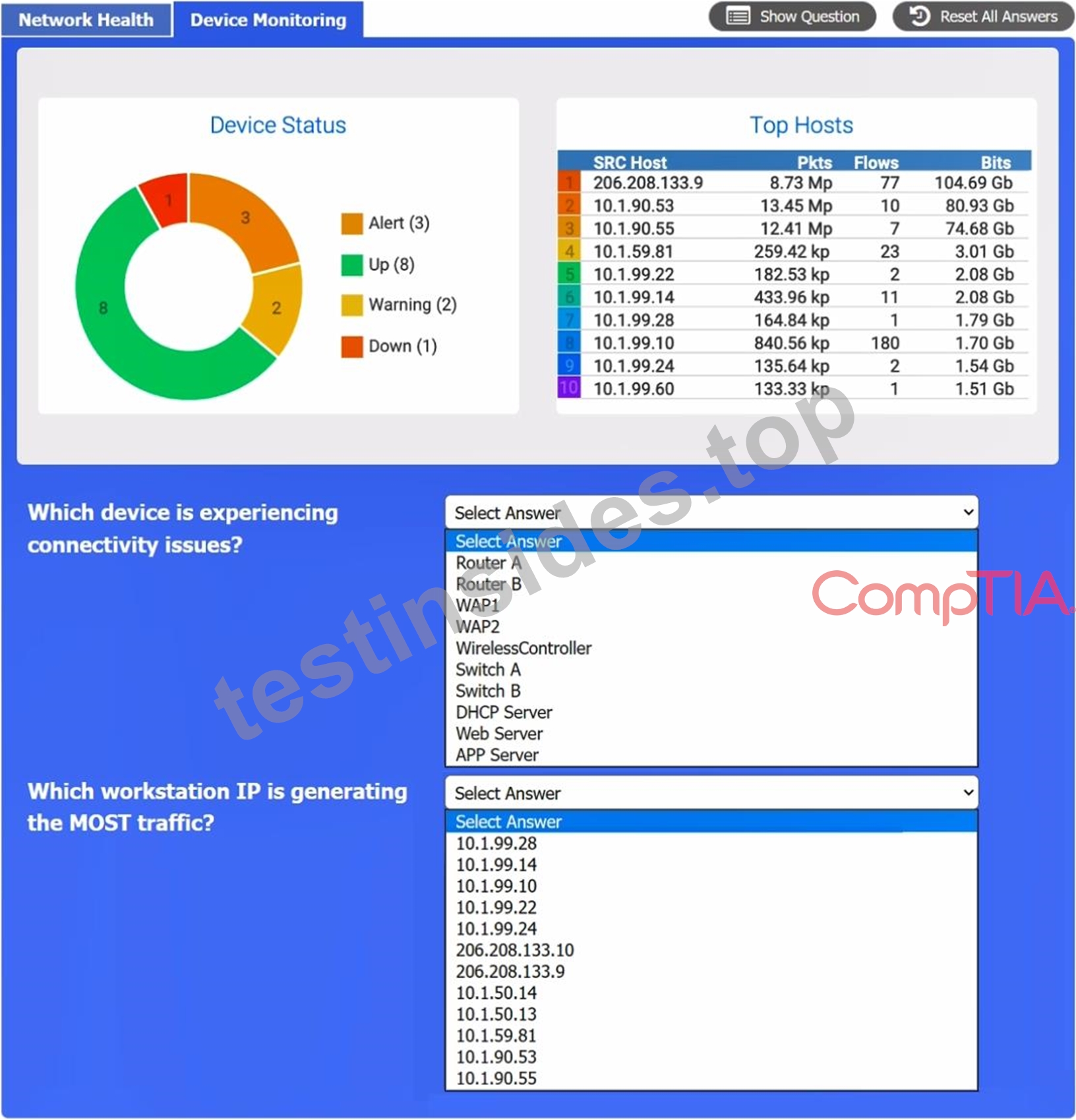

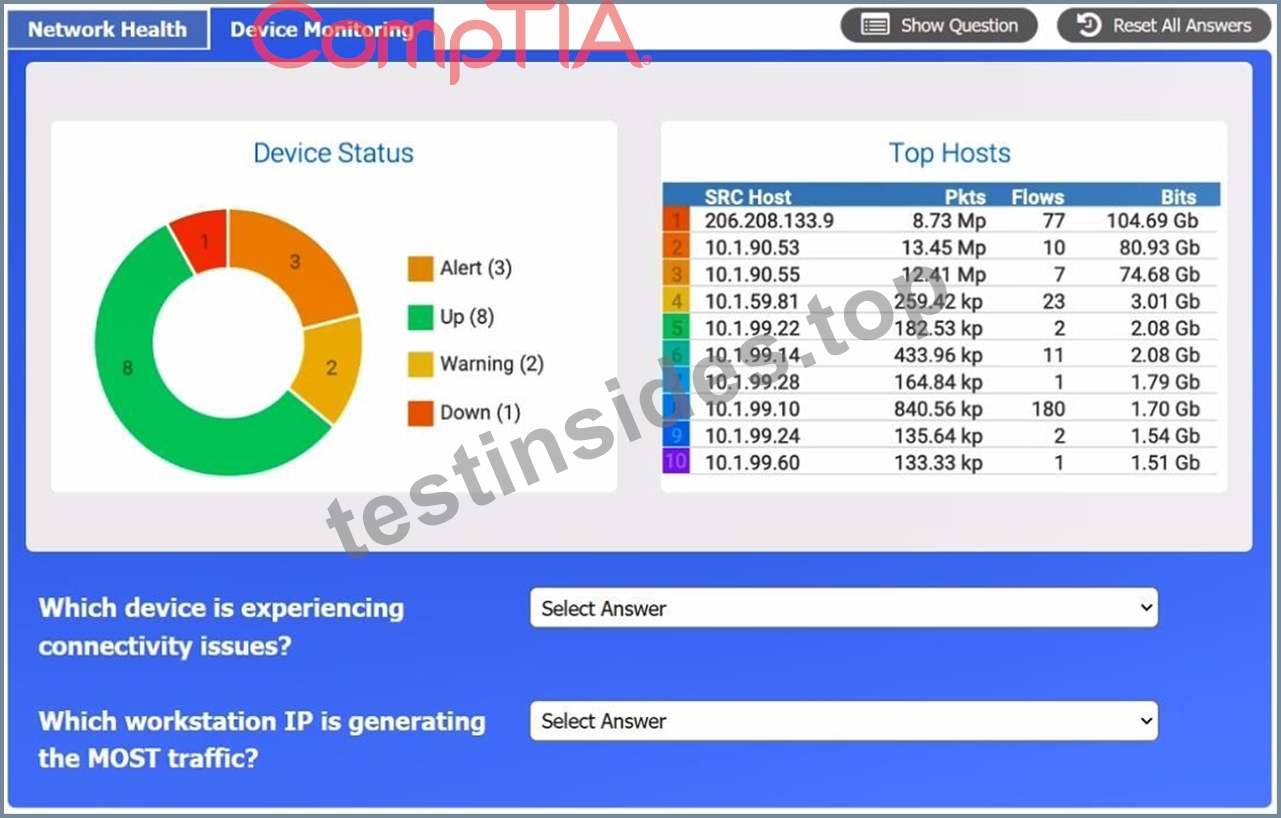

Device Monitoring:
the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.
NEW QUESTION # 339
A user reports having intermittent connectivity issues to the company network. The network configuration for the user reveals the following:
IP address: 192.168.1.10
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.254

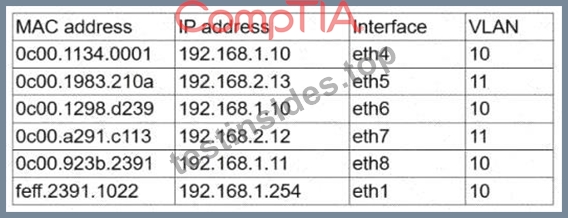

The network switch shows the following ARP table:
Which of the following is the most likely cause of the user's connection issues?
Answer: C
Explanation:
This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.
1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.
From Andrew Ramdayal's guide:
"Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues.
Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments."
NEW QUESTION # 340
A critical infrastructure switch is identified as end-of-support. Which of the following is the best next step to ensure security?
Answer: B
Explanation:
Understanding End-of-Support:
End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.
Risks of Keeping an End-of-Support Device:
Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.
Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.
Best Next Step - Replacement:
Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.
Planning and Execution: Plan for the replacement by evaluating the network's needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.
Comparison with Other Options:
Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.
Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.
Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.
Reference:
CompTIA Network+ study materials on network maintenance and security best practices.
NEW QUESTION # 341
Which of the following most likely requires the use of subinterfaces?
Answer: B
Explanation:
Introduction to Subinterfaces:
Subinterfaces are logical interfaces created on a single physical interface. They are used to enable a router to support multiple networks on a single physical interface.
Use Case for Subinterfaces:
Subinterfaces are commonly used in scenarios where VLANs are implemented. A router with a single physical LAN port can be configured with multiple subinterfaces, each associated with a different VLAN.
This setup allows the router to route traffic between different VLANs.
Example Configuration:
Consider a router with a single physical interface GigabitEthernet0/0 and two VLANs, 10 and 20.
interface GigabitEthernet0/0.10
encapsulation dot1Q 10
ip address 192.168.10.1 255.255.255.0
!
interface GigabitEthernet0/0.20
encapsulation dot1Q 20
ip address 192.168.20.1 255.255.255.0
The encapsulation dot1Q command specifies the VLAN ID.
Explanation of the Options:
A: A router with only one available LAN port: This is correct. Subinterfaces allow a single physical interface to manage multiple networks, making it essential for routers with limited physical interfaces.
B: A firewall performing deep packet inspection: Firewalls can use subinterfaces, but it is not a requirement for deep packet inspection.
C: A hub utilizing jumbo frames: Hubs do not use subinterfaces as they operate at Layer 1 and do not manage IP addressing.
D: A switch using Spanning Tree Protocol: STP is a protocol for preventing loops in a network and does not require subinterfaces.
Conclusion:
Subinterfaces provide a practical solution for routing between multiple VLANs on a router with limited physical interfaces. They allow network administrators to optimize the use of available hardware resources efficiently.
References:
CompTIA Network+ guide detailing VLAN configurations and the use of subinterfaces (see page Ref
9 Basic Configuration Commands).
NEW QUESTION # 342
......
