NEW QUESTION # 28
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, the 2x2 block is intended for what purpose according to AWC Technical Report 10?
Answer: A
Explanation:
The 2 ร 2 block is intended to protect the abutting wood edges from the effects of char contraction. Therefore, option D is correct.
During fire exposure, wood chars and the char layer can shrink or contract. At an interface between two abutting timber components, that contraction can create a gap that allows heat and flames to penetrate deeper than predicted for a continuous exposed surface. AWC connection-fire-design methodology therefore requires additional protection at susceptible joints and interfaces. The block shields the abutting edges and maintains the sacrificial wood-cover path around the protected connection.
Its primary function is not decorative, nor is it simply an air-sealing component. Although limiting airflow can be a secondary consequence of closing the interface, the design purpose addressed by the technical guidance is control of premature fire penetration caused by char contraction. The block also should not be interpreted independently as a generic one-hour protective membrane for the steel ledger; the connection's total rating depends on the complete approved protection assembly.
The inspector should confirm the block's dimensions, species or product designation, fastening, continuity, and tight installation before the connection is concealed.
References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions addressing char contraction and gaps between abutting wood members.
NEW QUESTION # 29

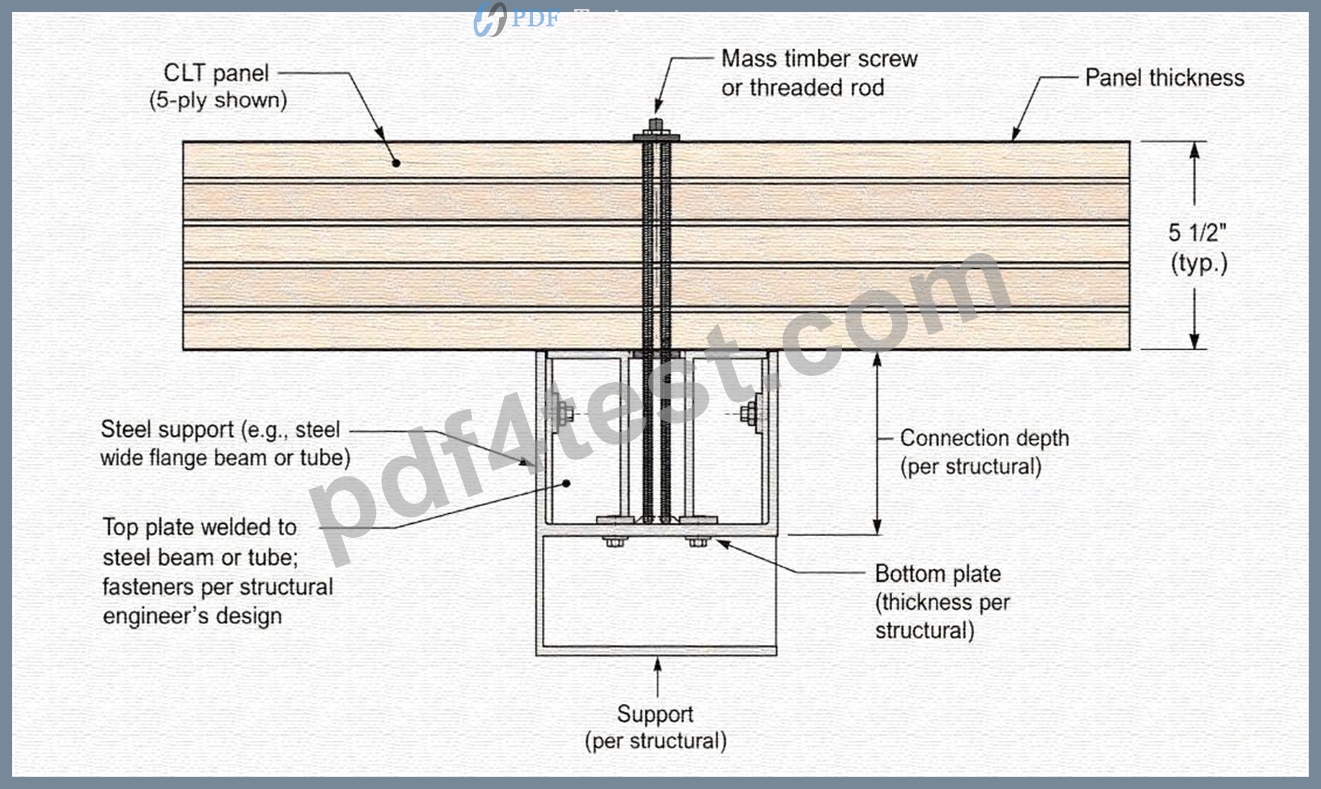

Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, what is the required tolerance in inches between the steel beam web and CLT?
Answer: B
Explanation:
The construction detail identifies a 1/2-inch tolerance between the steel beam web and the adjacent CLT panel. Therefore, option B is correct.
This is principally a construction-document interpretation question rather than a generic prescriptive IBC dimension. The 2021 IBC does not establish one universal steel-web-to-CLT clearance applicable to every mass timber connection. The required clearance is project specific and is established by the registered design professional through the approved structural drawings and connection details.
The tolerance provides erection clearance for placement of the prefabricated CLT around the steel member while accounting for fabrication and installation variation. It must not be arbitrarily reduced or increased because the gap can affect panel fit, bearing conditions, fastener alignment, fire-protection continuity, acoustic treatment and any specified joint-filling material.
Under the special-inspection framework, the inspector must compare the installed connection directly with the approved construction documents. Any condition that does not maintain the specified 1/2-inch clearance-or any undocumented field modification to the CLT or steel connection-must be reported and resolved through the registered design professional rather than accepted solely on the contractor's direction.
References/Topics: Approved structural details; 2021 IBC Sections 1704.2 and 1705.5; inspection of mass timber erection, anchorage and connections.
NEW QUESTION # 30
Regarding water supply for the protection of buildings under construction, when combustible building materials of the building under construction are delivered to a site, the minimum fire flow provided shall be
_____ gpm.
Answer: D
Explanation:
The minimum required fire flow is 500 gallons per minute. Therefore, option C is correct.
Under 2021 IFC Section 3313.2, an approved water supply must be available when combustible building materials for the building under construction are delivered to the project site. The hydrant supplying the required flow must be located within the prescribed distance of the combustible materials as measured along an approved fire apparatus access route. Where one hydrant cannot provide coverage to all combustible material locations, additional hydrants are required.
The 500-gpm requirement is the initial minimum associated with the delivery of combustible building materials. It should not be confused with the potentially greater fire-flow requirements applicable after vertical construction of a Type III, IV, or V building begins. Depending on fire separation distance and the building's calculated final fire-flow demand, a larger supply may be required under subsequent provisions.
Options A and B provide inadequate suppression capacity. Option D is not the baseline amount prescribed for the condition stated in the question. Inspectors and site safety personnel should verify that the water source is operational and accessible before substantial quantities of mass timber arrive on-site.
References/Topics: 2021 IFC Sections 3313.1 and 3313.2; construction-site water supply and combustible building materials.
NEW QUESTION # 31

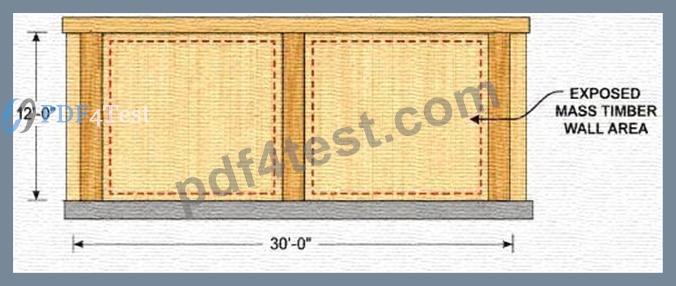

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Answer: B
Explanation:
The highlighted exposed surfaces in this figure are mass timber wall surfaces . Under 2021 IBC Section
602.4.2.2.2, Exception 1.2, unprotected portions of Type IV-B mass timber walls, including attached columns, are permitted up to an area equal to 40 percent of the floor area in the applicable dwelling unit or fire area.
Option D is therefore correct.
This should be distinguished from the corresponding ceiling limitation. Unprotected mass timber ceilings, including attached beams, are limited to 20 percent of floor area. The larger 40-percent allowance applies specifically to wall exposure.
Where only wall surfaces are exposed, the allowable wall area is calculated directly from the base floor area.
For example, a 1,000-square-foot fire area would permit up to 400 square feet of exposed wall surface under this exception. However, Section 602.4.2.2.4 additionally requires unprotected wall portions to maintain the prescribed 15-foot separation from other applicable exposed wall or ceiling portions.
Where exposed walls and exposed ceilings occur together, the individual 40- and 20-percent limits cannot simply be maximized simultaneously; the mixed-exposure equation in Section 602.4.2.2.3 governs.
References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B wall exposure.
NEW QUESTION # 32
Refer to the exhibit by clicking on the EXHIBIT button above.

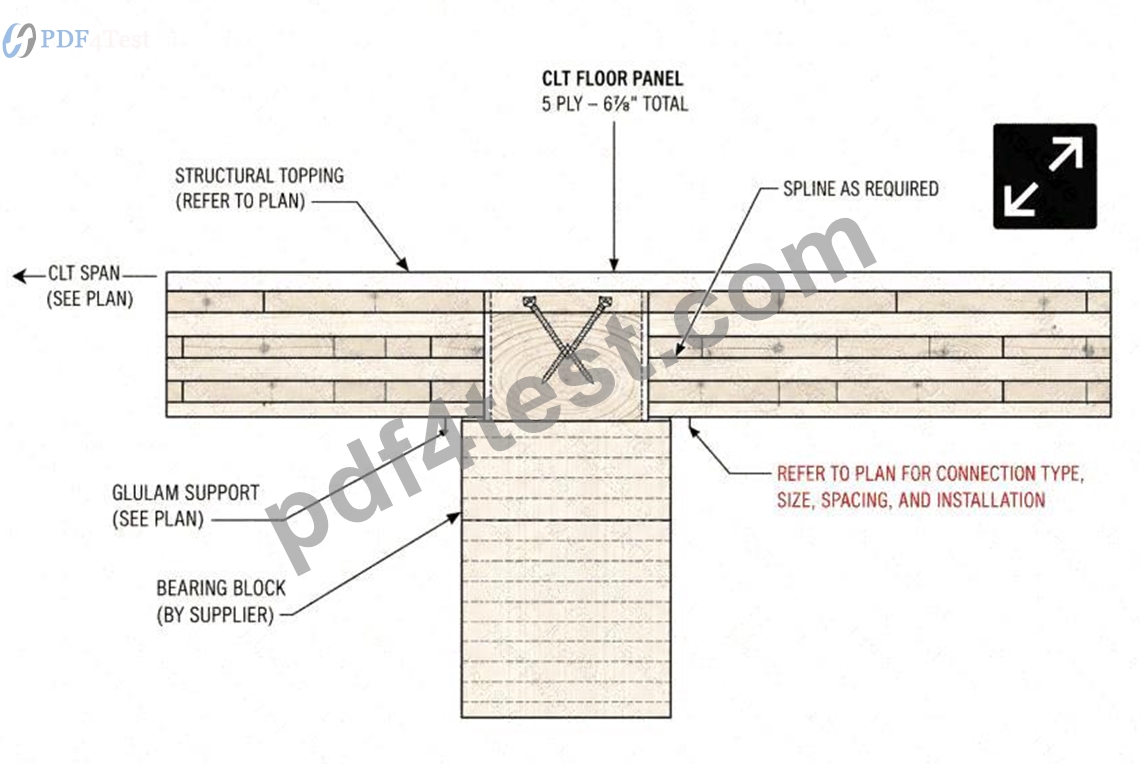

In the detail shown, if the connections between the glulam beam and CLT panels all require a fire-resistance rating of one (1) hour and the wood cover is designed per AWC Technical Report 10 to provide the entire 1 hour of protection, what is the minimum thickness and number of layers required for the locations shown in red?
Answer: C
Explanation:
Two layers of 5/8-inch Type X gypsum wallboard are required for the condition shown, so option D is correct. The relevant AWC TR10 connection-protection methodology distinguishes between outer gypsum layers and the base layer immediately adjacent to the connection .
For 5/8-inch Type X gypsum board, an outer layer contributes 40 minutes. However, when gypsum board is being relied upon as the complete thermal-separation protection for a connection, TR10 reduces the contribution of the final/base layer to 50 percent. Therefore, the base layer contributes 20 minutes , while the second, exterior layer contributes 40 minutes . The total is:
20 minutes + 40 minutes = 60 minutes .
That satisfies the one-hour required protection period.
This is why simply looking at the normal 40-minute contribution of one 5/8-inch Type X layer would be incorrect for this connection condition. TR10 expressly uses the reduced base-layer contribution when gypsum constitutes the connection protection. The same methodology shows that four 5/8-inch Type X layers are needed for 120 minutes: 20 + 40 + 40 + 40 = 140 minutes, satisfying two hours.
References/Topics: AWC Technical Report No. 10, Sections 4.4.2 and connection-protection examples. TR10 states that outer 5/8-inch Type X layers provide 40 minutes each while the base layer provides 20 minutes.
NEW QUESTION # 33
......
