Fortinet FCSS_SDW_AR-7.6 認定試験の出題範囲：

トピック	出題範囲
トピック 1	Advanced IPsec: This section covers hub-and-spoke topologies, ADVPN configuration, and scalable multihub and multiregion IPsec deployments.
トピック 2	Centralized Management: This domain addresses FortiManager-based SD-WAN deployment, branch configuration implementation, and overlay orchestration using SD-WAN Manager.
トピック 3	SD-WAN Basic Setup: This domain covers initial SD-WAN configuration, member and zone setup, and Performance SLA creation for link monitoring.
トピック 4	Rules and Routing: This section focuses on configuring SD-WAN rules for traffic steering and routing policies for path selection and failover.
トピック 5	SD-WAN Troubleshooting: This domain focuses on diagnosing SD-WAN rule behavior, routing issues, and ADVPN tunnel problems.

>> FCSS_SDW_AR-7.6赤本合格率 <<

FCSS_SDW_AR-7.6試験の準備方法｜100％合格率のFCSS_SDW_AR-7.6赤本合格率試験｜信頼的なFCSS - SD-WAN 7.6 Architect日本語版復習資料

ほとんどの労働者の基準はますます高くなることがわかっているため、FCSS_SDW_AR-7.6ガイドの質問にも高い目標を設定しています。市場にある他の練習教材とは異なり、当社のトレーニング教材はお客様の関心を他のポイントの前に置き、私たちをずっと高度な学習教材にコミットさせます。これまで、最も複雑なFCSS_SDW_AR-7.6ガイドの質問を簡素化し、簡単な操作システムを設計しました。FCSS_SDW_AR-7.6試験問題の自然でシームレスなユーザーインターフェイスは、より流fluentに成長しました。使いやすさ。

Fortinet FCSS - SD-WAN 7.6 Architect 認定 FCSS_SDW_AR-7.6 試験問題 (Q60-Q65):

質問 # 60
Refer to the exhibit.
You want to configure SD-WAN on a network as shown in the exhibit.
The network contains many FortiGate devices. Some are used as NGFW, and some are installed with extensions such as FortiSwitch. FortiAP. or Forti Ex tender.
What should you consider when planning your deployment?

A. You must use FortiManager to manage your SD-WAN topology.
B. You can build an SD-WAN topology that includes all devices. The hubs can be FortiGate devices with Forti Extender.
C. You must build multiple SD-WAN topologies. Each topology must contain only one type of extension.
D. You can build an SD-WAN topology that includes all devices. The hubs must be devices without extensions.

正解：D

解説：
In Fortinet SD-WAN, hubs should not have extensions like FortiSwitch, FortiAP, or FortiExtender installed, as these can affect hub functionality and scalability. While all device types can be included in the topology, the hubs must be "clean" FortiGate devices without such extensions to ensure proper ADVPN and overlay management.
Reference:
[FCSS_SDW_AR-7.4 1-0.docx Q3]
Fortinet SD-WAN Reference Architecture Guide 7.4 - Hub requirements

質問 # 61
Refer to the exhibit.

An administrator is troubleshooting SD-WAN on FortiGate. A device behind branch1_fgt generates traffic to the 10.0.0.0/8 network.
The administrator expects the traffic to match SD-WAN rule ID 1 and be routed over HUB1-VPN1. However, the traffic is routed over HUB1-VPN3.
Based on the output shown in the exhibit, which two reasons, individually or together, could explain the observed behavior? (Choose two.)

A. HUB1-VPN3 has a lower route priority value (higher priority) than HUB1-VPN1.
B. HUB1-VPN3 has a higher member configuration priority than HUB1-VPN1.
C. HUB1-VPN1 does not have a valid route to the destination
D. The traffic matches a regular policy route configured with HUB1-VPN3 as the outgoing device

正解：A、C

質問 # 62
Refer to the exhibit.

The exhibit shows output of the command diagnose sys adwan aervice4 collected on a FortiGate device.
The administrator wants to know through which interface FortiGate will steer traffic from local users on subnet 10.0.1.0/255.255.255.192 and with a destination of the social media application Facebook.
Based on the exhibits, which two statements are correct? (Choose two.)

A. When FortiGate cannot recognize the application of the flow, it steers the traffic through the preferred member of rule 3, HQ_T1.
B. When FortiGate cannot recognize the application of the flow, it load balances the traffic through the tunnels HQ_T1. HQ_T2. HQ_T3.
C. There is no service defined for the Facebook application, so FortiGate appliesservice rule 3 and directs the traffic to headquarters.
D. FortiGate steers traffic for social media applications according to the service rule 2 and steers traffic through port2.

正解：B、D

解説：
Application-based SD-WAN rules enable intelligent traffic steering. The guide specifies:
"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification." This guarantees both performance and resilience.

質問 # 63
Refer to the exhibits.
Exhibit A

Exhibit B

Exhibit A shows a policy package definition. Exhibit B shows the install log that the administrator received when he tried to install the policy package on FortiGate devices.
Based on the output shown in the exhibits, what can the administrator do to solve the issue?

A. Use a metadata variable instead of a dynamic interface to define the firewall policy.
B. Create dynamic mapping for the LAN interface for all devices in the installation target list.
C. Dynamic mapping should be done automatically. Review the LAN interface configuration for branch2_fgt.
D. Policies can refer to only one LAN source interface. Keep only the D-LAN, which is the dynamic LAN interface.

正解：B

質問 # 64
Refer to the exhibit.

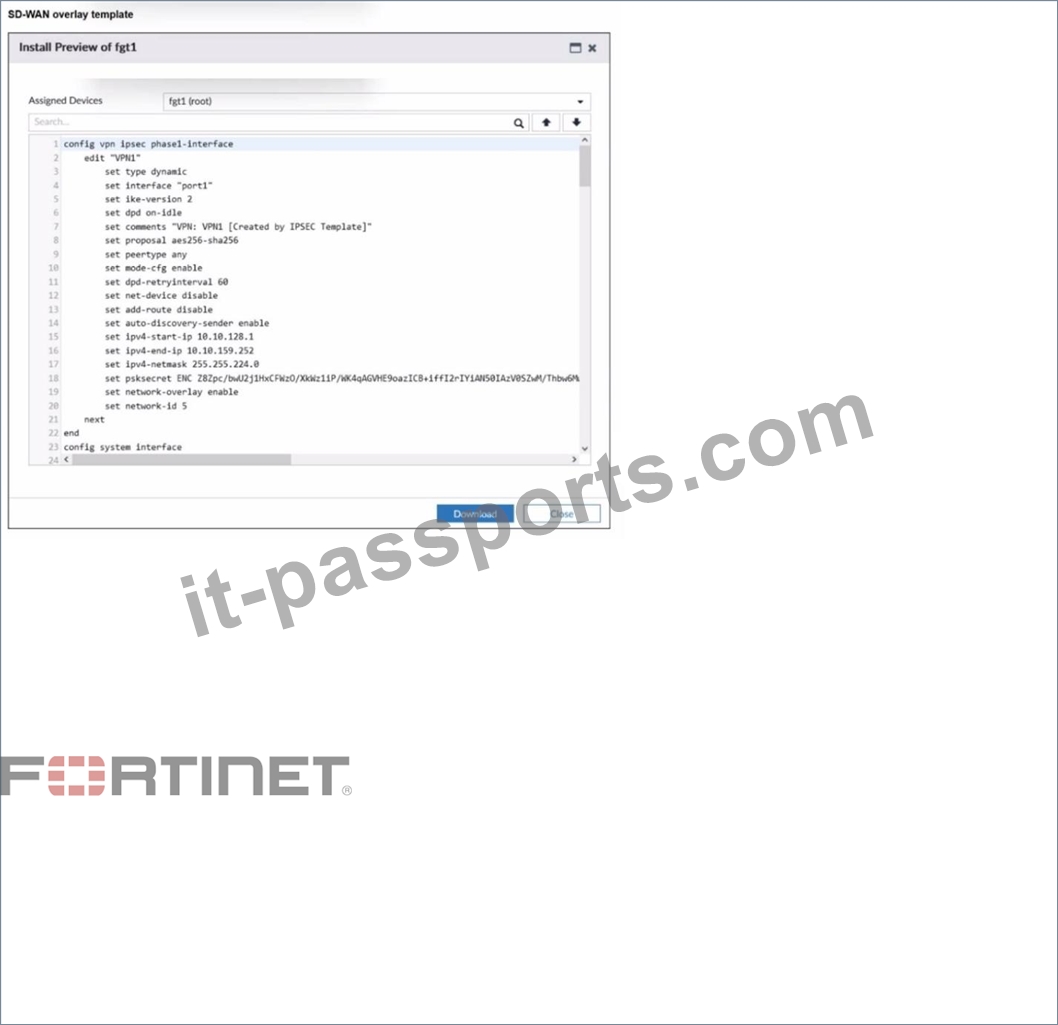

The administrator used the SD-WAN overlay template to prepare an IPsec tunnels configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the FortiManager installation preview for one FortiGate device.
Based on the exhibit, which statement best describes the configuration applied to the FortiGate device?

A. It is a spoke device that establishes dynamic IPsec tunnels to the hub. The local subnet range is 10.10.128.0/23.
B. It is a hub device. It can send ADVPN shortcut offers.
C. It is a spoke device that establishes dynamic IPsec tunnels to the hub It can send ADVPN shortcut requests.
D. It is a hub device. It will automatically discover the spoke devices and add them to the SD-WAN topology.

正解：B

解説：
The FortiManager SD-WAN overlay template preview, as described in the document, indicates:
"When the device is acting as a hub, the configuration enables the sending of ADVPN shortcut offers to spokes. This means the hub can facilitate on-demand dynamic shortcut tunnel creation between spokes, improving performance for branch-to-branch communication by bypassing the hub for inter-branch traffic after initial discovery." Such a role is critical in scalable ADVPN topologies, enabling hub devices to optimize overlays dynamically.
