| Section | Weight | Objectives |
|---|---|---|
| Centralized Management | 20% | - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting - Policy packages & object templates - Configuration provisioning & version control |
| Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis - Fabric synchronization issues |
| Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - SD-WAN design & SLA management - Route redistribution & filtering - IPsec VPN & ADVPN architecture |
| High Availability & Redundancy | 15% | - Cross-data center redundancy - FGCP/FGSP/vCluster deployment - Session synchronization & failover |
| Security Policy & Services | 10% | - Advanced firewall & security profile design - NAT & IP pool optimization - Identity-based policies |
| System Architecture & Design | 20% | - VDOM design & multi-tenant deployment - Security Fabric integration & scaling - FortiOS 7.6 architecture & components - Hardware sizing & resource planning |
>> New Fortinet NSE7_FSN_AR-7.6 Test Prep <<
Three versions of NSE7_FSN_AR-7.6 study materials are available. We can meet your different needs. NSE7_FSN_AR-7.6 PDF version is printable and you can print it into hard one, and you can take them anywhere. NSE7_FSN_AR-7.6Online test engine supports all web browsers, and you can have a brief review before your next practicing. NSE7_FSN_AR-7.6 Soft test engine can stimulate the real exam environment, and it can help you know the process of the real exam, this version will relieve your nerves. Just have a try, and there is always a suitable version for you!
NEW QUESTION # 42

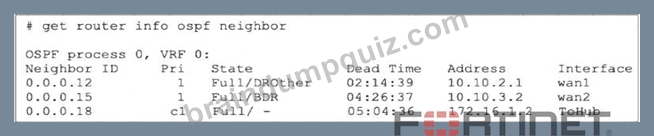

Refer to the exhibit, which shows the output of the command get router info ospf neighbor.
To what extent does FortiGate operate when looking at its OSPF neighbors? (Choose two.)
Answer: C,D
Explanation:
The command on this slide shows a summary of the statuses of all the OSPF neighbors. For each neighbor, it displays the adjacency state and if it is a DR, a BDR, or neither (DROther) Pagina 362 Enterprise_Firewall_7.
2_Study. - Point-to-point networks contain only two peers, one at each end of a point-to-point link - Broadcast networks (multi-access) support more than two attached routers. They also support sending messages to multiple recipients (broadcasting). Pagina 365 Enterprise_Firewall_7.2_Study. In any multi-access network there is one DR and one BDR. Pagina 439 Network_Security_Support_Engineer_7.4_Study FULL/- This represents a point-to-point network
NEW QUESTION # 43
Refer to the exhibit.

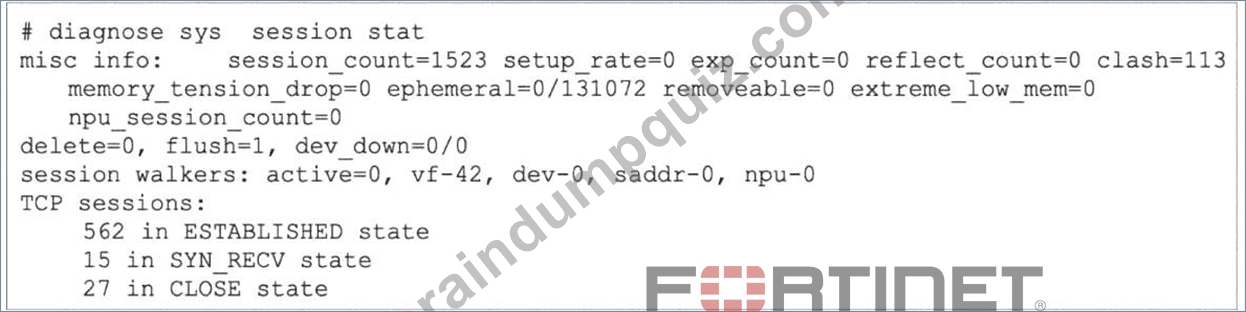

The partial output of diagnose sys session stat command is shown.
Which statement about the output shown in the exhibit is correct?
Answer: A
Explanation:
The correct answer is C.
The exhibit shows:
562 in ESTABLISHED state
27 in CLOSE state
memory_tension_drop=0
ephemeral=0/131072
According to the study guide, for TCP sessions: "The protocol state in the session table is a two-digit number.
For TCP, the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy)... The second digit is the client-side state." The same page also shows that value 1 = ESTABLISHED So, if a TCP session is in ESTABLISHED state and there is no inspection, its proto_state is 01:
first digit 0 = no inspection
second digit 1 = ESTABLISHED
That makes C correct. This is also consistent with FortiOS examples showing established TCP sessions with proto=6 proto_state=01 Why the other options are wrong:
A is wrong because the field that indicates sessions dropped due to low free memory is memory_tension_drop, and in the exhibit it is 0, not 113. The study guide states: "If there is a lack of free memory, the kernel deletes the oldest sessions. The command shown on this slide displays the number of sessions the kernel deleted because of this mechanism."So 113 is the clash value, not memory-tension drops.
B is wrong because ephemeral=0/131072 does not mean 131072 ephemeral sessions were recorded. The study guide explains that FortiGate "sets a hard limit on the maximum number of ephemeral sessions that can exist at the same time in the session table."Therefore:
0 = current ephemeral sessions
131072 = maximum allowed ephemeral sessions for that model/context
D is wrong because the study guide says the temporary retention for possible out-of-order packets happens in state value 5 (TIME_WAIT): "When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out-of-order packets that might arrive after the FIN/ACK packet. This is the state value 5."But the exhibit shows 27 in CLOSE state, and the same table shows CLOSE = 6, not TIME_WAIT So the verified answer is C.
NEW QUESTION # 44
Refer to the exhibit.

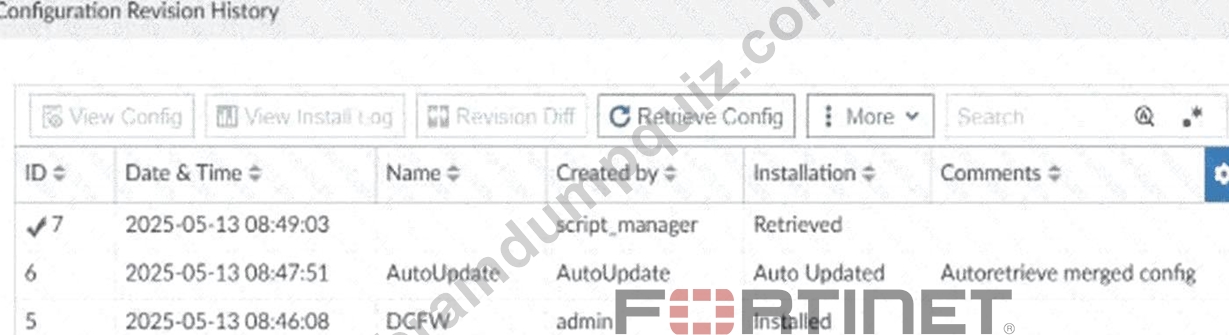

A revision history window at the FortiManager device layer is shown.
The IT team is trying to identify the administrator responsible for the most recent update to the FortiGate device database.
What can the IT team conclude?
Answer: D
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
FortiManager creates configuration revisions following several events, including installations, explicit configuration retrievals, automatic updates, and scripts executed directly on managed FortiGate devices. The FortiManager 7.6 Administrator Study Guide specifically explains that scripts run using Remote FortiGate Directly (via CLI) can cause an automatic update and create a new revision-history entry.
This accounts for the script_manager process and subsequent retrieve activity visible in the exhibit.
script_manager represents FortiManager ' s script-processing mechanism; it is not an FDN API administrator, eliminating D. The Configuration and Installation widget belongs to FortiManager ' s device-management interface rather than being something the administrator must inspect directly on FortiGate, eliminating B. The revision history itself identifies which administrator or process generated a revision, so the proposed system- log filtering in C is unnecessary and incorrectly specified.
NEW QUESTION # 45
Exhibit 1.
Exhibit 2.

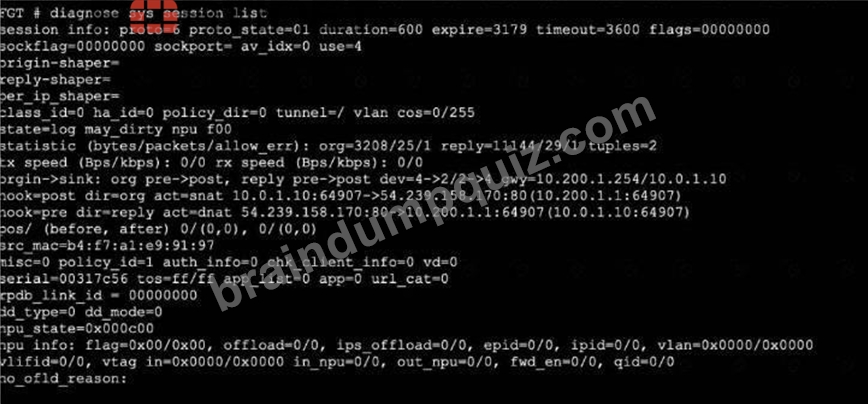

Refer to the exhibits, which show the configuration on FortiGate and partial internet session information from a user on the internal network.
An administrator would like to lest session failover between the two service provider connections.
Which two changes must the administrator make to force this existing session to immediately start using the other interface? (Choose two.)
Answer: A,B
Explanation:
FortiOS Admin Guide: Static Routing, SNAT Route Change Feature
NEW QUESTION # 46
A FortiGate administrator is troubleshooting a VPN that is failing to establish.
As a first step, the administrator is attempting to sniff the traffic using the command:
# diagnose sniffer packet any ''udp port 500 or udp port 4500 or esp'' 4 After several minutes there is still no output. What is the most Likely reason for this?
Answer: C
Explanation:
The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).
A). The VPN is configured to use IKE over TCP:
Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).
However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).
The sniffer filter explicitly looks for udp or esp (IP Protocol 50).
If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.
Why other options are incorrect:
B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.
C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.
D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): " IKEv2 over TCP is available for environments where UDP 500/4500 is blocked. When enabled, IKE and ESP packets are encapsulated in TCP headers. "
NEW QUESTION # 47
......
