NEW QUESTION # 72

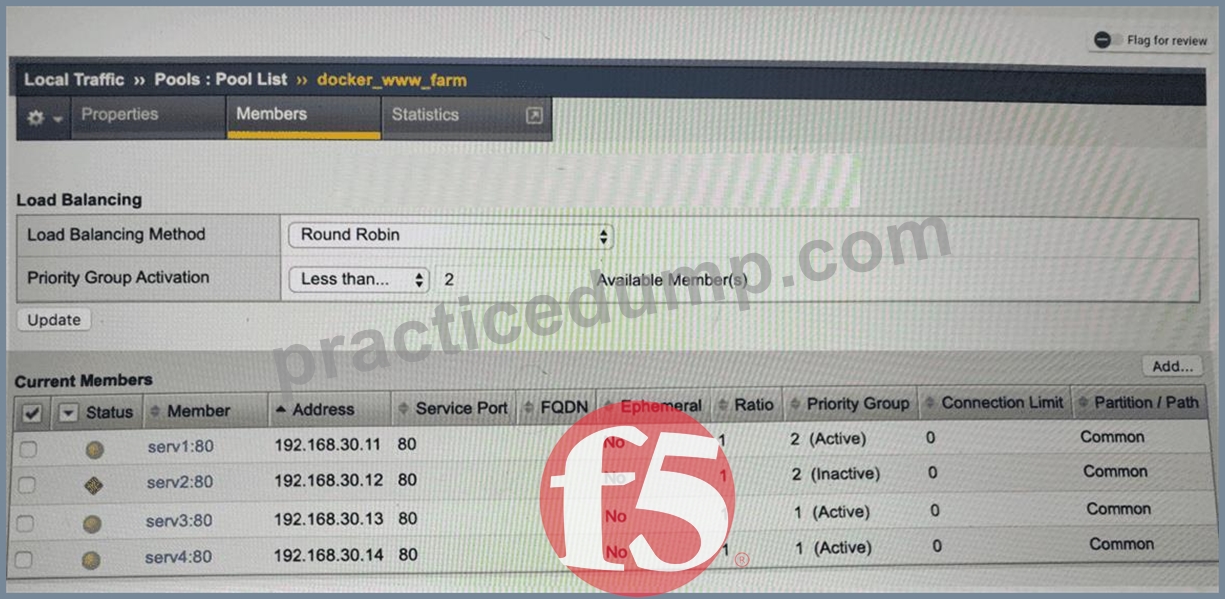

Refer to the exhibit above.
A BIG-IP pool is configured with Priority Group Activation = Less than 2 available members. The pool members have different priority groups and availability states. Which pool members are receiving traffic?
(Choose one answer)
Answer: C
Explanation:
This question tests understanding of Priority Group Activation (PGA) and how BIG-IP determines which pool members are eligible to receive traffic.
Key BIG-IP Priority Group Concepts:
* Higher priority group numbers = higher priority
* BIG-IP will only send traffic to the highest priority group that meets the Priority Group Activation condition
* Lower priority groups are activated only when the condition is met
* Only available (green) members count toward the activation threshold
Configuration from the Exhibit:
* Priority Group Activation: Less than 2 available members
* Pool Members and Status:
Pool Member
Priority Group
Status
serv1
2
Active (available)
serv2
2
Inactive (down)
serv3
1
Active (available)
serv4
1
Active (available)
Step-by-Step Traffic Decision:
* BIG-IP first evaluates the highest priority group (Priority Group 2)
* Priority Group 2 has:
* serv1 # available
* serv2 # unavailable
* Total available members = 1
* Activation rule is Less than 2 available members
* Condition is true (1 < 2)
* BIG-IP activates the next lower priority group (Priority Group 1)
* Traffic is now sent to:
* serv1 (Priority Group 2)
* serv3 and serv4 (Priority Group 1)
Final Result:
Traffic is distributed to serv1, serv3, and serv4
Why the Other Options Are Incorrect:
* A - Ignores activation of the lower priority group
* B - serv4 is also active and eligible
* C - serv2 is down and cannot receive traffic
Key Data Plane Concept Reinforced:
Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number of available members in the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP to expand traffic distribution to lower-priority members to maintain availability.
NEW QUESTION # 73
A BIG-IP Administrator is informed that traffic on interface 1.1 is expected to increase beyond the maximum bandwidth capacity of the link. There is a single VLAN on the interface.
What should the BIG-IP Administrator do to increase the total available bandwidth? (Choose one answer)
Answer: B
Explanation:
On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE).
When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks.
Key concepts involved:
* InterfacesA single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.
* Trunks (Link Aggregation)A trunk combines multiple physical interfaces into a single logical interface.
* BIG-IP supports LACP and static trunks.
* Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy.
* VLANs are then assigned to the trunk, not directly to individual interfaces.
Why option B is correct:
* Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.
* This increases total available bandwidth (for example, two 10Gb interfaces # up to 20Gb aggregate capacity).
* This is the documented and supported method for scaling bandwidth on BIG-IP.
Why the other options are incorrect:
* A. Increase the MTUMTU changes affect packet size and efficiency, not total bandwidth capacity.
* C. Assign two interfaces to the VLANBIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk.
* D. Set the media speed manuallyMedia speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.
Conclusion:
To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.
NEW QUESTION # 74
The BIG-IP Administrator wants to provide quick failover between the F5 LTM devices that are configured as an HA pair with a single Self IP using the MAC Masquerade feature. The administrator configures MAC masquerade for traffic-group-1 using the following command:
`tmsh modify /cm traffic-group traffic-group-1 mac 02:12:34:56:00:00`
However, the Network Operations team identifies an issue with using the same MAC address across multiple VLANs. As a result, the administrator enables Per-VLAN MAC Masquerade to ensure a unique MAC address per VLAN by running:
`tmsh modify /sys db tm.macmasqaddr_per_vlan value true`
What would be the resulting MAC address on a tagged VLAN with ID 1501? (Choose one answer)
Answer: B
Explanation:
Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts documents:
In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.
By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.
To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:
`tm.macmasqaddr_per_vlan = true`
When this feature is enabled:
BIG-IP derives a unique MAC address per VLAN
The base MAC address configured on the traffic group remains the first four octets The last two octets are replaced with the VLAN ID expressed in hexadecimal The VLAN ID is encoded in network byte order (high byte first, low byte second)
### VLAN ID Conversion:
VLAN ID: 1501 (decimal)
Convert to hexadecimal:
1501₁₀ = 0x05DD
High byte: 05
Low byte: DD
### Resulting MAC Address:
Base MAC: `02:12:34:56:00:00`
Per-VLAN substitution → last two bytes = `05:DD`
Final MAC address:
`02:12:34:56:05:dd`
### Why the Other Options Are Incorrect:
A (01:15) - Incorrect hexadecimal conversion of 1501
B (dd:05) - Byte order reversed (little-endian, not used by BIG-IP)
D (15:01) - Uses decimal values instead of hexadecimal
### Key BIG-IP HA Concept Reinforced:
Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.
NEW QUESTION # 75
Which of the following lists theorder of preference from most preferred to least preferredwhen BIG-IP processes and selects avirtual server? (Choose one answer)
Answer: C
Explanation:
The BIG-IP system uses a specific precedence algorithm to determine which virtual server (listener) should process an incoming packet when multiple virtual servers might match the criteria. Since BIG-IP version
11.3.0, the system evaluates three primary factors in a fixed order of importance:
* Destination Address:The system first looks for the most specific destination match. A "Host" address (mask /32) is preferred over a "Network" address (mask /24, /16, etc.), which is preferred over a
"Wildcard" (0.0.0.0/0).
* Source Address:If multiple virtual servers have identical destination masks, the system then evaluates the source address criteria. Again, a specific source host match is preferred over a source network or a wildcard source.
* Service Port:Finally, if both destination and source specifications are equal, the system checks the port.
A specific port match (e.g., 80) is preferred over a wildcard port (e.g., or 0).
Following this logic, a virtual server configured with a specificdestination host, a specificsource host, and a specificservice portrepresents the highest level of specificity and thus the highest preference.
NEW QUESTION # 76
Refer to the exhibit.
During a planned upgrade to a BIG-IP HA pair running Active/Standby, an outage to application traffic is reported shortly after the Active unit is forced to Standby. Reverting the failover resolves the outage. What should the BIG-IP Administrator modify to avoid an outage during the next failover event? (Choose one answer)
Answer: D
Explanation:
In anActive/StandbyBIG-IP design, application availability during failover depends on both units having equivalent data-plane connectivityfor the networks that carry application traffic. Specifically:
* VLANs are bound to specific interfaces (and optionally VLAN tags).
* Floating self IPs / traffic groupsmove to the new Active device during failover.
* For traffic to continue flowing after failover, the new Active device must have thesame VLANs available on the correct interfacesthat connect to the upstream/downstream networks.
What the symptom tells you:
* Traffic works when Device A is Active
* Traffic fails when Device B becomes Active
* Failback immediately restores traffic
This pattern strongly indicates theStandby unit does not have the VLAN connected the same way(wrong physical interface assignment), so when it becomes Active, it owns the floating addresses but cannot actually pass traffic on the correct network segment.
WhyInterface mismatchis the best match:
* If theActiveunit is already working, its interface mapping is correct.
* The fix is to make theStandbyunit's VLAN/interface assignment match the Active unit.
* That corresponds tochanging the Standby device interface to 1.1.
Why theTagoptions are less likely here (given the choices and the exhibit intent):
* Tag issues can also break failover traffic, but the question/options are clearly driving toward the classic HA requirement:consistent VLAN-to-interface mapping on both devicesso the data plane remains functional after the traffic group moves.
Conclusion:To avoid an outage on the next failover, the BIG-IP Administrator must ensure the Standby device uses thesame interface (1.1)for the relevant VLAN(s) that carry the application traffic, so when it becomes Active it can forward/receive traffic normally.
