| Section | Objectives |
|---|---|
| Monitoring and Troubleshooting | - Diagnostics and logging - Common switching issues |
| Redundancy and High Availability | - Redundant switch design - Link aggregation (LACP) |
| Security Integration with FortiGate | - Device identity and access control - Security policies for switched networks |
| Spanning Tree Protocol | - STP/RSTP configuration - Loop prevention mechanisms |
| Switch Configuration and Management | - Switch ports and profiles - Initial setup and provisioning |
| FortiSwitch Fundamentals | - FortiSwitch operating modes - Switch architecture and hardware overview |
| VLANs and Segmentation | - VLAN creation and tagging - Inter-VLAN routing considerations |
| FortiLink Integration | - FortiLink topology and design - FortiGate-managed switching |
요즘같이 시간인즉 금이라는 시대에 시간도 절약하고 빠른 시일 내에 학습할 수 있는 Itexamdump의 덤프를 추천합니다. 귀중한 시간절약은 물론이고 한번에Fortinet NSE5_FSW_AD-7.6인증시험을 패스함으로 여러분의 발전공간을 넓혀줍니다.
질문 # 41

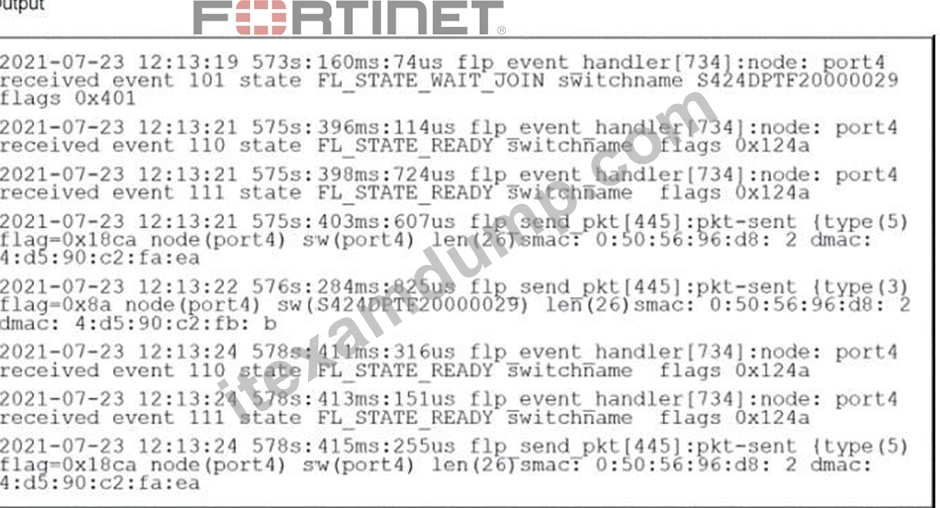

Refer to the exhibit.
Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
정답：A,B
설명：
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
질문 # 42

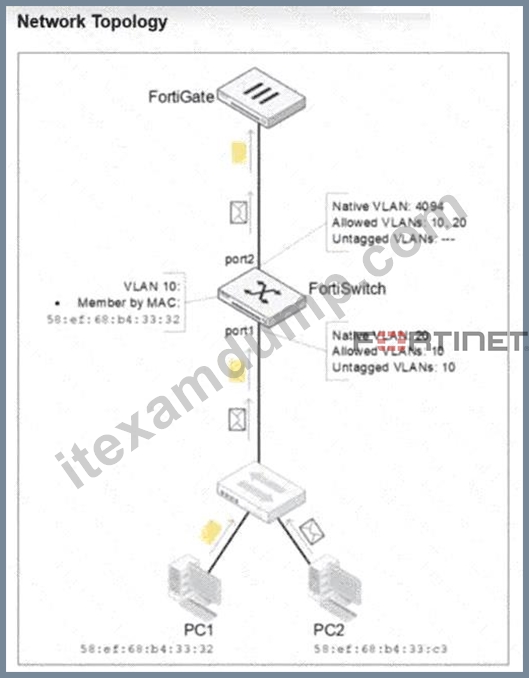

Refer to the exhibit.
PC1 and PC2 are connected to port1 on FortiSwitch. Which VLAN tags will FortiSwitch apply when forwarding PC1 and PC2 traffic out of port2? (Choose one answer)
정답：C
설명：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port's hierarchy of VLAN assignment rules.
For the traffic arriving atport1:
* PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port's static native VLAN. Therefore, PC1's traffic is internally associated with VLAN 10.
* PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port'sNative VLAN, which isVLAN 20.
For the traffic exiting port2:
The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1's traffic and a VLAN 20 tag to PC2's traffic as they are forwarded to the FortiGate.
질문 # 43
What can an administrator do to maintain the existing standalone FortlSwltch configuration while changing the management mode to FortLink?
정답：C
설명：
" The tool is a Python script that converts the supported settings in a FortiSwitch standalone configuration file to the equivalent FortiOS settings for a managed switch. " Reference: FortiSwitch 7.6 Study Guide, page 349
질문 # 44

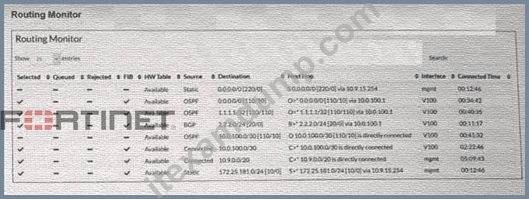

Refer to the exhibit.
Two routes in the routing monitor are marked as available but are not installed in the forwarding information base (FIB). Which statement correctly explains why the routes have this status? (Choose one answer)
정답：D
설명：
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).
The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0
/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .
In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route-despite being " Available " in the RIB-is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.
질문 # 45
Which Ethernet frame can create Layer 2 flooding due to all bytes on the destination MAC address being set to all FF?
정답：A
설명：
Layer 2 flooding caused by Ethernet frames with all bytes in the destination MAC address set to FF refers to broadcast frames.Here's why:
* Broadcast Ethernet Frame (A):
* Address Specification:In Ethernet networking, a broadcast frame has a destination MAC address ofFF:FF:FF:FF:FF:FF, which instructs network devices to forward the frame to all devices within the broadcast domain.
* Network Behavior:This causes Layer 2 flooding as the frame is sent to all ports in the VLAN, except the originating port, ensuring that the broadcast reaches all network segments.
* Other Frame Types:
* Unicast (B)targets a single device.
* Multicast (C)targets a group of devices.
* Anycast (D)is not used in Ethernet but rather in IP-based routing to route to the nearest of multiple destinations, typically in internet addressing.
References:You can find more information about Ethernet frame types in networking textbooks or documentation that discusses network layer interaction:Network Theory Books
질문 # 46
......
