NEW QUESTION # 14
You are designing a FortiSwitch backbone where every FortiSwitch device must connect to every other FortiSwitch for maximum redundancy. To maintain connectivity while preventing loops, which protocol or feature must you configure on the switches? (Choose one answer)
Answer: B
Explanation:
According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.
STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding) state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag- stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).
Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. "Full mesh HA" (Option C) is not a defined feature in FortiSwitchOS 7.6.
NEW QUESTION # 15

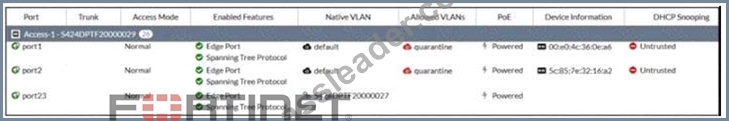

Refer to the exhibit.
The exhibit shows the current status of the ports on the managed FortiSwitch. Access-1.
Why would FortiGate display a serial number in the Native VLAN column associated with the port23 entry?
Answer: B
Explanation:
The information in the "Native VLAN" column for port23 on the FortiSwitch indicates that a standalone switch is connected to it. This is because the column displays "$424MPTF20000027," which matches the format of a Fortinet device serial number.
Here's a breakdown of the evidence in the image:
* Native VLAN:The "Native VLAN" column typically displays the VLAN ID for untagged traffic on a trunk port. However, in this case, it shows a serial number format ("$424MPTF20000027").
* No Trunk Information:The "Trunk" column is blank for port23, indicating it's not configured as a trunk member.
* Other Ports:Port1 and port2 show "default" in the "Native VLAN" column, which is the expected behavior for access ports.
Fortinet FortiSwitch devices typically don't display the serial number of adjacent FortiSwitch devices in the
"Native VLAN" column. This column is reserved for VLAN information on trunk ports.
NEW QUESTION # 16

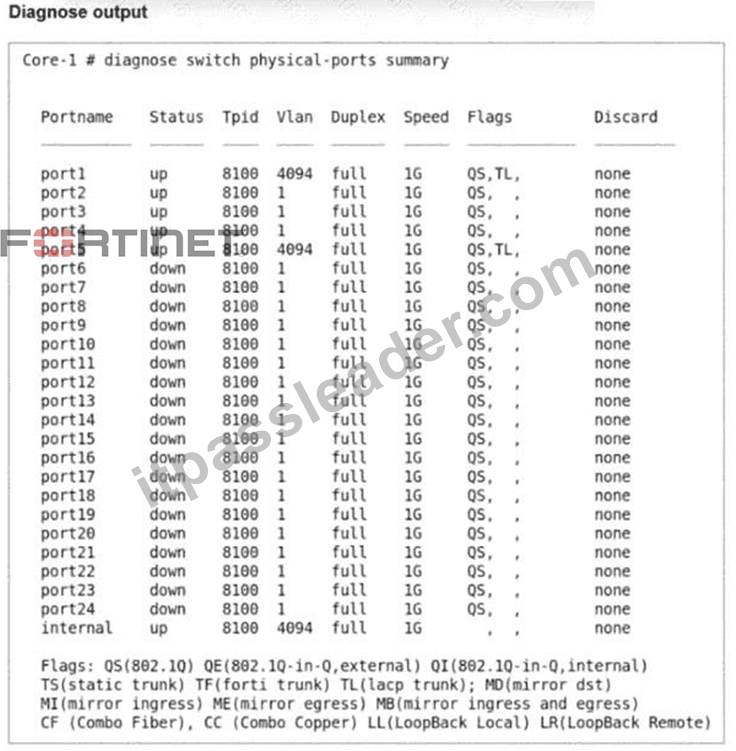

Refer to the exhibit.
The command diagnose switch physical-ports summary is executed on FortiSwitch.
Based on the VLAN assignments shown in the output, what is the most likely management configuration of this FortiSwitch? (Choose one answer)
Answer: B
Explanation:
The output of the diagnose switch physical-ports summary command provides critical insight into how a FortiSwitch is being managed by examiningVLAN assignments,tag protocol identifiers (TPID), and internal port behavior. In the provided exhibit, several ports-includingport1,port5, and theinternalport- are assigned toVLAN 4094.
According to the FortiSwitchOS 7.6 Administrator Guide,VLAN 4094 is reserved for FortiLink management trafficwhen a FortiSwitch is managed by a FortiGate. FortiLink uses this dedicated VLAN to carry control-plane traffic such as configuration synchronization, monitoring data, LLDP-based discovery, and keepalive messages between the FortiGate and FortiSwitch. The presence of VLAN 4094 on physical interfaces is a strong and explicit indicator ofFortiGate-managed mode.
In standalone or local management mode, FortiSwitch ports typically default toVLAN 1or administrator- defined VLANs, andVLAN 4094 is not automatically assigned. Similarly, FortiSwitch Cloud-managed devices do not use VLAN 4094 in this manner, as cloud management relies on IP connectivity to FortiEdge Cloud rather than FortiLink encapsulation.
Additionally, the internal port showing VLAN 4094 further confirms FortiLink operation, as this internal interface is used by the switch ASIC to communicate with the FortiGate over the FortiLink tunnel. This behavior is documented in FortiOS 7.6 and FortiSwitchOS 7.6 design guides as characteristic of FortiGate- managed FortiSwitch deployments.
Therefore, based on the VLAN assignments shown-specifically the use ofVLAN 4094-the most accurate and fully verified conclusion is thatthe FortiSwitch is managed by FortiGate, makingOption Bthe correct answer.
NEW QUESTION # 17
In which two ways can you assign a FortiSwitch port to a VDOM using multi-tenancy setup? (Choose two.)
Answer: B,D
Explanation:
In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:
* Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.
* Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.
NEW QUESTION # 18
How are the 'by VLAN redirect MAC address quarantine' mode and the 'by redirect MAC address quarantine' mode on FortiGate similar?
Answer: D
Explanation:
The 'by VLAN redirect MAC address quarantine' mode and the 'by redirect MAC address quarantine' mode on FortiGate share specific similarities:
* Quarantine VLAN Assignment (A):
* Common Feature:Both modes utilize a designated quarantine VLAN to isolate quarantined devices. This helps in mitigating the risk of spreading potential security threats within the network.
* Operational Impact:Moving devices to a specific quarantine VLAN restricts their network access, effectively isolating them until further action or remediation is taken.
NEW QUESTION # 19
......
