Our passing rate of NSE7_FSN_AR-7.6 learning quiz is 99% and our NSE7_FSN_AR-7.6 practice guide boosts high hit rate. Our NSE7_FSN_AR-7.6 test torrents are compiled by professionals and the answers and the questions we provide are based on the real exam. The content of our NSE7_FSN_AR-7.6 exam questions is simple to be understood and mastered. To let you get well preparation for the exam, our software provides the function to stimulate the real exam and the timing function to help you adjust the speed. Based on those merits of our NSE7_FSN_AR-7.6 Guide Torrent you can pass the NSE7_FSN_AR-7.6 exam with high possibility.
| Section | Objectives |
|---|---|
| Topic 1: Enterprise Firewall | - Security profiles
|
| Topic 2: SD-WAN | - Centralized management
|
>> Fortinet NSE7_FSN_AR-7.6 Exam Questions And Answers <<
Your chances of passing the Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) certification exam the first time around can be greatly improved if you attempt the VCE4Dumps Fortinet NSE7_FSN_AR-7.6 practice exam. To help you succeed on your first try at the Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) exam, VCE4Dumps has created three formats of Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) practice exam.
NEW QUESTION # 22
You are checking an enterprise network and see a suspicious packet with the MAC address 00:09:0f:09:18:81.
Which two statements about the suspicious packet are correct? (Choose two.)
Answer: C,D
Explanation:
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
The MAC prefix 00:09:0f:09 identifies FortiGate ' s logic-2 HA virtual-MAC construction. The Enterprise Firewall 7.6 guide states that logic 2 applies when the virtual-cluster ID is 0 or 1, the HA group ID is below
256, and the physical-interface index is below 128.
In 00:09:0f:09:18:81, hexadecimal 18 represents HA group ID 24, confirming that the group ID is below 255 and making D correct. The high bit in the final octet indicates virtual-cluster ID 1; this means virtual clustering
/VDOM functionality is involved, making C correct. The remaining physical-index bits identify index 1, not
2, eliminating A. This virtual-MAC construction belongs to FortiGate Clustering Protocol HA operation and does not establish that the device uses standalone FGSP session synchronization, eliminating B.
NEW QUESTION # 23

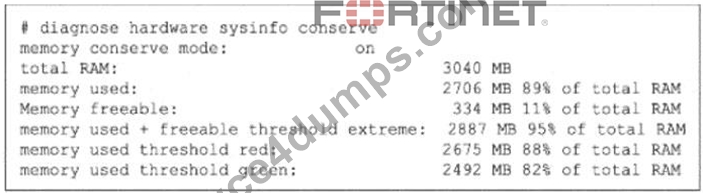

Refer to the exhibit.
If the default settings are m place, what can you conclude about the conserve mode shown in the exhibit?
Answer: C
Explanation:
The exhibit shows:
memory conserve mode: on
memory used: 2706 MB 89% of total RAM
memory used threshold red: 2675 MB 88% of total RAM
memory used + freeable threshold extreme: 2887 MB 95% of total RAM
The study guide states that the default thresholds are:
Extreme = 95%
Red = 88%
Green = 82%
So this FortiGate is in conserve mode because memory usage is 89%, which is above the red threshold (88%), but it has not yet reached the extreme threshold (95%).
The study guide then explains exactly what happens during conserve mode:
"For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):
config system global
set av-failopen [off | pass | one-shot]
pass (default): All new sessions pass without inspection"
It also says:
"The av-failopen setting also applies to flow-based antivirus inspection." And the same page adds:
"If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked." Therefore, with default settings and with memory usage below the extreme threshold, FortiGate is allowing new sessions that require inspection, but bypassing inspection. That matches C.
Why the other options are wrong:
A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass, meaning they pass without inspection B is wrong because if memory rises another 6%, it reaches 95%, which is the extreme threshold. At that point, the study guide says all new sessions that require inspection are blocked D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold, and the exhibit shows it is currently at 89%, not 95%
NEW QUESTION # 24

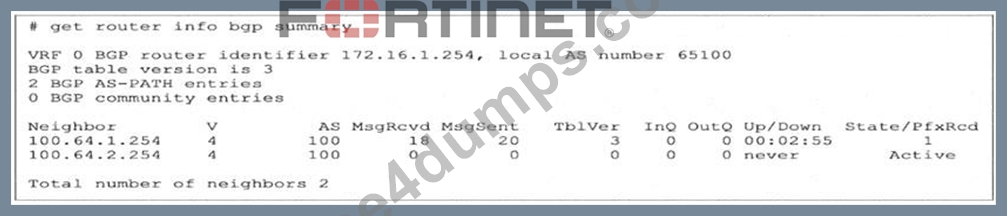

Refer to the exhibit.
The output of the get router info bgp summary command is shown.
Which statement regarding adjacencies between the local router and its neighbors is correct?
Answer: D
Explanation:
The correct answer is B .
In the exhibit:
* Neighbor 100.64.1.254 shows State/PfxRcd = 1 , which means the session is established and the local FortiGate has received 1 prefix
* Neighbor 100.64.2.254 shows State/PfxRcd = Active
The study guide explains the BGP states exactly:
* Connect : Waiting for a successful three-way TCP connection
* Active : Unable to establish the TCP session
* OpenSent : Waiting for an OPEN message from the peer
* OpenConfirm : Waiting for the keepalive message from the peer
* Established : Peers have successfully exchanged OPEN and keepalive messages It also explains how to read the State/PfxRcd column:
"If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor." Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established .
Why the other options are wrong:
* A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another
* C is wrong because BGP adjacency is not established based on neighbor "priority"; the output shows adjacency is established because the session completed and prefixes were exchanged
* D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation So the verified answer is: B .
NEW QUESTION # 25

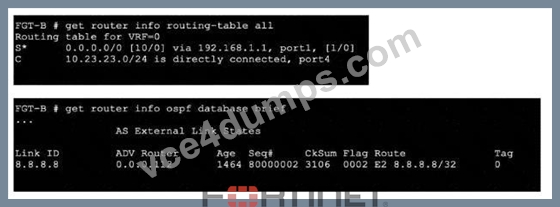

Refer to the exhibits.
An administrator Is expecting to receive advertised route 8.8.8.8/32 from FGT-A. On FGT-B, they confirm that the route is being advertised and received, however, the route is not being injected into the routing table.
What is the most likely cause of this issue?
Answer: C
Explanation:
The 8.8.8.8/32 route is visible in the OSPF database on FGT-B but not installed into the routing table-the most likely explanation is that FGT-B is filtering it from being installed.
NEW QUESTION # 26

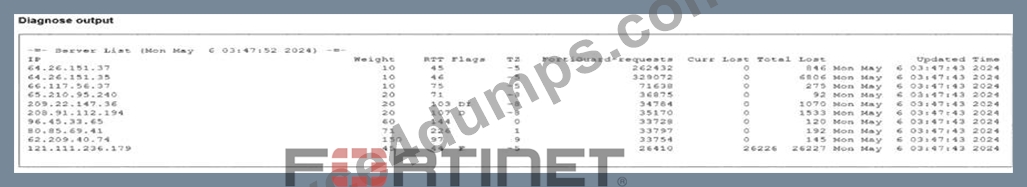

Refer to the exhibit.
Partial output of command diagnose debug rating is shown. Which FDS server will the FortiGate algorithm choose?
Answer: D
Explanation:
The correct answer is C. 64.26.151.37.
The study guide explains the FortiGuard flags shown by diagnose debug rating:
D = Default
I = Initial
T = Timing
F = Failedand specifically: "F = The server is down"
So even though 121.111.236.179 has the lowest RTT in the exhibit, it has the F flag, meaning FortiGate considers that server failed/down, so it will not be chosen.
To determine which active server is selected, the FortiOS administration guide states:
"The server list is sorted first by weight. The server with the smallest RTT appears at the top of the list regardless of weight. ... Therefore the top position in the list is selected based on RTT while the other positions are based on weight." Among the valid, non-failed choices in the exhibit:
64.26.151.37 # RTT 45
209.22.147.36 # RTT 103
96.45.33.65 # RTT 144
208.91.112.194 # RTT 107
The active server with the lowest RTT is 64.26.151.37, so that is the server FortiGate will choose.
So the verified answer is: C.
NEW QUESTION # 27
......
You many face many choices of attending the certificate exams and there are a variety of certificates for you to get. You want to get the most practical and useful certificate which can reflect your ability in some area. If you choose to attend the test NSE7_FSN_AR-7.6 certification buying our NSE7_FSN_AR-7.6 exam guide can help you pass the test and get the valuable certificate. Our company has invested a lot of personnel, technology and capitals on our products and is always committed to provide the top-ranking NSE7_FSN_AR-7.6 Study Material to the clients and serve for the client wholeheartedly.
NSE7_FSN_AR-7.6 Real Questions: https://www.vce4dumps.com/NSE7_FSN_AR-7.6-valid-torrent.html
