問題 #175

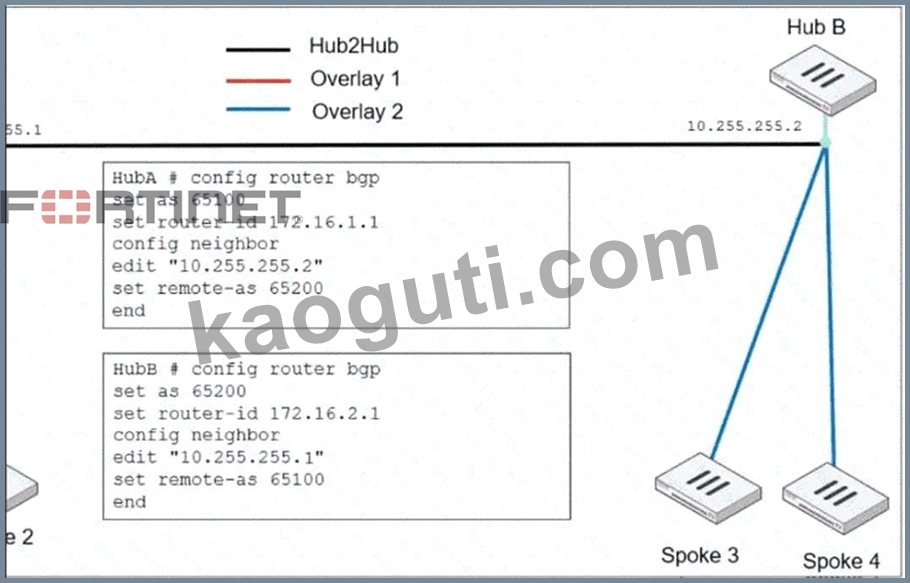

Refer to the exhibit.
An auto-discovery VPN (ADVPN) network is shown.
You must configure an ADVPN using iBGP for each local region and eBGP across regions to connect Overlay 1 with Overlay 2.
Which two options must you configure in the Hub2Hub BGP peering? (Choose two.)
答案：B,D
解題說明：
The Use Case 2 - BGP Configuration diagram explicitly shows these commands for inter-region BGP neighbors:
set attribute-unchanged next-hop
set ebgp-enforce-multihop enable
Technical Explanation:
The topology contains two independent BGP autonomous systems:
* Region A operates within AS 65100.
* Region B operates within AS 65200.
Within each region, iBGP exchanges routing information between the hub and its associated spokes. Between the two regions, eBGP propagates routes through the Hub2Hub connection.
Option B is correct: The command set attribute-unchanged next-hop preserves the BGP next-hop attribute when routes are advertised between the regional hubs.
Preserving next-hop information is important in the documented inter-region ADVPN design because it supports the intended routing and shortcut behavior across the overlays. The next-hop addresses must remain reachable through the configured routing infrastructure.
Option C is correct: The command set ebgp-enforce-multihop enable allows eBGP neighbor relationships to operate when the peers are not directly adjacent at the IP routing level.
In this topology, the hubs establish BGP peering using their inter-hub addresses. Enabling eBGP multihop supports the required connectivity when reaching those addresses involves intermediate routed hops.
Why the other options are incorrect:
Option A: set next-hop-self enable causes FortiGate to replace the advertised next hop with its own address.
This contradicts the next-hop preservation requirement shown in the study guide ' s configuration for this topology.
Option D: set ebgp-enforce-multihop advpn is not the documented FortiOS configuration syntax. The valid value used here is enable.
Architectural Consideration:
For a multiregion ADVPN design, the architect must ensure that BGP next-hop resolution, inter-hub routing, and IPsec connectivity are consistent. Otherwise, BGP may establish successfully while data-plane forwarding or shortcut creation still fails.
References: Enterprise Firewall 7.6 Administrator Study Guide, Auto-Discovery VPN - Use Case 2, pages
235-237; SD-WAN 7.6 Enterprise Administrator Study Guide, Dual-Hub and Multiregion Topologies, page
152.
問題 #176

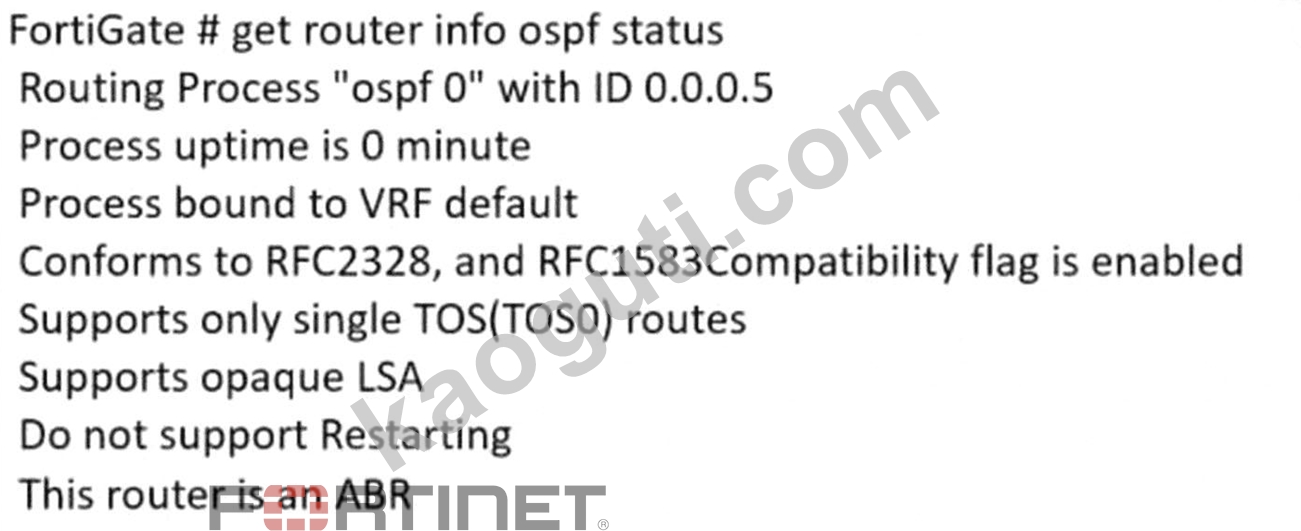

Refer to the exhibit.
The partial output of an OSPF command is shown.
While checking the OSPF status of FortiGate, you receive the output shown in the exhibit.
Based on the output, which two statements about FortiGate are correct? (Choose two.)
答案：C,D
解題說明：
The output explicitly states This router is an ABR. An OSPF area border router has interfaces participating in multiple OSPF areas and provides connectivity between those areas and the backbone. Therefore, A is correct.
The output also states that the RFC1583Compatibility flag is enabled. The Enterprise Firewall 7.6 Administrator Study Guide explains that FortiGate can use RFC 1583-compatible OSPF path selection for ECMP, where eligible external routes of equal cost can be installed concurrently. This makes D correct.
Nothing in the displayed status identifies the FortiGate as a backup designated router, so B cannot be concluded. Option C describes an autonomous system boundary router (ASBR), which originates external LSAs when redistributing routes into OSPF. Being an ABR does not by itself mean the router is injecting external routing information.
問題 #177

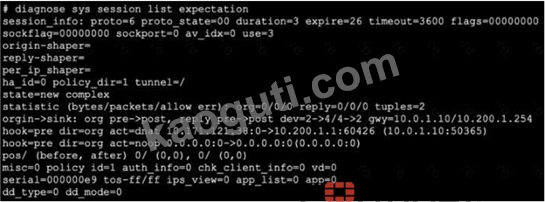

Refer to the exhibit, which shows the output of a diagnose command.
What two conclusions can you draw from the output shown in the exhibit? (Choose two answers)
答案：B,D
解題說明：
The correct answers are B and D .
The study guide explains that expectation sessions are pinhole sessions created by session helpers for protocols such as FTP that need additional negotiated connections. It states: "FortiGate created an expectation session and opened the pinhole port for the expected return traffic" and also shows that the firewall "creates an expected (pinhole) session to allow the traffic" That makes D correct.
For B , the study guide explains the gwy= field in session output: the first value is the gateway to the destination , and the second is the gateway to the source In the exhibit, the original-direction traffic is DNATed here:
hook=pre dir=org act=dnat 10.171.121.38:0- > 10.200.1.1:60426(10.0.1.10:50365) So the destination after DNAT is the internal host 10.0.1.10, and the session's first gwy value corresponds to the next hop toward that destination. That makes B correct.
Why the other options are wrong:
* A is wrong because this is an expectation/session-helper behavior, not an IPS-engine-created session.
The study guide ties expectation sessions to helpers such as FTP, not IPS.
* C is wrong because 10.200.1.1 is the translated address used before DNAT, not the next hop used to forward the original-direction traffic after translation to the internal destination.
So the verified answers are: B, D .
問題 #178

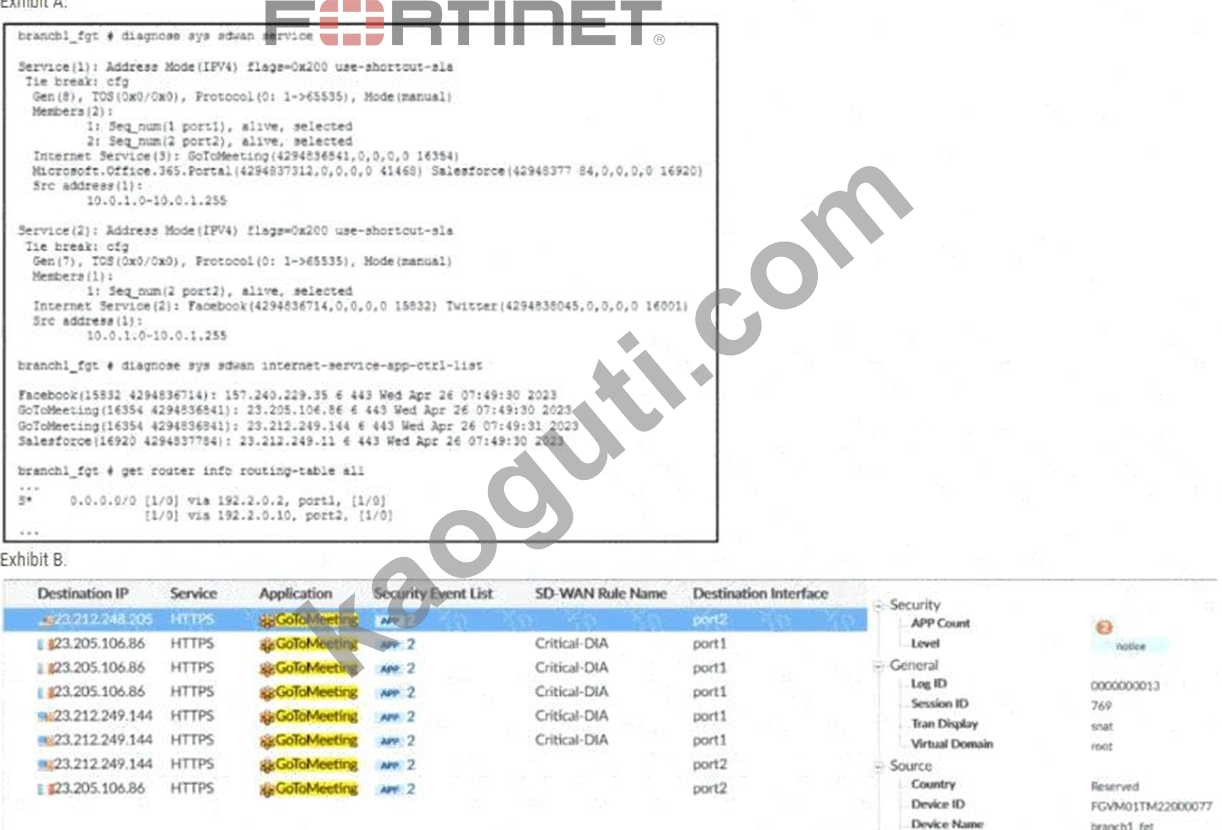

Refer to the exhibits.
An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the SD-WAN service and ISDB application-cache information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic logs on FortiAnalyzer.
The administrator noticed that some traffic matched the implicit SD-WAN rule, but expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD-WAN rule?
(Choose two.)
答案：A,D
解題說明：
Comprehensive and Detailed 100 to 150 words of Explanation From Secure Networking Architect Study Guides topics:
Application-based SD-WAN steering depends on FortiGate being able to associate the new session with an already identified application. The SD-WAN 7.6 guide explains that the ISDB application cache contains an application ID, ISDB application ID, and 3-tuple, and FortiGate uses these values when matching an SD- WAN rule. If the new session ' s 3-tuple is absent from the cache, FortiGate cannot initially identify it as GoToMeeting for rule 1, so normal processing can select the implicit rule.
Application identification can occur only after traffic has already entered the session. That identification does not retroactively change the initial routing decision for packets already associated with the session.
GoToMeeting belongs to the Collaboration criteria shown for rule 1, so A is false. Full SSL inspection is not intrinsically required for this SD-WAN application-cache mechanism, eliminating D.
問題 #179

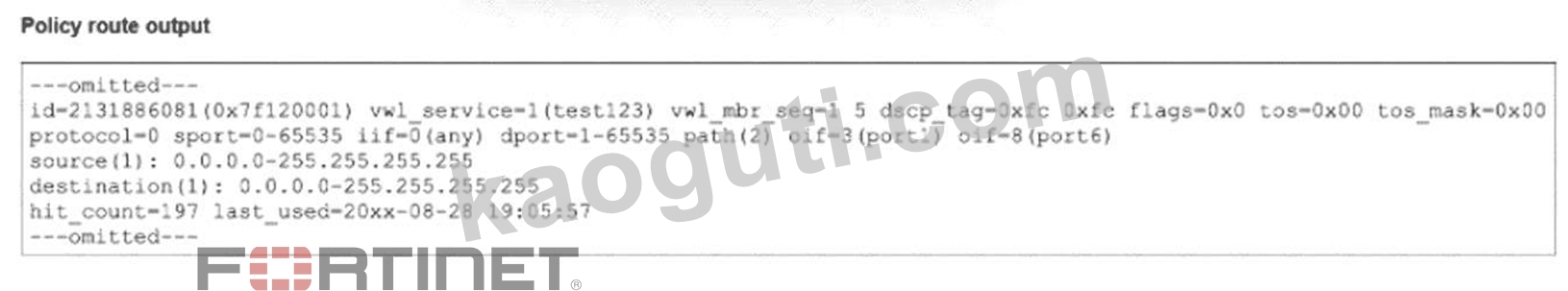

The output of a policy route table entry is shown.
Which type of policy route does the output show?
答案：C
解題說明：
To determine the type of policy route, we must interpret the specific flags and fields visible in the diagnose firewall proute list (or similar kernel table) output provided in the exhibit Identify Key Indicators:
The most critical field in the output is vwl_service=1(test123).
It also lists vwl_mbr_seq=1 5.
Decode the Terminology:
vwl: This stands for Virtual WAN Link. In FortiOS, " Virtual WAN Link " is the legacy internal name for the SD-WAN feature. Even in newer firmware versions (7.x), the kernel and CLI debugs often still refer to SD- WAN objects as vwl.
vwl_service: This specifically refers to an SD-WAN Rule (also known as an SD-WAN Service). The name (test123) is the name given to that specific SD-WAN rule by the administrator.
Evaluate the Options:
A & D (Regular Policy Route): Standard policy routes (configured under config router policy) do not carry the vwl_service tag. They are typically identified by simple gateway or interface instructions without the SD- WAN service abstraction.
B (ISDB Route): While SD-WAN rules can use the Internet Service Database (ISDB) as a destination, the structure of the route entry shown here-specifically defined by a vwl_service ID-classifies it fundamentally as an SD-WAN rule, regardless of the destination object.
C (An SD-WAN rule): The presence of vwl_service and vwl_mbr_seq (SD-WAN member sequence) definitively identifies this entry as a rule generated by the SD-WAN subsystem.
Conclusion: The output shows a route controlled by the SD-WAN engine (vwl), confirming it is an SD-WAN rule.
Reference:
FortiGate Security 7.6 Study Guide (SD-WAN): " In the kernel routing table and debugs, SD-WAN rules are often referenced as vwl (Virtual WAN Link) services. The vwl_service field indicates the specific SD-WAN rule ID and name. "
問題 #180
......
