| Section | Weight | Objectives |
|---|---|---|
| System Architecture & Design | 20% | - Hardware sizing & resource planning - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment - Security Fabric integration & scaling |
| Monitoring & Troubleshooting | 10% | - Fabric synchronization issues - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis |
| High Availability & Redundancy | 15% | - Session synchronization & failover - FGCP/FGSP/vCluster deployment - Cross-data center redundancy |
| Centralized Management | 20% | - FortiManager 7.6 deployment & role assignment - Configuration provisioning & version control - Policy packages & object templates - FortiAnalyzer logging & reporting |
| Security Policy & Services | 10% | - Identity-based policies - Advanced firewall & security profile design - NAT & IP pool optimization |
| Advanced Routing & VPN | 25% | - SD-WAN design & SLA management - IPsec VPN & ADVPN architecture - Route redistribution & filtering - OSPF, BGP, IS-IS configuration & optimization |
>> Exam NSE7_FSN_AR-7.6 Course <<
The Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) web-based practice test works on all major browsers such as Safari, Chrome, MS Edge, Opera, IE, and Firefox. Users do not have to install any excessive software because this Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) practice test is web-based. It can be accessed through any operating system like Windows, Linux, iOS, Android, or Mac. Another format of the practice test is the desktop software. It works offline only on Windows. Our Fortinet NSE 7 - Secure Networking 7.6 Architect (NSE7_FSN_AR-7.6) desktop-based practice exam software comes with all specifications of the web-based version.
NEW QUESTION # 153
A FortiGate administrator is troubleshooting a VPN that is failing to establish.
As a first step, the administrator is attempting to sniff the traffic using the command:
# diagnose sniffer packet any ''udp port 500 or udp port 4500 or esp'' 4 After several minutes there is still no output. What is the most Likely reason for this?
Answer: A
Explanation:
The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).
A). The VPN is configured to use IKE over TCP:
Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).
However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).
The sniffer filter explicitly looks for udp or esp (IP Protocol 50).
If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.
Why other options are incorrect:
B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.
C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.
D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): " IKEv2 over TCP is available for environments where UDP 500/4500 is blocked. When enabled, IKE and ESP packets are encapsulated in TCP headers. "
NEW QUESTION # 154
Refer to the exhibit.
If the default settings are m place, what can you conclude about the conserve mode shown in the exhibit?
Answer: C
Explanation:

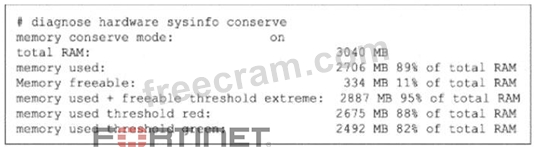

The exhibit shows:
memory conserve mode: on
memory used: 2706 MB 89% of total RAM
memory used threshold red: 2675 MB 88% of total RAM
memory used + freeable threshold extreme: 2887 MB 95% of total RAM
The study guide states that the default thresholds are:
Extreme = 95%
Red = 88%
Green = 82%
So this FortiGate is in conserve mode because memory usage is 89%, which is above the red threshold (88%), but it has not yet reached the extreme threshold (95%).
The study guide then explains exactly what happens during conserve mode:
"For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):
config system global
set av-failopen [off | pass | one-shot]
pass (default): All new sessions pass without inspection"
It also says:
"The av-failopen setting also applies to flow-based antivirus inspection." And the same page adds:
"If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked." Therefore, with default settings and with memory usage below the extreme threshold, FortiGate is allowing new sessions that require inspection, but bypassing inspection. That matches C.
Why the other options are wrong:
A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass, meaning they pass without inspection B is wrong because if memory rises another 6%, it reaches 95%, which is the extreme threshold. At that point, the study guide says all new sessions that require inspection are blocked D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold, and the exhibit shows it is currently at 89%, not 95%
NEW QUESTION # 155
When you deploy SD-WAN, you can choose from several common designs. Each design best applies to specific contexts.
Which two statements correctly associate a common SD-WAN design with its main indication or constraint?
(Choose two.)
Answer: B,D
Explanation:
Remote breakout sends selected internet traffic through a centralized hub or gateway, where common security inspection and policy enforcement can be applied. This reduces the amount of security configuration that must be maintained independently at individual branches, making A correct.
Cloud on-ramp designs are intended to optimize connectivity between branches and cloud-hosted applications or services. By steering traffic toward an appropriate cloud gateway or optimized path, the design can improve application performance, making D correct.
DIA performs local internet breakout at the branch. It can reduce latency, but the branch must provide the required local security inspection, so it is not specifically intended for devices with limited security capabilities. A standalone SD-WAN deployment also normally derives value from multiple WAN paths; a site with only one WAN link provides no meaningful SD-WAN path-selection advantage.
NEW QUESTION # 156

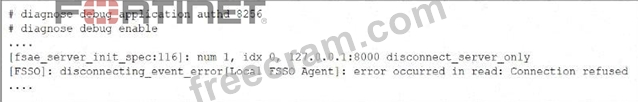

Refer to the exhibit showing a debug output.
An administrator deployed FSSO in DC Agent Mode but FSSO is failing on FortiGate. Pinging FortiGate from where the collector agent is deployed is successful.
The administrator then produces the debug output shown in the exhibit.
What could be causing this error message?
Answer: C
NEW QUESTION # 157

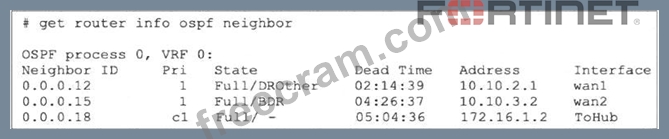

Refer to the exhibit, which shows the output of the command get router info ospf neighbor.
To what extent does FortiGate operate when looking at its OSPF neighbors? (Choose two.)
Answer: A,C
Explanation:
The command on this slide shows a summary of the statuses of all the OSPF neighbors. For each neighbor, it displays the adjacency state and if it is a DR, a BDR, or neither (DROther) Pagina 362 Enterprise_Firewall_7.
2_Study. - Point-to-point networks contain only two peers, one at each end of a point-to-point link - Broadcast networks (multi-access) support more than two attached routers. They also support sending messages to multiple recipients (broadcasting). Pagina 365 Enterprise_Firewall_7.2_Study. In any multi-access network there is one DR and one BDR. Pagina 439 Network_Security_Support_Engineer_7.4_Study FULL/- This represents a point-to-point network
