| Section | Objectives |
|---|---|
| Topic 1: Relationships Between Core Layers | - Cross-Layer Relationship Rules - Application of Derivation Relationships |
| Topic 2: Technology Layer | - Physical Elements - Active Structure Elements - Passive Structure Elements - Behavior Elements |
| Topic 3: Addressing Stakeholder Concerns with Architecture Views | - Customization - Viewpoints |
| Topic 4: Generic Metamodel | - Active Structure Elements - Passive Structure Elements - Specializations
|
| Topic 5: Relationships | - Derivation Rules
|
| Topic 6: Basic Concepts | - Language Structure
|
| Topic 7: Implementation and Migration | - Relationships with Other Layers and Aspects - Transition Architectures - Implementation and Migration Metamodel Elements |
| Topic 8: Application Layer | - Active Structure Elements - Passive Structure Elements - Behavior Elements |
| Topic 9: Motivation Modeling | - Stakeholder Concerns - Drivers and Goals |
| Topic 10: Business Layer | - Active Structure Elements - Passive Structure Elements - Composite Elements - Behavior Elements |
| Topic 11: Language Customization Mechanisms | |
| Topic 12: Strategy Layer | - Strategy Elements |
>> OGA-032 Musterprüfungsfragen <<
Wir ExamFragen bieten die besten Service an immer vom Standpunkt der Kunden aus. 24/7 online Kundendienst, kostenfreie Demo der The Open Group OGA-032, vielfältige Versionen, einjährige kostenlose Aktualisierung der The Open Group OGA-032 Prüfungssoftware sowie die volle Rückerstattung beim Durchfall usw. Das alles ist der Grund dafür, dass wir ExamFragen zuverlässig ist. Wenn Sie die The Open Group OGA-032 Prüfung mit Hilfe unserer Produkte bestehen, hoffen wir Ihnen, unsere gemeisame Anstrengung nicht zu vergessen!

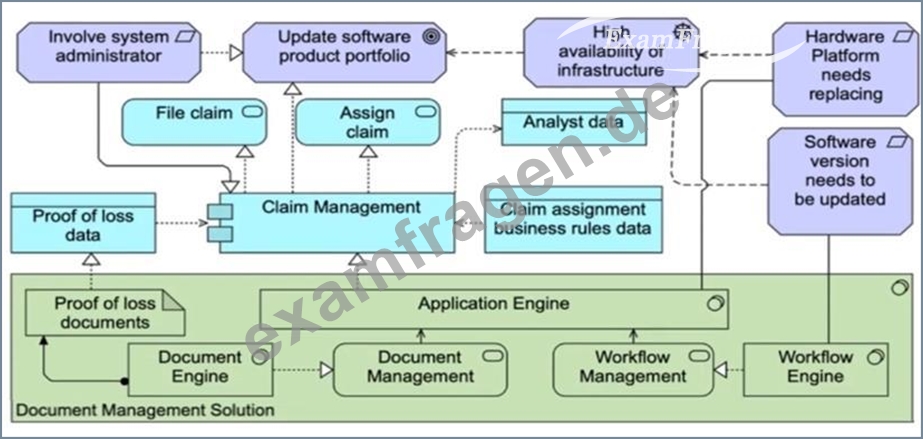

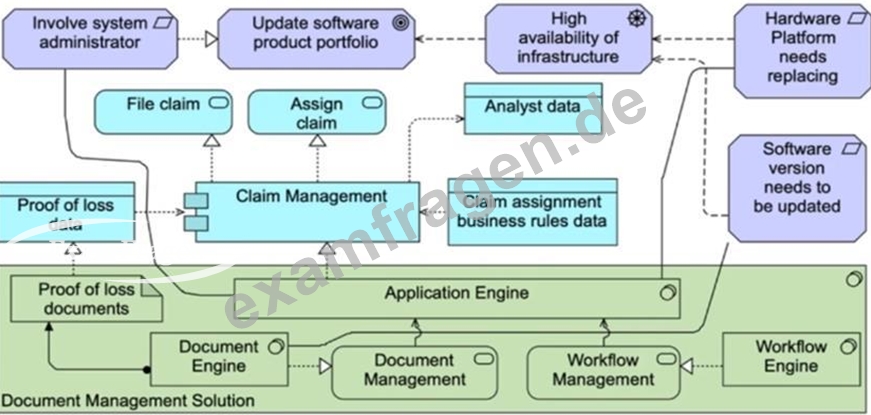

11. Frage
Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution includes a sophisticated ecosystem of applications and technologies. Designed with a strong emphasis on high availability, it plays a vital role in providing support for a diverse range of document types and managing a substantial volume of document-based transactions on a daily basis. Recognizing its importance to the business, the document management solution is redundantly hosted at two geographically separate data center sites, both configured identically for seamless operations.
The system software at the core of the document management solution is comprised of three key modules. The Document Engine serves as a repository, facilitating document storage, retrieval, and various other operations. The Workflow Engine acts as a host for document management applications, while the Application Engine powers the most advanced and sophisticated applications within the system.
Two key factors have driven the Architecture Board's approval of a project aimed at updating this critical solution. Firstly, the supplier of the Workflow Engine has given notice of the end of support for the current software version, necessitating an upgrade. Secondly, the system administrator responsible for the Application Engine has flagged the need for hardware replacement on the server where the software is currently running. Given that the Claim Management application shares infrastructure with the Application Engine, the involvement of the system administrator responsible for this application is crucial in the project planning and execution.
Refer to the Scenario
You are the Enterprise Architect within this organization. You have been assigned the task of modeling the applications and technology for this solution, as well as outlining the motivations driving the need for its update.
Based on the scenario, which answer provides the most complete and accurate description?




Antwort: C
Begründung:

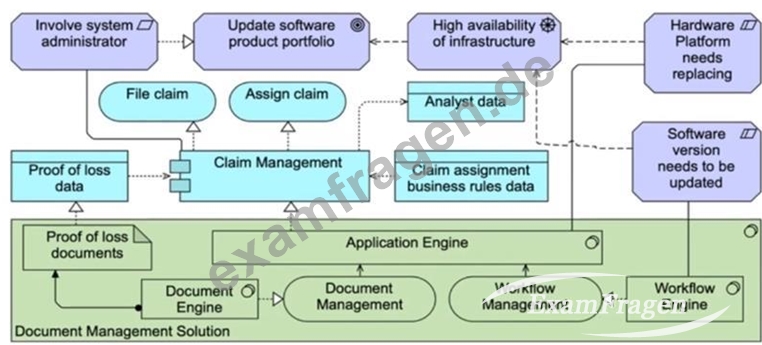

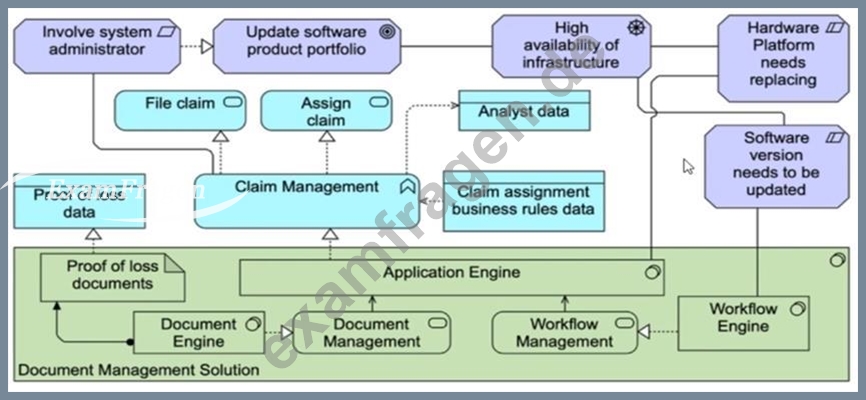

Chosen option provides the most complete and accurate representation according to the scenario:
It clearly models the motivations (e.g., "Involve system administrator," "Update software product portfolio," "High availability of infrastructure," "Hardware platform needs replacing," "Software version needs to be updated") and their relationships, capturing both the software and hardware motivations driving the project.
The business layer is represented with processes/services ("File claim," "Assign claim"), and the supporting data objects are linked appropriately (e.g., "Proof of loss data," "Analyst data," "Claim assignment business rules data").
The application layer accurately shows the main components ("Claim Management," "Application Engine," "Document Engine," "Document Management," "Workflow Management," "Workflow Engine") and their interactions, which reflects the described architecture of the document management solution.
The technology layer is represented by the green background (Document Management Solution), which contains the application components as described, showing how infrastructure supports application services.
Relationships between all layers (motivation, business, application, and technology) are clearly modeled, allowing for end-to-end traceability from motivation to implementation.

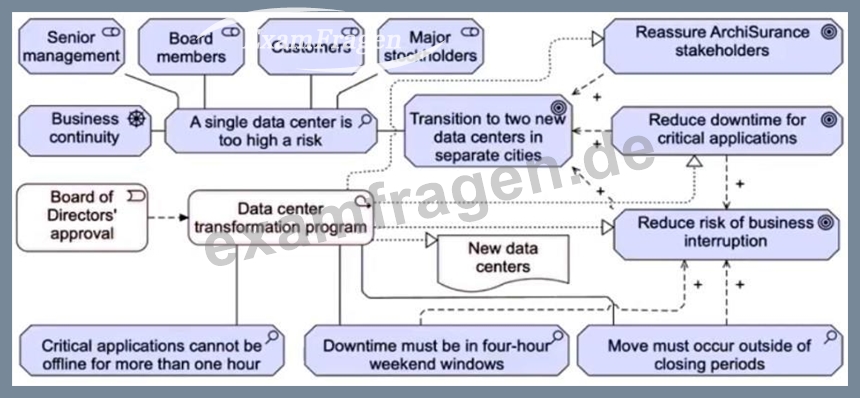

12. Frage
Please read this scenario prior to answering the question
The ArchiSurance senior management, board members, customers, and major stockholders have expressed long-standing concerns regarding the business continuity risks associated with relying on a single data center. Located in an area prone to flooding, earthquakes, and occasional water leaks from the cafeteria above, the current data center has significant vulnerabilities.
To address these concerns and mitigate the risks, ArchiSurance has developed a comprehensive plan to relocate its existing data center to two separate ready-to-use data centers in different cities. As a major undertaking, the approval of the Board of Directors is required to proceed with the project.
The primary objectives of the data center move are to reduce the risk of business interruptions, reduce both planned and unplanned downtime for critical applications, and provide reassurance to ArchiSurance stakeholders. Ensuring minimal disruption during the transition is crucial.
However, several constraints make the planned migration to the new data centers particularly challenging. Certain critical ArchiSurance applications cannot be offline for more than one hour, and any planned downtime must be restricted to specific four-hour windows on weekends.
Additionally, the migration cannot take place during quarterly or year-end closing periods to avoid disrupting critical processing operations.
ArchiSurance management has devised a multi-phase data center transformation program to facilitate a smooth transition. Each phase is critical for establishing stable and fully functional data center configurations throughout the transformation process. The initial phase entails detailed scheduling and planning to develop a comprehensive transformation plan aligned with ArchiSurance's timing and scheduling requirements. During the second phase, ArchiSurance will procure the necessary hardware and software for the new data centers, while also seeking refunds for the hardware and software in the current data center once it is decommissioned. The third phase involves setting up the new data centers and conducting parallel testing of the new hardware and software alongside the existing production environment. The transition between the old and new data centers occurs in the fourth phase, followed by the fifth phase, which is the decommissioning of the old data center. This involves returning the hardware and software to obtain the contracted refunds. Each phase, from the second to the fifth, is initiated once specific conditions outlined in the previous phase have been met.
Refer to the Scenario
The IT department's leader has assigned you the task of creating a model to explain the rationale behind ArchiSurance's decision to transform its data center infrastructure. The model should show the concerns and motivations of the stakeholders involved. Additionally, it should outline the specific goals to be achieved through the data center transformation program, the associated deliverables, and the limitations that must be considered throughout the program's implementation.
Which of the following answers provides the best explanation?




Antwort: D
Begründung:

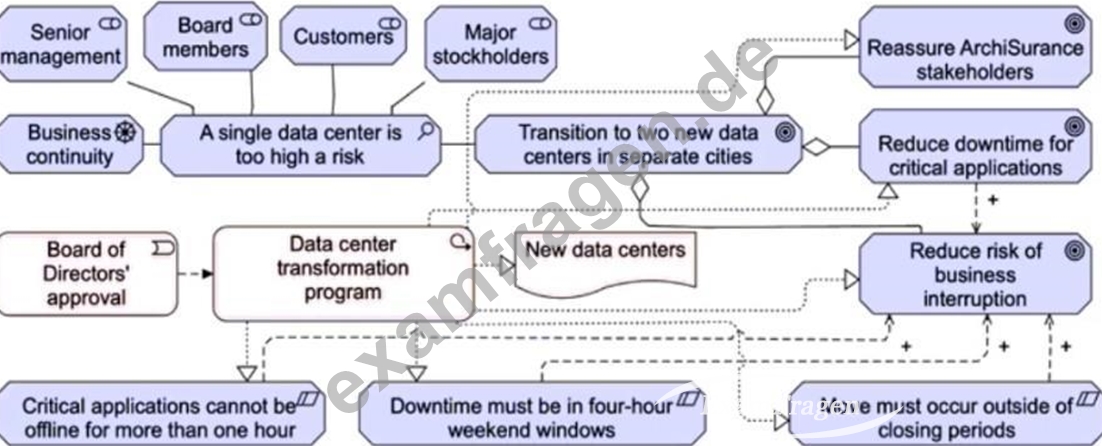

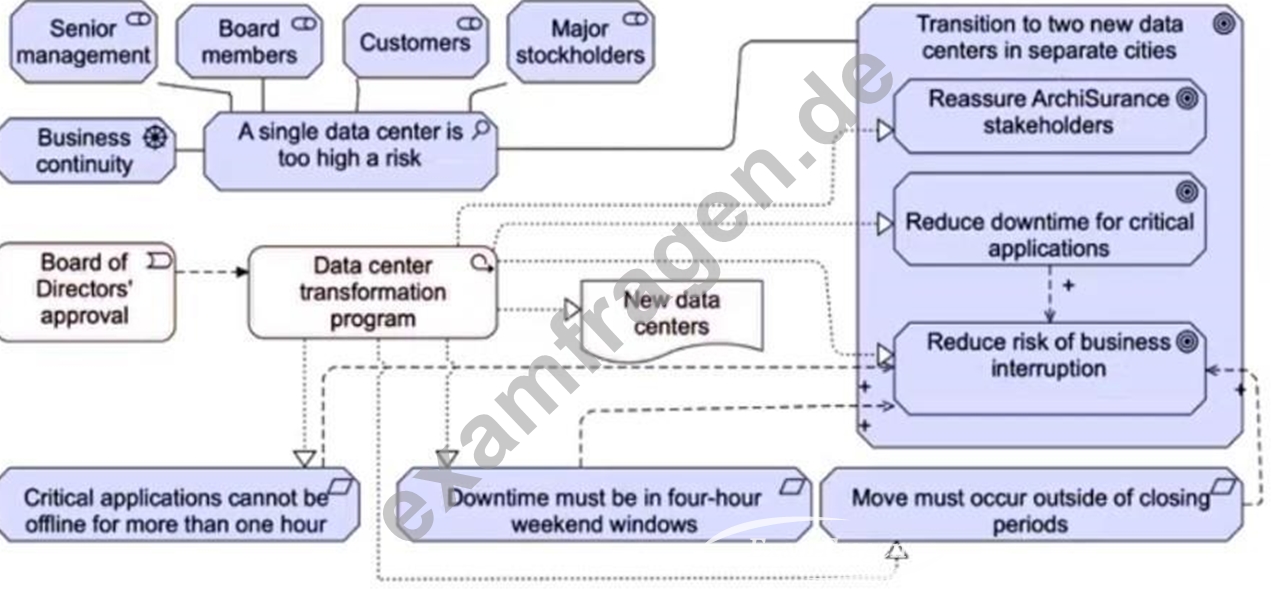

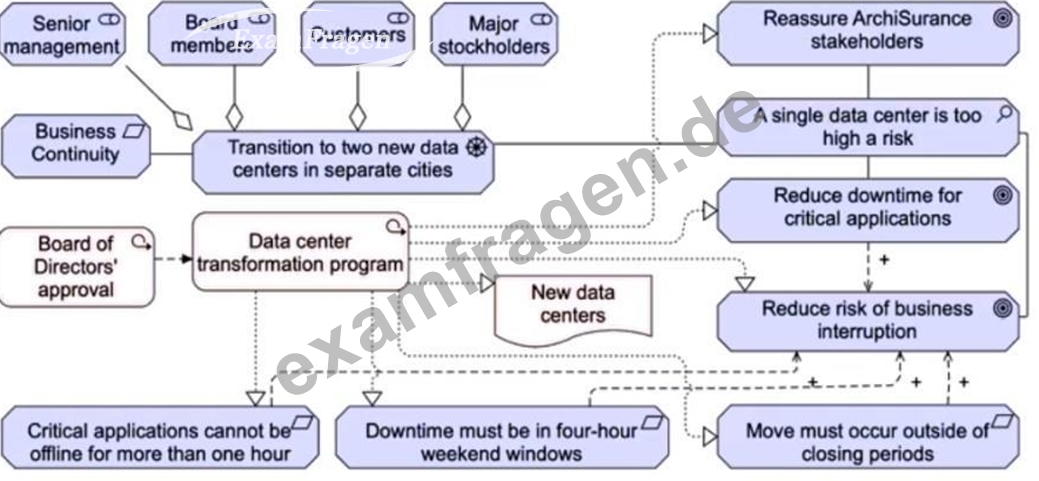

Stakeholders & Drivers
- You've got your four stakeholder elements (Senior Management, Board Members, Customers, Major Stockholders) all linked into the single "A single data center is too high a risk" assessment, itself driven by the Business Continuity driver.
Assessment → Goal
- The "A single data center is too high a risk" Assessment flows into the Goal "Transition to two new data centers in separate cities." Goal Decomposition
- That top-level Goal is decomposed (composition diamonds) into its two sub-Goals ("Reassure ArchiSurance stakeholders" and "Reduce downtime for critical applications").
- Those two, together, feed into the broader goal "Reduce risk of business interruption" (shown with the correct aggregation/requirement arrow).
Course of Action & Deliverable
- The "Data center transformation program" is modeled as a Course-of-Action (concave-sided rectangle) triggered by the Board of Directors' Approval (a Requirement).
- It produces (artifact arrow) the "New data centers" deliverable.
Constraints (Requirements)
- The three implementation constraints ("Critical applications cannot be offline for more than one hour," "Downtime must be in four-hour weekend windows," and "Move must occur outside of closing periods") are shown as Requirement elements feeding back into the program and the
"Reduce risk of business interruption" goal.

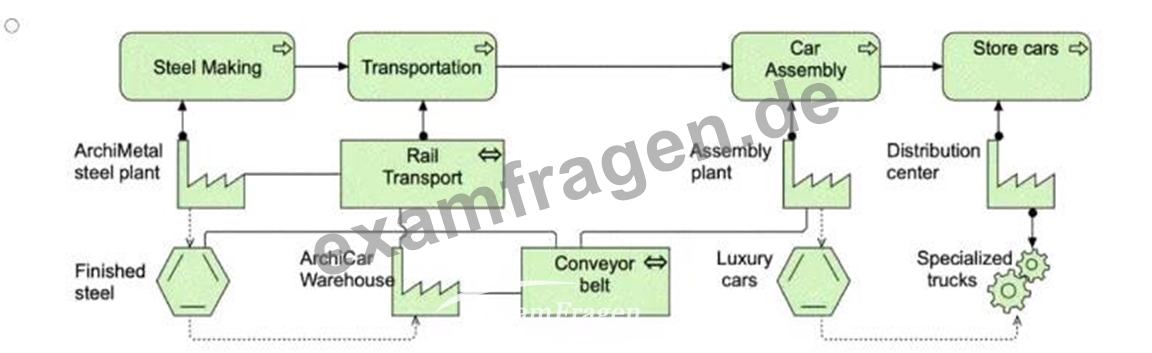

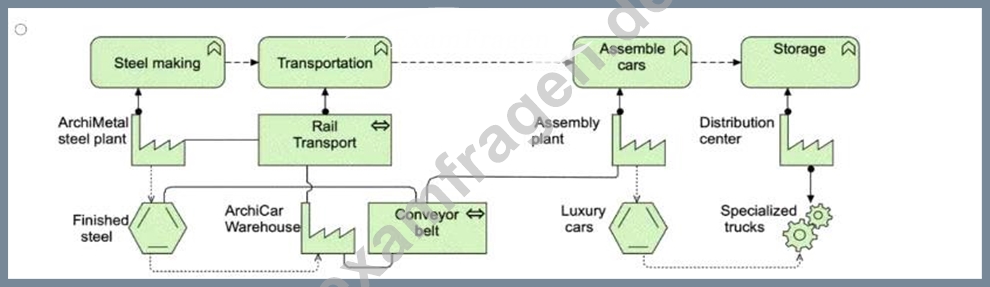

13. Frage
Please read this scenario prior to answering the question
ArchiCar is a specialized company that focuses on manufacturing luxury electric cars and powertrain components, along with producing battery-charging equipment. With its own distribution network and showrooms, ArchiCar adopts a direct-to- customer sales model through online channels.
The manufacturing of ArchiCar's electric cars is carried out on fully automated assembly lines. Leveraging a cutting-edge manufacturing process, the company boasts an impressive ability to sell and deliver a vehicle within just one month from the time of order placement. Anticipating significant growth, the CEO has set ambitious plans to increase annual production from 100,000 to 500,000 vehicles within a three-year timeframe.
To ensure the highest quality standards, ArchiCar relies on locally manufactured finished steel from the renowned ArchiMetal plant. ArchiMetal specializes in lightweight steels that allow ArchiCar to achieve a reduced vehicle weight without compromising strength and crash performance. The finished steel is efficiently transported by rail to ArchiCar's production plant, where it is stored in a dedicated warehouse until required for the automated car assembly process. Conveyor belts facilitate the seamless transfer of the finished steel from the warehouse to the assembly plant.
At the ArchiCar assembly plant, an optimized and streamlined assembly process is implemented, resulting in the production of 12 vehicles per hour. Once assembled, the cars are transported to a nearby distribution center using specialized trucks.
These vehicles are then stored at the distribution center until they are ready for delivery to their eagerly awaiting new owners.
Refer to the Scenario
You are a consultant to the CIO. She has asked you to illustrate the end-to-end technology processes at ArchiCar from raw materials to assembled cars ready for delivery.
Which of the following answers provides the best description?




Antwort: D
Begründung:

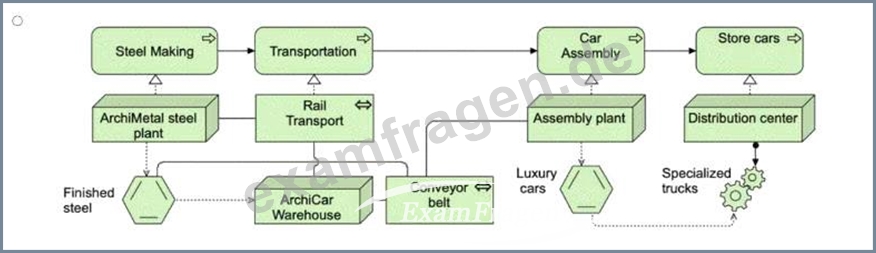

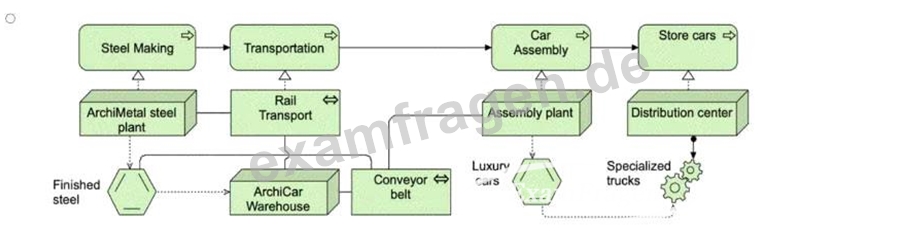

In this scenario, the task is to model theend-to-end technology processesatArchiCar, showing how raw materials (finished steel) are processed through the company's manufacturing, transportation, and distribution system, ultimately resulting in fully assembled cars ready for delivery.
Key ArchiMate® 3.2 Concepts Applied:
* Business Processes:
* Steel Making:ArchiMetal manufactures finished steel, a key raw material for ArchiCar's production.
* Transportation:The finished steel is transported byrailfrom theArchiMetal steel plantto ArchiCar's warehouse.
* Storage:Thefinished steelis stored in theArchiCar Warehouseuntil it is required for the assembly process.
* Car Assembly:Theconveyor beltmoves the steel from the warehouse to theassembly plant, where cars are assembled on automated lines.
* Transportation (Specialized Trucks):Once assembled, the cars are transported to adistribution centerusingspecialized trucks.
* Storage (Distribution Center):The finished cars are stored in the distribution center, awaiting delivery to customers.
* Application and Technology Components:
* Conveyor Belt:The transfer of finished steel between the warehouse and assemblyplant is automated via the conveyor belt.
* Rail Transport and Specialized Trucks:Rail transport handles the movement of steel, and specialized trucks are used for car transportation to the distribution center.
* End-to-End Flow:
* The model needs to clearly depict the fullprocess flowfrom the production of steel, through its transportation and storage, to the automated assembly of luxury cars and their eventual transportation to the distribution center.
* The relationships between processes (e.g.,steel making,transportation,car assembly, and storage) must be clear and follow the logical flow of operations.
Why Option D is Correct:
* Option Dprovides a clear and accurate representation of theend-to-end processas described in the scenario.
* It begins with thesteel-making processat theArchiMetal steel plantand follows through with the transportation of thefinished steelto thewarehousebyrail transport.
* The process of moving steel via theconveyor beltfrom the warehouse to theassembly plantfor car manufacturing is clearly depicted.
* Once cars are assembled, they are transported to thedistribution centerusingspecialized trucksand are then stored until delivery, completing theend-to-end flow.
* The relationships between processes and supporting components (e.g., conveyor belt, transportation methods) are clearly illustrated, following ArchiMate® standards.
Why Other Options Are Incorrect:
* Option Ais incorrect because it misses some key elements of the process. It does not fully clarify the role of thewarehouseor how the finished steel is transported between locations.
* Option Bmisrepresents the process flow, particularly the storage and assembly process. The connection between steel production and car assembly is not as clearly illustrated.
* Option Calso lacks clarity in how the finished steel is moved from the warehouse to the assembly plant, and it does not accurately capture the flow of transportation and storage after car assembly.
Conclusion:
Option Dis the best answer because it provides the most complete and clear description of theend-to-end technology processesat ArchiCar, from raw materials (finished steel) to assembled luxury cars ready for delivery. It aligns well with the scenario and adheres to ArchiMate® 3.2 modeling standards, showing all necessary relationships between business processes and supporting components.
14. Frage
Please read this scenario prior to answering the question
A healthcare provider operates a Patient Admission process supported by the Admission Portal application and Insurance Verification application.
Patient data is stored as Patient Records. Insurance Verification consumes an external Web API.
Both applications are deployed in a Kubernetes cluster running on physical servers connected via a hospital LAN and redundant storage arrays.
Refer to the scenario.
You must produce a cross-layer model showing behavior, data, and infrastructure.
Which model is most appropriate?
Antwort: B

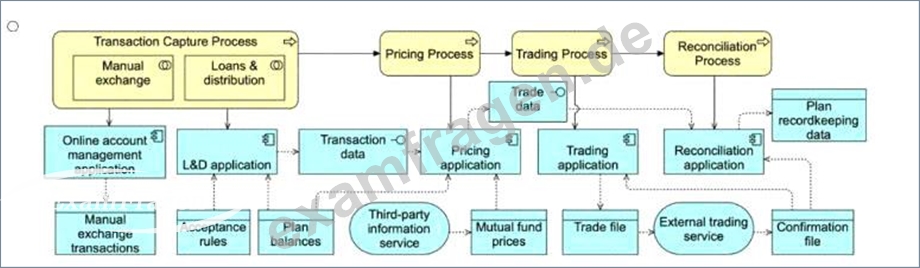

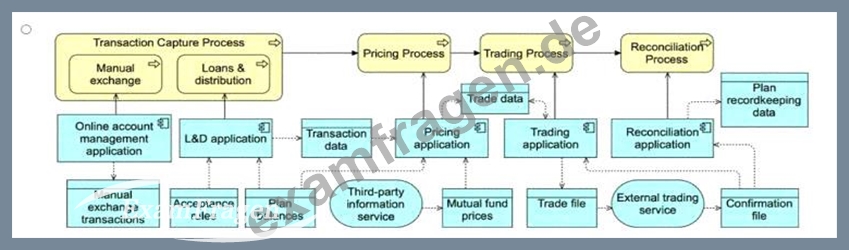

15. Frage
Please read this scenario prior to answering the question
ArchiSurance has decided to leverage its financial expertise by offering defined contribution retirement plans.
Each trading day, ArchiSurance submits consolidated mutual fund trading transactions to a stock exchange on behalf of its retirement plan participants.
The daily mutual fund trading cycle consists of four key processes: Transaction capture, pricing, trading and reconciliation. Transaction capture consists of two sub-processes: manual exchange and loans and distributions (L&D). For transaction capture, retirement plan participants use an online account management application to enter manual fund exchange transactions. For L&D, plan participants use a separate application to enter requests. The L&D application determines whether the request can be fulfilled based on the mutual fund balances held in each plan balances and a setof business rules. Each day's captured manual exchange transactions accumulate in a transaction database.
ArchiSurance contracts with a third-party information service to receive a file of mutual fund prices at the close of each trading day. The pricing application uses this file to convert captured transaction into trades, and then validates each trade against the mutual fund balances held in each plan. The pricing application generates a trade file with the minimum number of trades necessary. The trading application sends this file to an external trading service.
When the trading application
receives a confirmation file back from the trading service, it causes the reconciliation application to update the plan recordkeeping database.
The account management and L&D applications are hosted on separate application server clusters. Each cluster is a physically separate host that runs application server software on a set of virtualized hosts. All of these applications use a database server infrastructure that is hosted on another separate cluster of virtualized servers also on a dedicated physical host. The pricing, consolidation, trading and reconciliation applications, however, are batch applications that run on the ArchiSurance mainframe computer. All application hosts are connected via a converged data center network (DCN), which also connects them to a storage area network (SAN) as well as a wide area network (WAN) that is used to communicate with the external trading service. The SAN includes two physically separate storage arrays, one of which holds data for all databases, and another that holds data for all files.
Refer to the Scenario
The systems analysts would like to better understand the business processes and applications for daily fund trading. You have been asked to describe the business processes and sub-processes, the applications that they use, the data objects accessed by those applications, and the external application services that access some of those data objects.
Which of the following is the best answer? Note that you are not required to model the business actors/roles.




Antwort: C
Begründung:
In this scenario, the goal is to model thebusiness processes, theirsub-processes, theapplicationssupporting these processes, and thedata objectsthese applications access. Additionally, external services that access some of these data objects need to be shown. This includes capturing the key processes and their dependencies, as well as understanding how the applications interact with data and external services.
Key ArchiMate® 3.2 Concepts Applied:
* Business Processes and Sub-Processes:
* Transaction Capture Process: Consists of two sub-processes:
* Manual Exchange
* Loans & Distribution (L&D)This process is responsible for capturing transactions from users through different applications (Online Account Management, L&D Application).
* Pricing Process: This process uses theMutual Fund Pricesfrom a third-party service and the Plan Balancesto validate and price trades.
* Trading Process: This process generates aTrade Fileand interacts with an externalTrading Service.
* Reconciliation Process: This final process updates thePlan Recordkeeping Dataafter confirming trades from theExternal Trading Service.
* Applications and Data:
* Online Account Management ApplicationandL&D Application: These capture user inputs for transactions and maintainTransaction DataandPlan Balances.
* Pricing Application: UsesMutual Fund PricesandTransaction Datato generateTrade Data.
* Trading Application: SubmitsTrade Dataand receives aConfirmation Filefromthe external Trading Service.
* Reconciliation Application: Uses theConfirmation Fileto updatePlan Recordkeeping Data.
* External Application Services:
* Third-Party Information Service: ProvidesMutual Fund Prices.
* External Trading Service: Processes trades and returns aConfirmation File.
* Data Objects:
* Transaction Data: Captured by the transaction capture processes.
* Mutual Fund Prices: Received from the third-party service.
* Trade Data: Generated by the pricing and trading applications.
* Plan Recordkeeping Data: Updated by the reconciliation process after trade confirmation.
Why Option B is Correct:
* Option Bprovides the most complete and accurate representation of the scenario. It captures the business processes(Transaction Capture, Pricing, Trading, Reconciliation) and their sub-processes, while showing the appropriate connections to theapplicationsthat support these processes.
* It clearly depicts thedata objects(Transaction Data, Plan Balances, Trade File, Mutual Fund Prices, Plan Recordkeeping Data) and their flows between the processes and applications.
* The model also includes theexternal services(Third-Party Information Service and External Trading Service), showing how these interact with the internal applications and data objects.
* It accurately represents the flow ofTrade Datafrom thePricing Applicationto theTrading Application
, and the use ofMutual Fund Pricesby thePricing Process.
Why Other Options Are Incorrect:
* Option AandOption Dmiss some critical connections between the applications and the external services. They also lack clarity in how the data flows between the processes and applications.
* Option Cdoes not adequately represent the interaction between the applications and the external services (e.g., Third-Party Information Service), which is a key requirement in this scenario.
Conclusion:
Option Bprovides the best and most accurate description of the business processes, applications, data objects, and external services involved in ArchiSurance's daily fund trading operations, following ArchiMate® 3.2 standards for modeling business processes and applications.
