| Section | Objectives |
|---|---|
| Topic 1: Tall Mass Timber Building Code Provisions | - Applicable Codes and References
- Type IV Construction
|
>> 93-Tall-Mass-Timber-Buildings인기자격증 시험 덤프자료 <<
경쟁이 치열한 IT업계에서 굳굳한 자신만의 자리를 찾으려면 국제적으로 인정받는 IT자격증 취득은 너무나도 필요합니다. International Code Council인증 93-Tall-Mass-Timber-Buildings시험은 IT인사들중에서 뜨거운 인기를 누리고 있습니다. Fast2test는 IT인증시험에 대비한 시험전 공부자료를 제공해드리는 전문적인 사이트입니다.한방에 쉽게International Code Council인증 93-Tall-Mass-Timber-Buildings시험에서 고득점으로 패스하고 싶다면Fast2test의International Code Council인증 93-Tall-Mass-Timber-Buildings덤프를 선택하세요.저렴한 가격에 비해 너무나도 높은 시험적중율과 시험패스율, 언제나 여러분을 위해 최선을 다하는Fast2test가 되겠습니다.
질문 # 80
Which of the following products is not included in the definition of mass timber?
정답：B
설명：
Prefabricated wood I-joists are engineered wood framing products, but they are not mass timber elements because their configuration does not meet the minimum solid cross-sectional dimensions required for Type IV mass timber construction. Option B is therefore correct.
An I-joist consists of relatively thin flanges connected by a thin structural web. Its efficient open- web-like cross section is fundamentally different from a large solid, laminated, built-up or panelized timber element. I- joists are separately regulated by IBC Section 2303.1.2 and are manufactured and evaluated in accordance with ASTM D5055.
Solid-sawn lumber can qualify as mass timber when it satisfies the minimum heavy-timber dimensions.
Structural glued-laminated timber is a recognized large-section engineered timber product, while cross- laminated timber is explicitly recognized as a panelized mass timber product and is regulated by ANSI/APA PRG 320.
The critical inspection point is that the term "engineered wood" does not automatically mean "mass timber." The special inspector must verify the product category, minimum dimensions, approved construction type, applicable product standard, identification marks and installation requirements shown in the approved construction documents.
References/Topics: 2021 IBC Chapter 2 definition of "Mass Timber"; Sections 2303.1.2, 2303.1.3, 2303.1.4 and 2304.11; ASTM D5055.
질문 # 81
For CLT, which of the following standards is used for the determination of bond line shear test for adhesives?
정답：C
설명：
ANSI/APA PRG 320 is the governing product standard for performance-rated cross-laminated timber, including adhesive qualification, bond integrity, manufacturing quality control, and required product identification. Accordingly, option D is correct.
Bond-line performance is critical because CLT panels depend on structural adhesive to transfer shear forces between laminations and maintain composite action. PRG 320 establishes qualification and quality-assurance requirements intended to verify that adhesive bonds remain structurally reliable and resist delamination or inadequate bond development. Testing and manufacturing controls under this standard address the completed CLT product rather than treating the adhesive as an isolated material.
AITC 113 concerns dimensional tolerances and related requirements for structural glued-laminated timber rather than CLT bond-line shear qualification. ASTM C557 addresses adhesives for ceramic tile and is unrelated to structural timber manufacture. ANSI 117 is not the governing CLT manufacturing standard.
During inspection, the special inspector ordinarily does not reproduce factory bond-line tests on-site. Instead, the inspector verifies the CLT manufacturer's identification, certification marks, panel grade, layup designation, and conformance with PRG 320 and the approved construction documents.
References/Topics: 2021 IBC Section 2303.1.4; ANSI/APA PRG 320; CLT adhesive-bond qualification and manufacturing quality assurance.
질문 # 82
Calculated mass timber fire resistance can include each of the following except:
정답：A
설명：
Minimum prescriptive dimensions are not themselves a component added into a calculated fire-resistance time. Therefore, option A is the exception.
IBC Section 602.4 states that a mass timber element's required fire resistance can be based on the fire- resistance contribution of the mass timber, the noncombustible protection, or a combination of those two components. Options B, C, and D reflect those permitted approaches.
Minimum dimensions under Section 2304.11 serve a different function. They establish the minimum cross- sectional size and construction characteristics required for qualifying heavy timber or mass timber elements.
A member can satisfy the minimum dimensional requirement without automatically achieving every required one-, two-, or three-hour fire-resistance rating. The structural fire calculation must evaluate the remaining effective section after charring, elevated-temperature effects, applied loading, and any credited protective materials.
The inspector must therefore verify both requirements independently: the installed member must meet the minimum code dimensions and must match the approved fire-resistance design. Increasing a member to the minimum prescriptive size does not by itself replace the required calculation, tested assembly, or approved protection system.
References/Topics: 2021 IBC Sections 602.4, 703.2, 722.7 and 2304.11; calculated mass timber fire resistance.
질문 # 83
Which of the following best describes the required protection for mass timber hoistway enclosure walls in Type IV-C construction?
정답：D
설명：
Type IV-C generally permits interior mass timber surfaces to remain exposed, but shaft and elevator hoistway enclosures are a specific exception to that broad exposure allowance. Section 602.4.3.6 requires shafts, elevator hoistways, and interior exit stairway enclosures constructed with mass timber to receive noncombustible protection having a minimum assigned protection time of 40 minutes . Option A is therefore correct.
Critically, protection is required on both the inside and outside of the shaft enclosure . The 40-minute value is an assigned contribution from the noncombustible protection; the complete enclosure must still satisfy whatever overall fire-resistance rating is required by Sections 713, 713.4, Table 601, or other applicable provisions.
Option B incorrectly applies the general Type IV-C exposed-interior allowance to a specifically regulated shaft condition. Option C is incomplete because 1/2-inch Type X gypsum board provides only 25 minutes under Table 722.7.1(2), not the required 40 minutes. A 5/8-inch Type X board provides a recognized 40- minute contribution when installed in accordance with Section 722.7.2. Option D does not state the prescribed Type IV-C shaft requirement.
References/Topics: 2021 IBC Sections 602.4.3.2 and 602.4.3.6; Tables 722.7.1(1) and 722.7.1(2).
질문 # 84

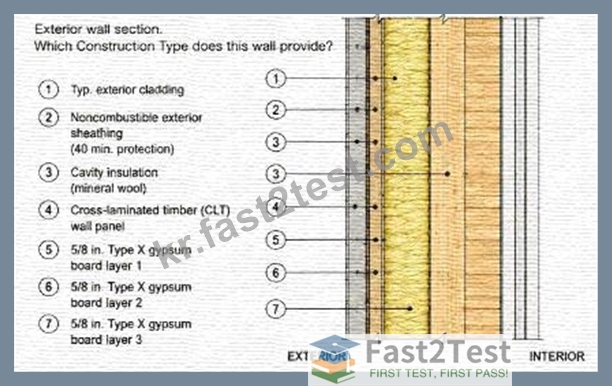

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
정답：A
설명：
The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
질문 # 85
......
