| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Monitoring, Maintenance and Troubleshooting | 30% | - System monitoring, logs and alerts - Firmware management, backup and restore - Diagnostic tools and packet capture - FortiLink and connectivity troubleshooting |
| Topic 2: Layer 2 Control and Security | 25% | - VLAN security and segmentation - Port security and MAC address control - ACL, antispoofing, and filtering - Security profiles and access control |
| Topic 3: FortiSwitch Concepts and Fundamentals | 20% | - Switching fundamentals and architecture - FortiSwitch product overview and deployment modes - QoS, LLDP-MED, and PoE management - STP, link aggregation, and stacking - Port configuration, VLANs, and interfaces |
| Topic 4: Deployment and FortiLink Integration | 25% | - Multi-tenancy and centralized management - FortiLink architecture and integration with FortiGate - High availability and redundancy - Provisioning and deployment topologies |
>> Fortinet NSE5_FSW_AD-7.6 Valid Braindumps Book <<
There are rare products which can rival with our products and enjoy the high recognition and trust by the clients like our products. Our products provide the NSE5_FSW_AD-7.6 study materials to clients and help they pass the test NSE5_FSW_AD-7.6 certification which is highly authorized and valuable. Our company is a famous company which bears the world-wide influences and our NSE5_FSW_AD-7.6 Study Materials are recognized as the most representative and advanced study materials among the same kinds of products.
NEW QUESTION # 40
Exhibit.
port24 is the only uplink port connected to the network where access to FortiSwitch management services is possible. However, FortiSwitch is still not accessible on the management interface. Which two actions should you take to fix the issue and access FortiSwitch? (Choose two.)
Answer: C,D
Explanation:
To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:
* Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.
* Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.
The changes align with Fortinet's best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.
References:
FortiGate Infrastructure and Security 7.6 Study Guides
Best practices for VLAN configurations in Fortinet's technical documentation
NEW QUESTION # 41
Refer to the exhibit.

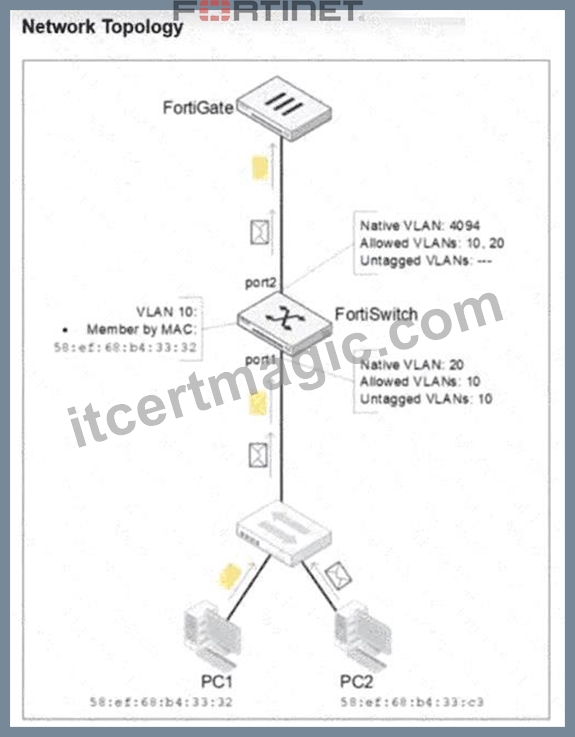

PC1 and PC2 are connected to port1 on FortiSwitch. Which VLAN tags will FortiSwitch apply when forwarding PC1 and PC2 traffic out of port2? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port's hierarchy of VLAN assignment rules.
For the traffic arriving atport1:
* PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port's static native VLAN. Therefore, PC1's traffic is internally associated with VLAN 10.
* PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port'sNative VLAN, which isVLAN 20.
For the traffic exiting port2:
The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1's traffic and a VLAN 20 tag to PC2's traffic as they are forwarded to the FortiGate.
NEW QUESTION # 42
Refer to the exhibit.

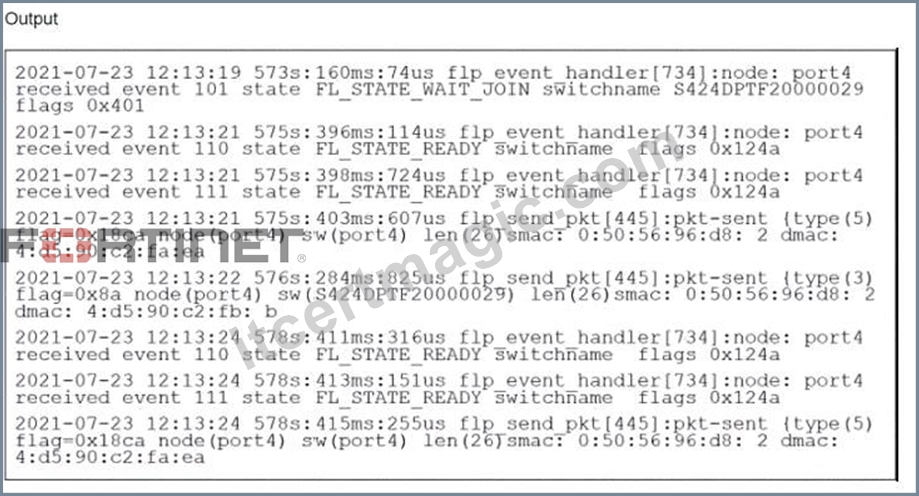

Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
Answer: A,D
Explanation:
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here's a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a "wait join" state (FL_STATE_WAIT_JOIN). This means it's discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the "wait join" state suggests authorization hasn't necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There's no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the "FL_STATE_WAIT_JOIN" state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
NEW QUESTION # 43
Refer to the exhibit.

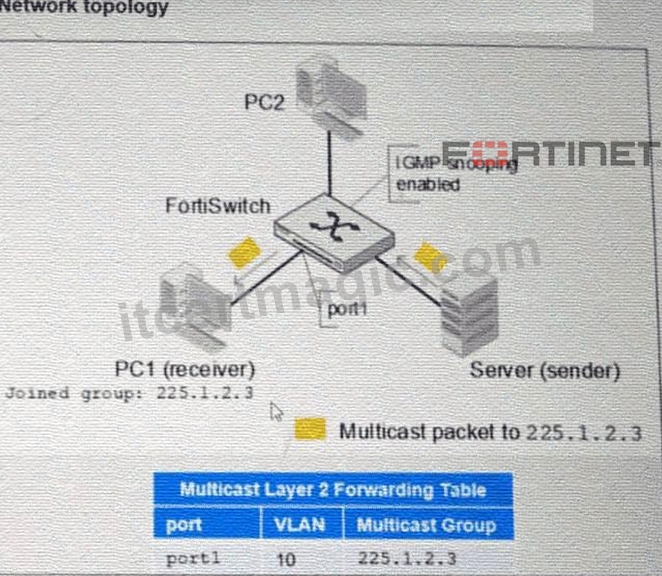

PC1 connected to port1 has joined multicast group 225.1.2.3 on VLAN 10 with IGMP snooping enabled.
What will happen if you disable IGMP snooping on FortiSwitch? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Internet Group Management Protocol (IGMP) snooping is a Layer 2 mechanism that allows a switch to " listen " to IGMP conversations between hosts and routers to maintain a map of which ports require specific multicast streams.
When IGMP snooping is enabled, the switch populates aMulticast Layer 2 Forwarding Table(as shown in the exhibit), which ensures that multicast traffic is only forwarded to ports where a receiver has explicitly requested it (e.g., PC1 on port1).
When IGMP snooping isdisabled, the switch no longer maintains this granular forwarding table. By default, a Layer 2 switch that is not performing IGMP snooping treats multicast traffic as if it werebroadcast traffic.
Consequently, instead of being intelligently forwarded only to the interested receiver (PC1), the multicast traffic for group 225.1.2.3 will beflooded to all portswithin the same VLAN (VLAN 10). This means PC2, even if it has not joined the group, will receive the multicast packets at the physical layer, leading to unnecessary bandwidth consumption and increased CPU load on unintended recipients.
The documentation explicitly states that disabling IGMP snooping reverts the switch to a " flood-all " behavior for multicast frames within the broadcast domain. Option A is incorrect because the host (PC1) remains a member of the group; only the switch ' s forwarding logic changes. Option B is incorrect as the switch may still see the messages but will not act on them to prune ports. Option D is incorrect as disabling the feature removes the prune/stop mechanism, causing traffic to flow everywhere rather than stopping.
NEW QUESTION # 44
Refer to the exhibit.

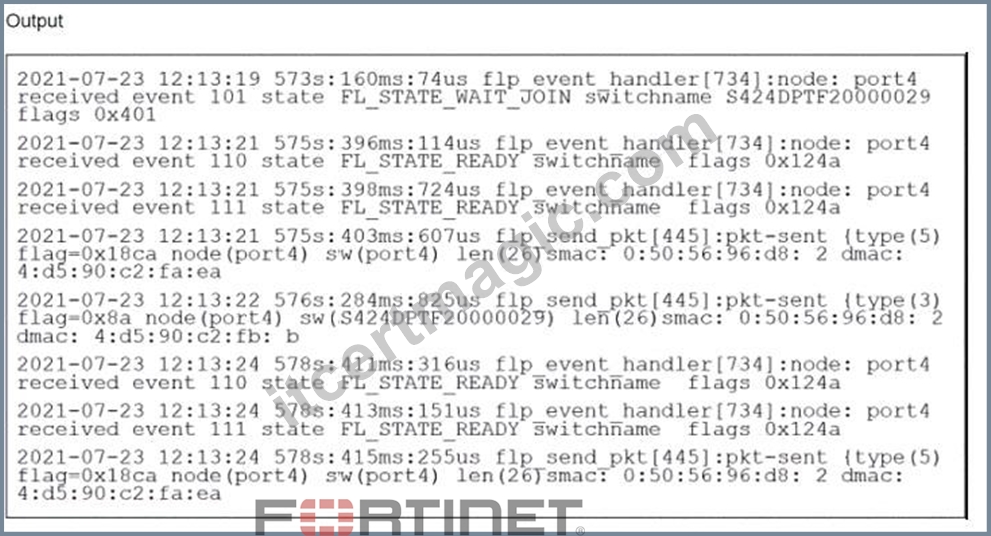

Which two statements best describe what is displayed in the FortiLink debug output shown in the exhibit?
(Choose two.)
Answer: A,D
Explanation:
The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:
* Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.
* 573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.
* Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.
* switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.
* flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.
Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).
Why the Other Options Are Less Likely:
* C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.
* D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.
In Summary:
The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.
NEW QUESTION # 45
......
