| Section | Weight | Objectives |
|---|---|---|
| System Architecture & Design | 20% | - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment - Security Fabric integration & scaling - Hardware sizing & resource planning |
| Centralized Management | 20% | - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting - Policy packages & object templates - Configuration provisioning & version control |
| High Availability & Redundancy | 15% | - Session synchronization & failover - FGCP/FGSP/vCluster deployment - Cross-data center redundancy |
| Security Policy & Services | 10% | - Advanced firewall & security profile design - NAT & IP pool optimization - Identity-based policies |
| Monitoring & Troubleshooting | 10% | - Fabric synchronization issues - Diagnostic tools & CLI analysis - Connectivity & performance troubleshooting |
| Advanced Routing & VPN | 25% | - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management - Route redistribution & filtering - OSPF, BGP, IS-IS configuration & optimization |
>> NSE7_FSN_AR-7.6 Test Passing Score <<
CramPDF ensure that the first time you take the exam will be able to pass the exam to obtain the exam certification. Because CramPDF can provide to you the highest quality analog Fortinet NSE7_FSN_AR-7.6 Exam will take you into the exam step by step. CramPDF guarantee that Fortinet NSE7_FSN_AR-7.6 exam questions and answers can help you to pass the exam successfully.
NEW QUESTION # 169
Which exchange lakes care of DoS protection in IKEv2?
Answer: B
Explanation:
The IKE_SA_INIT exchange in IKEv2 is responsible for DoS protection measures. During IKE_SA_INIT, before authentication and further exchange, the responder can use cookie challenges (per RFC 7296 and Fortinet VPN documentation). If a DoS attack is suspected (many requests from the same source), the responder replies with a cookie. Only after the initiator returns the correct cookie does the exchange proceed, protecting the responder from state exhaustion and certain forms of DoS traffic at the handshake stage.
References:
FortiOS VPN Manual: IKEv2 Exchange Process and DoS Protections
IKEv2 RFC 7296: Description of IKE_SA_INIT and DoS Cookie Mechanism
NEW QUESTION # 170
Refer to the exhibit.

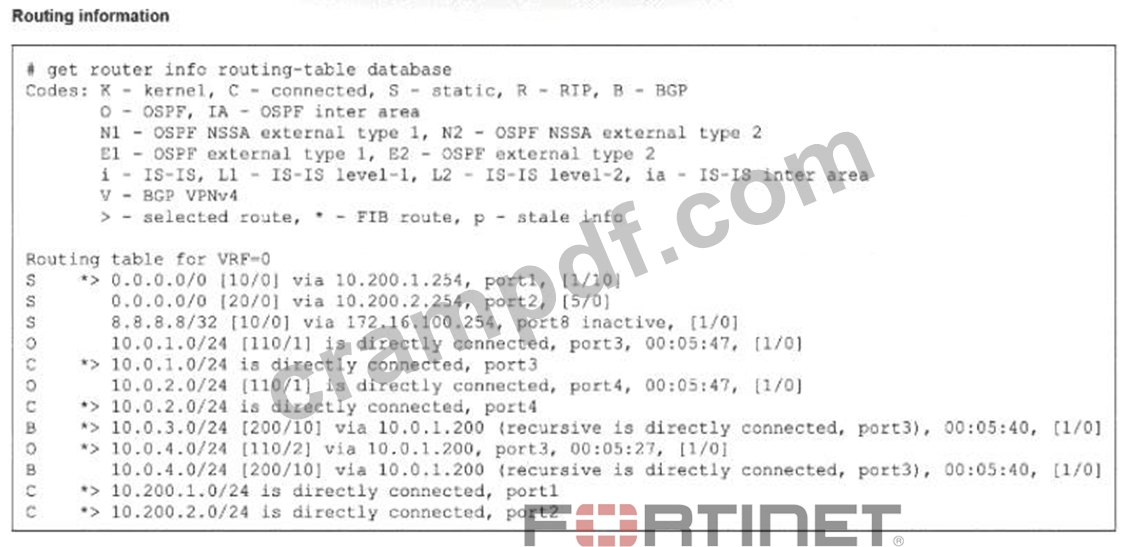

The modified output of live routing kemel is shown
Which two statements about the output are (rue? (Choose two.)
Answer: A,D
Explanation:
We must analyze the flags (*, > , S, O, B) and Administrative Distances (AD) shown in the get router info routing-table database exhibit to determine the correct statements.
Analysis for Option A (The BGP route to 10.0.4.0/24 is not in the forwarding information base):
True. Look at the entry for 10.0.4.0/24.
There is an OSPF route: O * > 10.0.4.0/24 [110/2]. The * indicates it is in the FIB, and > indicates it is the selected route.
There is a BGP route: B 10.0.4.0/24 [200/10]. This line lacks the * flag.
Reason: The OSPF route has an Administrative Distance of 110. The BGP route (iBGP) has an AD of 200.
Since 110 is lower than 200, OSPF wins, and the BGP route is not installed in the Forwarding Information Base (FIB).
Analysis for Option B (The default static route through 10.200.1.254 is in the forwarding information base):
True. Look at the 0.0.0.0/0 entries.
The first entry is S * > 0.0.0.0/0 [10/0] via 10.200.1.254.
The * flag confirms this specific route is installed in the FIB.
The second static route (via 10.200.2.254) has a higher distance ([20/0]) and no * flag, so it is inactive.
Why C is False: ECMP (Equal Cost Multi-Path) requires routes to have the same cost/priority. Here, one static route has AD 10 and the other has AD 20. They are not equal, so ECMP is not performed.
Why D is False: The routing table database shows active routes, not the raw Link State Advertisement (LSA) database. You cannot determine the number of LSAs received solely from this output.
Reference:
FortiGate Security 7.6 Study Guide (Routing): " The routing table database displays all known routes... The * indicates the route is in the FIB... Lower Administrative Distance is preferred. "
NEW QUESTION # 171
What are two functions of automation stitches? (Choose two.)
Answer: A,D
Explanation:
The correct answers are A and D .
The Network Security Support Engineer 7.6 Study Guide explains that automation stitches consist of a trigger and one or more actions , and that they can detect events such as high CPU and conserve mode across the Security Fabric The FortiOS administration guide then gives the exact practical example for A :
"Automation stitches can be created to run a CLI script and send an email message when memory or CPU usage exceeds specified thresholds." It also shows examples where the email body contains the script output using:
%%results%%
That directly confirms A .
For D , the FortiOS administration guide states:
"The URI and HTTP body can use parameters from logs or previous action results." It also explains the execution model:
"The stitch Action execution can be set to either Sequential or Parallel. In sequential execution actions will execute one after another with a delay (if specified). ... In parallel execution all actions will execute immediately when the stitch is triggered." A concrete example shows a second action using the output of the first action:
"This string for the body text includes the results from the preceding CLI script action." with Body=%%results%%...
That confirms D .
Why the other options are wrong:
* B is wrong because automation stitches can be triggered by IPS events, but the documentation does not describe them as modifying packet headers or payloads. Instead, they perform actions such as email, CLI script, webhook, quarantine, and similar automated responses
* C is wrong because delay is associated with sequential execution, not parallel execution. The guide explicitly says: "A delay can be added before an action if Sequential action execution is used." So the verified answers are: A, D .
NEW QUESTION # 172
Refer to the exhibit.

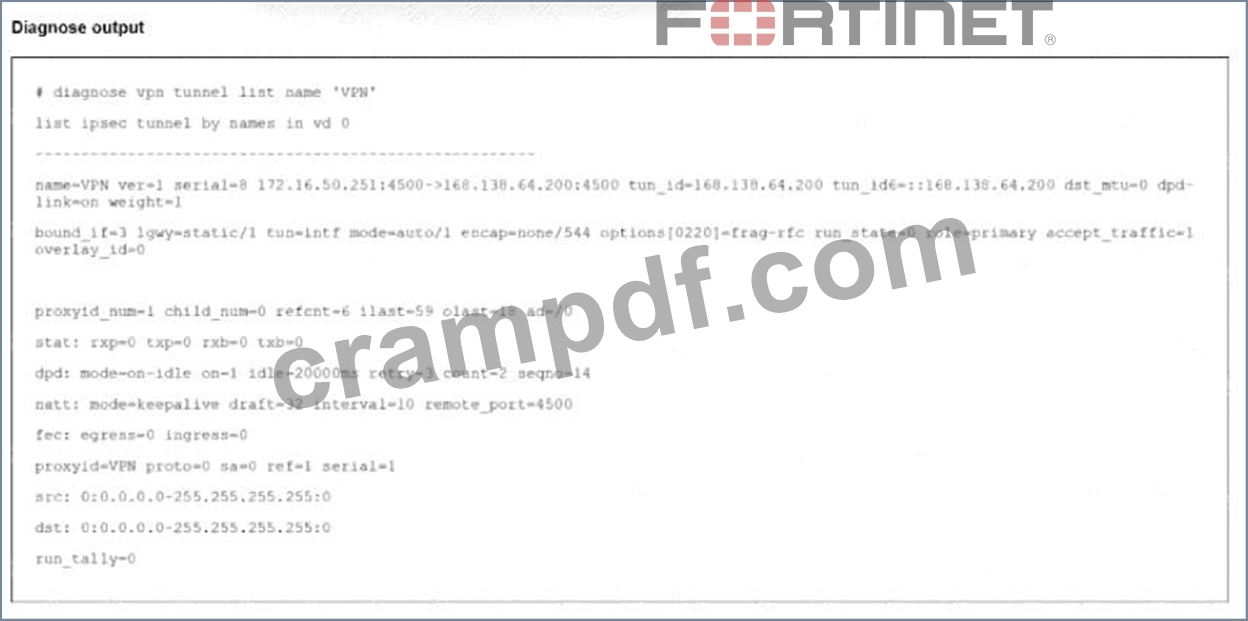

The output of the command diagnose vpn tunnels liar is shown.
Which two statements accurately describe the status of the tunnel? (Choose two.)
Answer: B,D
Explanation:
Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the VPN tunnel exhibit, here is the verified answer.
Questions no: 91
Verified answer: A, C
Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:
To determine the status of the VPN tunnel, we must examine the specific counters and fields in the diagnose vpn tunnel list output provided in the exhibit.
Analyze Phase 2 Status (Option A):
The output displays child_num=0.
In IKEv2 (and IKEv1 implementations in FortiOS), " Child SAs " refer to the Phase 2 (IPsec) Security Associations that carry the actual data traffic.
A value of 0 indicates that no Phase 2 tunnels are established. If Phase 2 were up, child_num would be at least
1.
Additionally, under the proxyid section, the field sa=0 confirms there is no active Security Association for that traffic selector.
Analyze Traffic Status (Option C):
The stat line shows: rxp=0 txp=0 rxb=0 txb=0.
rxp (Received Packets) and txp (Transmitted Packets) are both zero. This definitively confirms that no traffic is traversing the tunnel currently. This is expected since Phase 2 is down.
Analyze Phase 1 Status (Why B is incorrect):
The tunnel entry exists in the list with a valid tun_id, and NAT-Traversal is active (natt: mode=keepalive).
The presence of the tunnel in this command output, along with active Keepalive mechanisms, typically indicates that Phase 1 (IKE SA) is established and the peers are communicating on port 4500 (NAT-T), even though the data tunnels (Phase 2) failed to negotiate. If Phase 1 were down, the tunnel would often not appear in this " list " view or would show different status flags indicating a complete connection failure.
Conclusion: The exhibit shows a scenario where the Phase 1 control channel is likely up (evidenced by the entry existence and NATT keepalives), but the Phase 2 data channel is down (child_num=0), resulting in zero traffic flow (rxp=0/txp=0).
NEW QUESTION # 173
Refer to the exhibit.
The output of the get router info bgp summary command is shown.
Which statement regarding adjacencies between the local router and its neighbors is correct?
Answer: D
Explanation:
The correct answer is B.
In the exhibit:
Neighbor 100.64.1.254 shows State/PfxRcd = 1, which means the session is established and the local FortiGate has received 1 prefix Neighbor 100.64.2.254 shows State/PfxRcd = Active The study guide explains the BGP states exactly:
Connect: Waiting for a successful three-way TCP connection
Active: Unable to establish the TCP session
OpenSent: Waiting for an OPEN message from the peer
OpenConfirm: Waiting for the keepalive message from the peer
Established: Peers have successfully exchanged OPEN and keepalive messages It also explains how to read the State/PfxRcd column:
"If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor." Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established.
Why the other options are wrong:
A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another C is wrong because BGP adjacency is not established based on neighbor "priority"; the output shows adjacency is established because the session completed and prefixes were exchanged D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation So the verified answer is: B.
NEW QUESTION # 174
......
