| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Deployment and Provisioning | 30% | - Security policy creation and enforcement - Security automation configuration - High Availability (HA) setup and monitoring - Access control policies and network segmentation |
| Topic 2: Integration | 20% | - Syslog and SNMP trap input configuration - MDM integration and mobile access control - FortiNAC-F Manager usage and management - Integration with network devices via SNMP, RADIUS, API |
| Topic 3: Network Visibility and Monitoring | 25% | - Device discovery, profiling and classification - Troubleshooting connectivity, policy and system issues - Guest and contractor access management - Logging, reporting and event analysis |
| Topic 4: Concepts and Initial Configuration | 25% | - Deployment models and infrastructure organization - FortiNAC-F architecture and components - Isolation networks and quarantine concepts - Using configuration wizard for initial setup |
>> NSE5_FNC_AD_7.6 Vorbereitung <<
Vorm Kauf der Dumps zur NSE5_FNC_AD_7.6 Zertifizierungsprüfung von ZertSoft können Sie unsere Demo kostenlos als Probe herunterladen.
49. Frage
When FortiNAC-F is managing VPN clients connecting through FortiGate, why must the clients run a FortiNAC-F agent?
Antwort: B
Begründung:
When FortiNAC-F manages VPN clients through a FortiGate, the agent plays a fundamental role in device identification that standard network protocols cannot provide on their own. In a standard VPN connection, the FortiGate establishes a Layer 3 tunnel and assigns a virtual IP address to the client. While the FortiGate sends a syslog message to FortiNAC-F containing the username and this assigned IP address, it typically does not provide the hardware (MAC) address of the remote endpoint ' s physical or virtual adapter.
FortiNAC-F relies on theMAC addressas the primary unique identifier for all host records in its database.
Without the MAC address, FortiNAC-F cannot correlate the incoming VPN session with an existing host record to apply specific policies or track the device ' s history. By running either a Persistent or Dissolvable Agent, the endpoint retrieves its own MAC address and communicates it directly to the FortiNAC-F service interface. This allows the " IP to MAC " mapping to occur. Once FortiNAC-F has both the IP and the MAC, it can successfully identify the device, verify its status, and send the appropriateFSSO tagsor group information back to the FortiGate to lift network restrictions.
Furthermore, while the agent can also perform compliance checks (Option D), the architectural requirement for the agent in a managed VPN environment is primarily driven by the need for session data correlation- specifically the collection of the IP and MAC address pairing.
" Session Data Components: * User ID (collected via RADIUS, syslog and API from the FortiGate). * Remote IP address for the remote user connection (collected via syslog and API from the FortiGate and from the FortiNAC agent). *Device IP and MAC address (collected via FortiNAC agent).... The Agent is used to provide the MAC address of the connecting VPN user (IP to MAC). " -FortiNAC-F FortiGate VPN Integration Guide: How it Works Section.
50. Frage

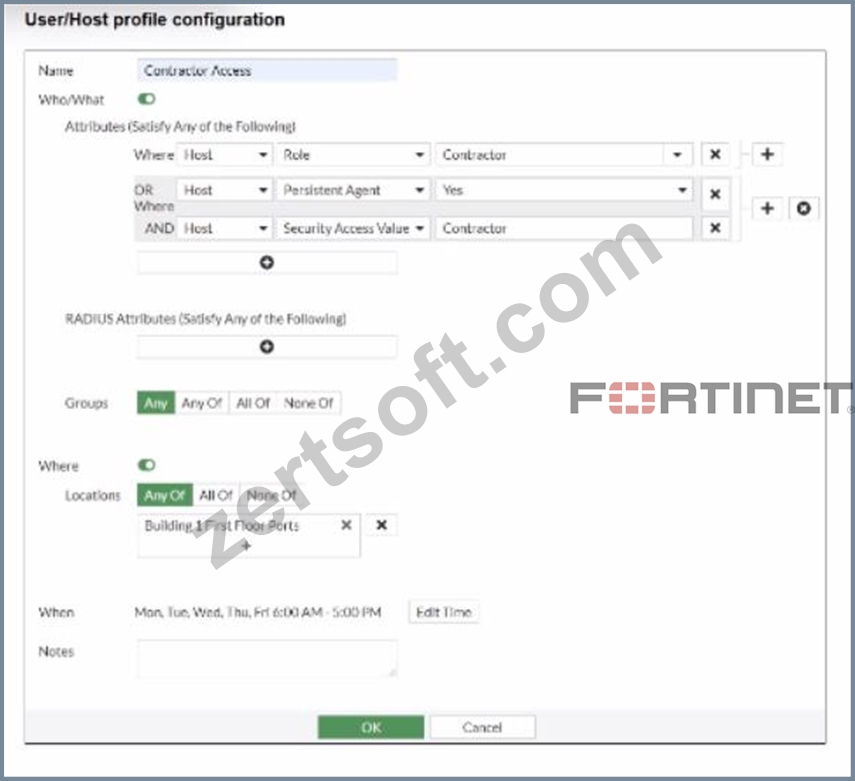

Refer to the exhibit.
If a host is connected to a port in the Building 1 First Floor Ports group, what must also be true to match this user/host profile?
Antwort: A
Begründung:
The User/Host Profile in FortiNAC-F is the fundamental logic engine used to categorize endpoints for policy assignment. As seen in the exhibit, the configuration uses a combination of Boolean logic operators (OR and AND) to define the "Who/What" attributes.
According to the FortiNAC-F Administrator Guide, attributes grouped together within the same bracket or connected by an OR operator require only one of those conditions to be met. In the exhibit, the first two attributes are "Host Role = Contractor" OR "Host Persistent Agent = Yes". This forms a single logical block. This block is then joined to the third attribute ("Host Security Access Value = Contractor") by an AND operator. Consequently, a host must satisfy at least one of the first two conditions AND satisfy the third condition to match the "Who/What" section.
Furthermore, the profile includes Location and When (time) constraints. The exhibit shows the location is restricted to the "Building 1 First Floor Ports" group. The "When" schedule is explicitly set to Mon-Fri 6:00 AM - 5:00 PM. For a profile to match, all enabled sections (Who/What, Locations, and When) must be satisfied simultaneously. Therefore, the host must meet the conditional contractor/agent criteria, possess the specific security access value, and connect during the defined 6 AM to 5 PM window.
"User/Host Profiles use a combination of attributes to identify a match. Attributes joined by OR require any one to be true, while attributes joined by AND must all be true. If a Schedule (When) is applied, the host must also connect within the specified timeframe for the profile to be considered a match. All criteria in the Who/What, Where, and When sections are cumulative." - FortiNAC-F Administration Guide: User/Host Profile Configuration.
51. Frage

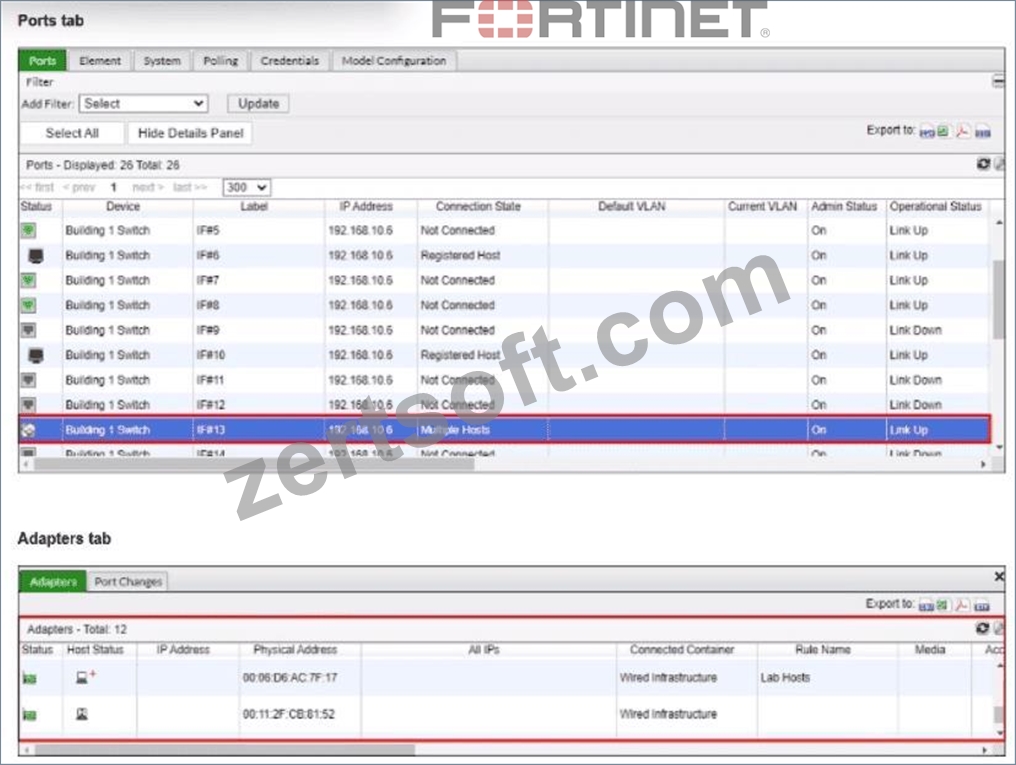

Refer to the exhibits.
What would happen if the highlighted port with connected hosts was placed in both the Forced Registration and Forced Remediation port groups?
Antwort: A
Begründung:
In FortiNAC-F,Port Groupsare used to apply specific enforcement behaviors to switch ports. When a port is assigned to an enforcement group, such asForced RegistrationorForced Remediation, FortiNAC-F overrides normal policy logic to force all connected adapters into that specific state. The exhibit shows a port (IF#13) with " Multiple Hosts " connected, which is a common scenario in environments using unmanaged switches or hubs downstream from a managed switch port.
According to theFortiNAC-F Administrator Guide, it is possible for a single port to be a member of multiple port groups. However, when those groups have conflicting enforcement actions-such as one group forcing a registration state and another forcing a remediation state-FortiNAC-F utilizes aranking systemto resolve the conflict. In the FortiNAC-F GUI underNetwork > Port Management > Port Groups, each group is assigned a rank. The system evaluates these ranks, andonly the higher ranked enforcement group is appliedto the port. If a port is in both a Forced Registration group and a Forced Remediation group, the group with the numerical priority (rank) will dictate the VLAN and access level assigned to all hosts on that port.
This mechanism ensures consistent behavior across the fabric. If the ranking determines that " Forced Registration " is higher priority, then even a known host that is failing a compliance scan (which would normally trigger Remediation) will be held in the Registration VLAN because the port-level enforcement takes precedence based on its rank.
" A port can be a member of multiple groups. If more than one group has an enforcement assigned, the group with thehighest rank(lowest numerical value) is used to determine the enforcement for the port. When a port is placed in a group with an enforcement, that enforcement is applied toall hostsconnected to that port, regardless of the host ' s current state. " -FortiNAC-F Administration Guide: Port Group Enforcement and Ranking.
52. Frage
How can an administrator configure FortiNAC-F to normalize incoming syslog event levels across vendors?
Antwort: B
Begründung:
FortiNAC-F serves as a central manager for security events originating from a diverse ecosystem of third-party security appliances, such as FortiGate, Check Point, and Cisco. Each vendor utilizes its own internal scale for severity levels within syslog messages (e.g., Check Point uses a 1-5 scale, while others may use 0-7). To provide a consistent response regardless of the source, FortiNAC-F uses Severity Mappings to normalize these incoming values.
According to the FortiNAC-F Administration Guide, severity mappings allow the administrator to translate vendor-specific threat levels into standardized FortiNAC Security Levels (such as High, Medium, or Low Violation). When a syslog message arrives, the parser extracts the vendor's severity code, and the system immediately references the Security Event Severity Level Mappings table to determine how that event should be categorized internally. This normalization is vital because it allows a single Security Alarm to be configured to respond to any "High Violation" event, whether it was reported as a "Critical" by one vendor or a "Level 5" by another. Without these mappings, the administrator would have to create separate, redundant security rules for every vendor to account for their different naming conventions and numerical scales.
"Each vendor defines its own severity levels for syslog messages. The following table shows the equivalent FortiNAC security level... To normalize these events, configure the Severity Level Mappings found in the device integration guides. This allows FortiNAC to generate a consistent security event that can then trigger an alarm regardless of the reporting vendor's specific terminology." - FortiNAC-F Administration Guide: Vendor Severity Levels and Syslog Management.
53. Frage
Refer to the output below.
Examine the communication between a primary FortiNAC-F (192.168.10.10) and a secondary FortlNAC-F (192.168.10.110) configured as a 1+1 HA pair. What is the current state of the FortiNAC-F HA pair?
Antwort: C
Begründung:
The correct answer is D . The log output shows the local IP address as 192.168.10.10 , which the question identifies as the primary FortiNAC-F server. In the same output, FortiNAC-F reports inControl true and controlServer true , which means the local primary server is currently the control server. The line showing communication to 192.168.10.110 returns Running - Not In Control , confirming that the secondary server is alive but is not the active controlling node.
This matches FortiNAC-F 1+1 HA behavior. The study guide describes a 1+1 HA pair as an active-passive deployment where one FortiNAC-F device is designated primary and the other secondary. Database and configuration synchronization keep the devices aligned, but only one server is in control at a time. If the primary fails, the secondary assumes control automatically; otherwise, the primary remains the active control server.
Option A is wrong because the secondary explicitly reports Not In Control . Option B is wrong because the output does not show database replication failure. Option C is wrong because failover is not in progress; the output shows a stable state where the primary is in control and the secondary is running as the passive node.
54. Frage
......
