Fortinet FCSS_SDW_AR-7.6 Exam Overview:

Certification Vendor:	Fortinet
Exam Name:	FCSS - SD-WAN 7.6 Architect
Exam Number:	FCSS_SDW_AR-7.6
Exam Format:	Multiple-select, Multiple-choice
Available Languages:	English, Japanese
Passing Score:	Pass / Fail
Related Certifications:	Fortinet Certified Solution Specialist - Secure SD-WAN
Certificate Validity Period:	2 years
Real Exam Qty:	36
Exam Duration:	70 minutes
Sample Questions:	Fortinet FCSS_SDW_AR-7.6 Sample Questions
Exam Way:	Pearson VUE (Online or Test Center)
Pre Condition:	Recommended 2+ years of experience with FortiGate, FortiManager, and general network security.
Official Syllabus URL:	https://training.fortinet.com/local/staticpage/view.php?page=fcss-sd-wan

>> FCSS_SDW_AR-7.6덤프 <<

시험패스에 유효한 FCSS_SDW_AR-7.6덤프 덤프데모 다운받기

ExamPassdump는 아주 믿을만하고 서비스 또한 만족스러운 사이트입니다. 만약 FCSS_SDW_AR-7.6시험실패 시 우리는 100% 덤프비용 전액환불 해드립니다.그리고 시험을 패스하여도 우리는 일 년 동안 무료업뎃을 제공합니다.

Fortinet FCSS_SDW_AR-7.6 시험요강:

주제	소개
주제 1	Rules and Routing: This section focuses on configuring SD-WAN rules for traffic steering and routing policies for path selection and failover.
주제 2	Centralized Management: This domain addresses FortiManager-based SD-WAN deployment, branch configuration implementation, and overlay orchestration using SD-WAN Manager.
주제 3	SD-WAN Basic Setup: This domain covers initial SD-WAN configuration, member and zone setup, and Performance SLA creation for link monitoring.
주제 4	SD-WAN Troubleshooting: This domain focuses on diagnosing SD-WAN rule behavior, routing issues, and ADVPN tunnel problems.
주제 5	Advanced IPsec: This section covers hub-and-spoke topologies, ADVPN configuration, and scalable multihub and multiregion IPsec deployments.

최신 Fortinet Certified Solution Specialist FCSS_SDW_AR-7.6 무료샘플문제 (Q55-Q60):

질문 # 55
You want FortiGate to use SD-WAN rules to steer local-out traffic.
Which two constraints should you consider? (Choose two.)

A. By default, FortiGate uses SD-WAN rules only for local-out traffic that corresponds to pingand traceroute.
B. You can steer local-out traffic only with SD-WAN rules that use the manual strategy.
C. You must configure each local-out feature individually to use SD-WAN.
D. By default, local-out traffic does not use SD-WAN.

정답：C,D

설명：
By default, local-out traffic does not use SD-WAN → FortiGate normally sends local-out traffic (e.g., DNS, NTP, FortiGuard updates) directly through its interfaces without applying SD-WAN rules.
You must configure each local-out feature individually to use SD-WAN → To steer local-out traffic via SD-WAN, you must explicitly configure the desired local-out features (e.g., DNS, FortiGuard, CAPWAP) to use SD-WAN rules.

질문 # 56
Refer to the exhibits.

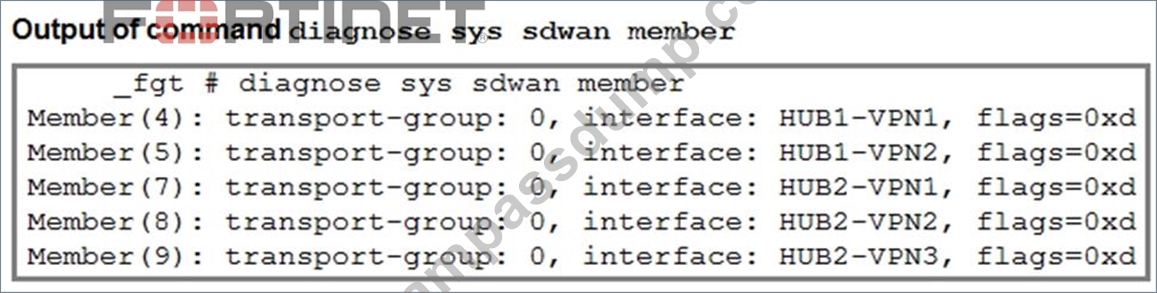

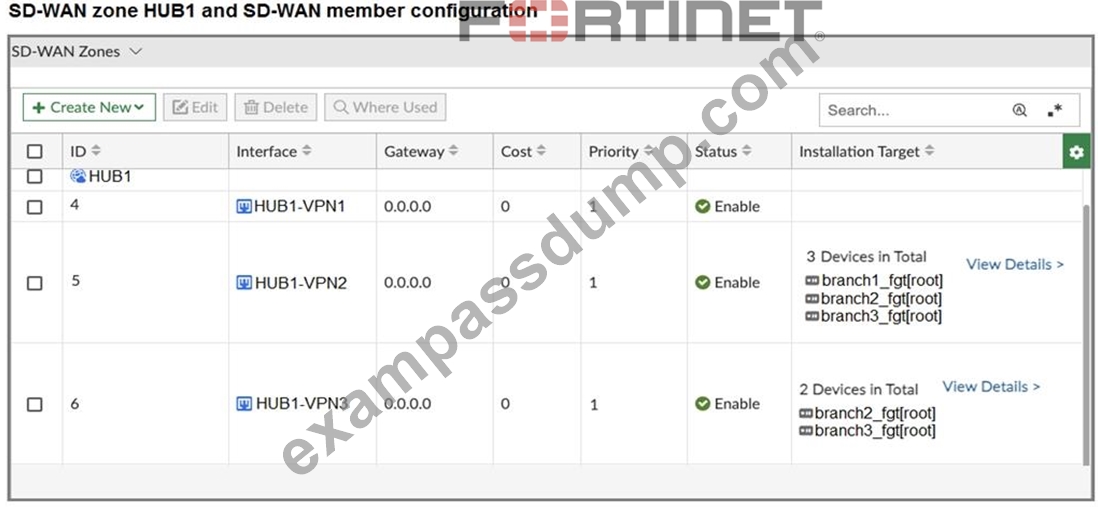

The first exhibit shows the SD-WAN zone HUB1 and SD-WAN member configuration from an SD-WAN template, and the second exhibit shows the output of command diagnose sys sdwan member collected on a FortiGate device.
Which statement best describes what the diagnose output shows?

A. The diagnose output was collected on the device branch2_fgt.
B. The diagnose output was collected on the device branch1_fgt
C. The diagnose output does not correspond to a device configured with the SD-WAN template shown in the exhibit.
D. The diagnose output shows that HUB1-VPN1 and all HUBx-VPNy members are dead.

정답：B

설명：
The diagnose output lists SD-WAN members 4(HUB1-VPN1), 5(HUB1-VPN2), 7(HUB2-VPN1), 8(HUB2-VPN2), and 9(HUB2-VPN3). It does not include member 6 (HUB1-VPN3). From the template, HUB1-VPN3 is installed only on branch2_fgt and branch3_fgt - not on branch1_fgt. Therefore, the output must be from branch1_fgt.

질문 # 57

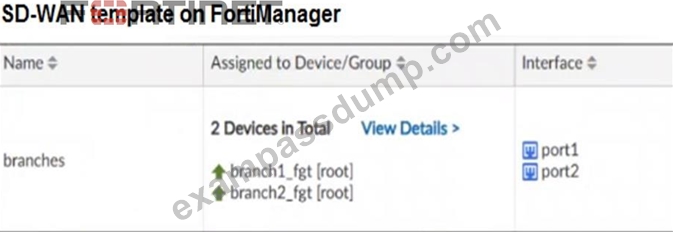

Refer to the exhibits. You use FortiManager to manage the branch devices and configure the SD- WAN template. You have configured direct internet access (DIA) for the IT department users.

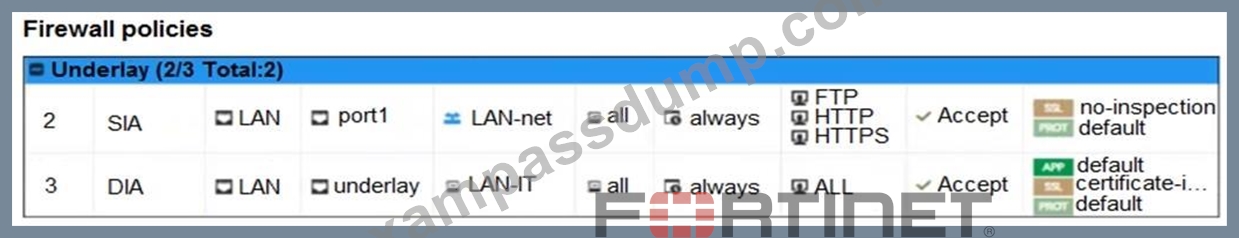

Now. you must configure secure internet access (SIA) for all local LAN users and have set the firewall policies as shown in the second exhibit.

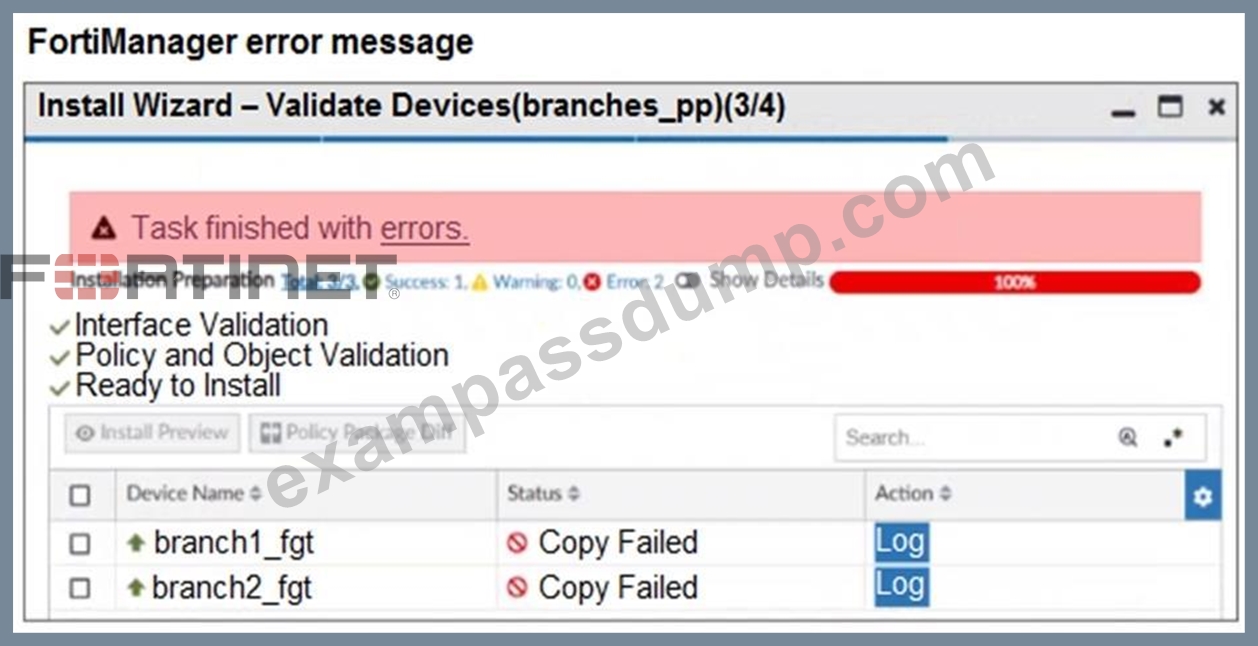

Then, when you use the install wizard to install the configuration and the policy package on the branch devices, FortiManager reports an error as shown in the third exhibit. Which statement describes why FortiManager could not install the configuration on the branches?

A. You cannot install firewall policies that reference an SD-WAN zone.
B. You cannot install firewall policies that reference an SD-WAN member.
C. You cannot install SIA and DIA rules on the same device.
D. You must direct SIA traffic to a VPN tunnel.

정답：B

설명：
In FortiManager, firewall policies must reference SD-WAN zones, not individual SD-WAN members (interfaces like port1 or port2). The SIA rule incorrectly references port1, which is a member - not a zone - causing the installation failure during validation.

질문 # 58
(Refer to the exhibits.

You collected the output shown in the exhibits and want to know which interface HTTP traffic will flow through from the user device 10.0.1.101 to the corporate web server 10.0.0.126. All SD-WAN links are stable.
Which interface will FortiGate use to steer the traffic? Choose one answer.)

A. Only HUB1-VPN3
B. Either HUB1-VPN2 or HUB1-VPN3
C. Only HUB1-VPN2
D. Either HUB1-VPN1, HUB1-VPN2, or HUB1-VPN3

정답：D

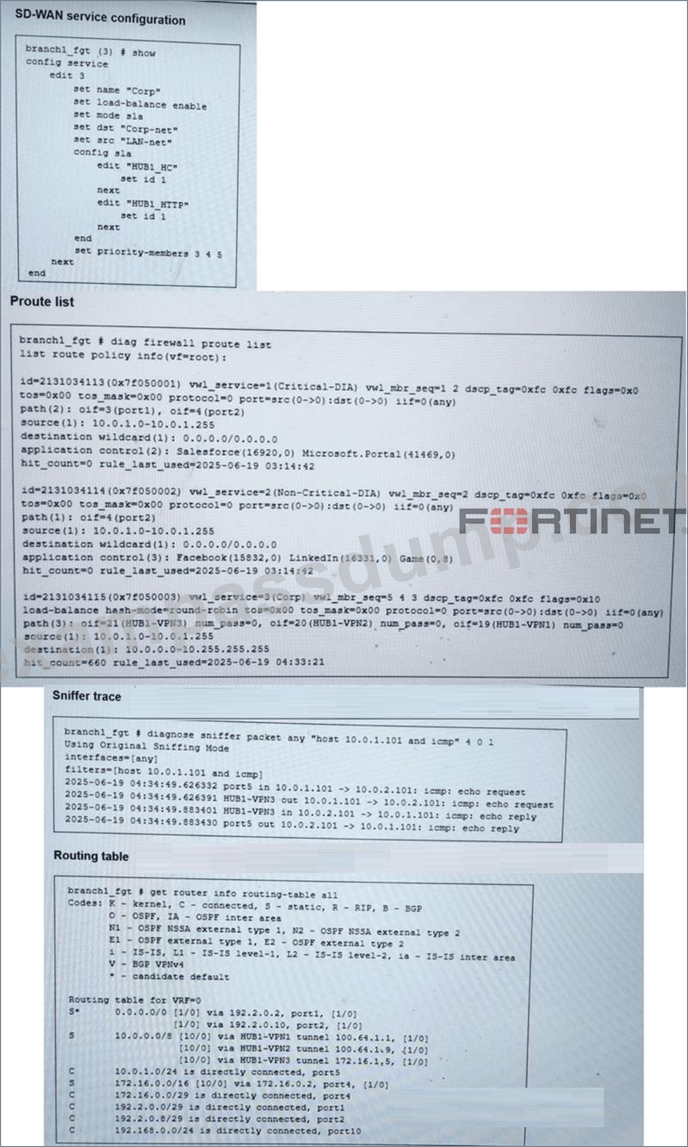

설명：
From the SD-WAN service configuration, rule edit 3 (name "Corp") is configured with:
set mode sla
set load-balance enable
set dst "Corp-net"
set src "LAN-net"
SLA checks referenced under config sla
Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0-10.255.255.255 for the Corp service).
In the diagnose firewall proute list output for vwl_service=3 (Corp), FortiGate shows which SD-WAN members are eligible based on SLA pass results:
oif=21 (HUB1-VPN3) num_pass=2
oif=20 (HUB1-VPN2) num_pass=0
oif=19 (HUB1-VPN1) num_pass=0
This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.
The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3.
Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3, which corresponds to Option A.

질문 # 59
Refer to the exhibit.
You want to configure SD-WAN on a network as shown in the exhibit.
The network contains many FortiGate devices. Some are used as NGFW, and some are installed with extensions such as FortiSwitch. FortiAP. or Forti Ex tender.
What should you consider when planning your deployment?

A. You can build an SD-WAN topology that includes all devices. The hubs must be devices without extensions.
B. You must build multiple SD-WAN topologies. Each topology must contain only one type of extension.
C. You must use FortiManager to manage your SD-WAN topology.
D. You can build an SD-WAN topology that includes all devices. The hubs can be FortiGate devices with Forti Extender.

정답：A

설명：
In Fortinet SD-WAN, hubs should not have extensions like FortiSwitch, FortiAP, or FortiExtender installed, as these can affect hub functionality and scalability. While all device types can be included in the topology, the hubs must be "clean" FortiGate devices without such extensions to ensure proper ADVPN and overlay management.
Reference:
[FCSS_SDW_AR-7.4 1-0.docx Q3]
Fortinet SD-WAN Reference Architecture Guide 7.4 - Hub requirements

질문 # 60
......
