質問 # 130

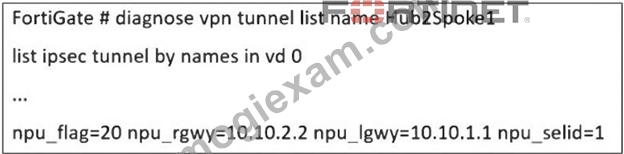

Refer to the exhibit, which shows a partial troubleshooting command output.
An administrator is extensively using IPsec on FortiGate. Many tunnels show information similar to the output shown in the exhibit.
What can the administrator conclude?
正解：A
解説：
The diagnose vpn tunnel list name Hub2Spoke1 command output provides key information about the offloading status of an IPsec VPN tunnel to the Network Processing Unit (NPU).
# npu_flag=20:
# This flag indicates that both inbound and outbound IPsec Security Associations (SAs) have been offloaded to the NPU, meaning the VPN traffic is processed in hardware instead of the CPU.
# npu_rgwy=10.10.2.2 and npu_lgwy=10.10.1.1:
# These IPs represent the remote gateway (rgwy) and local gateway (lgwy), confirming that the tunnel is successfully offloaded.
# npu_selid=1:
# This value means the session selector for the NPU offloaded SA is active.
Since both inbound and outbound SAs are offloaded, the administrator can conclude that the FortiGate NPU is handling IPsec encryption and decryption efficiently, reducing CPU load and improving VPN performance.
質問 # 131

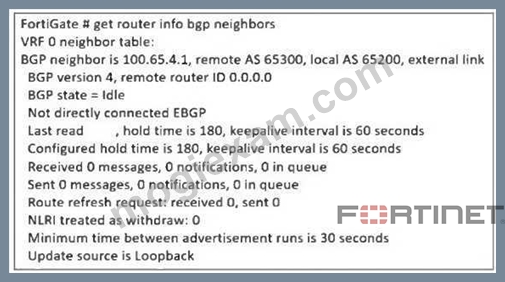

Refer to the exhibit, which contains a partial command output.
The administrator has configured BGP on FortiGate. The status of this new BGP configuration is shown in the exhibit.
What configuration must the administrator consider next?
正解：B
解説：
From the BGP neighbor status output, the key issue is that BGP is stuck in the "Idle" state, meaning the FortiGate is unable to establish a BGP session with its peer 100.65.4.1 (Remote AS
65300).
The output also shows:
"Not directly connected EBGP" This means the BGP peer is not on the same subnet, requiring multihop BGP.
"Update source is Loopback" Since a loopback interface is used, FortiGate must be configured to allow BGP neighbors over multiple hops.
To resolve this issue, the administrator must enable ebgp-enforce-multihop, which allows BGP sessions to be established even when the neighbors are not directly connected.
質問 # 132

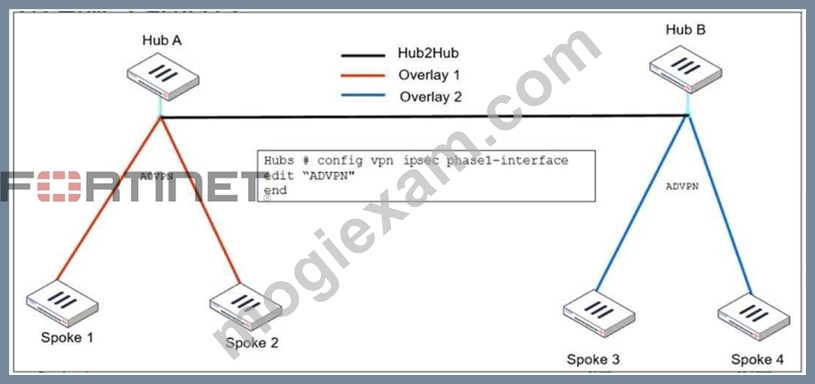

Refer to the exhibit, which shows the ADVPN IPsec interface representing the VPN IPsec phase
1 from Hub A to Spoke 1 and Spoke 2, and from Hub to Spoke 3 and Spoke 4.
An administrator must configure an ADVPN using IBGP and EBGP to connect overlay network 1 with 2.
What must the administrator configure in the phase 1 VPN IPsec configuration of the ADVPN tunnels?
正解：C
解説：
When configuring ADVPN (Auto-Discovery VPN) to connect overlay networks across different hubs using IBGP and EBGP, special configurations are required to allow spokes from different overlay networks to dynamically establish tunnels.
set auto-discovery-crossover enable
This allows cross-hub tunnel discovery in an ADVPN deployment where multiple hubs are used.
Since Hub A and Hub B belong to different overlays, enabling crossover discovery ensures that spokes from one overlay can dynamically create direct tunnels to spokes in the other overlay when needed.
set enforce-multihop enable
This setting ensures that BGP peers using loopback interfaces can establish connectivity even if they are not directly connected.
Multihop BGP sessions are required when using loopback addresses as BGP peer sources because the connection might need to traverse multiple routers before reaching the BGP neighbor. This is especially useful in ADVPN deployments with multiple hubs, where routes might need to cross from one hub to another.
質問 # 133
Which specialized acceleration hardware must you use for VXLAN?
正解：B
質問 # 134
Refer to the exhibit.
A LAN interface connected from FortiGate to two FortiSwitch devices is shown.
Which two statements about the LAN interface connection shown in the exhibit are correct? (Choose two.)
正解：A、D
解説：
Based on the provided exhibit and the Fortinet Enterprise Firewall 7.6 Administrator curriculum, the architecture shown is a standard FortiLink deployment used to manage FortiSwitch units directly from the FortiGate.
* FortiLink Interface (C): The exhibit explicitly shows the configuration of a logical interface designated as a FortiLink interface. This is a specialized Fortinet proprietary management protocol that allows the FortiGate to discover, authorize, and manage FortiSwitch devices. Once FortiLink is established, the FortiGate can manage switch ports, VLANs, and security policies on the switches as if they were local interfaces.
* 802.3ad Aggregate (A): To provide both redundancy and increased bandwidth, FortiLink is typically configured as an 802.3ad (Link Aggregation) aggregate interface. This allows the FortiGate to use multiple physical ports (in this case, port1 and port2) as a single logical pipe to the switches. In the exhibit ' s configuration snippet, the set type aggregate command is clearly visible, which confirms that an 802.3ad link is being used to facilitate the connection.
Regarding the incorrect options:
* Option B is incorrect because SD-WAN is used for steering traffic across multiple WAN paths and is not the protocol used for internal switch management via FortiLink.
* Option D is incorrect because while STP/RSTP is active on the FortiSwitches to prevent loops within the switching fabric, the FortiGate does not typically " run " STP on the FortiLink aggregate interface itself; rather, the link aggregation (LACP) and the FortiLink logic handle the path redundancy and loop prevention between the firewall and the managed switches.
