NEW QUESTION # 25
An administrator is tasked to enable users to configure an individual VPC, but not create subnets. What three NSX roles would the administrator assign to allow access without the ability to create subnets? (Choose three.)
Answer: A,B,C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.
To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.
* VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.
* Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.
* Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state-such as routing tables, segment status, and connectivity-without granting the
"Write" permissions required to provision new subnets or alter the network topology.
AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.
NEW QUESTION # 26
The network team has decided to use a single Edge Cluster to provide Tier-0 A/A Gateway routing and Tier-1 Gateway A/S services.
The active Tier-1 with a Gateway Firewall service is on EN2.

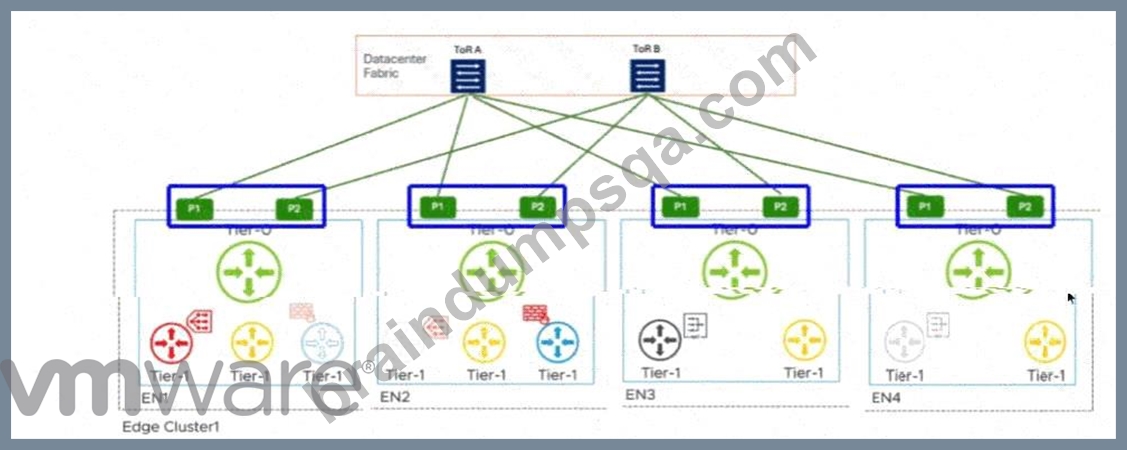

Which highlighted options will show the ECMP paths used by that Tier-1 GFW?
Answer:
Explanation:

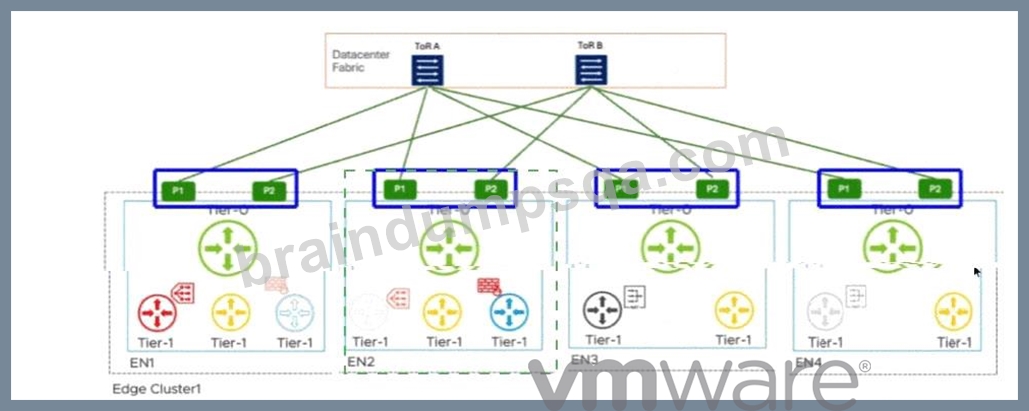

Explanation:
P1 and P2 interfaces on EN2
In aVMware Cloud Foundation (VCF)environment, the interaction between different tiers of logical gateways is governed by the placement ofService Routers (SR). When a Tier-1 Gateway is configured with stateful services, such as aGateway Firewall (GFW), it must operate inActive/Standby (A/S)mode. This ensures that session state is maintained on a single active node at any given time.
According to the provided diagram and VCF architectural guidelines, theActive Tier-1 SRis hosted onEdge Node 2 (EN2). In a multi-tier NSX design, the Tier-1 gateway is logically connected to the Tier-0 gateway via an internal transit segment (often referred to as the Router Link). While the Tier-0 gateway itself is running inActive/Active (A/A)mode across all nodes (EN1 through EN4) to provide high-bandwidth ECMP to the physical Top-of-Rack (ToR) switches, the Tier-1's path to the external world is constrained by its own current location.
Traffic originating from a workload segment attached to this Tier-1 will be processed by the GFW onEN2.
From there, the packet must exit to the physical network via the Tier-0 uplinks. Because the Tier-1 SR is localized to EN2, it will utilize the local Tier-0 instances and their corresponding physical uplinks located on that same node to avoid unnecessary inter-edge "East-West" hair-pinning over the Geneve overlay.
The highlighted optionsP1 and P2 on EN2represent the specific physical/logical uplink paths (VLAN- backed) that the Tier-1 GFW on EN2 will use to reachToR A and ToR B. Even though EN1, EN3, and EN4 also have active Tier-0 paths, the stateful nature of the Tier-1 on EN2 means its North-South traffic flow is anchored to the uplinks of its current host node. Therefore, to identify the ECMP paths actively utilized by that specific stateful Tier-1 service, the administrator must look at the uplink interfaces (P1/P2) associated with the node where that Tier-1 is active.
NEW QUESTION # 27
A cloud service provider runs VPCs with differing traffic patterns:
* Some VPCs are generating high, large North/South flows.
* Most of the VPCs generate very little traffic.
The architect needs to optimize Edge dataplane resource consumption while ensuring that noisyVPCs do not impact others.
Which optimization satisfies the requirement?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a VMware Cloud Foundation (VCF) environment, especially with the architectural evolution in VCF 9.0, theVirtual Private Cloud (VPC)model is the primary way to deliver self-service, isolated networking. The networking performance for North/South traffic-traffic leaving the SDDC for the physical network-is processed byNSX Edge Nodes. These Edge Nodes use DPDK (Data Plane Development Kit) to provide high- performance packet processing, but their resources (CPU and Memory) are finite.
When dealing with "noisy neighbors"-tenants or VPCs that consume a disproportionate amount of throughput-it is critical to isolate their data plane impact. According to the VMware Validated Solutions and VCF Design Guides, the most scalable and efficient way to achieve this is through the use ofMultiple Edge Clusters. By creating distinct Edge clusters, an architect can physically isolate the compute resources used for routing.
In this scenario, high-traffic VPCs can be backed by specificVRF (Virtual Routing and Forwarding) instances on a Tier-0 gateway that is hosted on a dedicated high-performance Edge Cluster. Meanwhile, the numerous low-traffic VPCs can share a different Edge Cluster. This "Traffic Profile" based distribution ensures that a spike in traffic within a "heavy" VPC only consumes the DPDK cycles of its assigned Edge nodes, leaving the resources for the "quiet" VPCs untouched.
Option A is incorrect because Edge nodes function in clusters for high availability; assigning a single node creates a single point of failure and is administratively heavy. Option B reduces the multi-tenancy benefits and doesn't solve the resource contention at the Edge level. Option C removes the benefits of the software- defined overlay and VPC consumption model. Therefore, distributingVRF-backed VPCsacross multiple Edge clusters based on their expected load is the verified design best practice for optimizing resource consumption while maintaining strict performance isolation in a VCF provider environment.
NEW QUESTION # 28
An administrator is troubleshooting a BGP connectivity issue on a Tier-0 Gateway (Active/Active). The Tier-
0 has the following configuration:
* Uplink VLAN 100: 192.168.100.0/24
* Uplink VLAN 101: 192.168.101.0/24
* BGP neighbors configured: 192.168.100.1 and 192.168.101.1
* A single static default route (0.0.0.0/0) exists with next-hop 192.168.100.1.
Symptoms observed on both Edge Nodes:
* Get BGP neighbors -> both neighbors stuck in Idle (Connect) - "No route to peer"
* Ping to 192.168.100.1 and 192.168.101.1 succeeds from the Edge nodes
* Get route shows the default route present only on VLAN 100 interface (fp-eth0), missing on VLAN 101 (fp- eth1) What is the root cause of both BGP sessions remaining in Idle state?
Answer: B
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware NSXnetworking, the Tier-0 Gateway'sRouting Table(RIB) is the definitive source for determining how to reach BGP neighbors. A common point of confusion occurs when an administrator can
"ping" a neighbor but the BGP state remainsIdleorConnectwith a "No route to peer" error.
This symptom specifically points to the"Scope"setting of a static route. In NSX, when a static route (such as the default route 0.0.0.0/0) is created, the administrator can define theScopeto be a specific uplink segment or interface. If the scope is set exclusively to theVLAN 100segment, the Tier-0 Gateway will only install that route into the forwarding table for the Service Router (SR) component associated with the VLAN 100 interface.
Because the default route is the only path the Tier-0 has to reach non-local networks (or even other local subnets not directly attached), the BGP process for the neighbor at192.168.101.1(VLAN 101) checks the routing table for a path. Since the only available route is scoped strictly to VLAN 100, the Tier-0 determines it has "No route" to reach the neighbor in VLAN 101. BGP requires a valid entry in the routing table for the neighbor's IP before it will even attempt to initiate the TCP three-way handshake on port 179.
The fact that pings succeed is due to pings often being tested from the specific interface (e.g., ping
192.168.101.1 -I fp-eth1), which bypasses the general routing table logic that the BGP control plane must follow. To resolve this, the static route scope should be expanded to include all relevant uplink segments or left as "All Uplinks," ensuring that the Tier-0 recognizes valid egress paths for neighbors on both VLAN 100 and VLAN 101.
NEW QUESTION # 29
A sovereign cloud provider has a VMware Cloud Foundation (VCF) stretched Workload Domain across two data centers (AZ1 and AZ2), where site connectivity via Layer 3 is provided by the underlay. The following NSX details are included in the design:
* Each site must host its own local NSX Edge Cluster for availability zones.
* Tier-0 gateways must be configured in active/active mode with BGP ECMP to local top-of-rack switches.
* Inter-site Edge TEP traffic must not cross the inter-DC link.
* SDDC Manager is used to automate NSX deployment.
During deployment of the Edge Cluster for AZ2, the SDDC Manager workflow fails because the Edge transport nodes' TEP IPs are not reachable from the ESXi transport nodes. Which step ensures correct Edge Cluster deployment in multi-site stretched domains?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)stretched cluster or Multi-Availability Zone (Multi-AZ) architecture, the networking design must account for the fact that AZ1 and AZ2 typically reside in different Layer 3 subnets. While the NSX Overlay provides Layer 2 adjacency for virtual machines across sites, the underlying Tunnel Endpoints (TEPs)must be able to communicate over the physical Layer 3 network.
According to the VCF Design Guide for Multi-AZ deployments, when stretching a workload domain, each availability zone should have its own dedicatedTEP IP Pool. This is because TEP traffic is encapsulated (Geneve) and routed via the physical underlay. If the Edge nodes in AZ2 were to use the same IP pool as AZ1 (Option C), the physical routers would likely encounter routing conflicts or reachability issues, as the subnet for AZ1 would not be natively routable or "local" to the AZ2 Top-of-Rack (ToR) switches.
The failure during the SDDC Manager workflow occurs because the automated "Liveness Check" or "Pre- validation" step attempts to verify that the newly assigned TEP IPs in AZ2 can reach the existing TEPs in the environment. To resolve this and ensure a successful deployment, the administrator must define a uniqueAZ2- specific IP Poolin NSX. Furthermore, this pool must be associated with anUplink Profile(or a Sub-Transport Node Profile in VCF 5.x/9.0) that uses the specific VLAN tagged for TEP traffic in the second data center.
This ensures that the Edge Nodes in AZ2 are assigned IPs that are valid and routable within the AZ2 underlay, allowing Geneve tunnels to establish correctly to the ESXi hosts in both sites without requiring a stretched Layer 2 physical network for the TEP infrastructure.
NEW QUESTION # 30
......
