| Section | Weight | Objectives |
|---|---|---|
| Install, Configure, Administrate the VMware Solution | 20% | - NSX Federation deployment and configuration - Edge cluster and gateway implementation - Tier-0/Tier-1 gateway configuration, routing protocols, ECMP - Logical segments, VRF, tenancy and service integration |
| VMware Products and Solutions | 20% | - VMware Cloud Foundation architecture and SDDC principles - vSphere, NSX, vSAN components and integration - Management and workload domains |
| IT Architectures, Technologies, Standards | 15% | - Implementation technologies: containerization, APIs, microservices - Industry standards: ISO/IEC, TOGAF, IEEE, security frameworks - IT architecture frameworks and structural designs |
| Plan and Design the VMware Solution | 25% | - Multi-site and federation design - Connectivity solutions: centralized vs distributed - NSX Fleet design considerations - Optimization and acceleration design decisions - NSX architecture and component design |
| Troubleshoot and Optimize the VMware Solution | 20% | - Routing, connectivity and high availability issues - Security policy validation and correction - Troubleshooting tools, logs and diagnostics - Performance optimization and capacity planning |
>> 3V0-25.25 Test Lab Questions <<
We have confidence and ability to make you get large returns but just need input small investment. our 3V0-25.25 study materials provide a platform which help you gain knowledge in order to let you outstanding in the labor market and get satisfying job that you like. The content of our 3V0-25.25question torrent is easy to master and simplify the important information. It conveys more important information for 3V0-25.25 Exam with less answers and questions, thus the learning is easy and efficient. We believe our latest 3V0-25.25 exam torrent will be the best choice for you.
NEW QUESTION # 63
Which of the following statements is true when configuring Remote Tunnel End Points (RTEPs) with NSX Federation?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In anNSX Federationdeployment, which is a key component of multi-siteVMware Cloud Foundation (VCF)architectures, theRemote Tunnel End Point (RTEP)is used specifically for inter-site communication.
While standard TEPs (Tunnel End Points) handle overlay traffic within a single site (East-West), RTEPs facilitate the encapsulation of traffic that needs to traverse the Layer 3 network between different geographical locations.
A critical design consideration for RTEP is theMaximum Transmission Unit (MTU). Within a local VCF site, jumbo frames (MTU 1600 or 9000) are highly recommended and often required for the Geneve overlay to account for encapsulation overhead. However, when traffic leaves a site to travel over a WAN or a provider's long-haul network, it often encounters physical infrastructure that only supports the standard internet MTU of1500 bytes.
According to VMware's "NSX Federation Design Guide," the default MTU setting for the RTEP configuration is1500. This ensures that inter-site traffic can pass through standard routers and VPNs without being dropped due to size constraints. If the inter-site physical links support larger frames, this value can be increased, but 1500 remains the baseline compatible default.
Regarding the other options:Ais incorrect because TEP and RTEP can share the same physical N-VDS and physical NICs (pNICs) by using different VLANs or subnets.Bis incorrect because every Edge node within a cluster that is participating in the Federation must have an RTEP configured to ensure high availability and proper traffic processing for global segments.Dis incorrect as IP addresses for RTEPs are typically assigned viaStatic IP Poolsmanaged within NSX to ensure consistency and ease of tracking across sites, rather than relying on DHCP which is less common in data center backbone configurations.
NEW QUESTION # 64
An administrator changed the SFTP server used for scheduled NSX Manager backups. The backup jobs now fail with the error "Host KEY Verification Failed." The connectivity and credentials are correct. How would an administrator resolve the error?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a
"Trust on First Use" (TOFU) model for verifying the identity of the remote host.
When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprint and stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.
The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration.
Because the signatures do not match, the NSX Manager aborts the connection for security reasons.
To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:
* Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).
* Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.
* Editing the File Server configuration and pasting the new fingerprint into the appropriate field.
Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source
/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.
NEW QUESTION # 65
During a design review, the administrator is asked to explain which underlying technology enables the NSX Edge to perform fast packet processing and achieve near line-rate performance for Virtual Network Functions (VNFs). Which technology is leveraged in the NSX Edge for fast packet processing?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
TheNSX Edgeis the workhorse of the VMware Cloud Foundation networking stack, handling demanding tasks like Geneve encapsulation, NAT, Firewalling, and BGP routing. To achieve the throughput required for modern data centers-often exceeding 10Gbps or even 40Gbps per node-NSX leverages theData Plane Development Kit (DPDK).
Traditional packet processing in a standard Linux or Unix kernel is often a bottleneck. The kernel must handle interrupts, context switching between user space and kernel space, and complex buffer management for every packet. This "overhead" limits the speed at which a CPU can move packets.DPDKchanges this by bypassing the standard kernel networking stack entirely. It operates inUser Spaceand uses a "polling" mechanism rather than an "interrupt-driven" one.
In an NSX Edge VM or Bare Metal node, specific CPU cores are dedicated to the DPDK process (often called theDatapathorFP-Main). these cores "spin" at 100% utilization, constantly checking the NICs for new packets. Because there is no context switching and the process has direct access to the network hardware buffers, the Edge can process millions of packets per second (Mpps) with extremely low latency.
WhileNUMA(Option C) is a hardware architecture that NSX is "aware" of to optimize memory access, and Intel Speed Step/AMD Power Now (Options B and D) are power management features,DPDKis the actual software technology that enables the "fast packet processing" capability of the VCF networking solution. This is why VMware documentation emphasizes the importance of ensuring that Edge VMs are sized correctly with enough "High-Performance" cores to support the intended DPDK throughput.
NEW QUESTION # 66

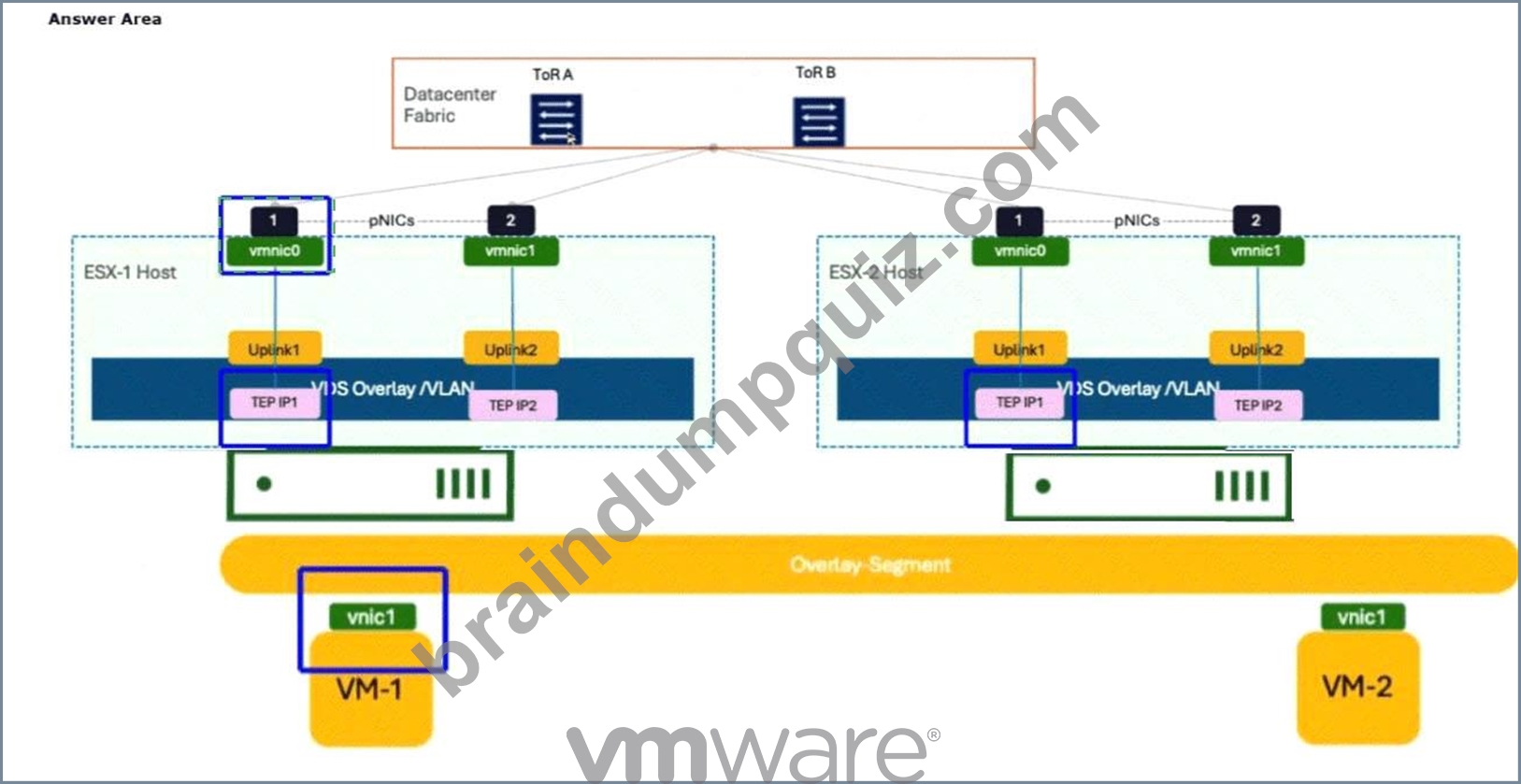

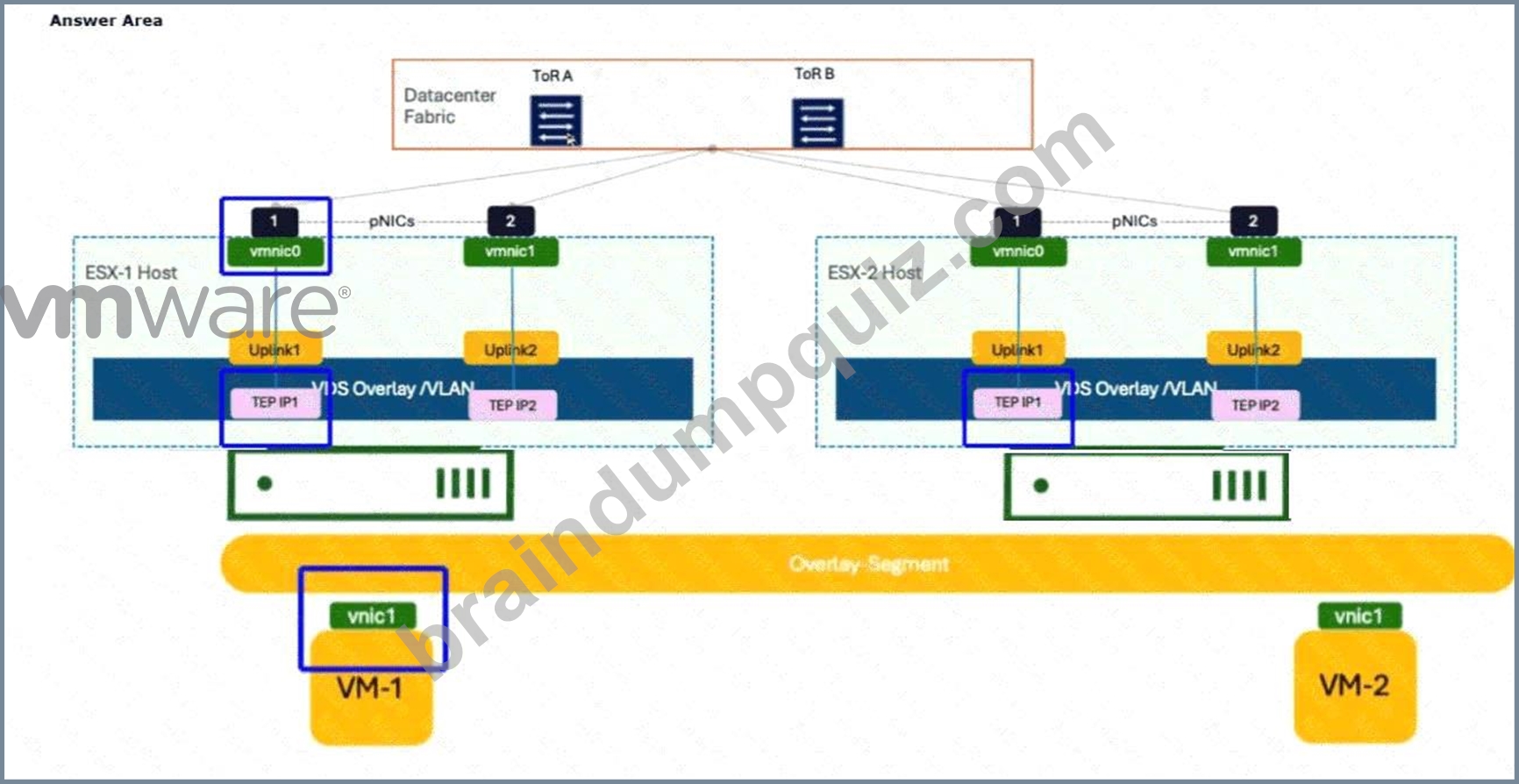

The administrator is working to ascertain the encapsulation of GENEVE by reviewing the capture on Wireshark.
The administrator instructed VM-1 to send a continuous ICMP request directed at VM-2.
Click to highlight where the administrator should observe the GENEVE encapsulated packet.
Answer:
Explanation:
Explanation:
The administrator should click thevmnic0interface on theESX-1 Host.
In aVMware Cloud Foundation (VCF)environment, theGENEVE (Generic Network Virtualization Encapsulation)protocol is the industry-standard tunnel format used by NSX to create an overlay network.
This protocol allows Layer 2 traffic from virtual machines to be "tunneled" over a Layer 3 physical IP fabric, enabling workloads to communicate as if they were on the same segment even when separated by physical routers.
When VM-1 on ESX-1 sends an ICMP request to VM-2 on ESX-2, the packet starts as a standard Ethernet frame at the virtual machine'svnic1. At this stage, the packet contains no encapsulation. As the frame enters theVirtual Distributed Switch (VDS)and hits theTunnel End Point (TEP), the host's kernel performs the encapsulation process. The TEP adds a GENEVE header, a UDP header (port 6081), and an outer IP header.
Thevmnic0(physical NIC) on the source host (ESX-1) is the specific "egress" point where this transformation is complete. A packet capture taken at this physical interface will show the "Outer IP" address of the source TEP and destination TEP, with the original ICMP packet hidden inside the GENEVE payload. If the administrator were to click on the VM's vnic, they would only see standard ICMP. By selecting thevmnic0, the administrator captures the traffic as it is placed onto the physical wire, which is the verified location to troubleshoot MTU issues, encapsulation errors, or physical fabric connectivity in a VCF environment.
NEW QUESTION # 67

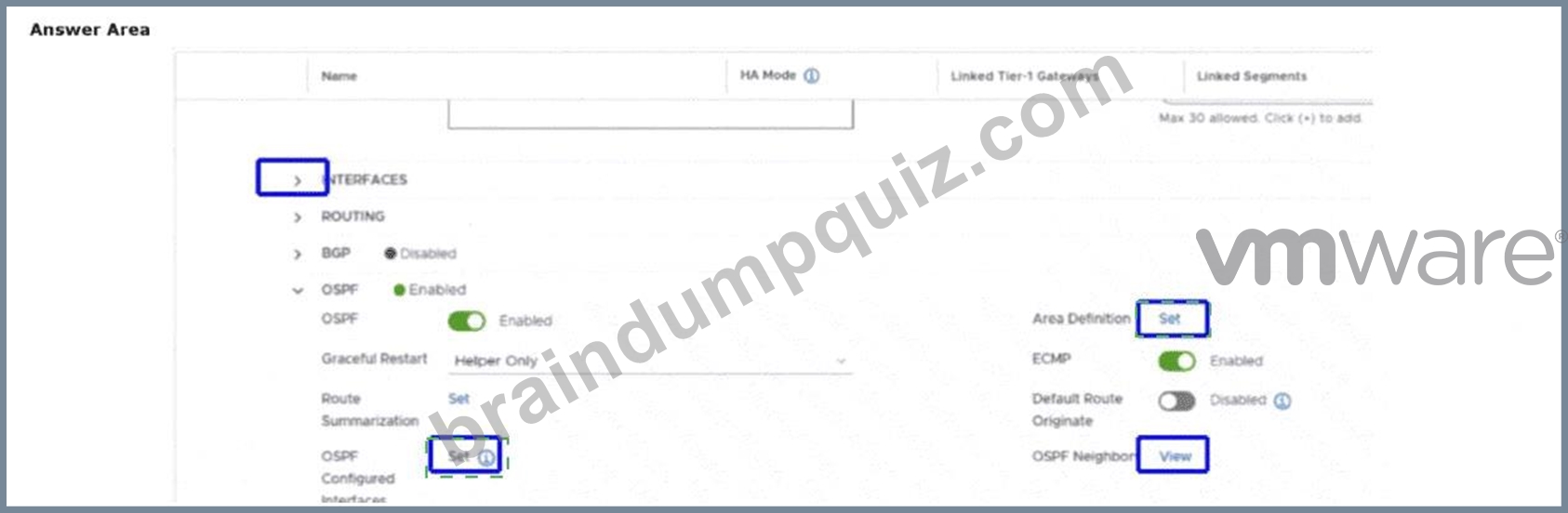

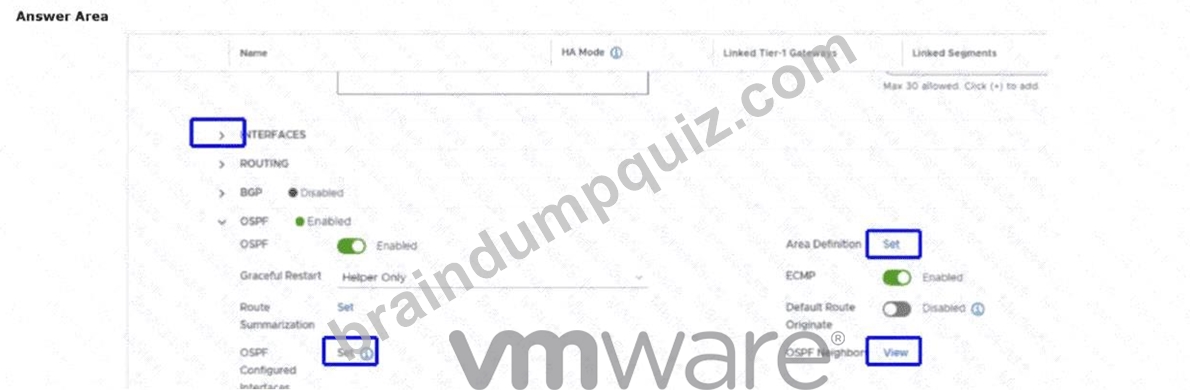

An administrator has been tasked with enabling OSPF as the routing protocol for a Tier-0 Gateway. Which two items must be configured to enable OSPF for a Tier-0 Gateway?
Mark two answers by clicking the two correct locations on the image. (Choose two.)
Answer:
Explanation:
Explanation:
To enable OSPF on a Tier-0 Gateway within a VMware Cloud Foundation (VCF) or NSX environment, an administrator must define the areas where the gateway will participate and the specific interfaces it will use for peering.
Based on the NSX Manager configuration interface, the two required items to be configured are:
* Area Definition: This is necessary to define the OSPF area (e.g., Area 0) the Tier-0 gateway will participate in.
* OSPF Configured Interfaces: OSPF must be explicitly configured on the relevant uplink interfaces to establish neighbor relationships and exchange routing information with physical routers.
NEW QUESTION # 68
......
