NEW QUESTION # 11

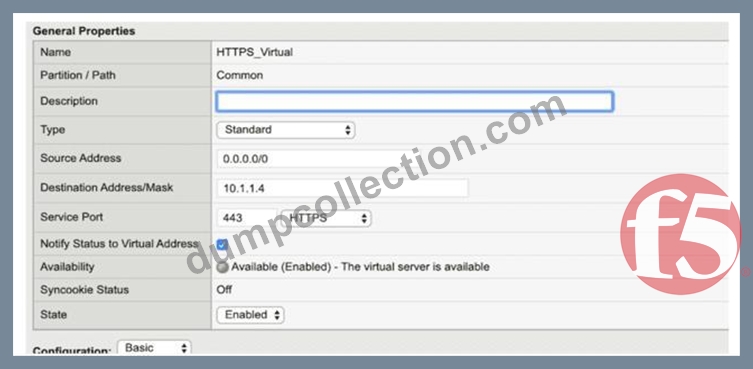

Refer to the exhibit.
A BIG-IP Administrator configures a Virtual Server to handle HTTPS traffic. Users report that the application is NOT working. Which additional configuration is required to resolve this issue?
Answer: A
Explanation:
According to the provided exhibit, the " SSL Profile (Client) " section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client ' s browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.
A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user ' s connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the " clientssl " or a custom client-side profile from the " Available " list to the " Selected " list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.
NEW QUESTION # 12

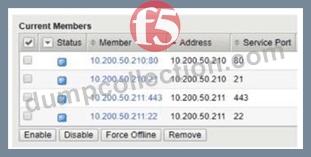

Refer to the exhibit.
A BIG-IP Administrator needs to configure health monitors for a newly configured server pool named Pool_B. Which health monitor settings will ensure that all pool members will be accurately marked as available or unavailable?
Answer: A
Explanation:
The pool member list in the exhibit shows servers listening on four distinct service ports: 80 (HTTP), 21 (FTP), 443 (HTTPS), and 22 (SSH). To accurately monitor a pool where members provide different services, the administrator must apply monitors that correspond to each of those specific services.
The key to this configuration is the Availability Requirement (also known as "Monitor Rule"). If the administrator sets the requirement to "All health monitors," every single monitor (HTTP, HTTPS, FTP, and SSH) must pass for a member to be marked "Up." This would cause an immediate failure: for example, a server listening only on port 80 would fail the HTTPS, FTP, and SSH checks, resulting in the member being marked "Down" even if the HTTP service is healthy.
To ensure accuracy, the administrator should apply all four relevant monitors and set the Availability Requirement to at least one monitor. With this setting, the BIG-IP marks a member as "Up" if any of the assigned monitors return a successful response. Therefore, the member at 10.200.50.210:80 will stay "Up" as long as the HTTP monitor passes, even though it fails the FTP, HTTPS, and SSH monitors. This configuration allows a single pool to contain diverse service types while ensuring that the specific port defined for each member is verified correctly. Option C is incorrect because ICMP only checks if the IP is alive, not if the specific service port is functioning.
NEW QUESTION # 13
The BIG-IP Administrator is investigating if better TCP performance is possible for a virtual server. Which built-in profile should be tried first?
Answer: C
Explanation:
F5 provides several pre-configured (built-in) TCP profiles designed to optimize traffic for different network conditions. When an administrator is looking to improve general performance but does not have a specific, narrow use case (like strictly mobile or strictly long-haul WAN), the f5-tcp-progressive profile is the recommended starting point.
The f5-tcp-progressive profile is designed as a modern, high-performance replacement for the older default TCP settings. It incorporates several advanced congestion control algorithms and buffer management techniques that allow it to adapt dynamically to varying network latencies and packet loss scenarios. Unlike f5-tcp-legacy (Option A), which uses older, less efficient stacks, the progressive profile leverages modern TMM (Traffic Management Microkernel) optimizations.
While f5-tcp-mobile (Option B) is highly effective for high-loss cellular networks and f5-tcp-wan (Option D) is optimized for high-latency long-distance links, they can sometimes be too aggressive or poorly suited for standard campus or data center environments. The f5-tcp-progressive profile acts as a "best-of-all-worlds" template that typically provides an immediate performance boost for most web applications by improving window scaling and fast-retransmit behavior. Therefore, it is the procedural "first step" in TCP performance tuning before moving to more specialized, niche profiles.
NEW QUESTION # 14
A BIG-IP Administrator is configuring an SSH Pool with five members. Which Health Monitor should be applied to ensure that available pool members are monitored accordingly?
Answer: C
Explanation:
SSH (Secure Shell) operates over TCP port 22 , making the TCP health monitor the appropriate and correct choice for monitoring pool members in an SSH pool. The TCP monitor establishes a basic Layer 4 connection to each pool member on the designated port, verifying that the server is reachable and actively accepting TCP connections. A successful three-way handshake confirms the pool member is available; a failure marks it down and removes it from load balancing rotation.
The remaining monitor types are inappropriate for this use case:
* UDP monitor operates at Layer 4 but uses the connectionless UDP protocol, which is incompatible with SSH since SSH exclusively uses TCP as its transport.
* HTTP monitor sends a Layer 7 GET request expecting an HTTP response - irrelevant for an SSH service that does not speak the HTTP protocol.
* HTTPS monitor functions identically to HTTP but over TLS - again, completely misaligned with SSH traffic and port behaviour.
For application-specific SSH validation beyond basic TCP connectivity, an external monitor or custom monitor could be used; however, TCP remains the standard and correct built-in monitor for SSH pool verification within the BIG-IP platform.
Reference: BIG-IP Administration - Data Plane Configuration, Module: Health Monitors - Monitor Types and Protocol Alignment.
NEW QUESTION # 15
Refer to the exhibit.
A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers.
What should the BIG-IP Administrator do to resolve the issue? (Choose one answer)
Answer: A
Explanation:
SSH is a Layer 4 TCP-based protocol that operates on TCP port 22 and does not use HTTP in any capacity. In the exhibit, the Virtual Server is configured with an HTTP Profile applied, which is inappropriate for SSH traffic and causes connection failures.
According to the BIG-IP Administration: Data Plane Configuration documentation:
An HTTP profile must only be applied to Virtual Servers handling HTTP or HTTPS traffic.
When an HTTP profile is attached, BIG-IP expects HTTP headers and attempts to parse application-layer data.
Non-HTTP protocols such as SSH, FTP (control), SMTP, and other raw TCP services will fail if an HTTP profile is enabled.
Why the other options are incorrect:
A . Set Protocol to UDP
SSH uses TCP, not UDP. Changing the protocol would break SSH entirely.
B . Set Source Address to 10.1.1.2
The source address setting controls client access restrictions and is unrelated to protocol parsing issues.
C . Set Destination Address/Mask to 0.0.0.0/0
The destination address is already valid for a specific SSH service and does not impact protocol handling.
Correct Resolution:
The BIG-IP Administrator should remove the HTTP Profile (set it to None) so the Virtual Server functions as a pure Layer 4 TCP service, allowing SSH connections to pass through successfully.
