| Certification Vendor: | F5 Networks |
|---|---|
| Exam Name: | F5 Certified BIG-IP Administrator: Data Plane Configuration |
| Exam Number: | F5CAB3 |
| Passing Score: | 247 out of 350 (approximately 70%) |
| Available Languages: | English |
| Real Exam Qty: | 60-80 |
| Exam Duration: | 120 minutes |
| Exam Price: | $160 USD |
| Certificate Validity Period: | 2 years |
| Exam Format: | Multiple Select, Build List, Multiple Choice |
| Related Certifications: | F5 Certified BIG-IP Administrator (F5-CA) F5 Certified Specialist, Data Plane Configuration |
| Sample Questions: | F5 F5CAB3 Sample Questions |
| Exam Way: | Online proctored or test center |
| Pre Condition: | Recommended: F5 Certified Administrator certification or equivalent experience with BIG-IP LTM |
| Official Syllabus URL: | https://www.f5.com/go/certification |
CertJukenは専門的で、たくさんの受験生のために、君だけのために存在するのです。それは正確的な試験の内容を保証しますし、良いサービスで、安い価格で営業します。CertJukenがあれば、F5のF5CAB3試験に合格するのは心配しません。CertJukenは君が最も早い時間でF5のF5CAB3試験に合格するのを助けます。私たちは君がITエリートになるのに頑張ります。
| トピック | 出題範囲 |
|---|---|
| トピック 1 |
|
| トピック 2 |
|
質問 # 17
Local Traffic Network Map: VS_HTTP # POOL_WEB # 192.168.212.30:80 Pool Member | Parent Node
192.168.212.30 Port 80
Why is the virtual server unresponsive to incoming connections?
正解：C
解説：
In the BIG-IP object hierarchy, a Pool Member is a child object of a Node . A pool member represents a specific IP:Port combination, while the parent node represents the underlying server IP address. When a node is disabled , all pool members that are children of that node are rendered unavailable - regardless of the individual pool member ' s own health or enabled state.
The Network Map depicted shows the pool member (192.168.212.30:80) with its Parent Node (192.168.212.30) disabled. This parent-child dependency means that even if the pool member itself is healthy and enabled, the disabled node cascades its unavailable state downward, causing the pool to have no available members and rendering VS_HTTP unresponsive to incoming connections.
The other options can be eliminated as follows:
* Pool member monitor failed - the monitor status is not indicated as failed in the Network Map display.
* Pool member is disabled - the pool member itself is not shown as disabled; the parent node is.
* Node monitor failed - no monitor failure is indicated; the node ' s administrative state is explicitly disabled.
Understanding the node-to-member inheritance of availability state is fundamental to accurate BIG-IP traffic troubleshooting.
Reference: BIG-IP Administration - Data Plane Configuration, Module: Pool Members, Nodes, and Availability State Inheritance.
質問 # 18
A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers.
What should the BIG-IP Administrator do to resolve the issue?
正解：C
解説：
SSH is a TCP Layer 4 protocol. Applying an HTTP profile causes BIG-IP to expect HTTP headers, breaking SSH sessions. Removing the HTTP profile allows raw TCP forwarding.
質問 # 19
A BIG-IP Administrator creates a new VLAN on BIG-IP Cluster Member A and attaches an interface to it.
Although the Auto Config Sync is in place, the new VLAN does NOT show up on Cluster Member B. What should the BIG-IP Administrator do to ensure the new VLAN is configured on each Cluster Member?
正解：A
質問 # 20

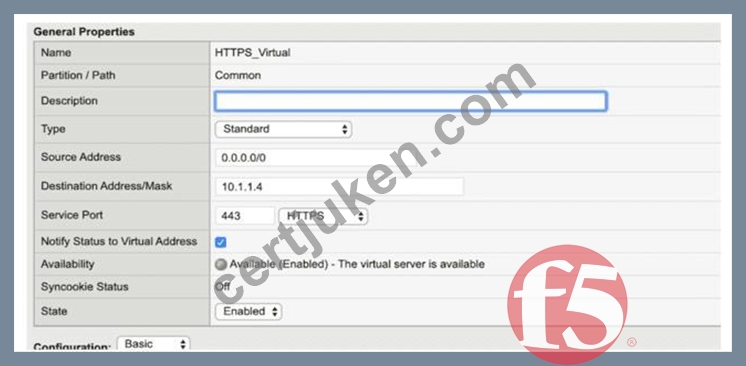

Refer to the exhibit.
A BIG-IP Administrator configures a Virtual Server to handle HTTPS traffic. Users report that the application is NOT working. Which additional configuration is required to resolve this issue?
正解：A
解説：

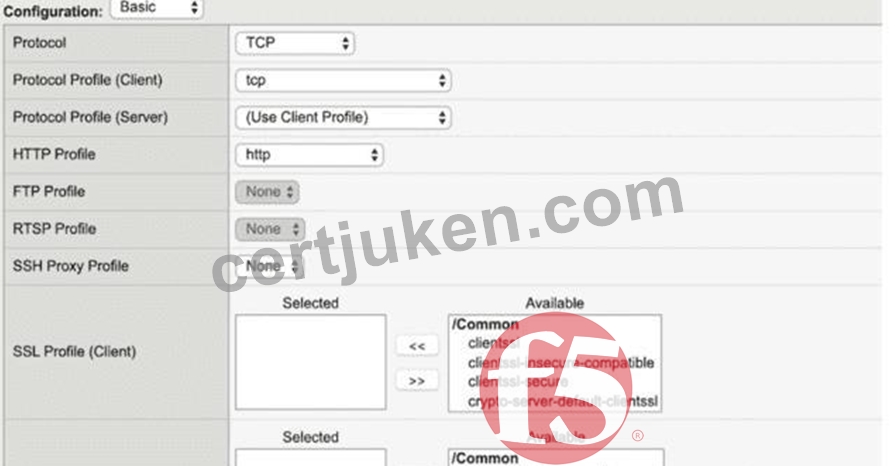

According to the provided exhibit, the "SSL Profile (Client)" section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client's browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.
A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user's connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the "clientssl" or a custom client-side profile from the "Available" list to the "Selected" list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.
質問 # 21
Exhibit:
Due to a change in application requirements, a BIG-IP Administrator needs to modify the configuration of a Virtual Server to include a Fallback Persistence Profile. Which persistence profile type should the BIG-IP Administrator use for this purpose?
正解：A
解説：
In a BIG-IP environment, a Fallback Persistence Profile is utilized as a secondary " stickiness " mechanism when the primary (Default) persistence method fails to provide a valid persistence record. For example, if a Virtual Server uses HTTP Cookie Persistence as its primary method, but a client's browser has cookies disabled, the BIG-IP will be unable to find a persistence cookie in the request. Without a fallback method, the system would treat every request from that client as a new, independent connection, potentially breaking the application session.
Source Address Affinity (also known as Source Address Persistence) is the most common and standard choice for a fallback profile. It operates at the network layer (Layer 3) by tracking the client's source IP address.
Because every IP packet contains a source address, this method is virtually guaranteed to work even when application-layer data (like Cookies or SSL Session IDs) is missing or encrypted beyond the BIG-IP ' s visibility. While Universal (Option A) and Hash (Option D) profiles are highly flexible and can use iRules to persist on almost any data, they require specific configuration and logic that may not always be present or valid. SSL persistence (Option C) relies on the SSL Session ID, which frequently changes due to modern browser security practices (session renegotiation), making it less reliable than Source Address Affinity. By configuring Source Address Affinity as the fallback, the administrator ensures that the BIG-IP has a " safety net " to maintain session integrity based on the client ' s IP address when the more granular cookie-based persistence is unavailable.
質問 # 22
......
