Our 93-Tall-Mass-Timber-Buildings study materials have included all significant knowledge about the exam. So you do not need to pick out the important points by yourself. Also, our 93-Tall-Mass-Timber-Buildings practice engine can greatly shorten your preparation time of the exam. So you just need our 93-Tall-Mass-Timber-Buildings learning questions to help you get the certificate. You will find that the coming exam is just a piece of cake in front of you and you will pass it with ease.
| Section | Objectives |
|---|---|
| Tall Mass Timber Building Code Provisions | - Fire Safety and Fire Resistance
- Structural and Connection Requirements
|
>> 93-Tall-Mass-Timber-Buildings Test Papers <<
Passing the 93-Tall-Mass-Timber-Buildings certification can prove that you are very competent and excellent and you can also master useful knowledge and skill through passing the test. Purchasing our 93-Tall-Mass-Timber-Buildings guide torrent can help you pass the exam and it costs little time and energy. The 93-Tall-Mass-Timber-Buildings exam questions have simplified the sophisticated notions. The software boosts varied self-learning and self-assessment functions to check the learning results. The software of our 93-Tall-Mass-Timber-Buildings Test Torrent provides the statistics report function and help the students find the weak links and deal with them.
NEW QUESTION # 73
In Type IV-C construction, a connection between two members of the primary structural frame supporting a floor is required to be protected to achieve a minimum fire-resistance rating of:
Answer: D
Explanation:
The required minimum rating is two hours. Under 2021 IBC Table 601, the primary structural frame in Type IV-C construction must provide a two-hour fire-resistance rating. A structural connection joining members of that frame cannot be permitted to fail before the members it connects; consequently, the connection must remain functional for the same required period.
The protection requirement applies to the complete connection assembly. This includes steel plates, hangers, bolts, screws, dowels, fasteners, welds, bearing regions, and portions of the connected timber that form part of the connection. Compliance can be achieved through tested construction, calculated wood cover, Type X gypsum protection, another approved noncombustible system, or a combination documented by the registered design professional.
Option A is insufficient because it would leave a one-hour weakness in a two-hour structural load path.
Option B similarly falls short of the required Table 601 rating. Option D is the Type IV-A primary-frame rating and is not required for the stated Type IV-C condition.
The special inspector must verify protective-cover dimensions and installation before connection hardware becomes concealed, including any project-specific inspection required for calculated wood-cover protection.
References/Topics: 2021 IBC Table 601 and Section 2304.10.1; AWC Fire Design Specification, protection of structural connections.
NEW QUESTION # 74
A proprietary field-glued mass timber beam splice will require which of the following:
Answer: C
Explanation:
A proprietary field-glued mass timber beam splice requires special inspection because the connection relies on a field-applied adhesive process that is not covered as a routine prescriptive mass timber connection in Table
1705.5.3. The controlling mechanism is IBC Section 1705.1.1, which authorizes the building official to require special inspection for unusual materials, systems, or installation procedures, particularly where compliance depends on additional manufacturer installation instructions.
The ICC code-development rationale for the tall mass timber provisions specifically identifies field-glued mass timber beam or panel splices as an example of work for which special inspection can be required.
Inspection must address the approved evaluation report and manufacturer's instructions, including substrate preparation, moisture and temperature limits, adhesive storage and expiration, mixing or proportioning, application quantity, open time, member alignment, clamping or pressure, and curing conditions.
Approval by the permit applicant has no regulatory significance. Verification by the registered design professional may supplement the inspection program but does not replace the approved special inspector. A building official may observe the work, but routine field verification by that official is not the prescribed quality-control procedure.
References/Topics: 2021 IBC Sections 1704.2, 1704.3 and 1705.1.1; special cases; proprietary field-glued mass timber splices.
NEW QUESTION # 75

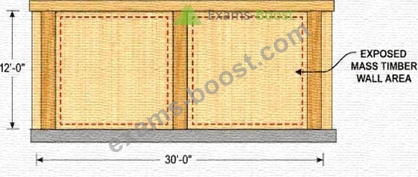

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure is limited to an area equal to not more than what percentage of the base floor area?
Answer: A
Explanation:
The highlighted exposed surfaces in this figure are mass timber wall surfaces . Under 2021 IBC Section
602.4.2.2.2, Exception 1.2, unprotected portions of Type IV-B mass timber walls, including attached columns, are permitted up to an area equal to 40 percent of the floor area in the applicable dwelling unit or fire area.
Option D is therefore correct.
This should be distinguished from the corresponding ceiling limitation. Unprotected mass timber ceilings, including attached beams, are limited to 20 percent of floor area. The larger 40-percent allowance applies specifically to wall exposure.
Where only wall surfaces are exposed, the allowable wall area is calculated directly from the base floor area.
For example, a 1,000-square-foot fire area would permit up to 400 square feet of exposed wall surface under this exception. However, Section 602.4.2.2.4 additionally requires unprotected wall portions to maintain the prescribed 15-foot separation from other applicable exposed wall or ceiling portions.
Where exposed walls and exposed ceilings occur together, the individual 40- and 20-percent limits cannot simply be maximized simultaneously; the mixed-exposure equation in Section 602.4.2.2.3 governs.
References/Topics: 2021 IBC Sections 602.4.2.2.2 through 602.4.2.2.4; Type IV-B wall exposure.
NEW QUESTION # 76
Both surfaces of a two-hour-rated mass timber wall that serves as a required separation between a Group R and Group I-2 occupancy in a Type IV-C building must be protected by at least which of the following?
Answer: D
Explanation:
The minimum additional protection is 1/2-inch gypsum board or an approved equivalent thermal barrier
, making option C correct.
The wall in the question functions as an occupancy separation. Under IBC Section 508.4.4.1, mass timber elements serving as fire barriers or horizontal assemblies separating occupancies in Type IV-B or IV-C construction must be separated from the building interior by an approved thermal barrier consisting of gypsum board at least 1/2 inch thick , or a material satisfying both applicable NFPA 275 thermal-barrier tests.
Because the wall separates two interior occupancies, each face is exposed to interior space; consequently, the thermal-barrier requirement applies to both surfaces .
This requirement must not be confused with the wall ' s two-hour fire-resistance rating. The underlying mass timber wall must independently satisfy the required two-hour assembly performance. The 1/2-inch gypsum protection is an additional thermal-barrier condition imposed because the rated separation is constructed of mass timber in Type IV-C.
Option D would provide substantially more gypsum protection than the specific occupancy-separation provision requires.
References/Topics: 2021 IBC Sections 508.4.4 and 508.4.4.1; Type IV-B/IV-C mass timber occupancy separations; approved thermal barriers; NFPA 275.
NEW QUESTION # 77
Fire-resistance ratings of members and assemblies can be established by all of the following except:
Answer: D
Explanation:
ASTM E84 cannot be used to establish the hourly fire-resistance rating of a structural member or assembly.
Therefore, option B is correct.
ASTM E84 evaluates surface-burning characteristics , principally flame-spread and smoke-developed indices. Those measurements characterize how a material ' s exposed surface behaves when subjected to the standard tunnel test. They do not demonstrate that a wall, floor, roof, beam, column, or structural assembly will maintain integrity and structural performance for one, two, or three hours.
Fire-resistance ratings are instead established through the methods recognized by the IBC, including standard fire testing-principally ASTM E119 or UL 263-prescriptive rated construction provided by Section 721, and calculated fire-resistance procedures under Section 722. The code also recognizes appropriately documented approved designs and other approved methods within the Section 703 framework.
This distinction is particularly important in mass timber work because ASTM E84 may appear elsewhere in the code for flame-spread limitations on materials, but an acceptable E84 result does not establish structural fire endurance.
The special inspector must determine which approved fire-resistance methodology applies and verify that the installed assembly precisely reflects that design.
References/Topics: 2021 IBC Sections 703, 721 and 722; ASTM E119; UL 263; distinction between fire resistance and ASTM E84 surface-burning testing.
NEW QUESTION # 78
......
