At the Test4Cram, we guarantee that our customers will receive the best possible Advanced VMware Cloud Foundation 9.0 Networking (3V0-25.25) study material to pass the VMware 3V0-25.25 certification exam with confidence. Joining this site for the 3V0-25.25 Exam Preparation would be the greatest solution to the problem of outdated material.
NEW QUESTION # 16
An administrator was asked to explain the characteristic and requirements of Centralized Connectivity Mode which is planned to be configured in one of the workload domains in VMware Cloud Foundation (VCF) environment.
Drag and drop four options from the Options list on the left and place them into the Centralized Connectivity Mode on the right in any order. (Choose four.)

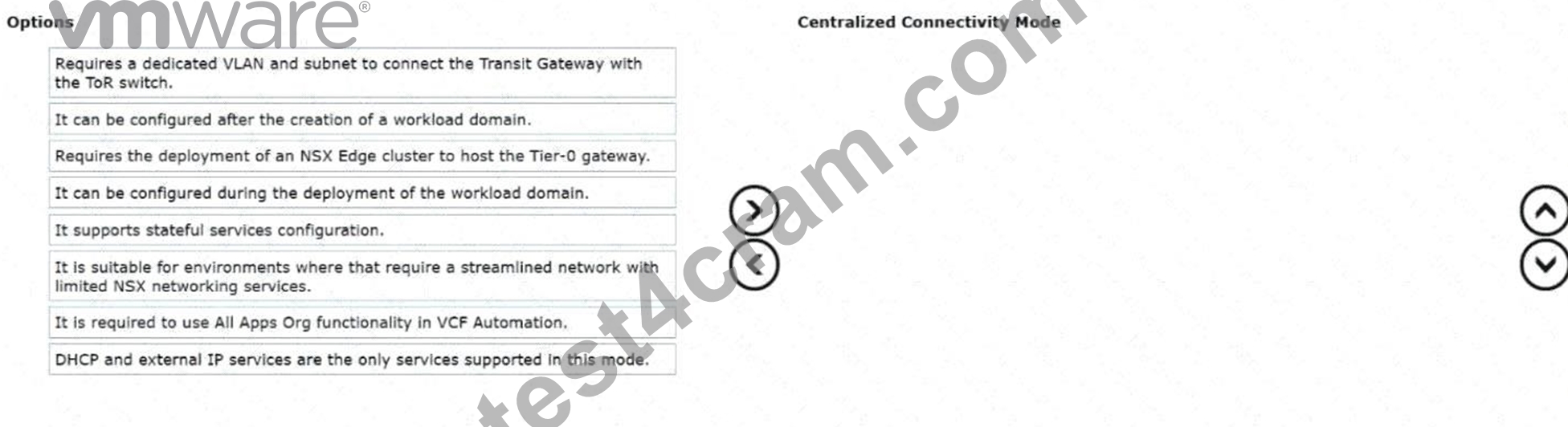

Answer:

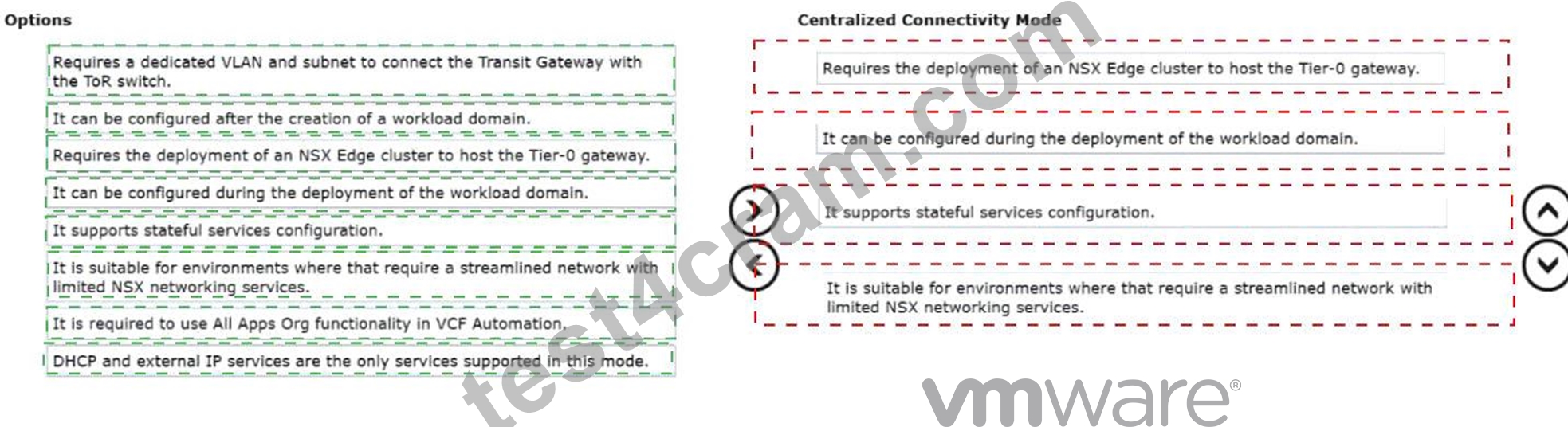

Explanation:
Explanation:
* Requires the deployment of an NSX Edge cluster to host the Tier-0 gateway.
* It can be configured during the deployment of the workload domain.
* It supports stateful services configuration.
* It is suitable for environments that require a streamlined network with limited NSX networking services.
InVMware Cloud Foundation (VCF) 9.0, the networking architecture introduces specialized connectivity modes to cater to different organizational needs, withCentralized Connectivity Modebeing a primary option for streamlined deployments. This mode is fundamentally anchored to the physical infrastructure via localized resources rather than distributed components across the entire cluster.
The most critical technical requirement for this mode is that itrequires the deployment of an NSX Edge cluster to host the Tier-0 gateway. Unlike distributed models, centralized connectivity funnels North-South traffic through specific Edge nodes that serve as the demarcation point between the virtual overlay and the physical Top-of-Rack (ToR) switches. This centralization is what enables the next key characteristic: it supports stateful services configuration. Because traffic is anchored to specific Service Routers (SR) on Edge nodes, stateful operations such as NAT, Load Balancing, and stateful firewalls can maintain session persistence, which is not natively possible in a purely distributed Active/Active ECMP environment without specialized configuration.
From a lifecycle perspective, this mode is highly integrated into the SDDC Manager workflows andcan be configured during the deployment of the workload domain. This allows architects to define the networking posture of a new domain at "Day 0," ensuring that the necessary Edge resources and Tier-0/Tier-1 hierarchies are provisioned automatically to meet the domain's specific requirements.
Finally, Centralized Connectivity Modeis suitable for environments that require a streamlined network with limited NSX networking services. It provides a "cloud-lite" approach to networking, offering the necessary isolation and security of NSX without the complexity of managing a full-scale distributed fabric.
This makes it an ideal choice for smaller workload domains, specialized labs, or legacy application environments that do not require the massive scale of a distributed transit gateway but still need robust stateful security and simplified North-South egress.
NEW QUESTION # 17
An administrator is troubleshooting why workloads in NSX cannot reach the external network 10.100.0.0/16.
The Tier-0 Gateway is in Active/Active mode and has the following configuration:
* Uplink-1 (VLAN 100): 192.168.100.0/24 -> router R1 at 192.168.100.1
* Uplink-2 (VLAN 101): 192.168.101.0/24 -> router R2 at 192.168.101.1
* A static route for 10.100.0.0/16 was added with both next-hops (192.168.100.1 and 192.168.101.1).
* The Scope of this route is set to Uplink-1.
Symptoms:
* Virtual Machines (VMs) cannot reach 10.100.0.0/16
* Traceroute from the VM stops at the Tier-0 gateway with "Destination Net Unreachable"
* Pings from the Edge nodes to both 192.168.100.1 and 192.168.101.1 are success What explains why workloads in NSX cannot reach the external network?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
Troubleshooting routing in a VMware Cloud Foundation (VCF) environment requires a deep understanding of how theNSX Tier-0 Gatewayprocesses forwarding entries. In anActive/Activeconfiguration, the Tier-0 gateway is designed to utilize ECMP (Equal Cost Multi-Pathing) to distribute traffic across multiple paths to the physical network.
The specific failure described-where a traceroute fails at the Tier-0 with "Destination Net Unreachable" despite the Edge nodes having basic ping connectivity to the routers-points toward a routing table entry error rather than a physical connectivity issue. In NSX, when a static route is created, an administrator has the option to set a"Scope."The Scope explicitly tells the NSX routing engine which interface should be used to reach the defined next-hops.
In this scenario, the administrator has defined two next-hops (R1 and R2) but has restricted the scope of the static route toUplink-1 only. Because R2 (192.168.101.1) is on a different subnet/VLAN (VLAN 101) that is associated withUplink-2, the Tier-0 gateway cannot resolve the next-hop for R2 via Uplink-1. Furthermore, if the gateway detects an inconsistency between the defined next-hop and the scoped interface, it may invalidate the route or fail to install it correctly in the forwarding information base (FIB) for the service router.
According to VMware documentation, theScopeshould typically be left as "All Uplinks" or carefully matched to the interfaces that have Layer 2 reachability to the next-hop. By scoping it to only Uplink-1, the router R2 becomes unreachable for that specific route entry. Even for R1, if the hashing mechanism of the Active
/Active Tier-0 attempts to use a component of the gateway not associated with that scope, the traffic will fail.
The error "Destination Net Unreachable" at the Tier-0 hop confirms that the Tier-0 has no valid, functional path in its routing table for the 10.100.0.0/16 network due to this scoping conflict.
NEW QUESTION # 18
An administrator needs to prevent the datacenter from advertising any internal prefixes toward a new VPC, while still ensuring the VPC receives a default route learned from the datacenter's upstream network. Where should the routing policy be applied?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In theVMware Cloud Foundation (VCF) 9.0andNSX VPCarchitecture, theTransit Gateway (TGW)is the central routing element that interconnects VPCs to each other and to the provider's infrastructure (Tier-0 or VRF gateways). It acts as the "Project-level" gateway that aggregates North-South traffic.
To control the visibility of routes within a specific VPC, the administrator must utilizeRoute Filteringat the VPC's boundary. When a VPC is attached to a Transit Gateway, a logical interface is created. To prevent the data center's internal prefixes (such as management networks or other tenant subnets) from being seen by the VPC while still providing a path to the internet, a prefix list or route map should be applied to theVPC Transit Gateway. This policy will explicitly "Deny" specific internal CIDR ranges while "Permitting" the
$0.0.0.0/0$ default route advertisement from the provider.
Applying the policy at theTier-1 gateway(Option B) is technically similar but in the VPC model, the "Tier-1" is often an obscured or automated component of the VPC itself; the Transit Gateway is the designed administrative point for inter-project and North-South policy enforcement. Applying it at theprovider Tier-0 neighbor(Option D) would be too global, affecting all VPCs or projects connected to that Tier-0, rather than the "new VPC" specifically. Therefore, the Transit Gateway provides the necessary granular control for multi- tenant isolation and routing optimization as per the VCF 9.0 networking model.
NEW QUESTION # 19
A sovereign cloud provider has a VMware Cloud Foundation (VCF) stretched Workload Domain across two data centers (AZ1 and AZ2), where site connectivity via Layer 3 is provided by the underlay. The following NSX details are included in the design:
* Each site must host its own local NSX Edge Cluster for availability zones.
* Tier-0 gateways must be configured in active/active mode with BGP ECMP to local top-of-rack switches.
* Inter-site Edge TEP traffic must not cross the inter-DC link.
* SDDC Manager is used to automate NSX deployment.
During deployment of the Edge Cluster for AZ2, the SDDC Manager workflow fails because the Edge transport nodes' TEP IPs are not reachable from the ESXi transport nodes. Which step ensures correct Edge Cluster deployment in multi-site stretched domains?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)stretched cluster or Multi-Availability Zone (Multi-AZ) architecture, the networking design must account for the fact that AZ1 and AZ2 typically reside in different Layer 3 subnets. While the NSX Overlay provides Layer 2 adjacency for virtual machines across sites, the underlying Tunnel Endpoints (TEPs)must be able to communicate over the physical Layer 3 network.
According to the VCF Design Guide for Multi-AZ deployments, when stretching a workload domain, each availability zone should have its own dedicatedTEP IP Pool. This is because TEP traffic is encapsulated (Geneve) and routed via the physical underlay. If the Edge nodes in AZ2 were to use the same IP pool as AZ1 (Option C), the physical routers would likely encounter routing conflicts or reachability issues, as the subnet for AZ1 would not be natively routable or "local" to the AZ2 Top-of-Rack (ToR) switches.
The failure during the SDDC Manager workflow occurs because the automated "Liveness Check" or "Pre- validation" step attempts to verify that the newly assigned TEP IPs in AZ2 can reach the existing TEPs in the environment. To resolve this and ensure a successful deployment, the administrator must define a uniqueAZ2- specific IP Poolin NSX. Furthermore, this pool must be associated with anUplink Profile(or a Sub-Transport Node Profile in VCF 5.x/9.0) that uses the specific VLAN tagged for TEP traffic in the second data center.
This ensures that the Edge Nodes in AZ2 are assigned IPs that are valid and routable within the AZ2 underlay, allowing Geneve tunnels to establish correctly to the ESXi hosts in both sites without requiring a stretched Layer 2 physical network for the TEP infrastructure.
NEW QUESTION # 20
An administrator is upgrading an existing VMware Cloud Foundation (VCF) environment. An NSX Edge Cluster is required to support north-south traffic for a workload domain. How would the administrator initiate the edge cluster deployment?
Answer: B
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the architectural framework ofVMware Cloud Foundation (VCF) 9.0, the deployment and lifecycle management of infrastructure components have transitioned into a unified "Fleet Management" model. While previous versions of VCF (like 4.x or 5.x) relied exclusively on the SDDC Manager UI for the deployment of NSX Edge Clusters, VCF 9.0 centralizes these operations withinVCF Operations(integrated with the functionality formerly known as Aria Operations).
To initiate the deployment of an NSX Edge Cluster for a workload domain, the administrator uses theVCF Operations Fleet Manager. This interface provides a centralized orchestration point for the entire VCF
"fleet." When the deployment is triggered here, the system automates the selection of the underlying ESXi hosts, the configuration of the Virtual Distributed Switch (VDS) trunks, and the instantiation of the Edge VM appliances. This ensures that the deployment adheres strictly to theVMware Validated Solutions (VVS) guidelines and is consistent across all domains.
Option A is incorrect because theVCF Installer(Cloud Builder) is used for the initial "Day 0" bring-up of the Management Domain, not for post-deployment additions to workload domains. Option C and D are incorrect asvCenterand theVAMIdo not possess the multi-component awareness or the SDDC-level automation required to configure NSX Edge Clusters in a VCF context. By usingFleet Manager, VCF ensures that the new Edge cluster is automatically integrated into the SDDC Manager's inventory and lifecycle management workflows, maintaining a "single source of truth" for the entire private cloud environment.
NEW QUESTION # 21
......
