Many people want to be the competent people which can excel in the job in some area and be skillful in applying the knowledge to the practical working in some industry. But the thing is not so easy for them they need many efforts to achieve their goals. Passing the test HPE7-J01 Certification can make them become that kind of people and if you are one of them buying our HPE7-J01 study materials will help you pass the HPE7-J01 test smoothly with few efforts needed.
| Section | Weight | Objectives |
|---|---|---|
| Deployment and Integration | 20% | - Installation and configuration
|
| Storage Architecture and Design | 30% | - Design principles for enterprise storage
|
| Management and Optimization | 15% | - Monitoring and administration
|
| Emerging Technologies and Solutions | 10% | - Software-defined storage and modern architectures
|
| Data Protection and Availability | 25% | - High availability solutions
|
Our company has applied the latest technologies to the design of our HPE7-J01 exam material not only on the content but also on the displays. So you are able to keep pace with the changeable world and remain your advantages with our HPE7-J01 Study Guide. Besides, you can consolidate important knowledge for you personally and design customized study schedule or to-do list on a daily basis with our HPE7-J01 learning questions.
NEW QUESTION # 59
A customer requires the highest possible random read IOPS for an OLTP database while maintaining sub-millisecond latency. Which storage media should be prioritized?
Answer: A
Explanation:
NVMe Storage Class Memory (SCM) delivers extremely low latency and exceptional random IOPS, making it ideal for OLTP workloads. SAS HDD and SATA SSD cannot match its latency profile, while tape is irrelevant for transactional applications.
NEW QUESTION # 60

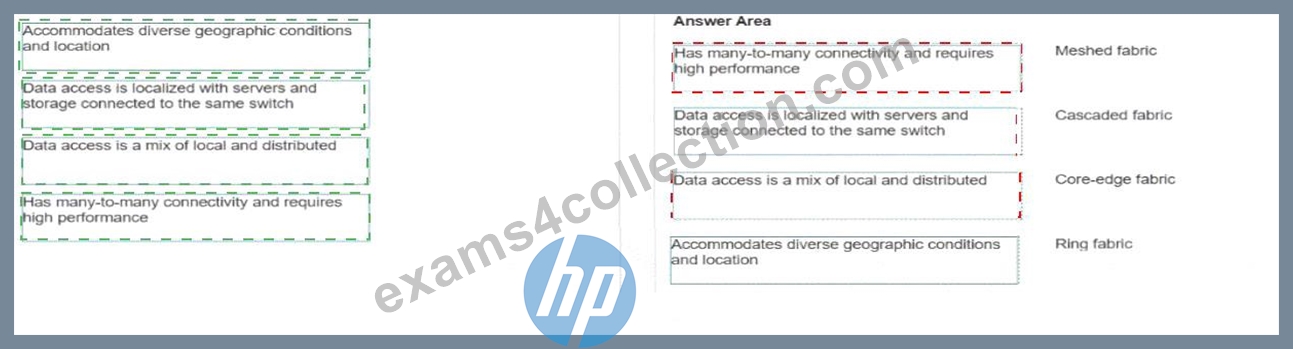

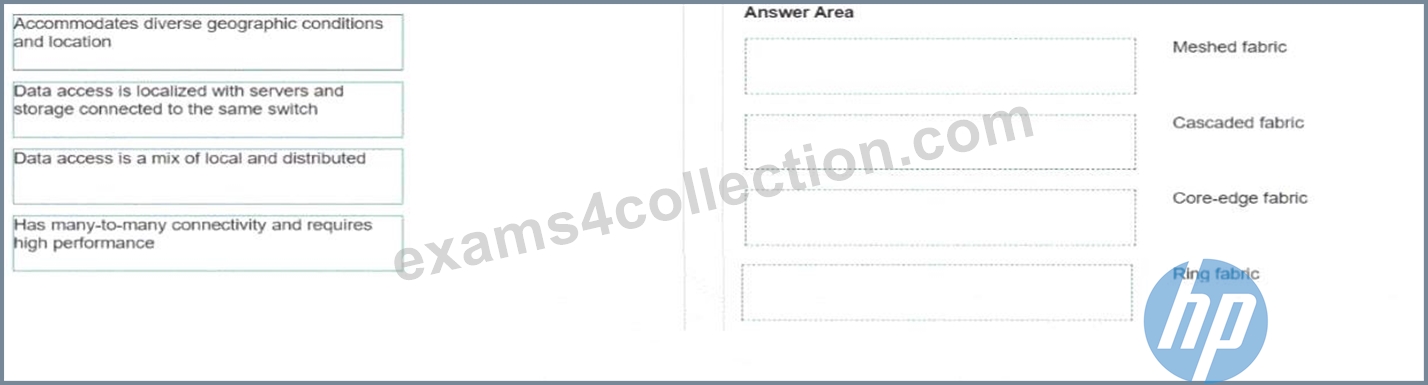

Match the fibre channel topology to its use case. Each answer will be used once.
Answer:
Explanation:
Explanation:
* Meshed fabric: Has many-to-many connectivity and requires high performance.
* Cascaded fabric: Data access is localized with servers and storage connected to the same switch.
* Core-edge fabric: Data access is a mix of local and distributed.
* Ring fabric: Accommodates diverse geographic conditions and location.
In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:
Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to- many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.
Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized-meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.
Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access.
Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.
Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.
NEW QUESTION # 61
Order the steps for a write data path and a successful write IO in HPE GreenLake for File Storage using NAS.
Answer:
Explanation:
Explanation:
* Data is sharded randomly across multiple SCM drives to increase throughput and decrease contention.
* Data is written to two different SCM drives so no data is lost in the event of a SCM drive failure.
* Metadata is updated in the internal data structure (tree) for consistency.
Comprehensive and Detailed 250 to 300 words of Explanation From Advanced Storage Solutions Architect documents and knowledge guide:
The write data path in HPE GreenLake for File Storage (powered by Alletra MP X10000 hardware and VAST Data software) follows a unique Disaggregated Shared-Everything (DASE) architecture. Unlike legacy NAS systems that use front-end caching or complex controller-to-controller talk, this solution leverages Storage Class Memory (SCM) as a persistent write buffer to provide high-sustained performance without the need for traditional data movement between tiers.
The process begins with sharding. When a NAS write request arrives, the system immediately shards the data randomly across multiple SCM drives in the cluster. This sharding is critical because it eliminates hot spots and contention by ensuring that no single drive or node becomes a bottleneck, effectively parallelizing the IO load across the entire storage fabric.
Once the sharding logic is determined, the data is physically written to the SCM tier. To ensure mission- critical resilience, every write is mirrored (written to two different SCM drives). Because SCM is non-volatile random-access memory (NVRAM), the write is persistent the moment it hits the media. This allows the system to send an immediate acknowledgement back to the client while protecting against a drive or node failure.
Finally, the metadata is updated in the internal data structure (the V-Tree). This step ensures the "View" of the file system remains consistent and that the global namespace reflects the newly written data. After this point, the data is asynchronously moved from SCM to high-capacity NVMe SSDs using wide-stripe erasure coding for long-term, efficient storage. This disaggregated flow allows the Alletra MP X10000 to scale performance and capacity independently while maintaining strict data integrity and consistency at AI-scale.
NEW QUESTION # 62
An administrator needs to create an FCIP trunk connection between two data centers to interconnect their Brocade fibre data fabrics. Refer to the exhibit.
Based on this configuration, which statement is correct?
Answer: A
Explanation:
In a Brocade FCIP (Fibre Channel over IP) environment, an extension trunk (or tunnel) can be composed of multiple circuits to provide both increased bandwidth and high availability. The operational state of these circuits-whether they are active or standby-is determined by the Metric assigned to each individual circuit.
According to the Brocade Fabric OS Extension Configuration Guide, all circuits within a tunnel or trunk have a metric of either 0 or 1.
* Metric 0: This is the default value and indicates an active circuit. If multiple circuits are configured with Metric 0, they will operate in an active-active mode, and the load will be balanced across them.
* Metric 1: This indicates a standby (or passive) circuit. Standby circuits with Metric 1 are not used for data transmission unless all Metric 0 circuits within that tunnel/failover group fail.
In the provided exhibit, there is a single VE_Port (Virtual E_Port) trunking three individual IP circuits:
* ge0 is configured with Metric 0 (Active).
* ge1 is configured with Metric 0 (Active).
* ge2 is configured with Metric 1 (Standby).
Therefore, this is a valid configuration where the system will utilize the two Metric 0 circuits (ge0 and ge1) simultaneously for data traffic, providing an active-active load-balanced connection. The third circuit (ge2) will remain in a standby state, only becoming active to maintain the link if both primary circuits go offline.
Options A and B are incorrect because trunks do not require an even number of circuits, and FCIP trunks are specifically established over Ethernet (ge) ports, not native Fibre Channel ports.
NEW QUESTION # 63
An HPE customer purchased an HPE B-Series SN7000B SAN fabric switch. QoS is currently not enabled. Which two statements are correct regarding buffer-to-buffer (BB) credits and the operation of the switch? (Choose two.)
Answer: B,D
Explanation:
The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.
Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.
Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high- density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.
NEW QUESTION # 64
......
With the rapid development of our society, most of the people tend to choose express delivery to save time. Our delivery speed is also highly praised by customers. Our HPE7-J01 exam dumps won’t let you wait for such a long time. As long as you pay at our platform, we will deliver the relevant HPE7-J01 Test Prep to your mailbox within 5-10 minutes. Our HPE7-J01 test prep embrace latest information, up-to-date knowledge and fresh ideas, encouraging the practice of thinking out of box rather than treading the same old path following a beaten track.
