| Section | Weight | Objectives |
|---|---|---|
| Security Policy & Services | 10% | - NAT & IP pool optimization - Advanced firewall & security profile design - Identity-based policies |
| Centralized Management | 20% | - Policy packages & object templates - FortiAnalyzer logging & reporting - FortiManager 7.6 deployment & role assignment - Configuration provisioning & version control |
| Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management - Route redistribution & filtering |
| Monitoring & Troubleshooting | 10% | - Fabric synchronization issues - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis |
| High Availability & Redundancy | 15% | - Session synchronization & failover - Cross-data center redundancy - FGCP/FGSP/vCluster deployment |
| System Architecture & Design | 20% | - FortiOS 7.6 architecture & components - Hardware sizing & resource planning - Security Fabric integration & scaling - VDOM design & multi-tenant deployment |
>> Latest NSE7_FSN_AR-7.6 Exam Registration <<
There is a high demand for Fortinet NSE 7 - Secure Networking 7.6 Architect certification, therefore there is an increase in the number of Fortinet NSE7_FSN_AR-7.6 exam candidates. Many resources are available on the internet to prepare for the Fortinet NSE 7 - Secure Networking 7.6 Architect exam. Dumpexams is one of the best certification exam preparation material providers where you can find newly released Fortinet NSE7_FSN_AR-7.6 Dumps for your exam preparation.
NEW QUESTION # 141

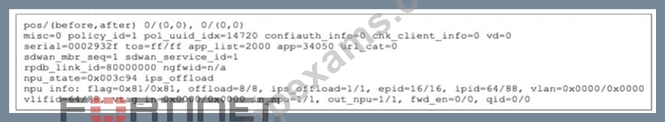

Refer to the exhibit.
The partial output of a session table entry is shown.
Which two statements about the output shown in the exhibit are correct? (Choose two.)
Answer: C,D
Explanation:
The correct answers are B and C. The session table output clearly shows policy_id=1, which means the traffic matched firewall Policy ID 1. That directly validates option B. The output also shows NPU-related offload indicators, including npu_state=... ips_offload and npu info: ... offload=8/8, ips_offload=1/1. These fields indicate that the session has been offloaded to hardware, so option C is correct. The study guide explains that FortiGate can offload sessions to network processors after session establishment, allowing subsequent packets to bypass normal CPU/kernel processing for improved performance. It also states that offloaded sessions are handled by the network processor rather than the CPU path.
Option A is too specific and is not proven by the exhibit. The output shows NPU offload, but it does not explicitly identify the hardware as NP7. Do not assume NP7 unless the platform or output confirms it. Option D is wrong because the VLAN-related fields show vlan=0x0000/0x0000 and vtag_in=0x0000/0x0000, which means the traffic is not VLAN-tagged.
NEW QUESTION # 142
Exhibit.
Refer to the exhibit, which shows a FortiGate configuration.
An administrator is troubleshooting a web filter issue on FortiGate. The administrator has configured a web filter profile and applied it to a policy; however the web filter is not inspecting any traffic that is passing through the policy.
What must the administrator do to fix the issue?
Answer: D
Explanation:
The exhibit shows a FortiGate configuration under config system fortiguard related to web filtering and FortiGuard options. There is a line:
set webfilter-force-off enable
According to official Fortinet documentation, the " webfilter-force-off " option, when enabled, causes the FortiGate to bypass web filtering for all traffic-even if a web filter profile is applied to a policy.
This override is typically used for troubleshooting or performance reasons and is documented as an explicit bypass feature.
If an administrator wants to enforce web filtering inspection, this setting must be disabled. The correct way to restore web filtering functionality is to run:
set webfilter-force-off disable
Once done, traffic passing through policies with web filter profiles will be inspected and filtered as per configuration. Other settings such as timeout or cache TTL do not bypass web filtering; they only affect operational nuances.
Reference:
FortiOS Administration Guide: Web Filtering, FortiGuard Options, "webfilter-force-off" CLI
NEW QUESTION # 143

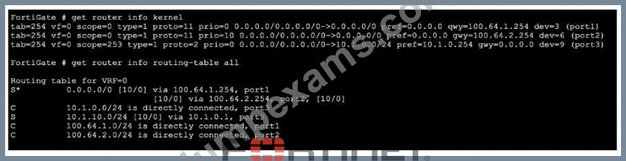

Refer to the exhibit, which shows partial outputs from two routing debug commands.
Which change must an administrator make on FortiGate to route web traffic from internal users to the internet, using ECMP?
Answer: C
Explanation:
The 7.6 study guide explains the route selection order:
"Route Selection Process
* Most specific route
* Lowest distance
* Lowest metric (dynamic routes)
* Lowest priority (static routes)
* ECMP (static, BGP, and OSPF routes)"**
It then states:
"If there are multiple routes with the same netmask, distance, metric, and priority, FortiGate shares the traffic among all of them. This is called equal-cost multi-path (ECMP)." The FortiOS administration guide confirms the ECMP prerequisite:
"Routes must have the same destination and costs. In the case of static routes costs include distance and priority." In the exhibit, the kernel/FIB output shows the two default routes as:
* gwy=100.64.1.254 dev=3 (port1) prio=0
* gwy=100.64.2.254 dev=6 (port2) prio=10
So although both are default routes, their priorities are different . Since FortiGate uses the FIB/kernel for forwarding traffic, ECMP will not happen until the static-route priorities are the same. The study guide also notes that the FIB is the table used to perform standard routing Therefore, to make the two default routes eligible for ECMP, the administrator must make the priorities equal.
Since port2 is already 10, the needed change is to set the port1 default route priority to 10.
Why the other options are wrong:
* A is wrong because snat-route-change affects how existing SNAT sessions react to routing changes, not whether static routes qualify for ECMP
* B is wrong because changing port2 to priority 1 still would not match port1 at 0, so the routes still would not have equal cost for ECMP
* C is wrong because preserve-session-route affects existing-session route persistence after routing changes, not ECMP qualification
NEW QUESTION # 144

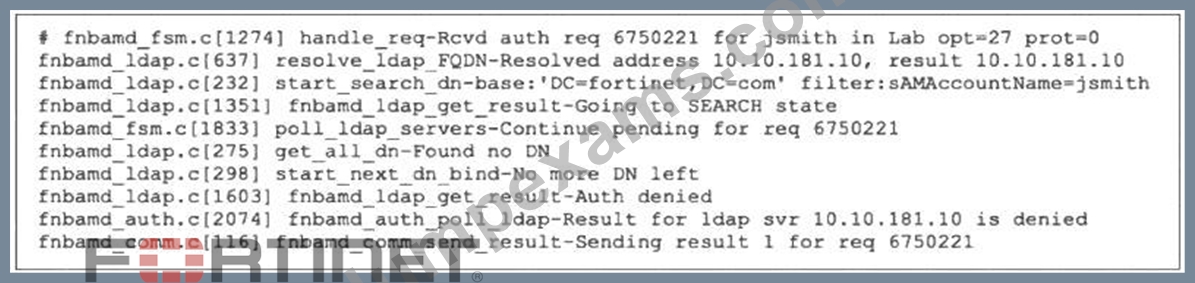

Refer to the exhibit, which shows a partial output of the real-time LDAP debug.
What two actions can the administrator take to resolve this issue? (Choose two.)
Answer: A,C
NEW QUESTION # 145

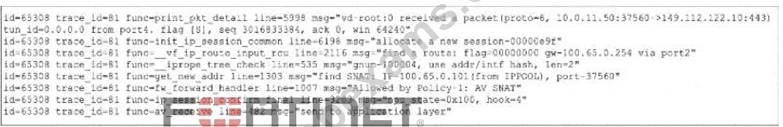

Refer to the exhibit.
Which two observations can you make about the web filter traffic captured using the flow tool? (Choose two.)
Answer: B,C
Explanation:
Analyze the " Send to Application Layer " Message:
The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer
"
Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.
Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.
Evaluate Option B (Firewall Policy Mode):
Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow- based, the traffic would stay in the flow path. Thus, Option B is correct.
Evaluate Option C (Web Filter Profile Mode):
In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.
Why Option A is Incorrect (NPU Offload):
The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.
Why Option D is Incorrect (Port Mapping):
While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.
Reference:
FortiGate Troubleshooting (Debug Flow): " If the debug flow shows msg= ' send to application layer ' , it confirms the traffic is being handled by the proxy (WAD) for Proxy-based inspection. "
NEW QUESTION # 146
......
