NEW QUESTION # 61
An administrator is attempting to confirm the successful transmission between an internal VM to an external destination.
An ICMP request packet is being sent from Sa-transit-web-01 to the Student Desktop in the diagram.
Drag and Drop the commands output into their appropriate originating NSX object.

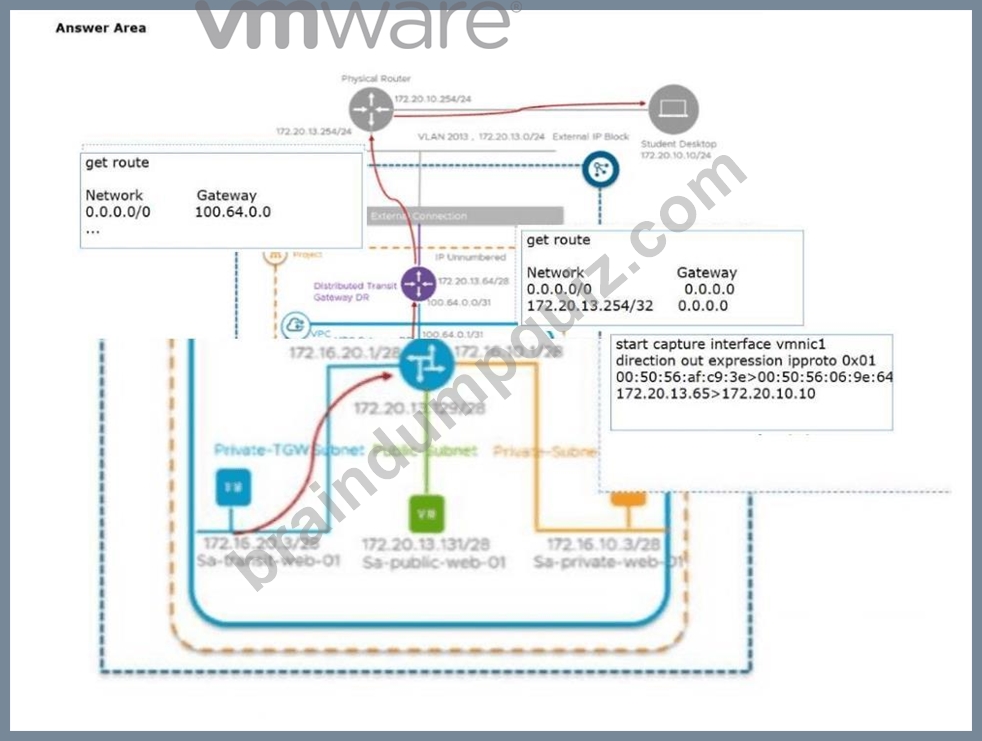

Answer:
Explanation:
Explanation:
In a modernVCF 9.0environment using theVirtual Private Cloud (VPC)model, North-South traffic follows a specific hierarchical path. When a VM, such asSa-transit-web-01, initiates an ICMP request to an external destination (the Student Desktop), the packet must traverse the VPC's internal routing before exiting to the physical network.
The first hop is theVPC Tier-1 Gateway. This gateway manages the localized subnets within the VPC. In this architecture, the VPC Tier-1 is typically configured with a default route ($0.0.0.0/0$) pointing to the Transit Gateway (TGW). The gateway address 100.64.0.0 represents the provider-side interface of the Router Link connecting the VPC to the Transit Gateway. Thus, the command output showing the default route to 100.64.0.0 belongs to the VPC Gateway.
The second hop is theDistributed Transit Gateway DR. The Transit Gateway acts as the aggregation point for multiple VPCs and provides the bridge to the physical datacenter fabric. The command output for this object shows a default route with a gateway of 0.0.0.0, indicating it is directly peered or using a specific unnumbered interface to reach the physical router. Additionally, it identifies the specific physical router IP (172.20.13.254/32) as a known local next-hop, which is a common characteristic of the Transit Gateway's forwarding table when performing North-South transitions.
Finally, theTransport Node (ESXi Host)is where the physical packet capture occurs. As the packet exits the virtual environment, it is placed on a physical uplink (vmnic1). The packet capture output confirms the transformation of the traffic: it shows the source IP of the VM (or its translated NAT address 172.20.13.65) reaching out to the destination 172.20.10.10. The inclusion of ipproto 0x01 (ICMP) and the specific MAC addresses confirms that the packet has successfully traversed the NSX overlay and is now a standard Ethernet frame on the physical wire.
NEW QUESTION # 62
An administrator changed the SFTP server used for scheduled NSX Manager backups. The backup jobs now fail with the error "Host KEY Verification Failed." The connectivity and credentials are correct. How would an administrator resolve the error?
Answer: B
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a
"Trust on First Use" (TOFU) model for verifying the identity of the remote host.
When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprint and stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.
The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration.
Because the signatures do not match, the NSX Manager aborts the connection for security reasons.
To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:
* Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).
* Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.
* Editing the File Server configuration and pasting the new fingerprint into the appropriate field.
Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source
/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.
NEW QUESTION # 63
An administrator is troubleshooting east-west network performance between several virtual machines connected to the same logical segment. The administrator inspects the internal forwarding tables used by ESXi and notices that different tables exist for MAC and IP mapping. Which table on an ESXi host is used to determine the location of a particular workload for frame forwarding?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.
When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. The MAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision.
For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations." If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the final frame forwardingdecision.
TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.
NEW QUESTION # 64
An administrator is upgrading an existing VMware Cloud Foundation (VCF) environment. An NSX Edge Cluster is required to support north-south traffic for a workload domain. How would the administrator initiate the edge cluster deployment?
Answer: B
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the architectural framework ofVMware Cloud Foundation (VCF) 9.0, the deployment and lifecycle management of infrastructure components have transitioned into a unified "Fleet Management" model. While previous versions of VCF (like 4.x or 5.x) relied exclusively on the SDDC Manager UI for the deployment of NSX Edge Clusters, VCF 9.0 centralizes these operations withinVCF Operations(integrated with the functionality formerly known as Aria Operations).
To initiate the deployment of an NSX Edge Cluster for a workload domain, the administrator uses theVCF Operations Fleet Manager. This interface provides a centralized orchestration point for the entire VCF
"fleet." When the deployment is triggered here, the system automates the selection of the underlying ESXi hosts, the configuration of the Virtual Distributed Switch (VDS) trunks, and the instantiation of the Edge VM appliances. This ensures that the deployment adheres strictly to theVMware Validated Solutions (VVS) guidelines and is consistent across all domains.
Option A is incorrect because theVCF Installer(Cloud Builder) is used for the initial "Day 0" bring-up of the Management Domain, not for post-deployment additions to workload domains. Option C and D are incorrect asvCenterand theVAMIdo not possess the multi-component awareness or the SDDC-level automation required to configure NSX Edge Clusters in a VCF context. By usingFleet Manager, VCF ensures that the new Edge cluster is automatically integrated into the SDDC Manager's inventory and lifecycle management workflows, maintaining a "single source of truth" for the entire private cloud environment.
NEW QUESTION # 65
An administrator is tasked to configure NSX Federation between separate VMware Cloud Foundation (VCF) Fleets. Which requirement must all sites meet before being added to a Global Manager (GM) for NSX Federation?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
NSX Federation, a core component of large-scale VCF deployments across multiple sites or "fleets," introduces a hierarchical management model where aGlobal Manager (GM)orchestrates security policies and networking objects across multipleLocal Managers (LMs).
To ensure stability and compatibility in the communication between the Global Manager and the Local Managers, VMware documentation specifies strictversion parityrequirements. When onboarding a site into a Federation, the Local Manager at that site must be running thesame NSX version and buildas the other sites in the Federation and must be compatible with the Global Manager's version. Discrepancies in versions can lead to synchronization failures, as the API schemas and internal database structures for Global Objects (like Global Segments or Groups) may differ between builds.
While Federation allows for geographic and administrative separation, the underlying software-defined networking stack must be synchronized. Option A is incorrect; in fact, VTEP/TEP VLANs and IP poolsshould be unique to each site to avoid IP conflicts in the transport network, though they must have Layer 3 reachability to one another. Option B is incorrect; unique BGP AS numbers are often preferred for multi-site routing to prevent loops. Option C is also incorrect, as Federation is specifically designed to link different VCF instances (sites) together into a single manageable entity.
In aVCF 5.x or 9.0context, the SDDC Manager helps maintain this requirement by ensuring that the "Bill of Materials" (BOM) is consistent across sites intended for Federation. Before the GM can successfully register and "push" configuration to an LM, the handshake process validates the build version to prevent the corruption of the global intended state.
NEW QUESTION # 66
......
