常常一次偶然的IT考試，會成為你奮鬥的力量，會改變你一生的命運。作為 Fortinet 一重要認證科目，NSE6_SDW_AD-7.6 考試是 Fortinet 公司的認證考試官方代號。我們的NSE6_SDW_AD-7.6 題庫參考資料是根據最新的考試動態變化而更新，Fast2test 會在第一時間更新。如果你還為了要不要使用這個網站的培訓資料而感到困惑或者猶豫不決，那麼你可以先在我們網站裏下載部分 NSE6_SDW_AD-7.6 試題及答案，免費試用，如果它很適合你，你可以再去購買也不遲，保證你絕不後悔。

Fortinet NSE6_SDW_AD-7.6 Exam Overview:

Certification Vendor:Fortinet
Exam Name:Fortinet NSE 6 - SD-WAN 7.6 Enterprise Administrator
Exam Number:NSE6_SDW_AD-7.6
Real Exam Qty:30-35
Exam Price:USD 250
Related Certifications:Fortinet NSE 6 - Network Security Specialist
Passing Score:Varies (Approx. 60-70%)
Certificate Validity Period:2 years
Exam Duration:70 minutes
Available Languages:English, Japanese
Exam Format:Multiple-choice, Multiple-select
Sample Questions:Fortinet NSE6_SDW_AD-7.6 Sample Questions
Exam Way:Pearson VUE (Online or Onsite)
Pre Condition:None (Recommended to have NSE 4 certification or equivalent knowledge)
Official Syllabus URL:https://training.fortinet.com/local/staticpage/view.php?page=nse-6-sdwan

>> NSE6_SDW_AD-7.6考試指南 <<

NSE6_SDW_AD-7.6學習筆記，NSE6_SDW_AD-7.6考題資訊

如果你購買了Fast2test的教材，那麼你就獲得了一年免費更新的服務。當考古題被更新時，Fast2test會馬上將最新版的資料發送到你的郵箱。你也可以隨時要求我們為你提供最新版的考古題。如果你想瞭解最新的考試試題，即使你已經成功通過NSE6_SDW_AD-7.6考試，Fast2test也會為你免費更新NSE6_SDW_AD-7.6考試考古題。

Fortinet NSE6_SDW_AD-7.6 考試大綱：

主題簡介
主題 1
  • SD-WAN setup: This domain covers how to deploy an enterprise SD-WAN environment by designing SD-WAN members and zones and configuring them for efficient traffic management. It also focuses on implementing Performance SLAs to monitor link quality and ensure applications use the best available path.
主題 2
  • Advanced IPsec: This section covers the deployment of advanced IPsec configurations within SD-WAN environments. It includes implementing hub-and-spoke IPsec topologies, configuring ADVPN, and supporting multihub, multiregion, and large-scale secure SD-WAN deployments.
主題 3
  • Rules and routing: This section explains how to design and apply SD-WAN rules to control traffic steering across multiple WAN links. It also includes configuring SD-WAN routing to ensure proper path selection and connectivity between networks.
主題 4
  • SD-WAN troubleshooting: This domain explains how to diagnose and resolve issues related to SD-WAN operation. It includes troubleshooting SD-WAN rules, session behavior, routing problems, and ADVPN connectivity to maintain reliable network performance.
主題 5
  • Centralized management: This domain focuses on deploying and managing SD-WAN using FortiManager for centralized control. It includes implementing branch configuration deployment and using SD-WAN Manager with overlay orchestration to simplify large-scale network management.

最新的 Fortinet NSE 6 NSE6_SDW_AD-7.6 免費考試真題 (Q22-Q27):

問題 #22

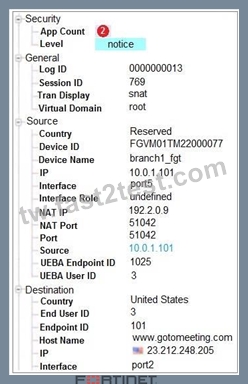

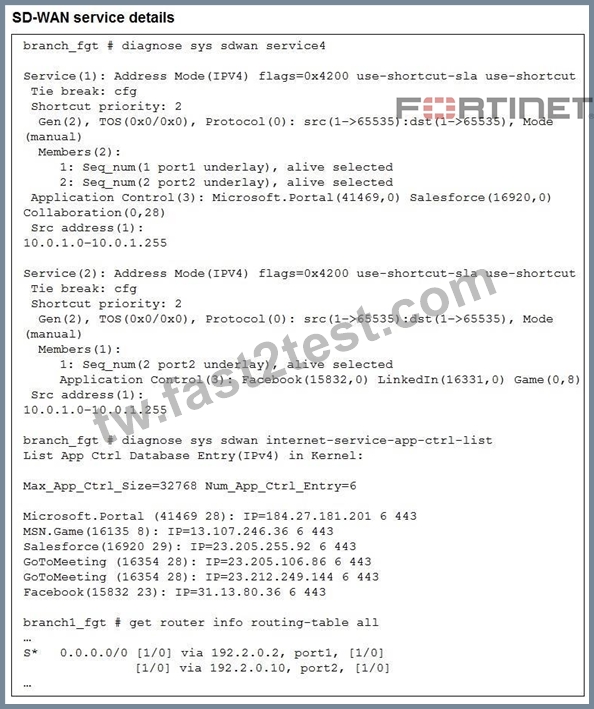

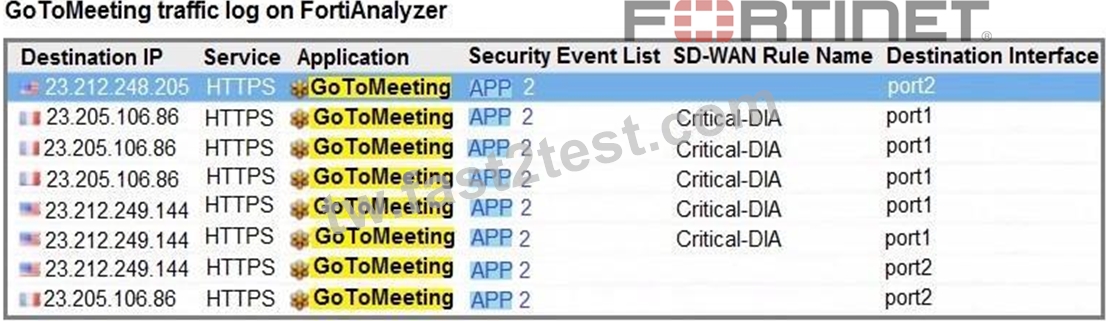

Refer to the exhibits. An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in the first exhibit. After generating GoToMeeting test traffic, the administrator examined the corresponding traffic log on FortiAnalyzer, which is shown in the second exhibit.
The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1.
Which two reasons explain why some log messages show that the traffic matched the implicit SD- WAN rule? (Choose two.)


答案：C,D

解題說明：
The session 3-tuple did not match any of the existing entries in the ISDB application cache.
SD-WAN app steering using Internet Service DB relies on a cache of app IP/port "3-tuples". If the first packets of a new session don't match an entry (e.g., GoToMeeting uses an IP not yet in cache), the session is steered by the implicit rule. That's why some logs show "implicit," while others (when the cache later has a match) hit your explicit rule.
FortiGate could not refresh the routing information on the session after the application was detected.
The path is chosen at session setup. If the app is recognized after the session is established and FortiGate can't (or isn't allowed to) re-route mid-session, it keeps the original SD-WAN decision (implicit rule) for that flow. Subsequent sessions may match the explicit rule once the app/IP is known.


問題 #23

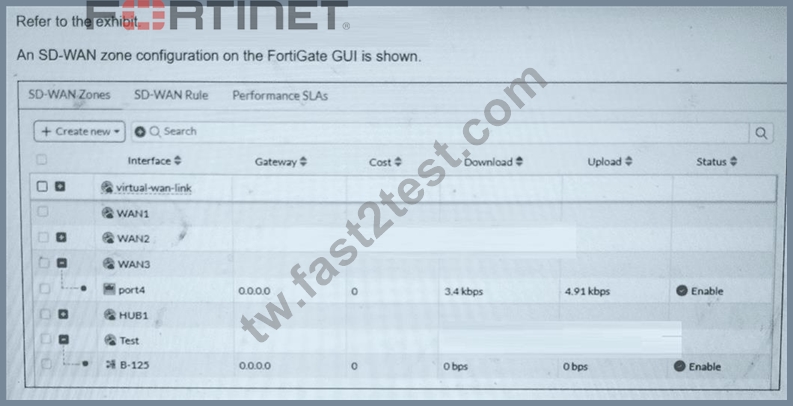

(Refer to the exhibit.

An SD-WAN zone configuration on the FortiGate GUI is shown.
What can you conclude about the zone and member configuration on this device? Choose one answer.)

答案：C

解題說明：
From the SD-WAN Zones view in the FortiGate GUI:
* virtual-wan-link is the default SD-WAN zone. This zone is system-defined and cannot be deleted, which makes option A incorrect.
* The WAN2 zone is displayed without any expandable members beneath it, indicating that no SD-WAN members are currently assigned to the WAN2 zone. This directly supports option B.
* A zone can be deleted only if it has no members and is not system-defined, but the exhibit does not indicate that WAN1 is eligible for deletion. Therefore, option C cannot be concluded from the information shown.
* In FortiOS SD-WAN, an SD-WAN member can belong to only one SD-WAN zone at a time. A member such as B-125 cannot be assigned to both the WAN3 zone and the Test zone simultaneously, which makes option D incorrect.


問題 #24

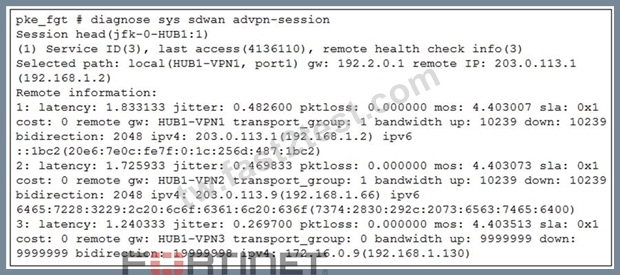

Refer to the exhibit that shows a diagnose output on FortiGate.

Based on the output shown in the exhibit, what can you say about the device role and how it handles health checks?

答案：B

解題說明：
The diagnose output shows multiple ADVPN tunnels (HUB1-VPN1, HUB1-VPN2, HUB1-VPN3) with detailed latency, jitter, and packet loss values being reported for each. In ADVPN, the spoke performs embedded health checks and provides the hub with the performance metrics for each tunnel. Therefore, the device in the exhibit is a spoke, and it is sending health-check measurements for each tunnel to the hub.


問題 #25

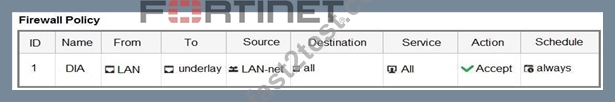

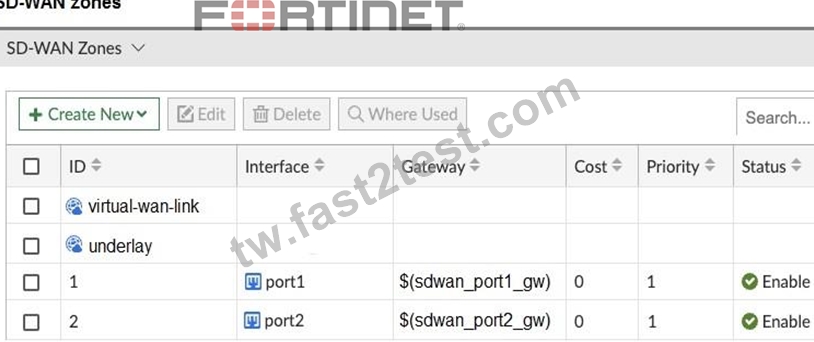

The FortiGate devices are managed by ForliManager, and are configured for direct internet access (DIA). You confirm that DIA is working as expected for each branch, and check the SD- WAN zone configuration and firewall policies shown in the exhibits.

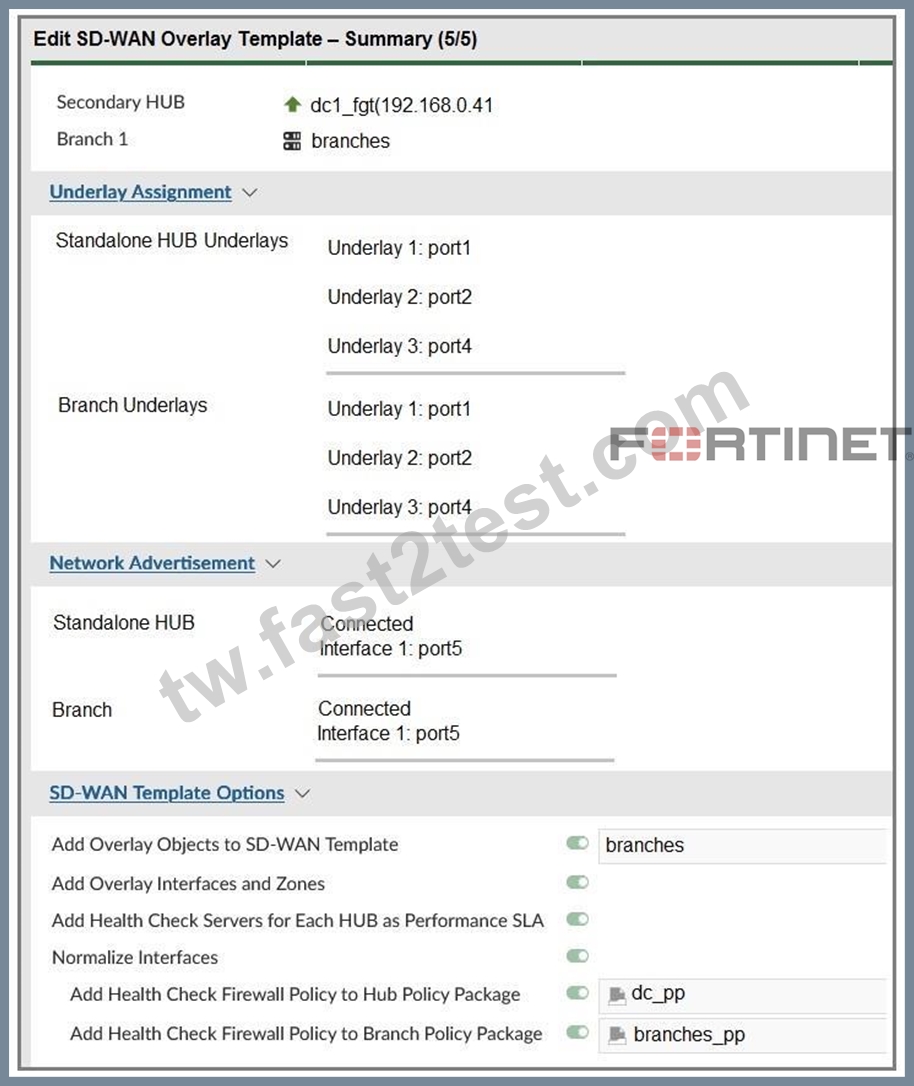

Then, you use the SD-WAN overlay template to configure the IPsec overlay tunnels. You create the associated SD-WAN rules to connect existing branches to the company hub device and apply the changes on the branches.
After those changes, users complain that they lost internet access. DIA is no longer working.
Based on the exhibit, which statement best describes the possible root cause of this issue?

答案：D

解題說明：
The SD-WAN overlay template defines a zone for each underlay interface and moves the interfaces into those zones. This statement perfectly describes the likely sequence of events. The template, when applied, re-organizes the interfaces and zones, causing the existing firewall policy that relies on the old zone configuration to fail. This is the most plausible root cause.


問題 #26
What are three key routing principles of SD-WAN? (Choose three.)

答案：A,D,E

解題說明：
Fortinet outlines key SD-WAN routing principles:
"Policy routes are always evaluated before SD-WAN rules, meaning if a policy route matches, SD-WAN steering is bypassed. If the best route for a destination is not via an SD-WAN member, SD-WAN rules do not apply, and members are ignored if they lack a valid route. This hierarchy ensures traffic always follows the most deterministic and valid path according to configuration." Understanding these principles is critical for correct SD-WAN and routing integration.


問題 #27
......
