In order to facilitate the wide variety of users' needs the C_S43_2601 study guide have developed three models with the highest application rate in the present - PDF, software and online. Online mode of another name is App of study materials, it is developed on the basis of a web browser, as long as the user terminals on the browser, can realize the application which has applied by the C_S43_2601 simulating materials of this learning model, users only need to open the App link, you can quickly open the learning content in real time in the ways of the C_S43_2601 study materials.
| Section | Weight | Objectives |
|---|---|---|
| User Experience and SAP Fiori | 1%-10% | - SAP Fiori Applications
|
| Analytics and Reporting | 1%-10% | - Reporting Capabilities
|
| Preventive Maintenance | 11%-20% | - Maintenance Planning
|
| Refurbishment and Spare Parts Processing | 1%-10% | - Spare Parts Management
|
| Organizational Units and Master Data | 11%-20% | - Enterprise Structure
|
| Maintenance Processing | 21%-30% | - Maintenance Execution
|
| Integration and Extensibility | 1%-10% | - Cross-Application Integration
|
| Technical Objects | 11%-20% | - Technical Object Master Data
|
>> C_S43_2601 Practice Test Engine <<
This cost-effective exam product is made as per the current content of the SAP C_S43_2601 examination. Therefore, using VCEDumps the actual SAP C_S43_2601 dumps will guarantee your successful attempt at the C_S43_2601 Certification Exam. For the convenience of customers, we have designed C_S43_2601 pdf dumps, desktop SAP C_S43_2601 practice exam software, and SAP C_S43_2601 web-based practice test.
NEW QUESTION # 10
Check Inspection Lot and record Inspection Results
The project team evaluates during the implementation project the checking of Inspection Lots Checklist processing including result recording. The following features need to be checked:
* Display the automatically created Inspection Lot
* Record Inspection Results
* Display the automatically created Inspection Lot for the previously created Maintenance Order including Checklist. The Inspection Lot comprises the following data:
* Record Inspection Results for the previously created Inspection Lot so that the Usage Decision is automatically set to Can be used .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 13 Overview
This task focuses on the quality management (QM) integration with maintenance. You will verify the inspection lot that was automatically triggered by your maintenance order and then record the results to confirm the technical object is fit for use.
Step 1: Display the Automatically Created Inspection Lot
Before recording results, you must verify that the system generated the correct inspection lot for your maintenance order.
* Access the Transaction : Enter QA03 (Display Inspection Lot) in the command field and press Enter .
* Locate the Lot : Search for the inspection lot associated with the maintenance order you created in Task 12.

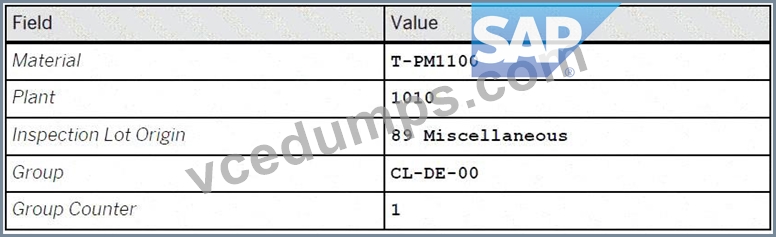

* Verify the Following Data :
* Material : T-PM1100
* Plant : 1010
* Inspection Lot Origin : 89 (Miscellaneous)
* Group : CL-DE-00
* Group Counter : 1
Explanation : The inspection lot is the central record for quality testing. Seeing these specific values (Group CL-DE-00) confirms that the classification you set up in Task 11 correctly triggered the intended inspection plan.
Step 2: Record Inspection Results
This is the process of entering the actual findings from the checklist inspection.
* Access the Transaction : You can navigate directly from the Inspection Lot in QA03 or use transaction QE51N (Results Recording Selection).
* Select the Lot : Enter your inspection lot number and click Execute .
* Record Results :
* Enter the inspection values for each characteristic listed in the checklist.
* Ensure the values you enter are within the "Acceptable" range or marked as "Pass".
* Automatic Usage Decision : Record the results such that the Usage Decision (UD) is automatically set to "Can be used" .
* Save : Click the Save (floppy disk) icon.
Explanation : By recording positive results, you satisfy the quality requirements for the maintenance task.
The automatic transition to "Can be used" status tells the system the pump has passed inspection and the maintenance order can proceed toward completion.
NEW QUESTION # 11
Create a Maintenance Order with Checklists
The project team evaluates during the implementation project Maintenance Orders with Checklists in SAP S
/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Order with Checklist
* Display a Maintenance Order with automatically generated Object List and Checklist.
* Create a Maintenance Order using an Order Type which is already configured for the checklist process.
Use the following data:
* Display the previously created Maintenance Order with automatically generated Object List and Checklist.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 12 Overview
In this task, you will create a maintenance order using a specific order type configured for the checklist process. The system will then automatically generate an object list and a corresponding checklist based on the equipment and task list assigned.
Step 1: Create a Maintenance Order with Checklist
You need to create a new order using a functional location and a specific task list that triggers the checklist functionality.
* Access the Transaction : Use transaction code IW31 (Create Maintenance Order).
* Initial Screen :
* Order Type : Select an order type already configured for the checklist process (typically PM01 or a specific custom type designated for checklists in your training environment).
* Press Enter .
* Enter Header and Location Data :
* Functional Location : Enter 48-01-PRD-01-03-HD .
* Description : Enter a relevant description (e.g., Pump Checklist Maintenance GR48).
* Assign the Task List :
* Go to the Operations tab or find the task list assignment section.
* General Maintenance Task List : Enter A / T-PMCLEN / 1 .
* Press Enter to validate.
* Save : Click the Save (floppy disk) icon.
Explanation : By assigning this specific functional location and general task list, you are triggering the
"Checklist" integration. The system uses the classification data you set up in Task 11 to determine that a checklist (inspection lot) is required for this job.
Step 2: Display and Verify the Checklist
After saving, you must verify that the system correctly generated the technical components of the checklist.
* Display the Order : Use transaction code IW33 and enter the order number you just created.
* Verify the Object List :
* Navigate to the Object List tab.
* You should see the equipment or functional location listed here with a link to the checklist.
* Verify the Checklist :
* Look for a button or tab labeled Checklists or Inspection Lot within the order.
* The system should show that a checklist has been automatically generated for the repair operations.
Explanation : The goal of this step is to confirm that the "Object List" and "Checklist" were created automatically by the system. This proves the background configuration for QM (Quality Management) integration is working correctly with your maintenance order
NEW QUESTION # 12
Task 4: Configure and create Technical Objects
The project team evaluates during the implementation project Technical Object structures in SAP S/4HANA Asset Management. The following features need to be checked:
* Configure and create Functional Locations
* Create, serialize and install Equipment
* Create Functional Location master record ZZ0##-01 and save it. Use the following information:
* Create Equipment master record EQUI-## and save it. Use the following information:
* Serialize the just created Equipment master record EQUI-## . Use the following data:
* Install Equipment EQUI-## at the Functional Location 00-01-ASS-02 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 4: Configure and create Technical Objects
This task evaluates your ability to structure and manage the physical and functional hierarchy of assets in SAP S/4HANA Asset Management.
Step 1: Create Functional Location Master Record
A Functional Location represents the area at which a maintenance task is to be performed.
* Access the Transaction : Use transaction code IL01 (Create Functional Location).
* Enter Initial Data :
* Functional Location : ZZ048-01.
* Structure Indicator : ZZ48.
* Functional Location Category : T.
* Press Enter .
* Enter General Data :
* Description : Production Line Z48.
* Enter Location and Organization Data :
* Maintenance Plant : 1020.
* Cost Center : 4110.
* Planning Plant : 1020.
* Planner Group : Z48.
* Main WorkCtr : T-ME48.
* Work Center Plant : 1010.
* Save : Click the Save icon.
Explanation : By creating this record, you define a specific functional area within Plant 1020 where maintenance costs and history will be tracked for all equipment installed there.
Step 2: Create Equipment Master Record
Equipment represents an individual physical object that is maintained as an autonomous unit.
* Access the Transaction : Use transaction code IE01 (Create Equipment).
* Enter Initial Data :
* Equipment : EQUI-48.
* Equipment Category : T.
* Press Enter .
* Enter General Data :
* Description : Drive Motor GR48.
* Save : Click the Save icon.
Explanation : This step creates a master record for a physical asset-a drive motor-allowing you to track its individual lifecycle, independent of where it is currently installed.
Step 3: Serialize the Equipment
Serialization links a piece of equipment to a specific material and unique serial number for inventory management and tracking.
* Access the Transaction : Use transaction code IE02 (Change Equipment) and enter EQUI-48.
* Navigate to Serial Data : Go to the SerData (Serial Data) tab.
* Enter Serialization Data :
* Material : T-PM8000.
* Serial Number : EQUI-48.
* Save : Click the Save icon.
Explanation : Linking the motor to Material T-PM8000 enables the system to track this specific asset as a serialized part, which is essential for warehouse movements and warranty tracking.
Step 4: Install Equipment at a Functional Location
This establishes the relationship between the physical asset (Equipment) and the functional area where it is operating.
* Access the Transaction : Use transaction code IE02 (Change Equipment) for EQUI-48.
* Modify Installation Location :
* Click on the Structure tab.
* Find the FunctLoc field.
* Enter the location: 00-01-ASS-02.
* Save : Click the Save icon.
Explanation : This installation "plugs" your drive motor into the functional hierarchy at location 00-01-ASS-02. From this point forward, any maintenance performed on this motor will be automatically associated with that location's history.
NEW QUESTION # 13
In the following assessment you will slip into the role of a consultant implementing SAP S/4HANA Asset Management OnPrem/Private Cloud for Machine Manufacturing Inc. . You need to fulfill various system tasks to setup certain business processes and test them.
Note:
In the task descriptions is no information provided if and/or how Asset Management specific customizing settings need to be adapted. This is an implicit part of the exam.
Note:
There is no information provided which UI to use when creating the data in the system e.g. SAP GUI, SAP Fiori Launchpad. This is an implicit part of the exam.
Your performance in each exercise will be evaluated to produce an overall score that determines a pass or fail for the exam. Please read every exercise carefully and enter any data exactly as requested without alteration. Some input data is provided in tables or in the task descriptions, however your input data is not limited to these parameters.
Use the following Logon information for all tasks:
Caution:
Please make sure you are always using your assigned group number (denoted as ## in the following) .
Your results will not be recorded if you are not using your own group number.
For example, if your group number is 10 i.e. (## = 10), your user will be S43900-10.
To find your group number: Click the Access button on the practice system details page. You will find your group number displayed beneath the "Get started" header in the pop-up window. Alternatively, in your Windows Terminal Server, choose the Windows button in the lower left corner. The Start Menu opens. It its upper left corner, choose the Expand icon (three white lines). Find your user name next to the user icon on the left side of the menu - the last two digits of the user name are your group number ##.
Note:
To access your backend system in the Windows Terminal Server, open the SAP Logon application and start the T41 system (Client 400 ). You can access the SAP Fiori Launchpad from the SAP Menu in T41. Always work with user S43900-## in order to have the required roles in place for your tasks.
Caution:
To keep the system running smoothly and avoid unnecessary costs, please follow the assigned exercises carefully when using the SAP Landscape. Avoid going beyond the exercise scope and stay within your allocated resources to help maintain a stable and efficient environment for everyone and to ensure your data is evaluated properly.
Note:
In the following, you will be asked to create new transaction data, among others. If you are asked to create one specific new transaction data object, and - for whatever reason - you create more than one of that kind, SAP will evaluate your newest version only. For example: if you are asked to create a Maintenance Order of a specific Order Type in an exercise and you create three different Maintenance Orders of a specific Order Type, only your order with the highest order number will be evaluated.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task Objective
In this assessment, you assume the role of a consultant implementing SAP S/4HANA Asset Management for Machine Manufacturing Inc. . Your goal is to set up and test specific business processes through various system tasks.
Step 1: Identify Your Assigned Group Number (##)
This is the most critical step, as your results will only be recorded if you use your specific group number, denoted as ## in all instructions.
How to find your number:
* Method A: Click the Access button on the practice system details page; your group number is displayed beneath the "Get started" header.
* Method B: In the Windows Terminal Server, click the Windows button (Start Menu), select the Expand icon (three white lines), and find your user name next to the user icon. The last two digits of that name are your group number.
Step 2: Access the System
You must use the specific credentials provided to ensure you have the required roles for the assessment.
Logon Credentials:
* System : T41
* Client : 400
* User Name/ID : S43900-## (e.g., if your group number is 10, use S43900-10)
* Password : Welcome1
Connection Methods:
* SAP GUI : Open the SAP Logon application in the Windows Terminal Server and start the T41 system (Client 400).
* SAP Fiori Launchpad : This can be accessed directly from the SAP Menu within the T41 system.
Step 3: Understand Implicit Exam Rules
The assessment does not provide exhaustive instructions; certain technical decisions are considered part of the exam.
* Customizing : You must determine if and how specific Asset Management customizing settings need to be adapted.
* User Interface : You are free to choose between the SAP GUI or SAP Fiori Launchpad to create data, as the instructions do not specify which to use.
* Data Accuracy : Enter all data exactly as requested in the tables or descriptions without any alterations.
Step 4: Evaluation of Transaction Data
If you are asked to create a specific transaction object (like a Maintenance Order) and you create multiple versions, the system will only evaluate the newest version (the one with the highest identifying number).
Caution : To ensure your data is evaluated properly and to maintain system stability, stay strictly within the scope of the assigned exercises and your allocated resources.
NEW QUESTION # 14
Create and use a Maintenance Work Center
The project team evaluates during the implementation project the organizational elements in SAP S/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Work Center
* Create a capacity demand for a Maintenance Work Center
* Create a new Maintenance Work Center master record ZZ-ME## for maintenance plant 1010 similar to maintenance work center T-ME00 and save it. Use the following information:
* Create a capacity demand of 1 hour for the just created Maintentance Work Center ZZ-ME## by creating a new maintenance order of order type PM01 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 3: Create and Use a Maintenance Work Center
Objective
In Task 3, the requirement was to:
* create a new maintenance work center ZZ-ME42 for plant 1010 similar to T-ME00
* maintain the required capacity values
* create a 1-hour capacity demand for that work center by creating a maintenance order of type PM01
Part 1: Create the Maintenance Work Center
Requirement from task file
The task required the following values for the work center:
* Plant = 1010
* Work Center = ZZ-ME42
* Description = Mechanical Maintenance 42
* No. Ind. Capacities = 5
* Capacity = 24.00 H
The task also stated that the work center must be created similar to maintenance work center T-ME00 .
Step-by-step procedure
Step 1: Open work center creation
* Go to SAP GUI command field
* Enter transaction IR01
* Press Enter
Transaction IR01 is used to create a new work center. This is the correct starting point for creating the maintenance work center required in Task 3.
Step 2: Enter initial work center data
On the Create Work Center: Initial Screen , enter:
* Plant = 1010
* Work Center = ZZ-ME42
* Work Center Category = 0005
* In Copy from :
* Plant = 1010
* Work Center = T-ME00
Then press Enter .
The task explicitly required the work center to be created for plant 1010 and to be created similar to T-ME00.
Work center category 0005 is the maintenance work center category, so this was the correct category to use for a maintenance work center.
Step 3: Include capacity data during copy
When the Copy from popup appeared:
* select Capacities
* continue with the green check
This was important because the task required changing capacity-related data:
* No. Ind. Capacities = 5
* Capacity = 24.00 H Copying the capacity data ensured the new work center inherited the capacity structure from T-ME00 and could then be adjusted correctly.
Step 4: Maintain basic data
On the work center master screen:
* change the description to Mechanical Maintenance 42
This matches the exact description required by the task.
Step 5: Maintain capacity values
Go to the Capacities tab, then open the capacity detail screen.
Maintain or verify:
* No. Ind. Capacities = 5
* Capacity Base Unit = H
* Capacity recalculated to 24.00 H
In our system, the Capacity field was system-calculated and not directly editable.
The final valid values were achieved with:
* Start Time = 08:00:00
* End Time = 17:00:00
* Length of breaks = 01:00:00
* Capacity Utilization = 60
* No. Ind. Capacities = 5
This produced:
* Capacity = 24.00 H
The task required 24.00 H capacity, but SAP calculated it automatically based on operating time, utilization, and number of individual capacities.
The resulting calculation was correct and matched the task requirement exactly.
Step 6: Save the work center
* Click Save
Later, when trying to create the same work center again, SAP displayed the system message:
* "Work center ZZ-ME42 in plant 1010 already exists"
Explanation / Verification:
This system message confirmed that the work center had already been created successfully.
Therefore, the creation of ZZ-ME42 was verified as complete.
Part 2: Create a 1-Hour Capacity Demand
Requirement from task file
The task required:
* create a capacity demand of 1 hour
* for the newly created maintenance work center ZZ-ME42
* by creating a maintenance order of type PM01
Step-by-step procedure
Step 7: Open maintenance order creation
* In the command field, enter /nIW31
* Press Enter
Transaction IW31 is used to create a maintenance order.
The /n ensured SAP exited the previous transaction and opened the new one directly.
Step 8: Enter order header data
On the Create Maintenance Order: Initial Screen , enter:
* Order Type = PM01
* Planning Plant = 1010
Then press Enter .
The task explicitly required the capacity demand to be created by means of a maintenance order of type PM01 .
Step 9: Enter order description
On the order header screen, enter a short text such as:
* Capacity demand ZZ-ME42
The task did not prescribe a specific short text, so a meaningful description was used for traceability.
Step 10: Create the first operation
In the first operation area / operations overview, maintain:
* Operation = 0010
* Work Center = ZZ-ME42
* Plant = 1010
* Control Key = PM01
* Work Duration / Work = 1
* Unit = H
Then press Enter .
This operation is the actual source of the capacity demand .
The capacity demand is not created merely by the order header; it is created by assigning the operation to the work center with a planned work value of 1 hour .
Therefore, these operation entries were the critical part of fulfilling Task 3.
Step 11: Save the maintenance order
* Click Save
SAP displayed the confirmation message:
* "Order saved with number 4000314"
Explanation / Verification:
This was the final confirmation that the maintenance order had been created successfully.
Because the operation was assigned to ZZ-ME42 with 1 H planned work, this verified that the required 1- hour capacity demand had been created for the work center.
Verified completed objects
The following results were verified during execution:
* Maintenance Work Center created
* Work Center = ZZ-ME42
* Plant = 1010
* confirmed by SAP message that the work center already existed when rechecked
* Capacity maintained correctly
* No. Ind. Capacities = 5
* Capacity = 24.00 H
* Capacity demand created
* maintenance order type PM01
* operation assigned to ZZ-ME42
* planned work = 1 H
* Order successfully saved
* SAP confirmation: Order saved with number 4000314
NEW QUESTION # 15
......
Many people now want to obtain the C_S43_2601 certificate. Because getting a certification can really help you prove your strength, especially in today's competitive pressure. The science and technology are very developed now. If you don't improve your soft power, you are really likely to be replaced. Our C_S43_2601 Exam Preparation can help you improve your uniqueness. And our C_S43_2601 study materials contain the most latest information not only on the content but also on the displays.
C_S43_2601 Exam Training: https://www.vcedumps.com/C_S43_2601-examcollection.html
