質問 # 480
Lab Simulation 48
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology tab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab doses and cannot be reopened.

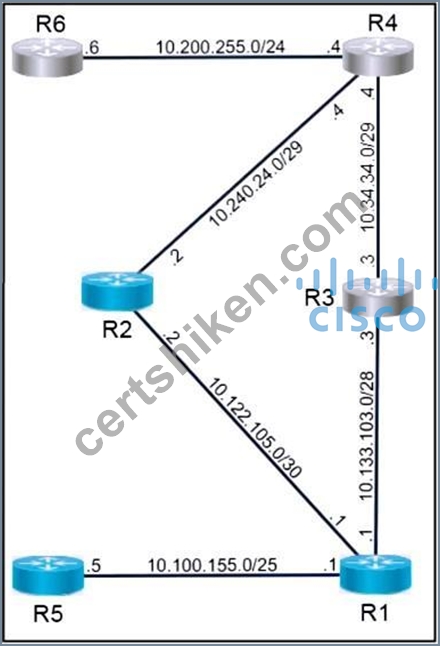

Topology
Tasks
Task 1
- Configure a host route on R5 for the destination of the WAN IP on R6.
- Configure a static default route on R1 preferring the path through R3 towards R6.
- From R5, use traceroute and ping to verify the path towards and reachability of R6.
Task 2
- Configure a floating static default route on R1, preferring the path through R2 towards R6 if the link to R3 should fail.
- Configure the administrative distance for 200.
- Configure a static route on R2 to forward the return traffic towards 10.100.155.0/25.
- After shutting interface e0/1 on R1, use traceroute and ping from R5 to verify path towards and reachability of R6.
正解：
解説：
See the below explanation
Explanation:
Task 1: Configure Host and Default Routes
Step 1: Configure a host route on R5 for the WAN IP of R6 (10.200.255.6): On R5, add a static route pointing to R2:
ip route 10.200.255.6 255.255.255.255 10.100.155.2
Step 2: Configure a static default route on R1 preferring the path through R3 towards R6: On R1, configure the default route pointing to R3:
ip route 0.0.0.0 0.0.0.0 10.133.103.3
Step 3: Verify connectivity from R5 to R6 using ping and traceroute: On R5, test connectivity to R6:
traceroute 10.200.255.6
ping 10.200.255.6
The traceroute should show the path: R5 → R2 → R1 → R3 → R4 → R6. The ping should confirm successful reachability.
Task 2: Floating Static Route and Return Path Configuration
Step 1: Configure a floating static default route on R1: Add a backup static route pointing to R2 with an administrative distance of 200:
ip route 0.0.0.0 0.0.0.0 10.122.105.2 200
Step 2: Configure a static route on R2 for return traffic to 10.100.155.0/25: On R2, add a static route pointing to R5:
ip route 10.100.155.0 255.255.255.128 10.100.155.5
Step 3: Simulate a link failure on R1 by shutting down interface e0/1: On R1, shut down the interface connecting to R3:
interface Ethernet0/1
shutdown
Step 4: Verify the new path using ping and traceroute: On R5, test connectivity again to R6:
traceroute 10.200.255.6
ping 10.200.255.6
The traceroute should now show the path: R5 → R2 → R1 → R2 → R4 → R6. The ping should confirm continued reachability.
Summary of Commands:
On R5:
ip route 10.200.255.6 255.255.255.255 10.100.155.2
traceroute 10.200.255.6
ping 10.200.255.6
On R1:
ip route 0.0.0.0 0.0.0.0 10.133.103.3
ip route 0.0.0.0 0.0.0.0 10.122.105.2 200
interface Ethernet0/1
shutdown
On R2:
ip route 10.100.155.0 255.255.255.128 10.100.155.5
Verifications:
- Traceroute: Validate the correct path for traffic to R6.
- Ping: Ensure end-to-end connectivity to R6 remains operational even after the failure of the primary route.
質問 # 481
Which two functions are performed by the core layer in a three-tier architecture? (Choose two)
正解：A、D
質問 # 482

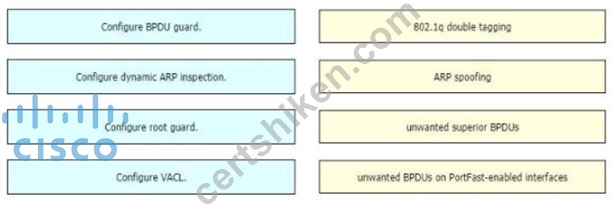

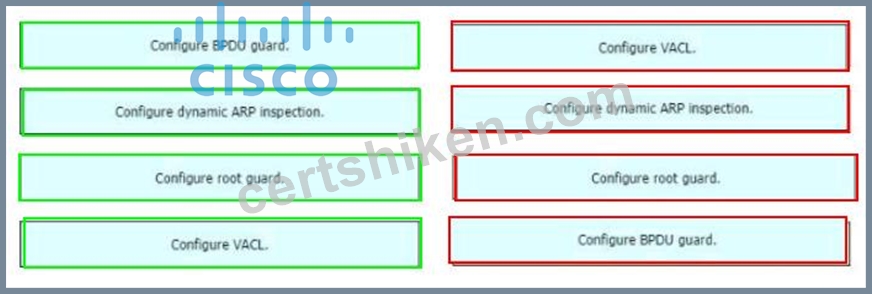

Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.
正解：
解説：
Explanation:
質問 # 483
When OSPF learns multiple paths to a network, how does it select a route?
正解：D
解説：
It divides a reference bandwidth of 100 Mbps by the actual bandwidth of the existing interface to calculate the router with the lowest cost.. OSPF decisions depend on router IDs, area membership, matching timers, network type, interface state, and cost calculation rather than arbitrary route preference. Cisco CCNA 200-301 v1.1 includes this topic under IP Connectivity, so the answer must be validated against normal Cisco device behavior and the operational wording of the scenario. The key is not simply recognizing a familiar acronym; it is identifying what the feature does, where it is configured, and what result it produces. Distractors that mention process IDs, unrelated metrics, or the wrong interface parameter do not satisfy OSPF neighbor or route-selection requirements. In a real network, selecting the wrong option would either leave the feature nonfunctional, create a forwarding or security gap, or send troubleshooting in the wrong direction. The selected answer is the only one that matches the stated requirement and the way Cisco switching, routing, services, security, wireless, or automation functions are expected to operate. This is why the verified answer remains the best technical choice for the question.
質問 # 484

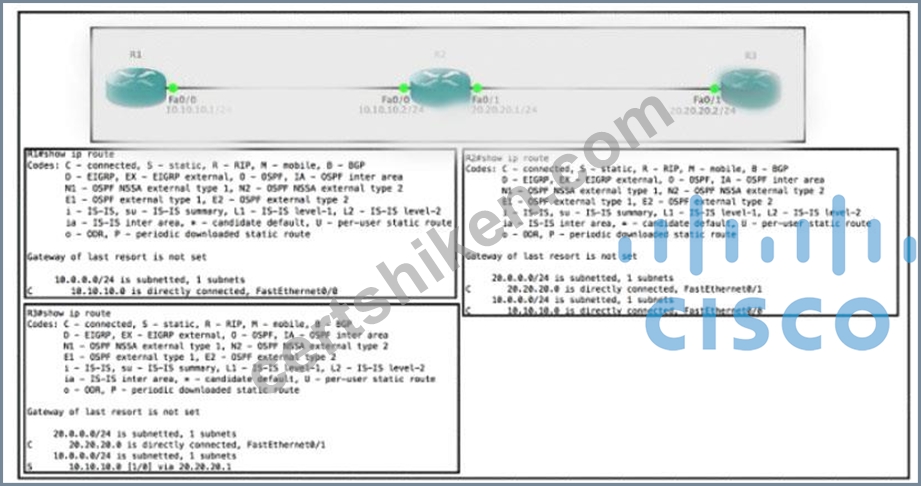

Refer to the exhibit.
Router R1 Fa0/0 cannot ping router R3 Fa0/1.
Which action must be taken in router R1 to help resolve the configuration issue?
正解：C
質問 # 485
......
