NEW QUESTION # 35

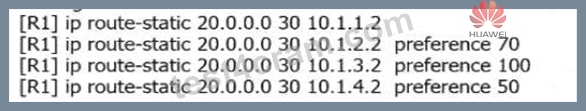

R1 has four static routes, each of which has a reachable next hop. Given this static route configuration, what is the next hop of the route to 20.0.0.0/30 in R1's routing table?
Answer: D
Explanation:
All four configured static routes have the same destination prefix, 20.0.0.0/30, and the question states that every next hop is reachable. Huawei route selection first considers route preference when choosing among routes from the same or different route sources. For static routes, a smaller preference value means a higher priority. The four preferences shown are 60 for next hop 10.1.1.2, 70 for 10.1.2.2, 100 for 10.1.3.2, and 50 for
10.1.4.2. Because 50 is the smallest preference, the route through 10.1.4.2 is selected as the active route in the IP routing table. The other configured static routes can remain as lower-priority alternatives and may become active if the preferred route becomes invalid, depending on reachability and configuration. Equal-cost load balancing would require routes with the same relevant preference and cost after route selection. That is not the case here. Therefore, the next hop of the selected route to 20.0.0.0/30 is 10.1.4.2, making option A correct.
NEW QUESTION # 36

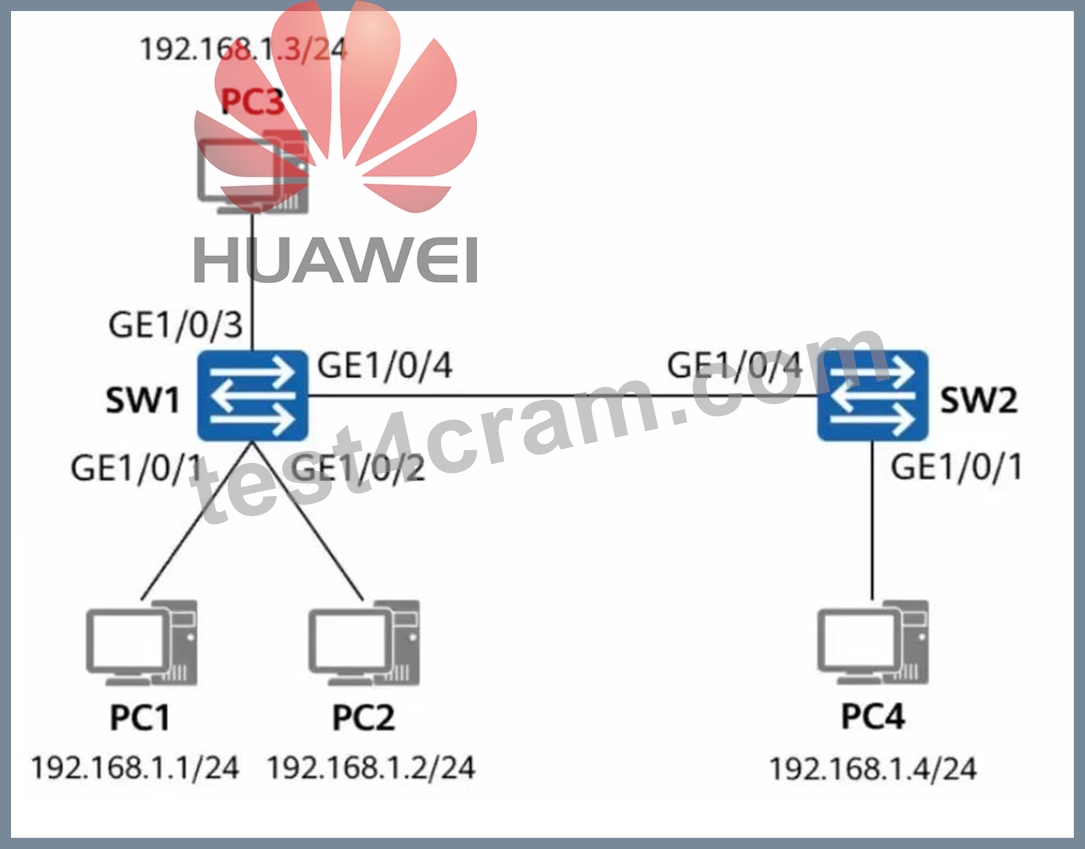

On the network shown in the figure, the interfaces connecting switches to terminals are access interfaces, and the interfaces connecting switches to each other are trunk interfaces. The administrator configures interface- based VLAN assignment. PC1 and PC3 belong to VLAN 2, and PC2 and PC4 belong to VLAN 3. Trunk interfaces allow packets from VLAN 2 and VLAN 3 to pass through and use the default PVID. The MAC address tables of switches are empty. When SW1 receives a unicast data frame sent from PC1 to PC3, through which of the following interfaces does SW1 not send the data frame?
Answer: B,D
Explanation:
PC1 and PC3 are members of VLAN 2, while PC2 and PC4 are members of VLAN 3. SW1 receives the frame from PC1 on access interface GE1/0/1 and associates it with VLAN 2. Because all switch MAC address tables are initially empty, PC3 ' s destination MAC address is unknown to SW1. The switch therefore floods this unknown unicast frame only through other interfaces that can carry VLAN 2. GE1/0/3 connects to PC3 in VLAN 2, so it is a valid flood port. GE1/0/4 is a trunk that permits VLAN 2 and VLAN 3, so it is also eligible to carry the VLAN 2 frame. SW1 does not send the frame back through GE1/0/1, the ingress interface, and it does not send it through GE1/0/2 because that access port belongs to VLAN 3. Therefore, the interfaces through which SW1 does not send the frame are GE1/0/2 and GE1/0/1, corresponding to A and D.
NEW QUESTION # 37
Which of the following configurations is used to configure the WPA2 security policy on a Huawei WAC?
Answer: A
Explanation:
WPA2 security policy on a Huawei WAC is configured using the WPA2-specific command together with PSK (pre-shared key) authentication and encryption method (such as AES). The correct configuration explicitly specifies WPA2 and PSK together, ensuring the WLAN uses WPA2-PSK security mode with AES encryption for secure wireless access.
NEW QUESTION # 38

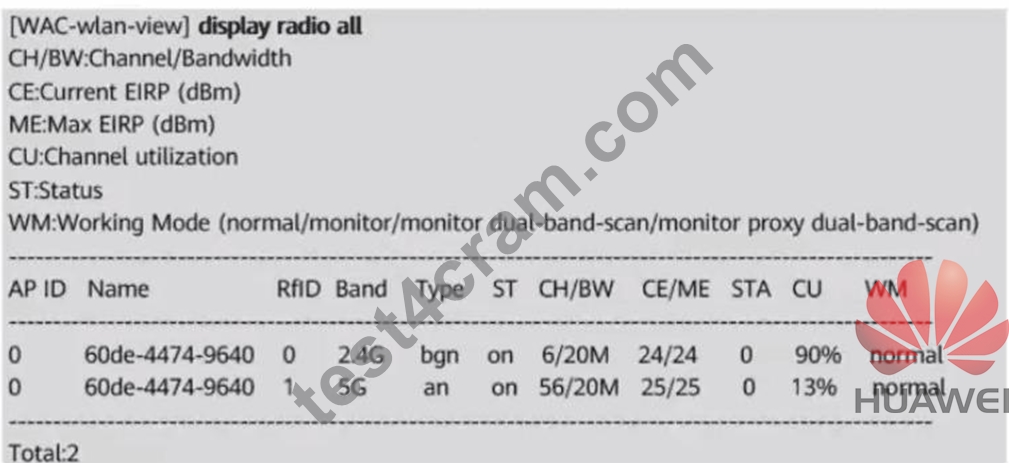

An enterprise has deployed a Huawei WLAN, but some STAs cannot associate with wireless signals. To troubleshoot this issue, you log in to the WAC and run related commands. The command output is as follows.
According to the command output, which of the following is the possible cause of the STA association failure?
Answer: B
Explanation:
The command output in the exhibit shows that both AP radios are enabled, so a disabled radio is not supported by the evidence. The 5 GHz radio has relatively low channel utilization, while the 2.4 GHz radio reports channel utilization of approximately 90 percent. Such a high utilization value indicates that the air interface is heavily occupied by transmissions or interference. Huawei WLAN troubleshooting guidance identifies a busy air interface and a heavily loaded AP as possible causes of STA association failures because management and authentication frames may be delayed or lost when contention is severe. The displayed radio information alone does not prove that the affected STAs are in a blacklist or absent from a whitelist; those conditions require separate STA or VAP access-control information. Therefore, option A is the only choice directly supported by the command output. The correct troubleshooting interpretation is that excessive channel utilization on the radio can make the air interface busy and prevent some STAs from completing association successfully. The verified answer is A.
NEW QUESTION # 39

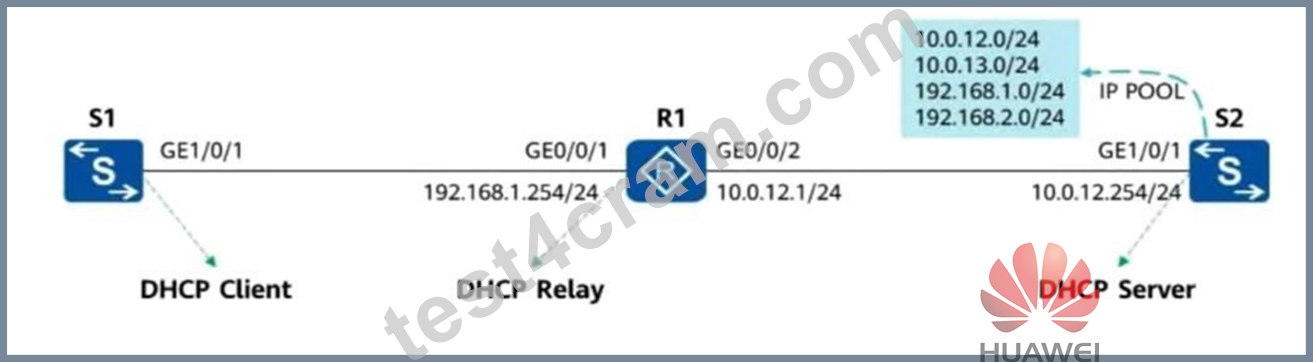

On the network shown in the figure, S2 serves as a DHCP server and has four address pools, R1 functions as a DHCP relay agent, and S1 is a DHCP client. Which of the following IPv4 addresses can be assigned to S1 through DHCP?
Answer: A
Explanation:
S1 is a DHCP client and will receive an IP address from the DHCP server S2 via the relay agent R1. The DHCP server has multiple pools, and only the pool matching the client-side network of S1 (192.168.1.0/24) applies. Therefore, the only valid address that can be assigned to S1 must come from the 192.168.1.0/24 subnet. Among the options, only 192.168.1.108/24 belongs to that correct address pool.
NEW QUESTION # 40
......
